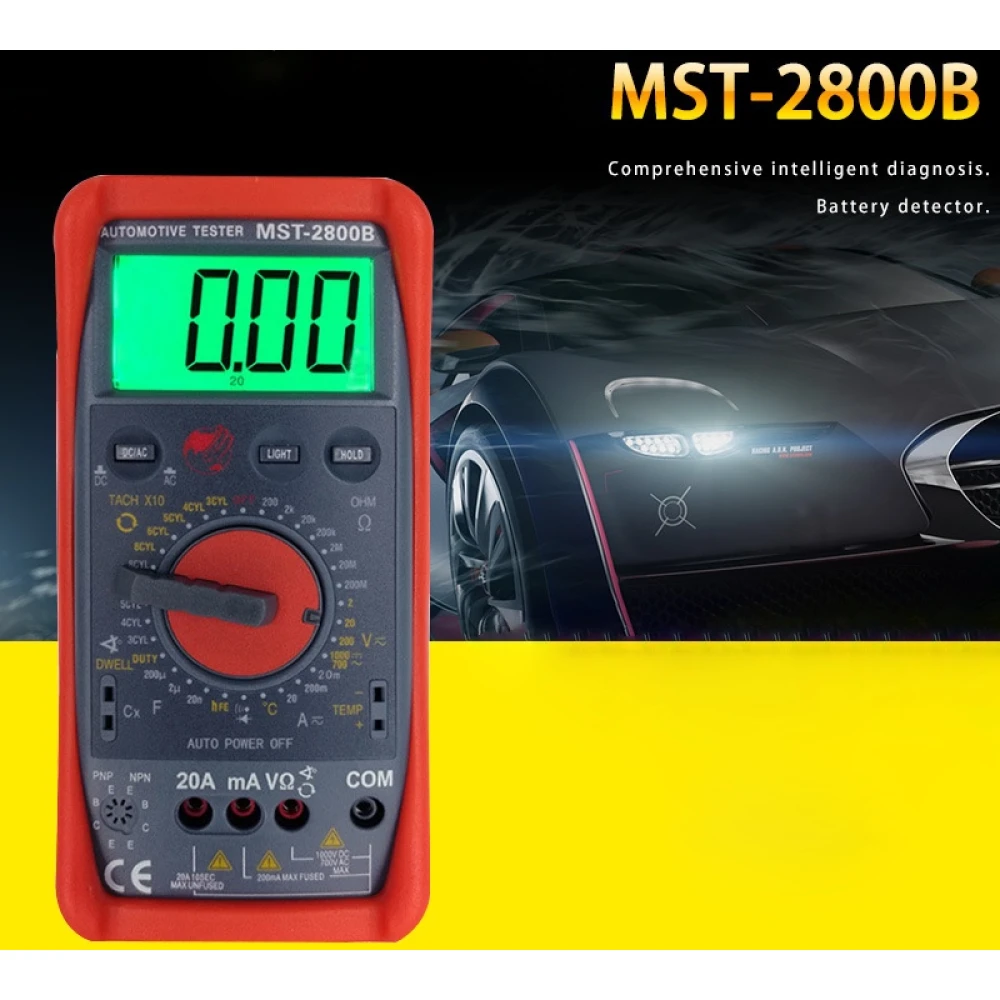

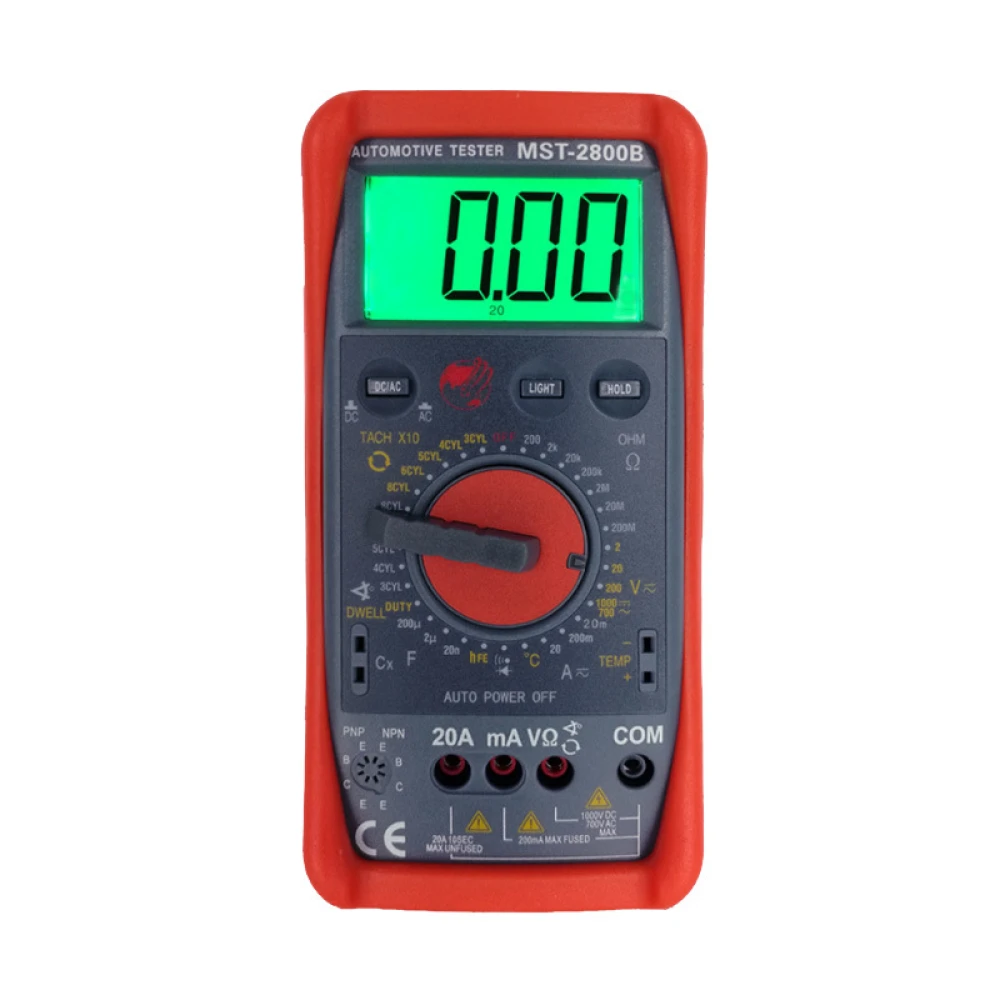

MST-2800B Smart Digital Multimeter with Large LCD for Automotive Use
Brand: MST
VAT included (Ex VAT: 19.00 €)
Overview:
The MST-2800B is a smart digital multimeter with a large LCD screen designed to offer a wide range of measurement functions with high accuracy. This device is ideal for professionals and hobbyists who need a reliable tool for vehicle inspection and maintenance, engineering, laboratory testing and production.
Key features:
- DC voltage measurement in ranges of 2V, 20V, 200V and 1000V with basic accuracy of ±(0.5%+3).
- AC voltage measurement in ranges of 2V, 20V, 200V and 700V with basic accuracy of ±(0.8%+3).
- DC and AC current measurement from 200mA to 20A with accuracy of ±(1.2%+3).
- Wide resistance measurement range from 200Ω to 200MΩ with basic accuracy of ±(0.8%+3).
- Ability to measure capacitance in ranges of 20nF, 2µF and 200µF with accuracy of ±(5.0%+3).
- Temperature measurement from -40°C to 1000°C with accuracy of ±(1.5%+15).
- Additional functions: diode test, continuity test, transistor test (HFE), duty cycle measurement, motor speed (RPM), data hold and screen backlight.
- Maximum display of 1999 digits for clear and accurate reading.
Typical uses:
This multimeter is especially useful for automotive technicians who need a portable tool to diagnose and repair vehicles. It is also suitable for engineers and technicians in laboratories and production environments who need to carry out reliable and fast measurements.
Compatibility:
Compatible with a wide variety of electrical and electronic applications, the MST-2800B supports measurements in DC and AC circuits, electronic components and automotive systems.
In summary, the MST-2800B smart digital multimeter with large LCD screen is a versatile and accurate tool, designed to meet the demands of automotive and electronics professionals who need a reliable and portable instrument.
- Accurate DC and AC voltage measurement across multiple ranges
- DC and AC current measurement up to 20A
- Wide resistance range up to 200MΩ
- Capacitance and temperature measurement
- Diode, continuity and transistor test functions
- Large LCD screen with backlight for easy reading
- Ideal for automotive maintenance and laboratory testing
- Portable and easy to use with data hold
Customer Questions & Answers
What advantages does the MST-2800B's large LCD screen offer compared with other conventional digital multimeters?
The large LCD screen makes readings easier, especially in low-light environments or when quick measurements are needed. In addition, the backlight allows use in hard-to-see areas, reducing interpretation errors compared with smaller, unlit displays. This type of screen usually offers a wider visible field and better contrast than basic models.
What are the voltage, current and resistance measurement limits it supports, and what is the associated accuracy for each range?
The MST-2800B measures AC and DC voltage (typical range: 0-600 V), DC current (usually up to 10 A), and resistance from 200 Ω to 200 MΩ. Accuracy varies by range: for voltage, it is usually ±(0.5%-1%+2 digits), for current ±(1%+2 digits), and for resistance ±(1%+2 digits). It is advisable to consult the manual for each range, as there may be slight variations.

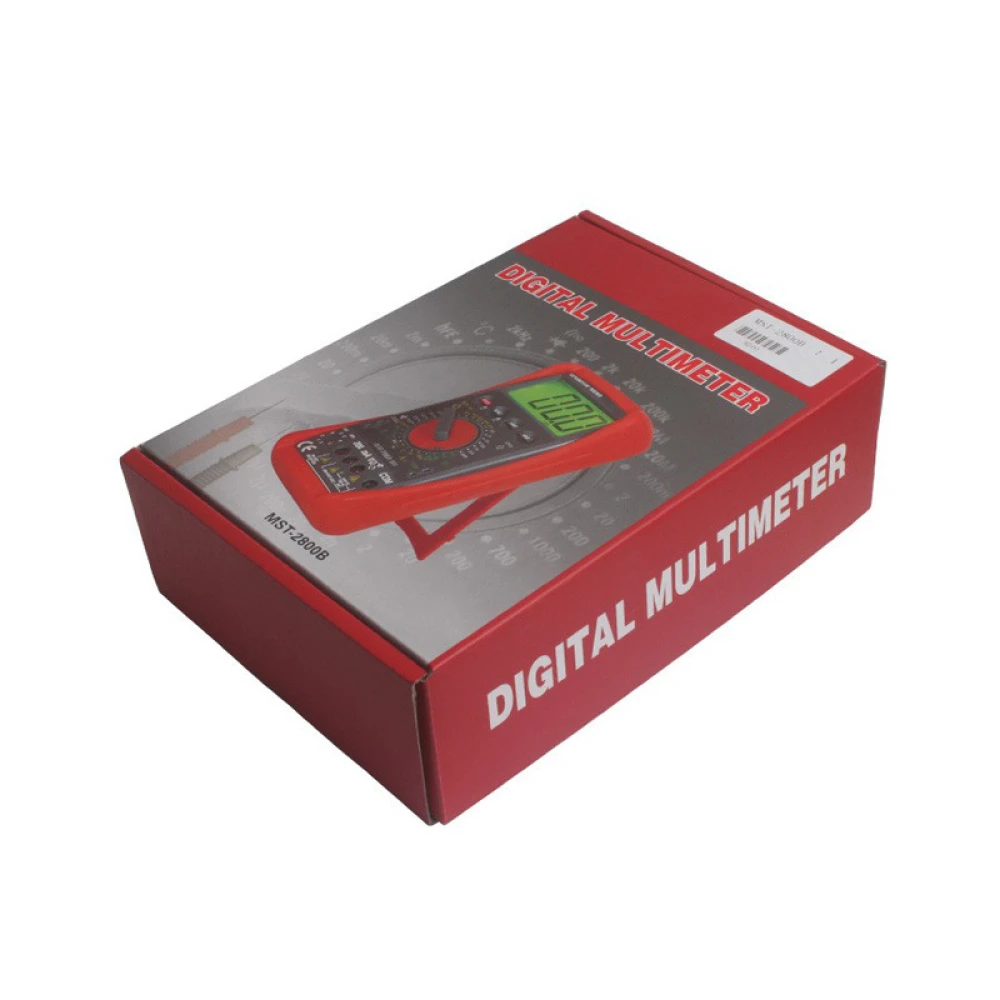

What components are included in the box and what are the main materials of the multimeter?
The box generally includes the multimeter, standard test leads with metal tips, a temperature probe, user manual and installed battery. The body is usually made from high-strength ABS with a non-slip coating. The probes use coated copper and the tips are nickel-plated steel.
Does the MST-2800B require any calibration, periodic maintenance or replacement parts to maintain long-term accuracy?
It is recommended to check calibration annually in certified laboratories, especially if it is used for critical tasks. Basic maintenance includes external cleaning and checking the test leads. Batteries are consumables and should be replaced when the display shows low battery. Test tips can be replaced when worn.
What is the MST-2800B smart digital multimeter used for?
The MST-2800B is used to measure voltage, current, resistance, capacitance, temperature and carry out electrical tests on vehicles and electronic equipment.
What voltage ranges can this multimeter measure?
It can measure DC voltages from 2V to 1000V and AC voltages from 2V to 700V with high accuracy.
Is it suitable for automotive use?
Yes, it is ideal for vehicle inspection and maintenance thanks to its accuracy and specific functions such as RPM and duty cycle measurement.
Does the screen have backlight?
Yes, it has a large LCD screen with backlight to make reading easier in low-light environments.
Is it currently available to buy?
The product is currently out of stock, but you can check availability or alternative products in our store.
