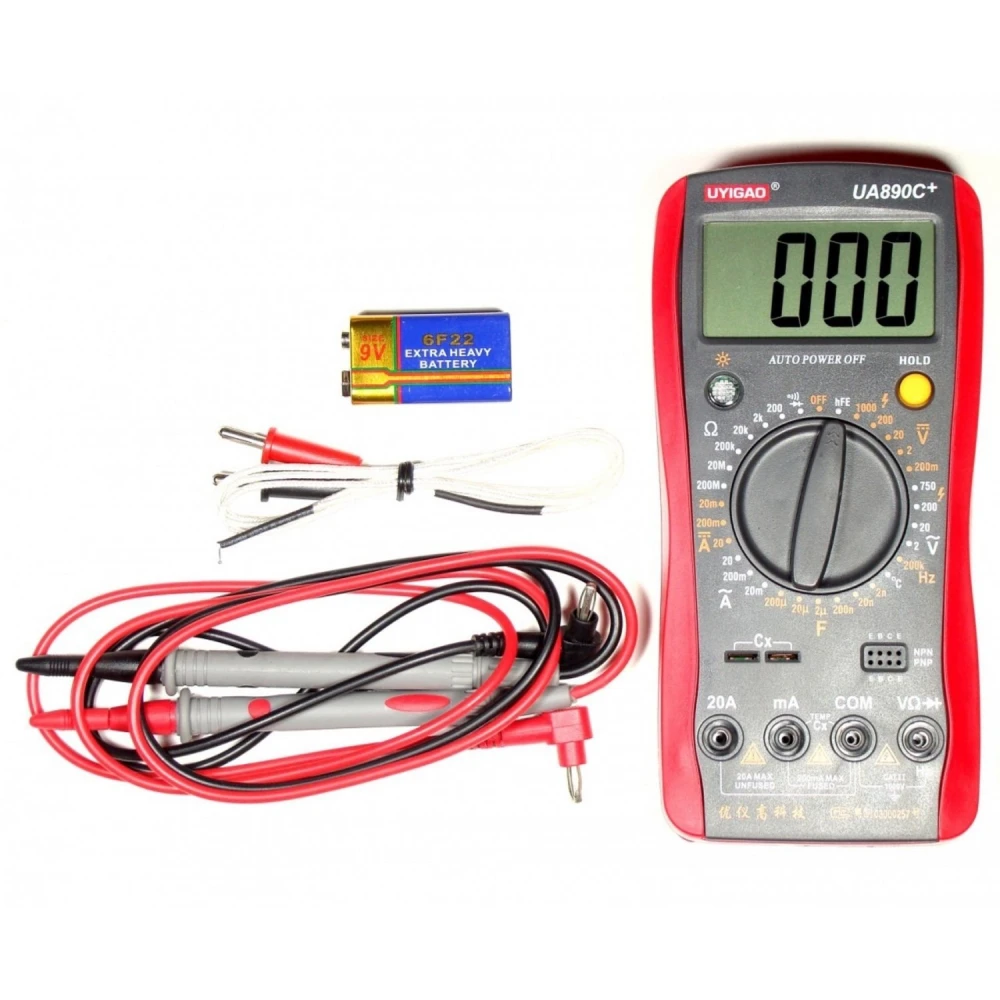

Uyigao UA890C+ Digital Multimeter with Large LCD Display and Full Protection
Brand: Uyigao
VAT included (Ex VAT: 12.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 14.17 € | -4% |
| 10+ | 13.73 € | -7% |
| 20+ | 12.25 € | -17% |
Uyigao UA890C+ digital multimeter
The Uyigao UA890C+ digital multimeter is an essential tool for technicians and electronics enthusiasts looking for precision and reliability in their measurements. This model features a large LCD display that makes readings easy to see, and a robust design with a metal panel that offers anti-magnetic and anti-interference protection, ensuring stable and safe measurements.
Main features:
- Wide DC voltage measurement range: 200mV, 2V, 20V, 200V and up to 1000V with basic accuracy of ± (0.5% + 3).
- AC voltage: 2V, 20V, 200V and 750V with an accuracy of ± (0.8% + 5).
- DC current measurement: from 20uA to 200mA with accuracy of ± (0.8% + 10).
- AC current measurement: ranges from 2mA to 200mA with accuracy of ± (1.0% + 15).
- Resistance: from 200Ω to 20MΩ with an accuracy of ± (0.8% + 3).
- Capacitance measurement: 20nF, 2uF and 200uF with accuracy ± (2.5% + 20).
- Temperature measurement: range from -40 to 1000 °C with accuracy ± (1.0% + 5).
- Special functions: diode and transistor testing, continuity buzzer, data hold and automatic power off for battery saving.
- Built-in protection: full function protection, resettable fuse and shockproof protection for greater durability.
- Input impedance: 10Ω to ensure accurate measurements without interference.
- Power supply: 9V battery (6V22) for extended use.
Typical uses:
This multimeter is ideal for electronics work, electrical maintenance, automotive diagnostics and DIY projects that require accurate and reliable measurements. Its robust design and advanced functions make it suitable for professionals and demanding users.
Compatibility:
Compatible with a wide range of electronic components and electrical systems, the Uyigao UA890C+ is a versatile tool for any technical toolbox.
Availability note: This product is currently out of stock. We recommend checking alternatives or contacting our team for future restocks.
- Large LCD display for clear, easy reading
- Metal panel with anti-magnetic and anti-interference protection
- DC voltage measurement up to 1000V with high accuracy
- DC and AC current measurement across multiple ranges
- Resistance measurement from 200Ω to 20MΩ
- Special functions: diode, transistor and continuity buzzer
- Full protection: function, resettable fuse and shock protection
- Automatic power off to save battery life
- 10Ω input impedance for accurate measurements
- Powered by a 9V battery (6V22)
Customer Questions & Answers
What are the main functions offered by the Uyigao UA890c+ Digital Multimeter compared with other multimeters in its range?
The Uyigao UA890c+ can measure AC and DC voltage, current, resistance, continuity and diodes, and also includes transistor testing and data hold. It stands out for its maximum measurement range of up to 1,000 V DC and 750 V AC, as well as its basic accuracy of ±(0.5% + 3), placing it within hobby and semi-professional digital multimeters. Its large LCD display and overload protection offer advantages over lower-range models, which usually provide less accuracy and lower operating voltage ranges.
What are the dimensions, weight and construction materials of the Uyigao UA890c+? What is included in the box?
The multimeter measures approximately 185 mm × 93 mm × 35 mm and weighs 350 g including batteries. The housing is made of ABS plastic with a protective rubber sleeve to absorb shocks. The box includes the multimeter, a pair of test leads, a manual and a 9V battery (type 6F22), although the battery may vary depending on the distributor.
How is the initial setup carried out and what precautions should be taken before use?
For initial setup, you only need to fit the 9V battery into the rear compartment. Before use, it is essential to check that the test leads are correctly inserted, select the correct measurement range (to avoid damaging the unit) and make sure the selector knob is in the correct position. Never measure voltage in current-measurement mode, as this can cause faults or damage.
What maintenance does the multimeter require to ensure a long service life, and how durable is it under frequent use?
Basic maintenance consists of replacing the battery when the display shows low voltage, cleaning the test leads regularly and storing the unit in a dry place away from direct sunlight. The rubber sleeve and anti-magnetic metal board improve durability against light impacts and interference, although intensive use in industrial environments may shorten its lifespan compared with fully professional models.
Are spare parts available (leads, fuses), and what type of warranty covers the Uyigao UA890c+?
The test leads and the internal fuse (usually 200 mA/250 V) are standard components that are easy to replace and widely available on the market. The multimeter usually comes with a 12-month manufacturer’s warranty against manufacturing defects, but terms may vary by country/distributor; it is advisable to confirm before purchase.
What battery does the Uyigao UA890C+ digital multimeter use?
It uses a 9V 6V22 battery for power.
Does the multimeter have overload or shock protection?
Yes, it has full function protection, a resettable fuse and shockproof protection.
What voltage ranges can this multimeter measure?
It can measure DC voltage from 200mV to 1000V and AC voltage from 2V to 750V.
Does it include functions for testing electronic components such as diodes or transistors?
Yes, it includes special functions for testing diodes and transistors.
Is the Uyigao UA890C+ multimeter currently available?
It is currently out of stock. We recommend checking alternatives or waiting for restocks.
