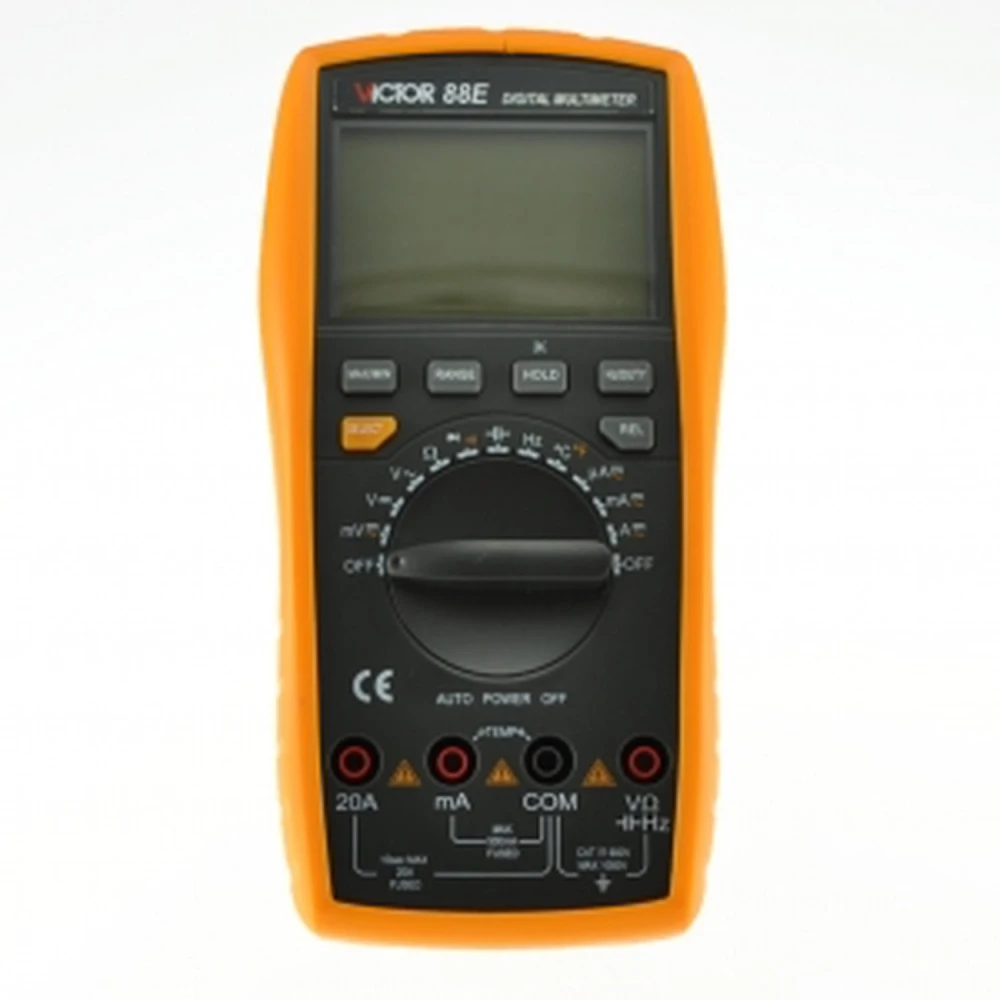

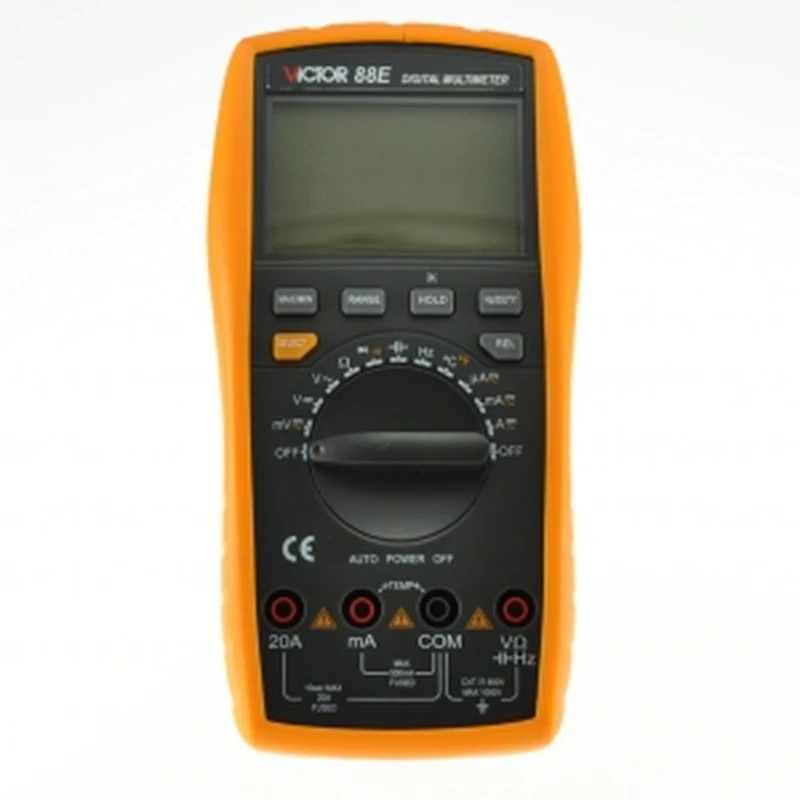

Victor 88E digital multimeter with advanced measurement functions
Brand: Victor
VAT included (Ex VAT: 30.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 35.42 € | -4% |
| 10+ | 34.32 € | -7% |
| 20+ | 30.63 € | -17% |
The Victor 88E digital multimeter is an essential tool for anyone who needs accurate and reliable measurements in electronics and electrical work. This device measures DC and AC voltages, current, resistance, capacitance, frequency and temperature, covering a wide range of technical applications.
Key features:
- DC voltage measurement from 1mV to 1000V and AC up to 750V.
- DC and AC current measurement from 400 microamperes to 20 amperes.
- Resistance measurement from 0 to 40 megaohms.
- Capacitance measurement for capacitors from 1 nanofarad to 200 microfarads.
- Frequencies from 1Hz to 30MHz for signal analysis.
- Temperature measurement in degrees Celsius (-20ºC to 1000ºC) and Fahrenheit (8ºF to 1832ºF) with included probe.
- Continuity test function with audible alert and diode testing.
- Data hold to make readings easier to view.
- 4-character backlit LCD display for better visibility in low-light conditions.
- Self-resetting protective fuses to avoid frequent replacements.
- Shockproof protective case for durability and resistance.
- Maximum and minimum value measurement for detailed analysis.
- Auto power-off for battery saving.
Technical specifications:
| Function | Range | Basic accuracy |
|---|---|---|
| DC voltage | 40mV to 1000V | ±(0.5%+4) |
| AC voltage | 40mV to 750V | ±(0.8%+6) |
| DC current | 400µA to 20A | ±(1.0%+10) |
| AC current | 400µA to 20A | ±(1.5%+5) |
| Resistance | 400Ω to 40MΩ | ±(0.8%+4) |
| Capacitance | 40nF to 200µF | ±(2.5%+8) |
| Frequency | 100Hz to 30MHz | ±(0.5%+4) |
| Temperature | -20ºC to 1000ºC / 8ºF to 1832ºF | ±(1.0%+4) |
Typical uses:
- Diagnosis and repair of electronic circuits.
- Measurement of electrical components in laboratories and workshops.
- Checking residential and industrial electrical installations.
- Monitoring and preventive maintenance of electrical equipment.

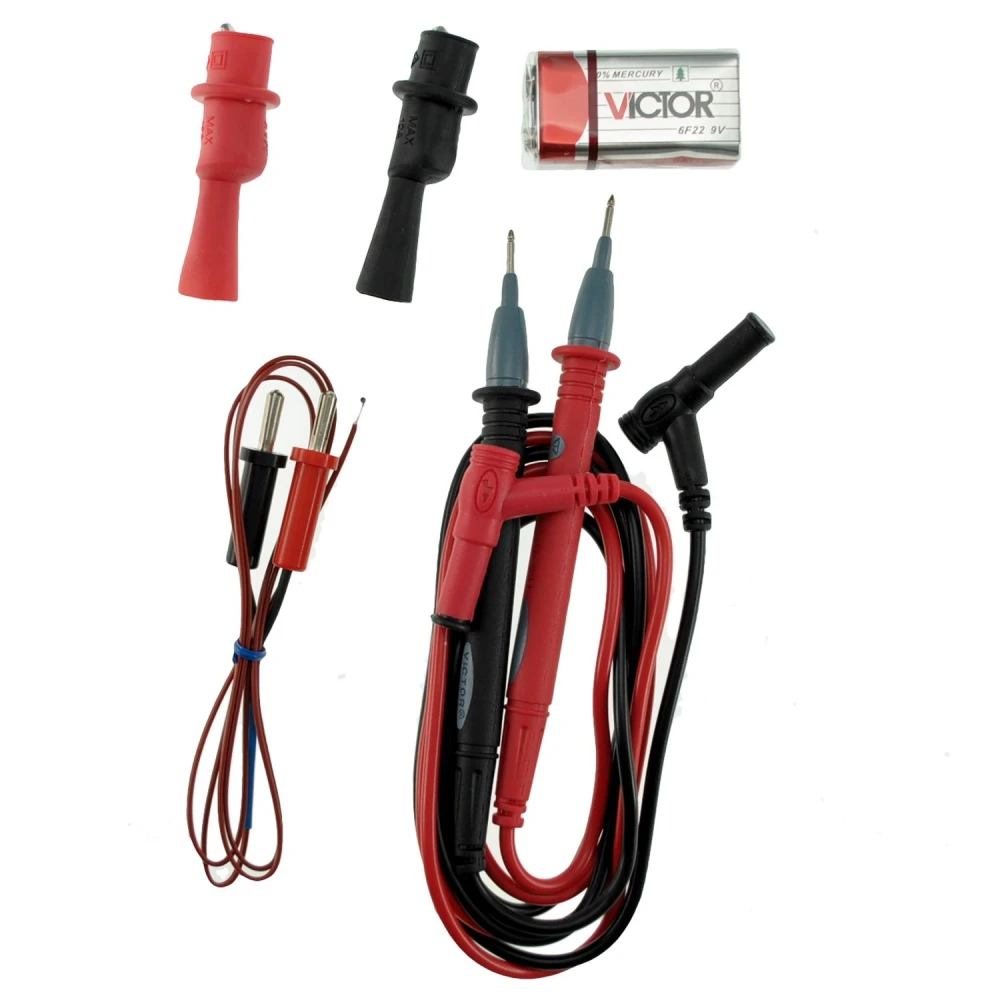

Compatibility and accessories: The multimeter includes test leads, battery, instruction manual, TPO1 temperature probe and test accessories. Its compact design and protective case make it easy to carry and use in the field.
Availability: This product is currently out of stock. We recommend checking alternative products or signing up for restock alerts.
- DC voltage measurement up to 1000V and AC up to 750V
- DC and AC current from 400µA to 20A
- Resistance measurement up to 40MΩ
- Capacitance from 1nF to 200µF
- Frequency up to 30MHz
- Temperature measurement from -20ºC to 1000ºC with included probe
- Diode testing and continuity test with audible alert
- 4-character backlit LCD display
- Self-resetting protective fuses
- Shockproof protective case included
- Maximum and minimum value measurement
- Auto power-off for battery saving
Customer Questions & Answers
What are the dimensions, weight and box contents of the Victor 88e?
The approximate size of the Victor 88e is 185 x 93 x 35 mm and its weight is around 350 g excluding batteries. The box includes the multimeter, test leads, thermocouple for temperature measurement, manual and protective case. Contents may vary slightly depending on the distributor.
Is the Victor 88e multimeter compatible with European mains and what power supply does it require?
The Victor 88e multimeter is powered by a 9 V 6F22 battery (included or not depending on the supplier). It does not require direct mains connection, so it is universally compatible regardless of regional voltage. You only need to make sure the correct battery is used.
What are the common issues when using the Victor 88e and how can they be avoided?
Common issues include erratic readings due to dirty probes or poor contact, battery drain if the backlight is left on, and range errors. It is recommended to use auto power-off, check the condition of the probes, use the protective case and not exceed the limits of each range. Consulting the manual helps avoid most issues.
What voltage ranges can the Victor 88E digital multimeter measure?
It can measure DC voltage from 40mV to 1000V and AC voltage from 40mV to 750V.
Can this multimeter measure temperature?
Yes, it measures temperature from -20ºC to 1000ºC or from 8ºF to 1832ºF using the included temperature probe.
What protection does the multimeter have against overloads?
It has self-resetting protective fuses, so they do not need to be replaced in the event of an overload.
Is the Victor 88E digital multimeter available to buy?
The product is currently out of stock. We recommend checking alternative products or signing up for restock alerts.
Does the Victor 88E multimeter include accessories?
Yes, it includes test leads, battery, instruction manual, TPO1 temperature probe and other test accessories.
