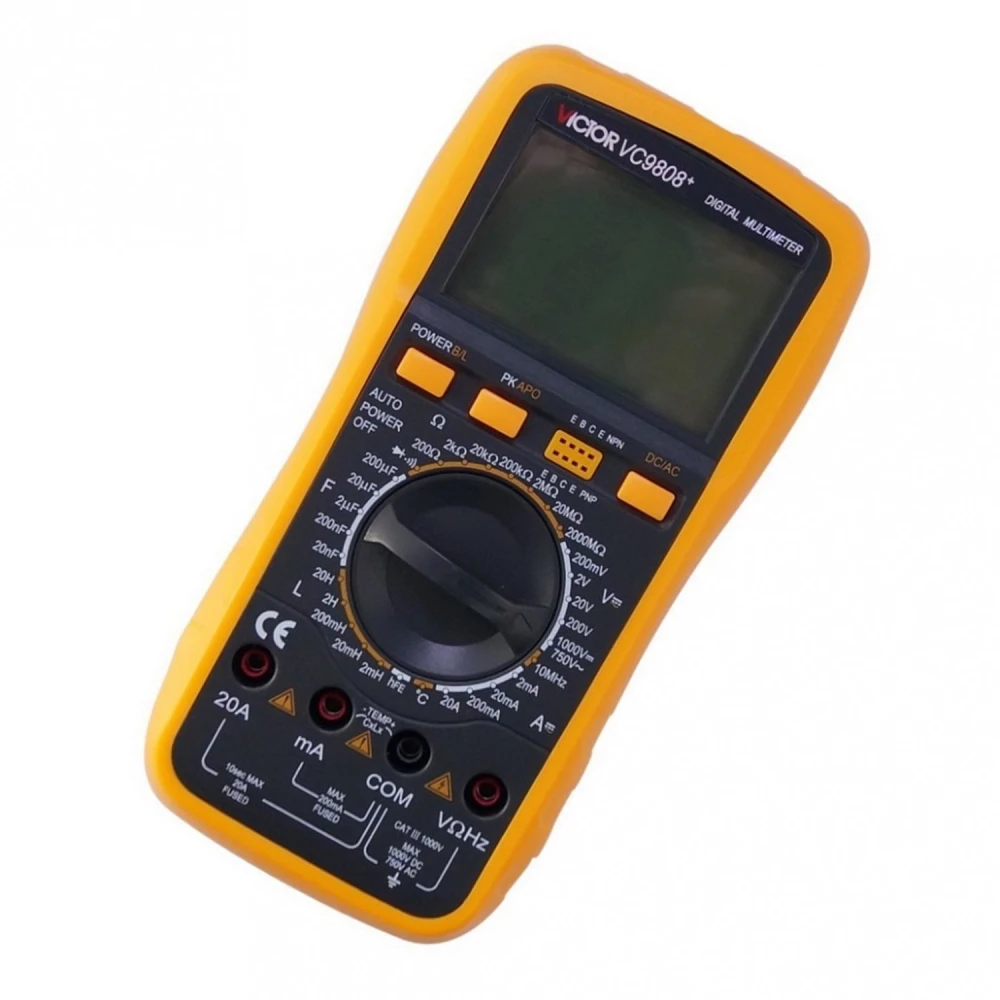

Victor VC9808+ Digital Multimeter with advanced functions for electronics
Brand: Victor
VAT included (Ex VAT: 31.22 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 23.62 € | -39% |
| 10+ | 22.88 € | -40% |
| 20+ | 20.42 € | -47% |
The Victor VC9808+ Digital Multimeter is a professional measuring instrument designed for electronics technicians and hobbyists who need precision and versatility in their measurements.
Main features:
- DC and AC Voltage Measurement: Range from 200mV to 1000V DC and up to 750V AC with an accuracy of ±(0.5%+3) for DC and ±(0.8%+5) for AC.
- DC and AC Current Measurement: Capable of measuring from 2mA to 20A with accuracies of ±(0.8%+10) for DC and ±(1.0%+15) for AC.
- Resistance: Wide range from 200 ohm to 2000M ohm with high accuracy, ideal for checking components and circuits.
- Inductance and Capacitance: Allows inductance measurement from 2mH to 20H and capacitance from 20nF to 200uF, useful for testing electronic components.
- Frequency: Measurement range from 2kHz to 10MHz, suitable for signal and circuit analysis.
- Temperature: Measures in Celsius (-40 to 1000 °C) and Fahrenheit (0 to 1832 °F), with diode and transistor test function.
- Additional functions: Continuity with buzzer, low battery indicator, data hold (peak hold), auto power off, LCD backlight and shock protection.
Technical specifications:
- Input impedance: 10M ohm
- Sampling rate: 3 times per second
- AC frequency response: 40 to 400Hz
- Operating mode: Manual range
- Maximum display: 1999
- LCD screen size: 70 x 50 mm
- Power supply: 9V battery (6F22)
- Net weight: 320 grams
- Dimensions: 190 x 88.5 x 27.5 mm
Typical uses: Ideal for electronics measurements, electrical maintenance, component testing, circuit diagnostics and laboratory work. Its robust design with shock protection and backlight makes it suitable for workshops and professional environments.
Compatibility: Compatible with a wide range of electronic components and electrical circuits, this multimeter is a versatile tool for professionals and hobbyists.
- DC voltage measurement up to 1000V with high accuracy
- AC/DC current measurement up to 20A
- Wide resistance range up to 2000M ohm
- Inductance and capacitance measurement for electronic components
- Frequency measurement up to 10MHz
- Built-in diode and transistor test
- Continuity test with buzzer
- 70x50mm backlit LCD display
- Shock protection and auto power off
- Powered by 9V battery (6F22)
Customer Questions & Answers
Is the Victor VC9808+ Digital Multimeter in stock?
Currently, the product is out of stock. It is recommended to check alternatives or wait for restock.
What types of measurements can this multimeter perform?
It can measure DC and AC voltage, DC and AC current, resistance, inductance, capacitance, frequency and temperature, as well as diode and transistor tests.
What type of battery does the multimeter use?
It uses a 9V 6F22 battery for operation.
Does the multimeter have shock protection?
Yes, it includes shock protection for greater durability in working environments.
Does the screen include backlighting?
Yes, it has backlighting to make reading easier in low-light conditions.
