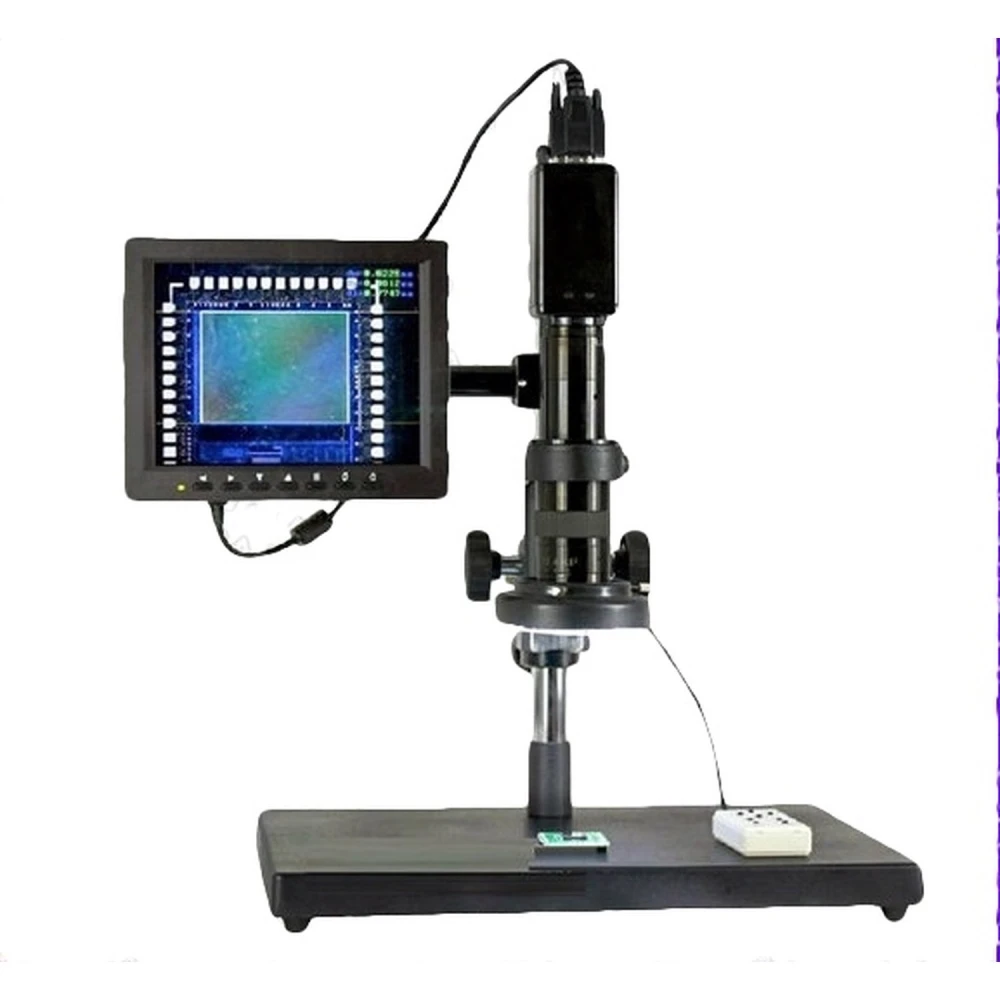

PCB inspection camera XDC-10A - Industrial digital inspection microscope
Brand: Mlink
VAT included (Ex VAT: 183.08 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 232.53 € | -5% |
The PCB inspection camera XDC-10A is an advanced system designed for industrial inspection of electronic boards. This high-precision digital microscope allows technicians and professionals to carry out detailed analysis of printed circuits with great clarity and ease.
Main features:
- Colour LCD screen: Provides a clear and sharp view of boards for comfortable and accurate inspection.
- Adjustable magnification up to 100x: Allows you to enlarge tiny details to detect defects or imperfections on PCB boards.
- Industrial CCD sensor: Ensures high-quality images with excellent resolution and colour fidelity.
- Bright white LED light source: With flexible body for easy adjustment that evenly illuminates the inspection area.
- Adjustable focus and height: Makes it easy to adapt to different board sizes and shapes, ensuring optimum focus.
- PCB clamp holder: Designed to securely hold irregularly shaped boards during inspection.
Technical specifications:
- Model: XDC-10A
- Weight: 5 kg
- Dimensions: 250 x 350 x 500 mm
- Certifications: CE and RoHS
Typical uses: This camera is ideal for inspecting electronic boards in manufacturing processes, quality control, repair and maintenance of electronic equipment. Its versatile design and advanced features make it suitable for laboratories, electronics workshops and industrial environments.
Compatibility: Compatible with various types and sizes of PCB boards thanks to its adjustable holder and flexible mounting system.
The Mlink PCB inspection camera XDC-10A is an essential tool for professionals who require precision and reliability in electronics inspection. Although it is currently out of stock, we recommend checking availability or alternative products in our store.
- Colour LCD screen for a clear and sharp view
- Adjustable magnification up to 100x for detailed inspection
- Industrial CCD sensor for high-quality images
- White LED light source with flexible body for easy adjustment
- Adjustable focus and height to suit different boards
- Versatile clamp holder for irregularly shaped boards
- CE and RoHS certifications for quality and safety
Customer Questions & Answers
What are the dimensions, weight and main contents included in the XDC-10A box?
The unit dimensions are 250 mm x 350 mm x 500 mm and the total weight is 5 kg per unit. The package usually includes the digital microscope with LCD screen, LED light source, adjustable PCB clamp stand and power supply. This may vary depending on the supplier.
What type of boards can the included clamp stand hold, and what is its limit in terms of size or shape?
The stand is designed to hold printed circuit boards (PCB) of irregular shapes thanks to its versatile adjustment. It can support boards up to approximately the size of the working area (250 x 350 mm), but excessively large or very thick boards (>10 mm) may require additional accessories.
What are the key steps to install and start using the XDC-10A industrial inspection system?
Installation requires fixing the stand to a stable surface, mounting the camera at the correct scale and connecting the specified power supply (see the manufacturer’s manual for the exact voltage, typically 110-240 V AC). Then adjust the height and focus according to the board being inspected. No specialist tools are required for setup.
What certifications does this model have in terms of safety and environmental compliance?
The system has CE and RoHS certifications. CE confirms compliance with EU electrical safety regulations, and RoHS certifies that the equipment is free from restricted hazardous substances, making it suitable for industrial environments and laboratories.
What is the maximum magnification of the PCB inspection camera XDC-10A?
The maximum adjustable magnification is up to 100x, allowing detailed inspection of electronic boards.
What type of sensor does this camera use?
It uses an industrial CCD camera sensor that delivers high-quality, high-resolution images.
Does the camera include lighting for inspection?
Yes, it has a bright white LED light source with a flexible body to evenly illuminate the inspection area.
Is it compatible with boards of different sizes and shapes?
Yes, it has a versatile clamp holder designed to fit irregularly shaped boards and different dimensions.
Is it available for immediate purchase?
The PCB inspection camera XDC-10A is currently out of stock. We recommend checking availability or alternative products in our store.
