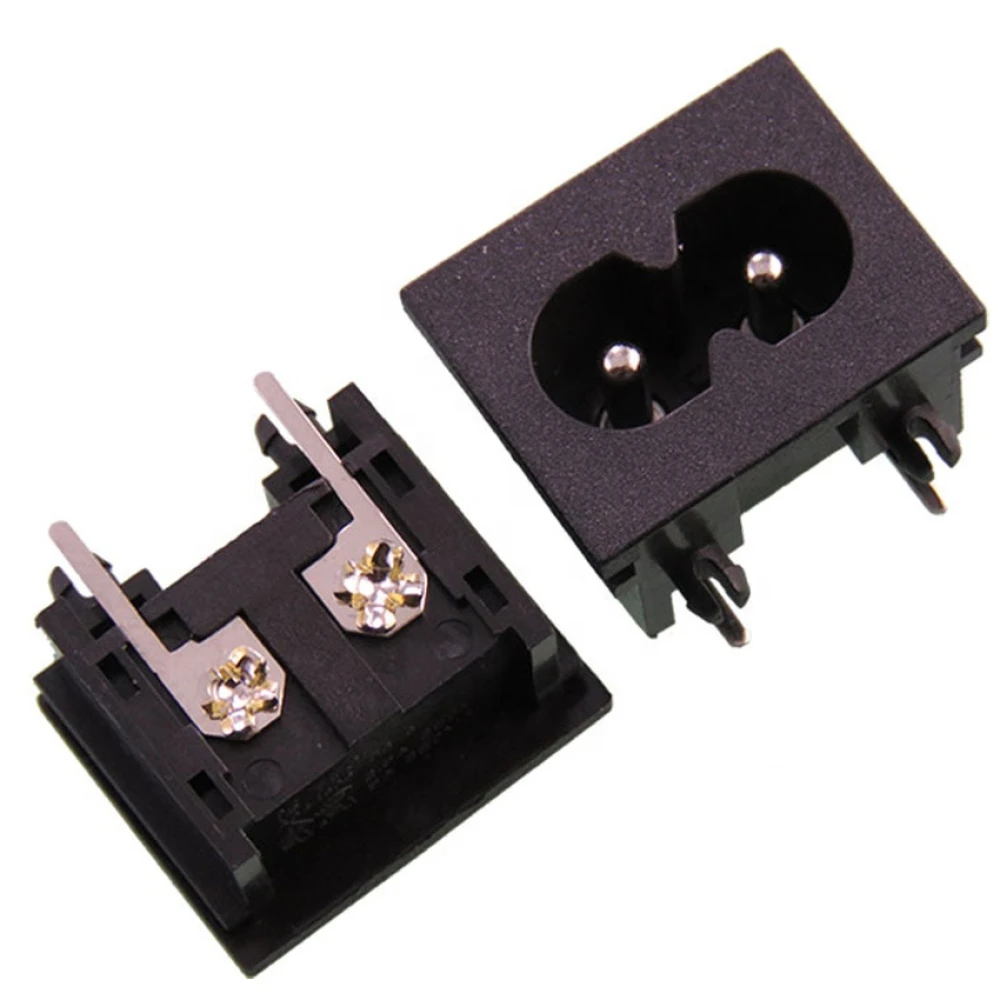

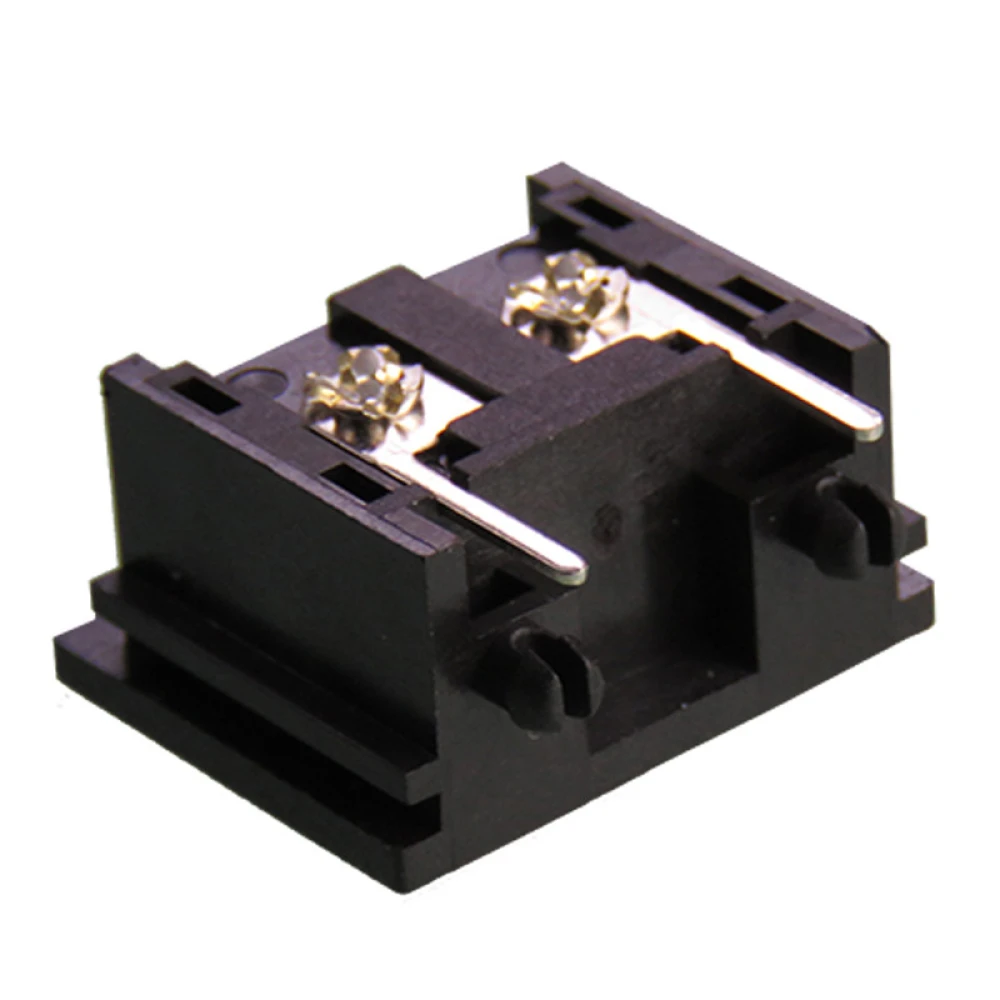

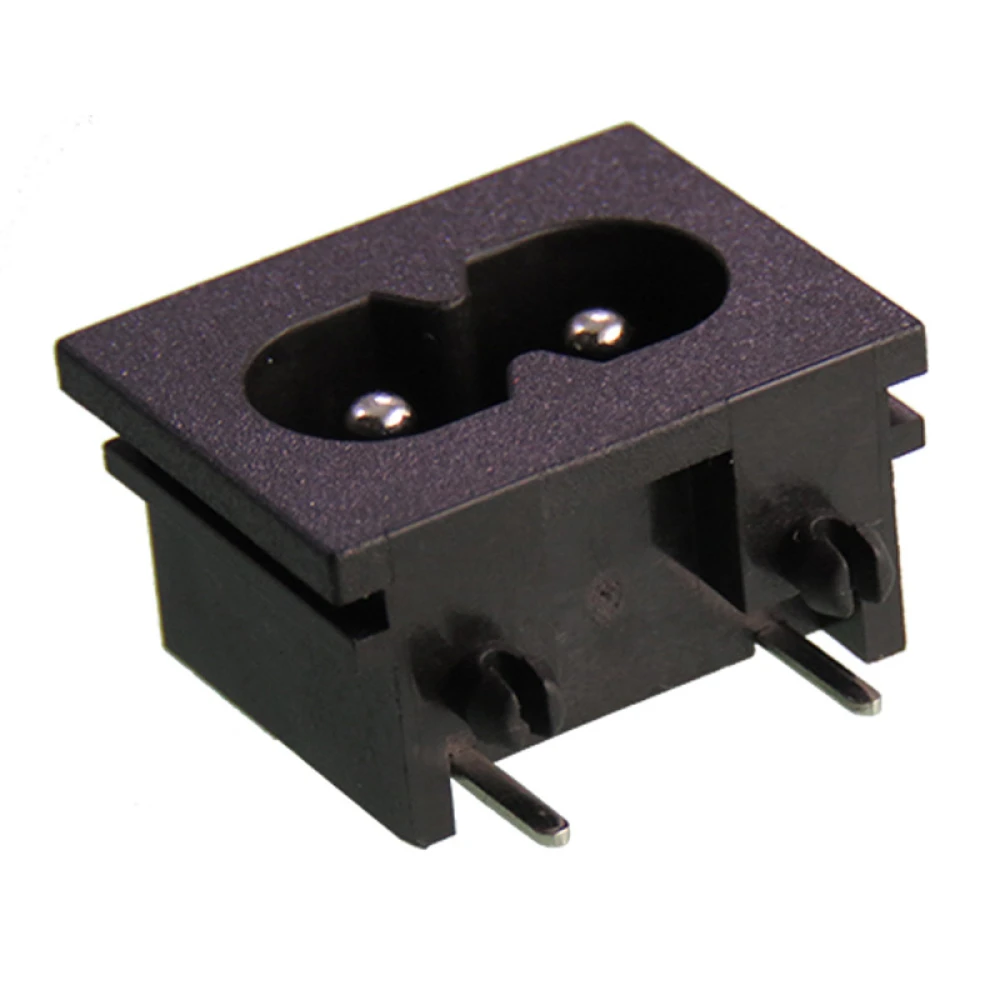

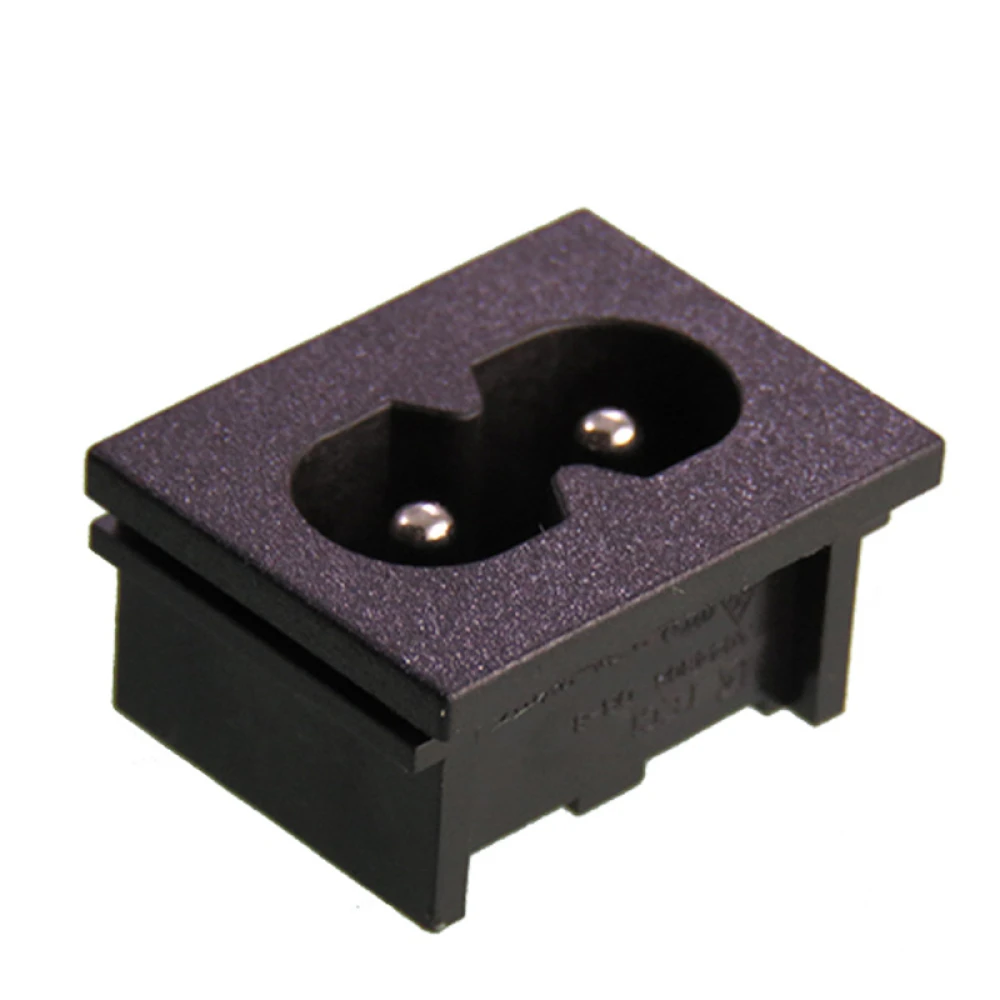

2-Pin Male PCB Power Connector
This connector is an electronic component designed to provide a secure and reliable connection on PCB boards through its 2 male pins. Its robust construction ensures stable performance in applications requiring a maximum current of 5 A and a voltage of up to 250V AC.
Main features:
- Current: 5 A, suitable for moderate loads.
- Voltage: 250V AC, compatible with standard power systems.
- Terminals: 2 male pins that make for a firm and secure connection.
- Colour: Black, for easy identification and a neat finish in assembly.
- Mechanical life: More than 1,000,000 cycles, ensuring durability in frequent use.
- Electrical life: More than 800,000 cycles, ensuring stability in electrical conduction.
- Overall size: 22 x 20 x 18 mm, compact and easy to integrate into different designs.
Typical applications:
- Household appliances that require reliable power connections.
- Beauty equipment with integrated electronic components.
- Small boats where robustness is key.
- Lighting and medical equipment that demand electrical safety.
- Communications and network equipment, instrumentation and TV cameras.
- Video speakers and chargers for computers or mobile phones.
Compatibility and use:
This connector is compatible with various PCB boards and electronic systems that require a 2-pin male power connection. Its compact and durable design makes it ideal for repairs or new assemblies in consumer and professional electronics.
Package contents:
- 1 x 2-Pin Male PCB Power Connector
With this connector, you ensure a secure and long-lasting connection for your electronic projects or repairs, providing a stable and reliable electrical flow.
- Maximum current of 5 A for moderate loads
- Supports voltage up to 250V AC
- 2 male pin terminals for a secure connection
- Black colour for easy identification
- Mechanical life of over 1,000,000 cycles
- Electrical life of over 800,000 cycles
- Compact dimensions: 22 x 20 x 18 mm
- Ideal for household appliances, medical equipment, and more
Customer Questions & Answers
What are the exact dimensions of the connector and how can I physically integrate it into my PCB?
The external dimensions of the connector are 22 mm x 20 mm x 18 mm. To integrate it correctly into a PCB, it is important to consult the datasheet for the pin dimensions and hole pattern, as the general description does not include exact pin pitch details.
Are there any specific requirements or precautions for soldering and installing the male connector on a PCB?
Installation requires standard PCB soldering, and solder with or without lead is recommended depending on RoHS requirements. Overheating the pins should be avoided to prevent damage to the plastic housing and to ensure proper mechanical fixing during assembly.
What is the maximum current this connector supports?
This connector supports a maximum current of 5 amperes.
What voltage is the connector designed for?
It is designed for a maximum voltage of 250V AC.
How many pins does the connector have and what type are they?
The connector has 2 male pins for a firm connection on PCB boards.
What applications can this connector be used for?
It is suitable for household appliances, beauty equipment, small boats, lighting, medical equipment, communications, instrumentation, TV cameras, video speakers and chargers.
What is the mechanical and electrical durability of the connector?
It has a mechanical life of more than 1,000,000 cycles and an electrical life of more than 800,000 cycles.
