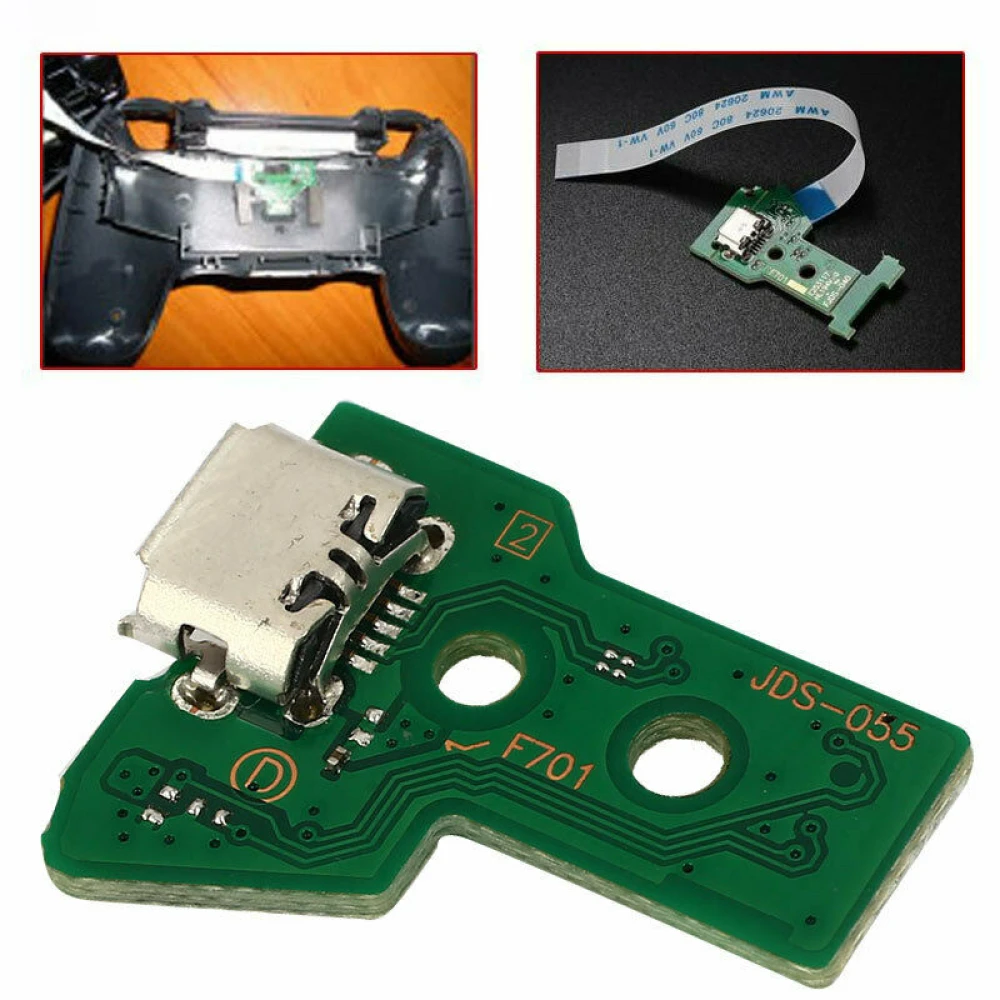

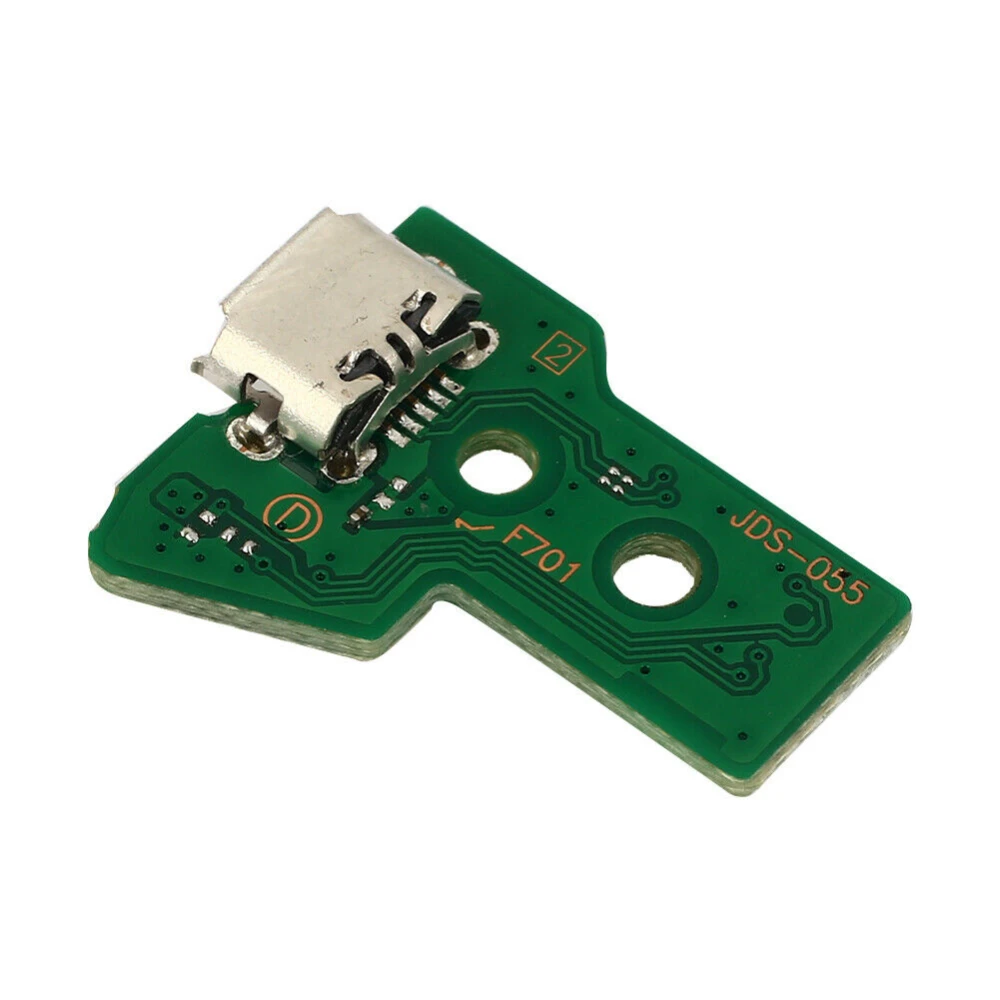

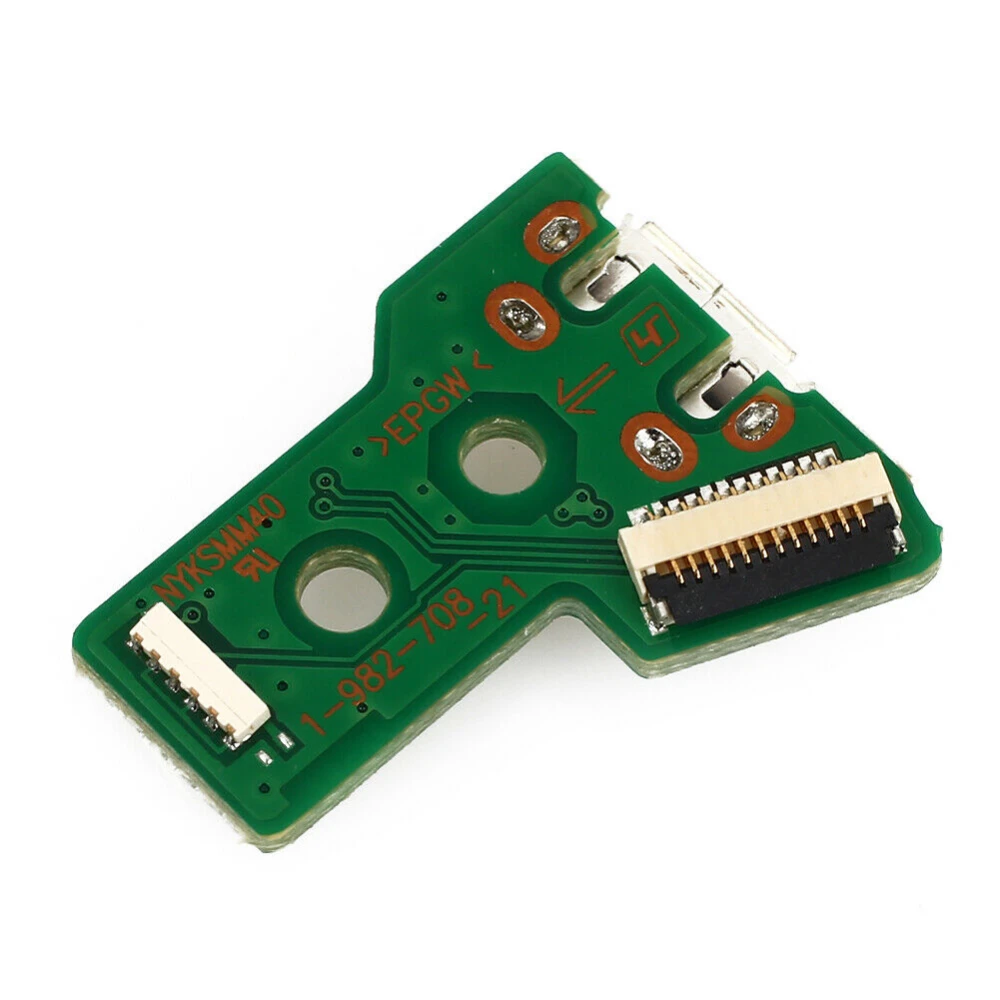

PS4 controller charging board JDS-050 JDS-055 with 12-pin Micro USB flex
Brand: satkit
2.46€
VAT included (Ex VAT: 2.00 €)
In Stock - Ships immediately
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The PS4 controller charging board JDS-050 JDS-055 is a key internal component for the correct operation of the Micro USB charging port in fifth-generation Dualshock 4 controllers. This replacement part restores battery charging function when the original port is damaged or faulty.
Main features:
- Location: inside the Dualshock 4 controller
- Function: allows the battery to be charged via the Micro USB port
- Component type: flex cable with USB port
- Number of pins: 12
- USB type: Micro-B
- Compatibility: fifth-generation Playstation 4 controllers models JDS-050 and JDS-055
- Quality: high-quality product to ensure durability and performance
Typical uses:
- Repair of the Micro USB charging port on Dualshock 4 controllers with connection or charging issues
- Replacement of the original worn or damaged flex connector
- Maintenance and restoration of Playstation 4 controllers to extend their service life
Compatibility and technical specifications:
- Compatible with fifth-generation Dualshock 4 controllers JDS-050 and JDS-055
- 12-pin flex connector to ensure connection with the controller main board
- Micro-B USB port for charging connection
This board is an essential replacement part for gamers who want to keep their controllers in top condition without needing to buy a new one. Installation requires some technical knowledge to avoid additional damage.
Note: This board is for fifth-generation (V5) Dualshock 4 controllers and is specific to JDS-050 and JDS-055 models with a 12-pin cable.
- Internal battery charging board for PS4 Dualshock 4 controller
- Flex connector with Micro-B USB port
- 12 pins for a secure and stable connection
- Compatible with fifth-generation PS4 controllers JDS-050 and JDS-055
- Ideal replacement for a damaged charging port
- High-quality, durable replacement part
- Helps with Dualshock 4 repair and maintenance
Customer Questions & Answers
What materials make up the board and what is its approximate weight?
The board is made from FR-4 fibreglass PCB and SMD electronic components. The flex and Micro USB connector are made of plastic and metal (copper and nickel alloy). The approximate weight of the assembled board is 5 to 7 grams.
What voltage and amperage does the Micro USB connector on this board support during charging?
The board is designed to operate with the USB 2.0 Micro-B standard, supporting a nominal voltage of 5 V and a recommended maximum current of 1 A. Exceeding these values may cause overheating or damage to the circuit.
What are the most common faults after installing a charging board, and how can the problem be diagnosed?
The most common faults include no charging, intermittent disconnection or no LED illumination. These are usually due to a poor connection of the 12-pin flex, faulty solder joints or version incompatibility. It is recommended to inspect the assembly visually and measure electrical continuity with a multimeter to diagnose the cause.
Which PS4 controller models is this charging board compatible with?
It is compatible with fifth-generation Dualshock 4 controllers models JDS-050 and JDS-055.
What type of USB connector does this board have?
The board has a Micro-B USB port, commonly known as Micro USB.
What is this charging board used for?
It allows the Dualshock 4 controller battery to be charged through the Micro USB port, replacing the damaged internal board.
Is this board easy to install in the controller?
Installation requires technical knowledge and care to avoid damaging other internal components of the controller.
Is this board an original Sony replacement part?
No, it is a compatible high-quality replacement part, but it is not an official Sony product.
