Sunkko PVC Heat Shrink Tube 1m x 230mm x 0.15mm for Battery Pack
Brand: Sunkko
0.60€
VAT included (Ex VAT: 0.49 €)
In Stock - Ships immediately
Standard delivery
Thu, Apr 30 - Mon, May 4
Express delivery
Tue, Apr 28 - Wed, Apr 29
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
Product description
The PVC heat shrink tube 1m x 230mm x 0.15mm for battery pack is an essential accessory for protecting and insulating electronic components and batteries. Manufactured by Sunkko, this tube offers stable performance and fast shrinkage at low temperature, helping ensure the safety and durability of the devices it is applied to.
Main features:
- Dimensions: 1 meter in length, 230 mm diameter and 0.15 mm thickness.
- Shrink temperature: 80 °C.
- Operating temperature range: from -40 °C to 105 °C, temperature class 105 °C.
- Approximate shrink ratio: 48±5%.
- Rated voltage: 300V.
- Colour: blue.
Typical uses:

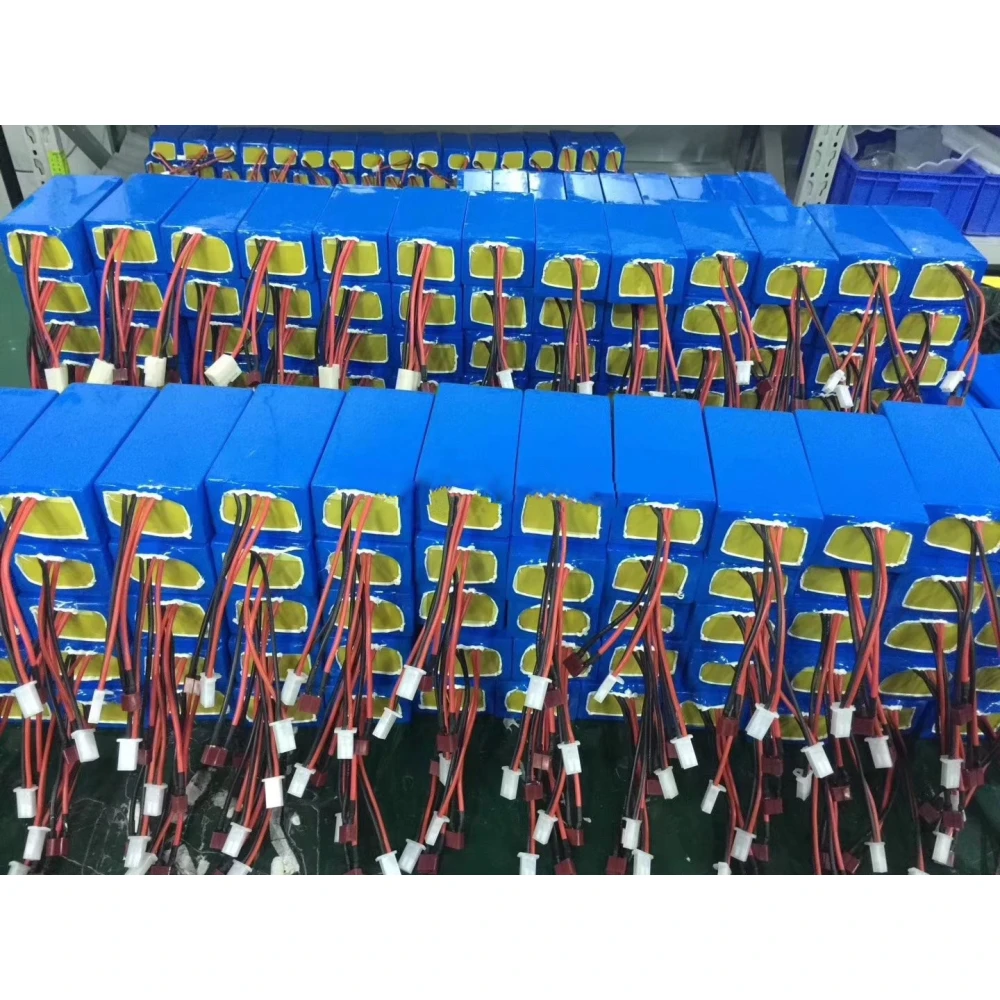

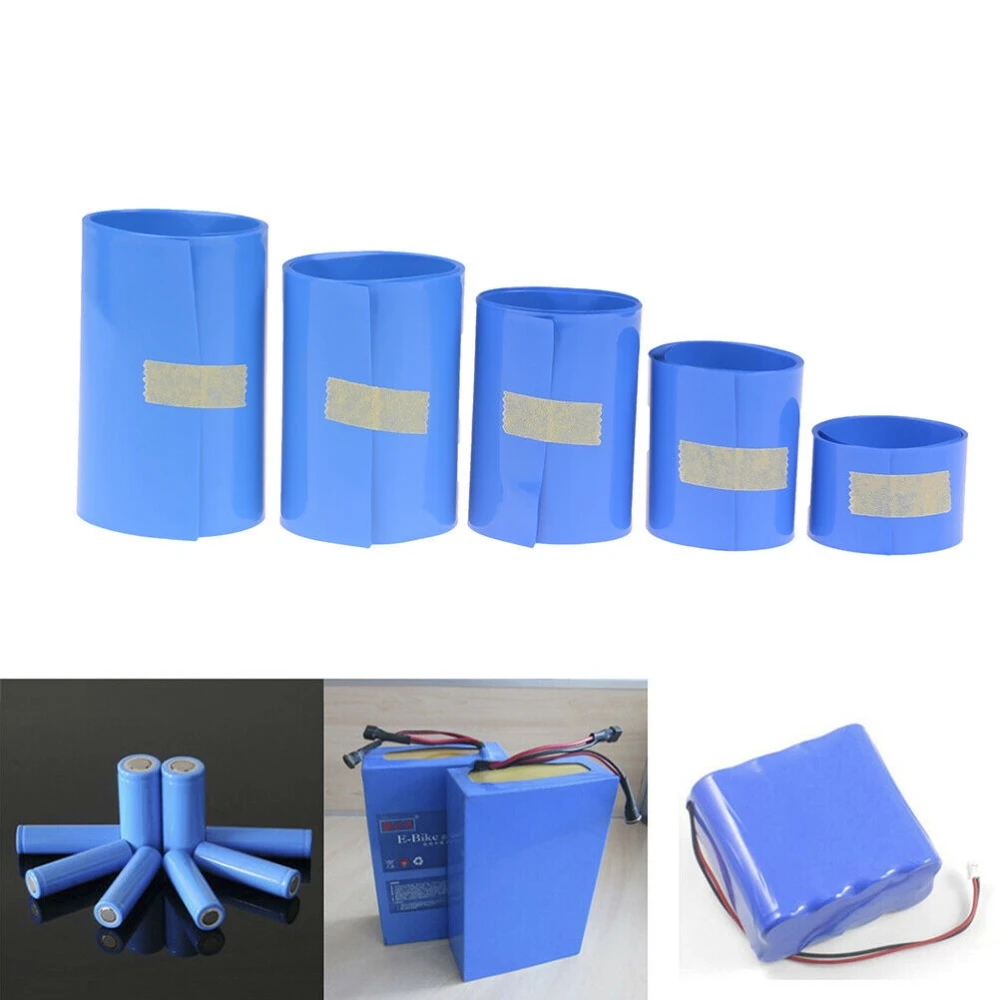

This heat shrink tube is ideal for insulating and protecting electrolytic capacitors, batteries, lithium battery packs, electronic components, LED lighting, combined packaging and more. It also helps improve the appearance of the sleeve, retains heat, and protects against moisture, corrosion, dust and other external factors.
Instructions for use:
- For short shrink tubes, it is recommended to use a lighter or a hot air gun to complete the shrinkage.
- Using an electrochromic iron to shrink the tube is not recommended.
- When heating, make sure to apply the correct temperature to avoid damaging the tube or the protected component.
Compatibility:
Compatible with a wide range of electronic components and batteries, especially useful for lithium battery packs and electrolytic capacitors.
Package contents:
1 meter of blue PVC heat shrink tube.
This Sunkko heat shrink tube is a practical and efficient solution for protection and insulation in electronics and battery projects, helping ensure durability and safety.
- Dimensions: 1m x 230mm x 0.15mm
- Shrink temperature: 80 °C
- Temperature range: -40 °C to 105 °C
- Shrink ratio: 48±5%
- Rated voltage: 300V
- Blue colour for easy identification
- Ideal for batteries, capacitors and electronic components
- Protection against moisture, dust and corrosion
- Recommended use with a lighter or hot air gun
- Do not use an electrochromic iron to shrink
Customer Questions & Answers
What advantages does PVC heat-shrink tubing offer over other materials such as polyolefin for battery insulation?
PVC heat-shrink tubing stands out for its chemical resistance, low cost and rapid shrinkage from 80 °C, which makes it easy to use in battery pack assembly tasks. However, materials such as polyolefin offer better flexibility and a wider operating temperature range, but are usually more expensive. The choice depends on protection requirements, operating environment and budget.
What are the exact dimensions of the tubing, and can it be cut easily to size?
The tubing is 1 metre long, 230 mm flat width and 0.15 mm wall thickness. It can be cut easily to the desired length with scissors or a craft knife, adapting to different battery sizes or electronic components.
What tools and temperatures are recommended to achieve a uniform and safe shrink in battery applications?
For a uniform shrink, it is recommended to use a hot air gun at a controlled temperature from 80 °C, which is the PVC shrink threshold. It is not advisable to use concentrated heat sources such as a soldering iron, as this may cause deformation or scorching. Gradual and even heating improves the results.
Can the tubing withstand continuous exposure to high temperatures or demanding environments in industrial battery systems?
The tubing has an operating range of -40 °C to 105 °C and a temperature class of 105 °C. Continuous exposure above this value can degrade the material, reduce its insulating effectiveness and cause rigidity or cracking. In industrial environments where these conditions are exceeded, it would be advisable to consider alternatives with higher thermal tolerance.
Are there any relevant safety certifications or compliance standards for use of the tubing in electrical systems?
The product does not mention specific certifications such as UL, RoHS or CE. Although it meets basic insulation standards and has a rated voltage of 300 V, for applications subject to strict regulations it is recommended to check the specific requirements or request additional technical documentation.
What is the PVC heat shrink tube 1m x 230mm x 0.15mm used for?
It is used to insulate and protect batteries, capacitors and electronic components, offering resistance to moisture, dust and corrosion.
What is the maximum temperature this tube can withstand?
It can withstand temperatures up to 105 °C, with a shrink temperature of 80 °C.
How do you use the heat shrink tube to shrink it?
You can use a lighter or a hot air gun to heat and shrink the tube. Using an electrochromic iron is not recommended.
Is it compatible with lithium batteries?
Yes, it is ideal for lithium battery packs and other similar electronic components.
What is included in the package?
It includes 1 meter of blue PVC heat shrink tube.
