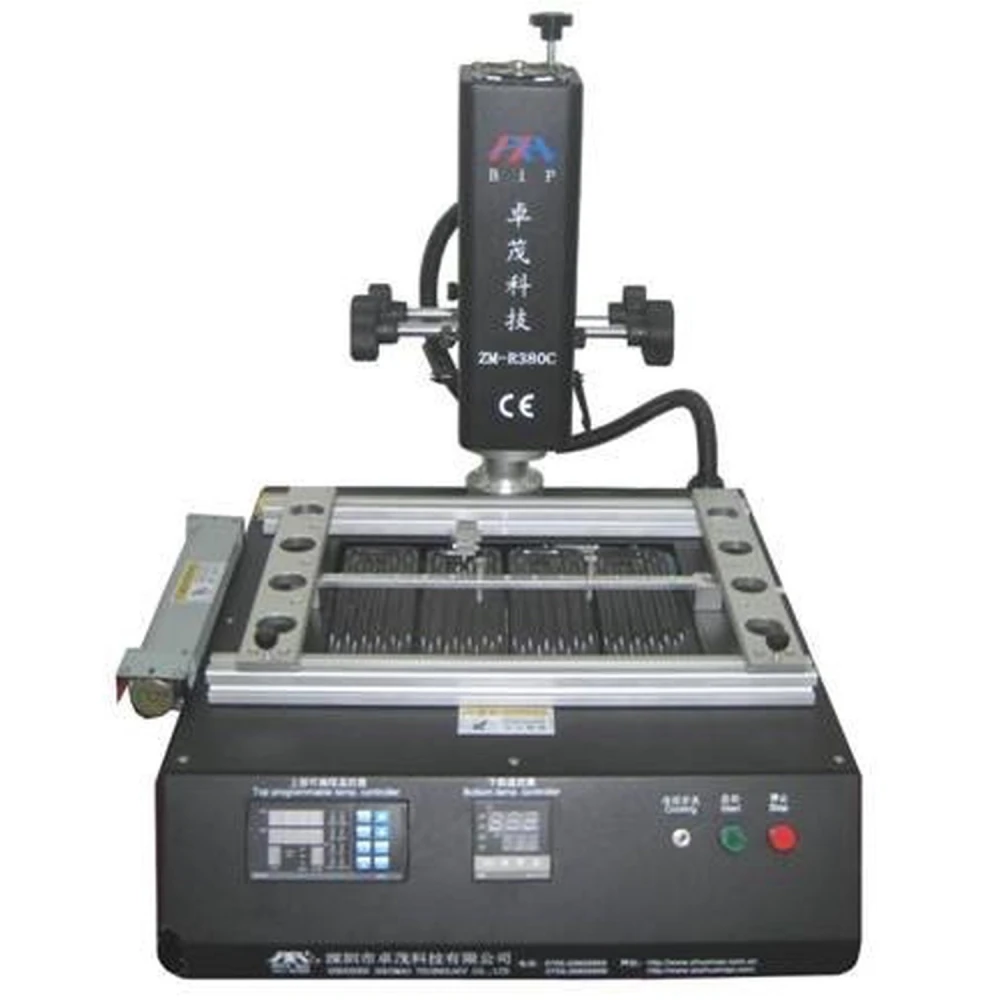

Zhuomao ZM-R380C Professional BGA Soldering and Reballing Station
Brand: Zhuomao
VAT included (Ex VAT: 870.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 1,027.30 € | -4% |
| 10+ | 1,005.89 € | -6% |
| 20+ | 963.09 € | -10% |
The Zhuomao ZM-R380C Station is a professional tool designed for high-precision and reliable BGA soldering and reballing processes. This station combines a lower infrared heater and an upper hot air heater for optimal thermal control during desoldering and soldering of BGA components.
Made with imported high-precision materials, including temperature sensors, PLC and heaters, the ZM-R380C ensures exact control of thermal processes, preventing damage to PCB boards. Its high-precision K-type thermocouple allows temperature detection with an accuracy of ±3 degrees, ensuring consistent results.
This station features computer communication via an integrated serial port and an external temperature interface, allowing the process to be controlled and monitored from specialised PC software. In addition, the upper and lower heaters operate independently, making it easier to apply heating suited to different types of boards and components.
To protect the board during the process, the station uses a V-groove support with a flexible accessory to position the PCB securely. A cross-flow fan provides rapid cooling that prevents board deformation after soldering.
Main technical features:
- Total power: 3200W
- Upper heater: 800W (hot air)
- Lower heater: 2400W infrared plate
- Power supply: AC 220V ± 10% - 50/60Hz
- Dimensions: 480×550×530 mm
- Positioning: V-groove with adjustable support and external universal accessory
- Temperature control: K-type thermocouple with closed loop, independent heating
- Maximum PCB size: 320×270 mm; minimum 20×20 mm
- Net weight: 20 kg
Uses and compatibility
The Zhuomao ZM-R380C station is ideal for technicians and professionals working in electronics repair, especially for soldering and reballing BGA components on PCB boards. Its design allows it to handle boards with high thermal capacity and lead-free soldering requirements, ensuring a safe and efficient process.
Thanks to its computer control interface, it is compatible with specialised software for monitoring and adjusting parameters in real time, which makes it easy to integrate into industrial processes or specialist workshops.
Status and recommendations
The Zhuomao ZM-R380C Station is currently out of stock. We recommend contacting our customer service team to check future availability or similar alternatives in BGA soldering and reballing stations.
- 2400W infrared lower heater for even heating
- 800W hot air upper heater with independent control
- Temperature control with K-type thermocouple and ±3 degrees accuracy
- Adjustable V-groove support for PCB positioning with universal accessory
- Cross-flow fan for rapid cooling and PCB protection
- Serial port communication for PC control via software
- Supports PCB boards up to 320×270 mm and as small as 20×20 mm
- AC 220V ± 10% - 50/60Hz power supply, net weight 20 kg
Customer Questions & Answers
What are the station dimensions and weight, and what accessories are included in the box?
The Zhuomao Zm-R380c measures approximately 525 mm x 500 mm x 530 mm and weighs around 48 kg. The box includes the main unit, V-groove support with flexible PCB fixtures, power cables, temperature sensors and the user manual. Contents may vary by distributor; it is advisable to confirm before purchase.
What electrical and connectivity requirements does it need to operate correctly?
The station requires a 220 V AC, 50/60 Hz supply, with a maximum total power of around 4200 W. It includes a serial port for PC communication and an external temperature sensor interface, which makes computerised control and advanced thermal profile monitoring easier.
What type of preventive maintenance is required to ensure optimum operation and extend service life?
Basic maintenance consists of regularly cleaning the ventilation systems and filters, checking connections and cables, verifying the temperature sensors and testing the heaters. It is recommended to recalibrate the sensors annually and avoid dust build-up on internal components.
What temperature tolerance and accuracy do the sensors have for lead-free soldering processes?
The Zm-R380c sensors offer typical accuracy of ±2°C over the operating range of 0 to 400°C, which is suitable for lead-free processes that need to be carried out at around 220–250°C. This accuracy meets industrial standards for demanding BGA rework.
Is the Zhuomao ZM-R380C Station available to buy?
The station is currently out of stock. You can check future availability or alternatives by contacting our customer service team.
What type of temperature control does the station have?
It uses a K-type thermocouple with a closed loop that allows independent control of the heaters with accuracy within ±3 degrees.
What PCB sizes can the station handle?
It can handle PCB boards with a maximum size of 320×270 mm and a minimum of 20×20 mm.
Does the station allow computer control?
Yes, it has an integrated serial port and an external temperature interface for control and monitoring via PC software.
What type of heaters does the station have?
It has a 2400W infrared lower plate heater and an 800W hot air upper heater that work independently.
