Zhuomao ZM-R5830 reballing station: precision and advanced technology
Brand: Zhuomao
VAT included (Ex VAT: 1,350.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 1,594.08 € | -4% |
| 10+ | 1,560.87 € | -6% |
| 20+ | 1,494.45 € | -10% |

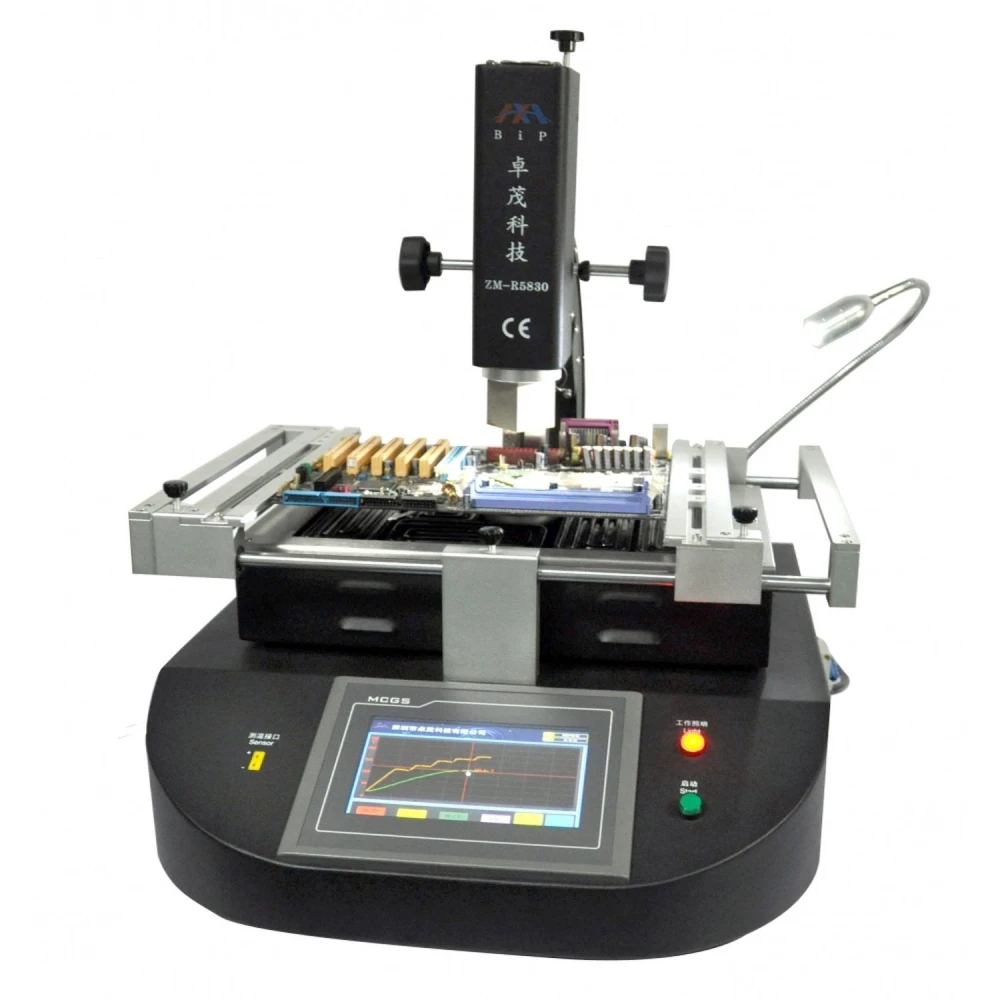

The Zhuomao ZM-R5830 reballing station is a professional tool designed for soldering and BGA reballing work with high precision and efficiency. This station stands out for its precise X, Y and Z axis adjustment system using a linear slider that allows fast and accurate positioning, ideal for delicate work on PCB boards.
It features a high-definition touch screen and PLC control that allows multiple temperature profiles to be saved, password-protected and parameter settings to be changed easily. It also includes an instant temperature curve analysis function for detailed control during the process.
The station has three independent heating zones: two hot air heaters in the upper and middle sections, and an infrared (IR) heater in the lower section for even preheating. Temperature is controlled with an accuracy of ±3 °C, and the upper heater is freely adjustable while the second can move vertically. The lower IR heater ensures even heat distribution across the board.
To make work easier, the station includes various hot air nozzles that rotate 360° and are fixed with magnets for quick, custom changes. The PCB is positioned using a V-groove with a flexible support that prevents warping during heating or cooling, compatible with any BGA package size.
It also incorporates a powerful cross-flow fan to speed up board cooling and improve process efficiency. It also features a built-in vacuum pump and an external suction pen for fast chip handling.
The Zhuomao ZM-R5830 station includes audible alerts to indicate the end of desoldering and soldering processes, and features CE certification, an emergency stop system and automatic overheating protection to ensure safety during use.
Main features:
- Total power: 4500W
- Upper heater: 800W
- Lower heaters: 1200W (second) and 2400W (third IR)
- Power supply: AC220V ±10%, 50/60Hz
- Dimensions: 530×600×600 mm
- Positioning: V-groove with universal adjustable support
- Temperature control: K-type sensor, closed loop, accuracy ±3 °C
- Maximum PCB size: 350×330 mm; minimum: 20×20 mm
- Sensitive temperature control module and Taiwan touch screen
- Weight: 34 kg
Typical uses: Repair and reballing of BGA chips on electronic boards, soldering delicate components, and tasks requiring precise temperature control and exact positioning.
Compatibility: Compatible with PCB boards of various sizes and different BGA packages thanks to its flexible, adjustable support.
At present, the Zhuomao ZM-R5830 reballing station is not in stock. We recommend contacting our team for alternatives or restock dates.
- High-precision X, Y and Z axis adjustment with linear slider
- HD touch screen with PLC control and savable profiles
- Three independent heating zones with ±3 °C control
- 360° rotating hot air nozzles with magnets for easy changing
- V-groove support to help prevent PCB warping
- Cross-flow fan for rapid cooling
- Built-in vacuum pump and external suction pen
- Audible alerts when processes are complete
- CE certification and integrated safety systems
- Compact dimensions and 34 kg weight for stability
Customer Questions & Answers
What are the dimensions, weight and included contents in the box for the ZM-R5830 station?
The station measures approximately 690 mm × 630 mm × 600 mm and weighs around 55 kg. The box usually includes the main station, a set of hot-air nozzles, a V-type flexible PCB fixture, a vacuum pump, suction pen, power cables and a manual. It is recommended to check the exact accessory list with the distributor.
What electrical and compatibility requirements does the ZM-R5830 work with?
The ZM-R5830 requires a 220 V AC (±10%), 50–60 Hz supply, and a maximum consumption of approximately 5000 W. It is compatible with a wide range of PCBs and all types of BGA packages, partly thanks to customisable nozzles and fixtures. It is not compatible with 110 V mains without a suitable transformer.
What maintenance does the station require, and what are its main wear points?
Maintenance includes regular cleaning of nozzles and sensors, checking the K-type thermocouples and periodic inspection of the PCB clamping system and cross-flow fan. The most critical components are usually the heating elements and sensors, for which spare parts are available.
Does the ZM-R5830 station have recognised safety certifications or protections?
Yes, the ZM-R5830 has CE certification, emergency stop systems and dual overheat protection, complying with European industrial electrical safety regulations, which reduces operating risks and damage caused by thermal faults.
What temperature control does the Zhuomao ZM-R5830 reballing station have?
It has closed-loop temperature control with a K-type sensor and ±3 °C accuracy, allowing independent and precise heating in each zone.
What is the maximum PCB size this station can handle?
It can work with PCB boards up to 350×330 mm and a minimum size of 20×20 mm.
Does the station include a safety system?
Yes, it has CE certification, an emergency stop, automatic shut-off and double overheating protection.
Is it available for immediate purchase?
At present, the Zhuomao ZM-R5830 station is out of stock. We recommend checking alternatives or restock dates.
What accessories are included to make soldering easier?
It includes rotating hot air nozzles with magnets, an adjustable PCB support, a cooling fan, a vacuum pump and a suction pen.
