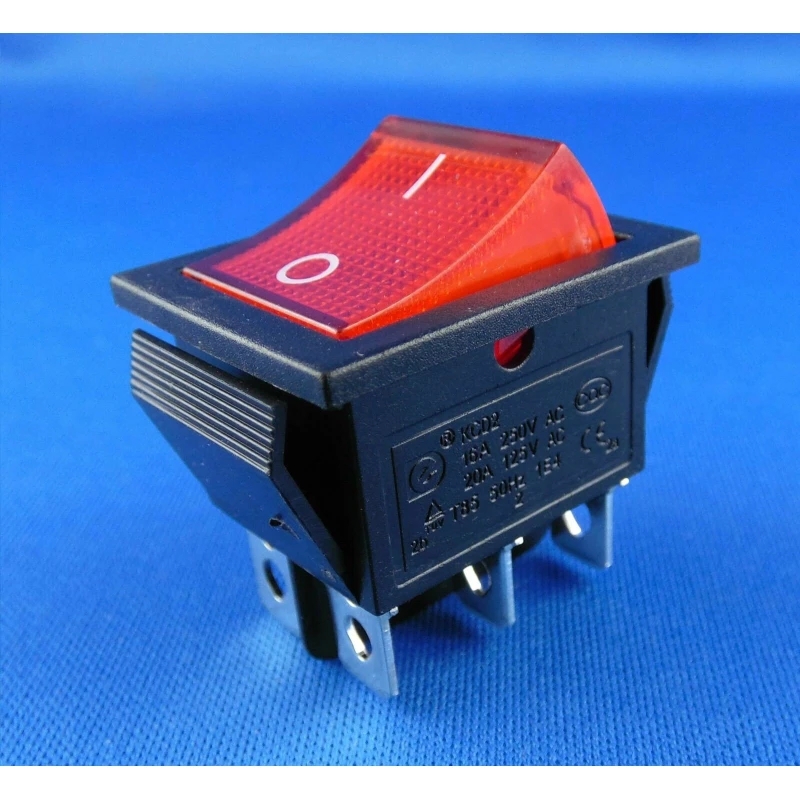

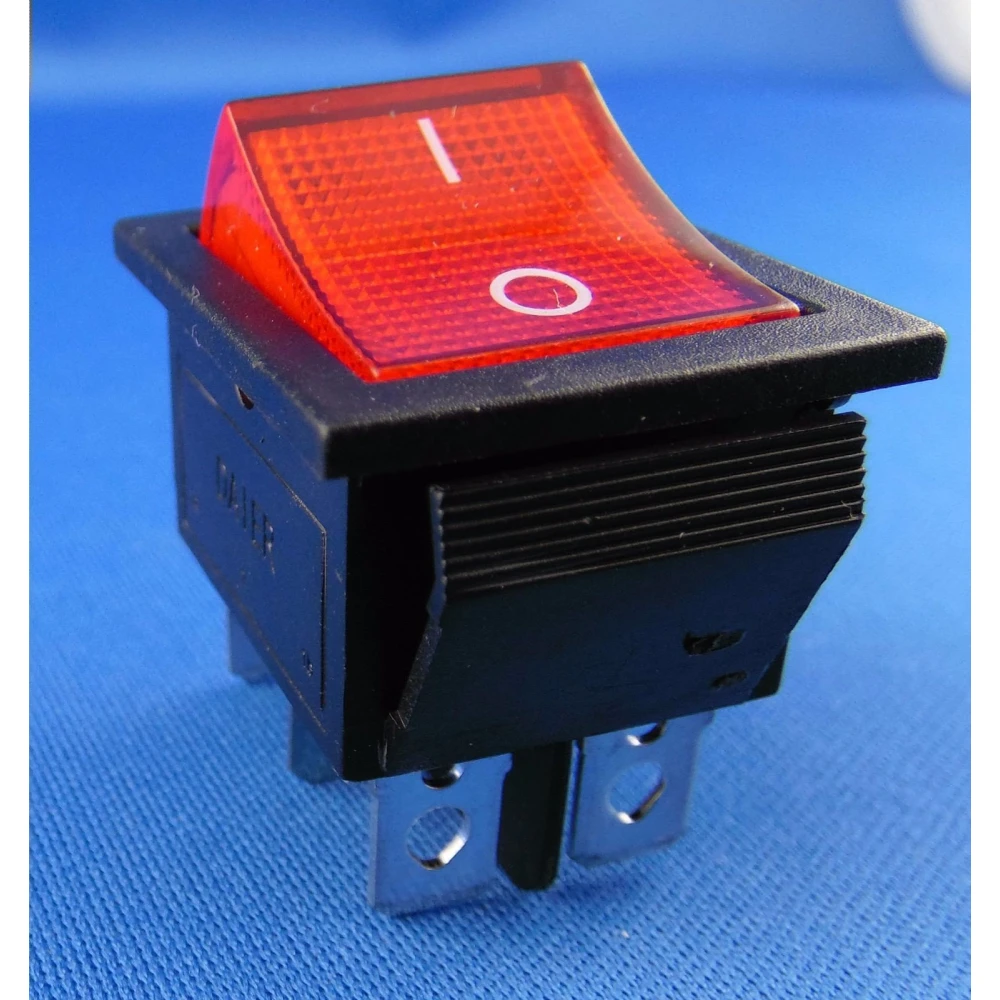

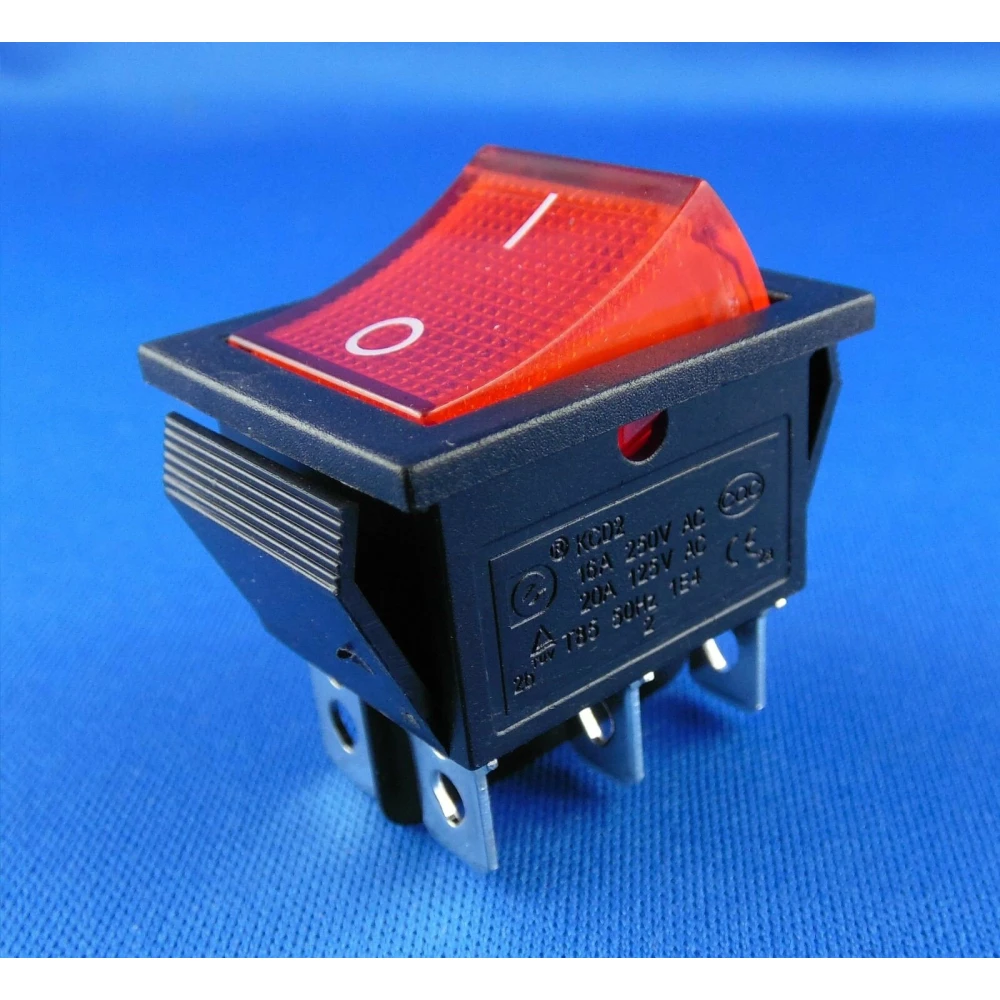

Red illuminated rocker switch 6 pin KCD4
This red KCD4 rocker switch with integrated neon is ideal for electrical applications that require simple control and a clear visual ON/OFF status. Its robust, compact design makes it easy to install and use in electronic and electrical projects.
Main features:
- Rocker switch with two positions: ON/OFF.
- Includes an indicator neon that lights the red rocker for visual signalling.

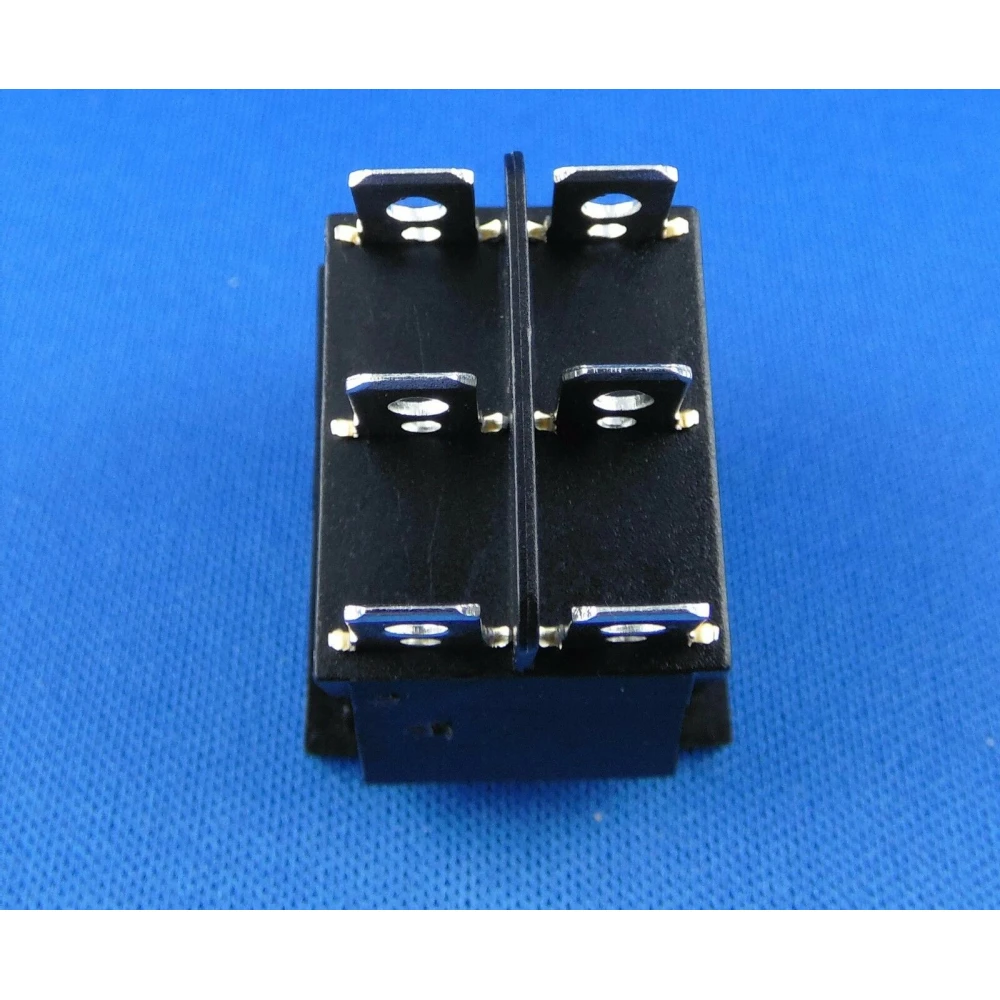

- Features 6 pins for secure and versatile electrical connections.

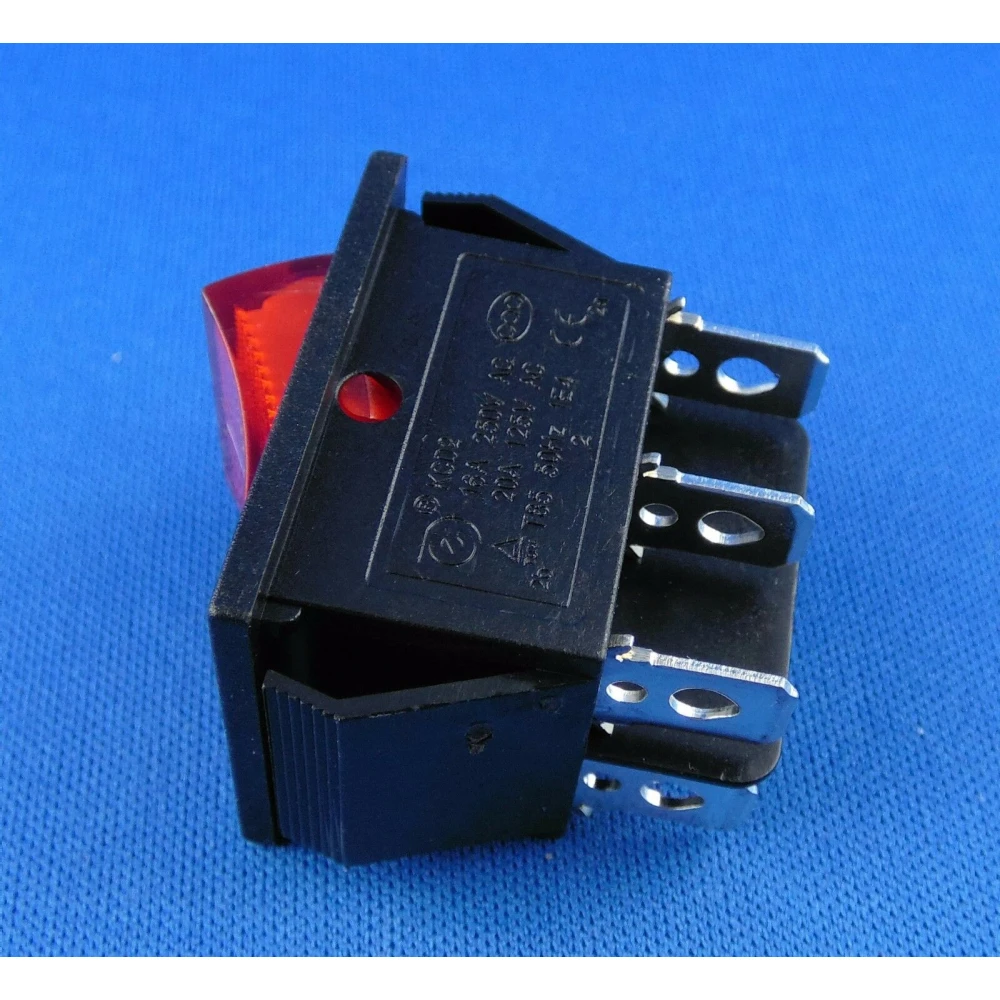

- Integrated brackets for firm mounting and easy removal.
Technical specifications:
- Voltage and current: supports up to 16A at 250V AC.
- Rated current: 15/30A.
- External dimensions: 25x30x35 mm.
- Operating temperature: T55, suitable for standard environments.
- Approximate durability: up to 10,000 operating cycles.
Typical uses:
This switch is suitable for DIY electronics projects, repair kits, and electrical components in general. It is commonly used in control panels, devices that require illuminated indication, and applications where a reliable and visible switch is needed.
Compatibility:
Compatible with electrical systems operating within the stated specifications, especially in 16A and 250V AC circuits. Its 6-pin design allows multiple connection configurations.
This red KCD4 neon rocker switch is a practical solution for those looking for a durable, easy-to-install component with integrated visual indication.
- Red illuminated rocker switch for visual signalling
- 6 pins for secure electrical connections
- 16A 250V AC electrical rating
- Compact dimensions: 25x30x35 mm
- Approximate durability of 10,000 cycles
- Easy installation with included brackets
- T55 operating temperature suitable for standard environments
Customer Questions & Answers
What are the main functions of the Kcd4 switch and in which applications is it recommended?
The Kcd4 switch is a rocker switch with a two-step ON/OFF function and an indicator neon light. It is suitable for on/off control applications in household appliances, electrical panels and industrial equipment operating within 250 V AC and up to 16 A. Its 6-pin design allows configurations such as double pole double throw (DPDT).
What dimensions does the switch have and what should be considered when installing it in a panel?
The external dimensions of the switch are 25 mm x 30 mm x 35 mm, so a compatible panel cut-out is required. The included brackets make fitting and removal easier. It is important to ensure there is enough space for the body and that the 6 pins remain accessible for wiring.
Are there spare parts or compatible replacements in case of failure, and what type of warranty is usually applied to this type of component?
In the event of failure, the usual solution is to replace the entire switch, as it is not repairable and there are no modular spare parts. The warranty depends on the distributor, but for similar components it is usually 6 to 12 months against manufacturing defects. It is recommended to check the seller's specific policy.
How do you install the 6 pin KCD4 rocker switch?
The switch includes brackets that allow firm and simple mounting. Each of the 6 pins should be connected according to the corresponding wiring diagram, and the switch fixed in the desired panel or enclosure.
What is the neon for on the rocker switch?
The integrated neon lights the red rocker to visually indicate when the switch is in the ON position, making it easier to identify the circuit status.
What is the maximum current and voltage rating of the switch?
It supports a maximum current of 16A and a voltage of up to 250V AC, suitable for most domestic applications and electronic projects.
What is the difference between a rocker switch and a push button?
A rocker switch stays in the ON or OFF position until it is changed manually, while a push button only activates the circuit while it is momentarily pressed.
How many operating cycles does this switch have?
The KCD4 switch has an approximate lifespan of 10,000 operating cycles, ensuring a good service life for common applications.
