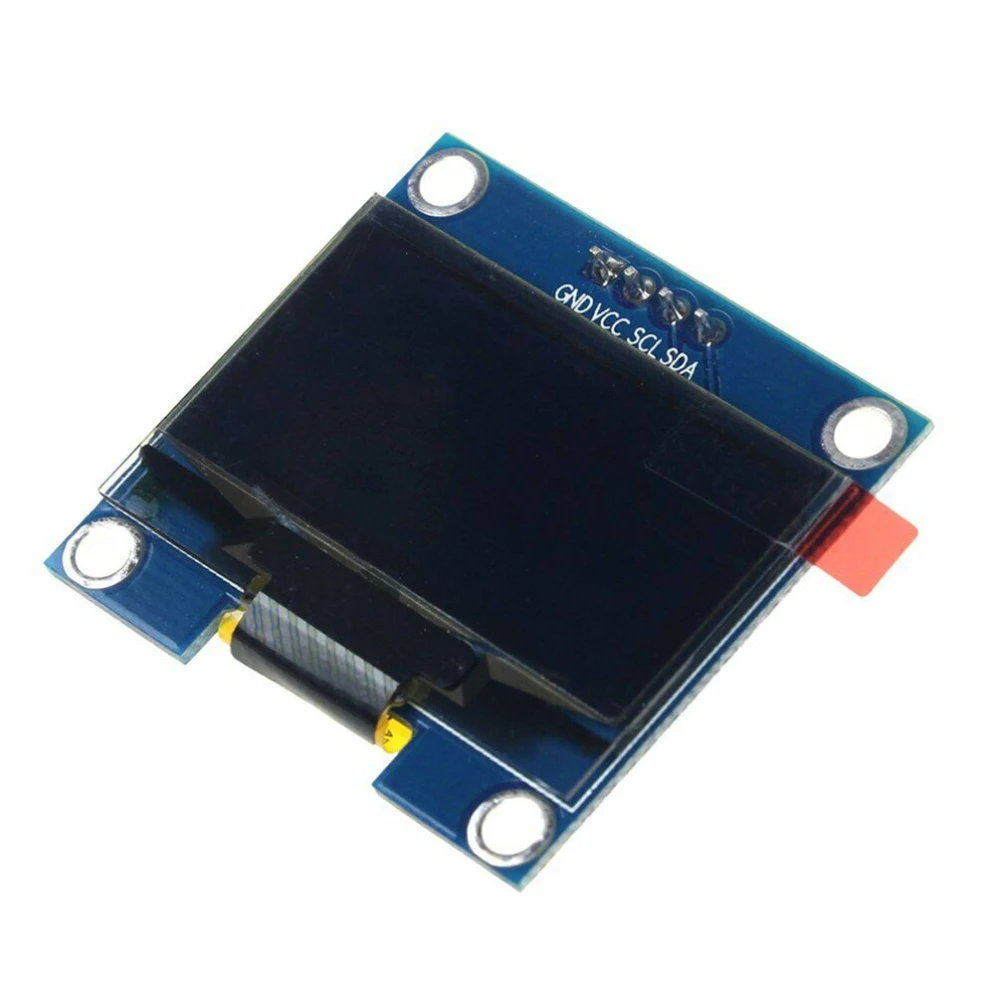

1.3-inch OLED Display Arduino SH1106 IIC 4 Pin 128x64
Brand: satkit
5.90€
VAT included (Ex VAT: 4.80 €)
Only 4 left in stock - order soon!
Standard delivery
Thu, Apr 30 - Mon, May 4
Express delivery
Tue, Apr 28 - Wed, Apr 29
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

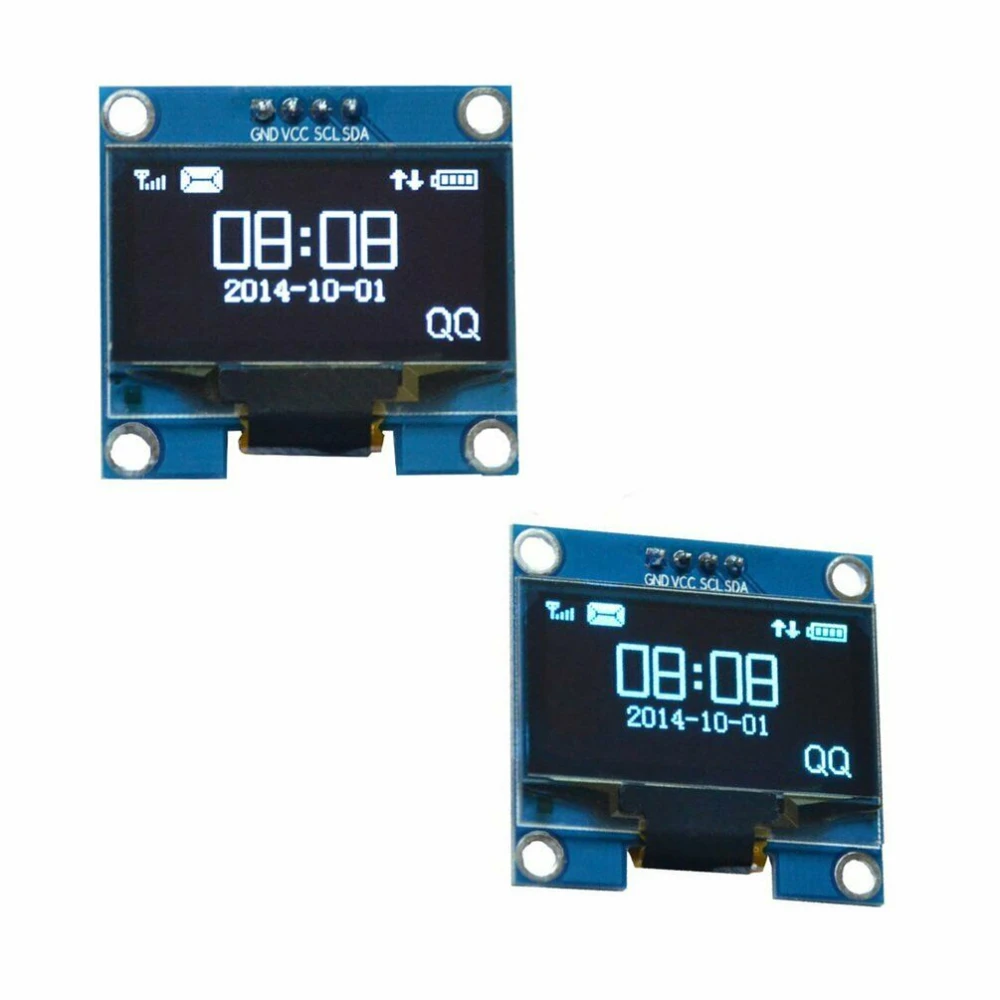

The 1.3-inch OLED display Arduino SH1106 IIC 4 pin 128x64 is a compact and efficient display module designed for Arduino projects that require a clear, low-power visual interface.
Main features:
- Compact size: 1.3 inches with a viewing area of 29.42 x 14.7 mm, ideal for limited spaces.
- High resolution: 128 x 64 pixels that allow sharp graphics and text.
- SSH1106 control chip: ensures fast response and compatibility with IIC protocols.

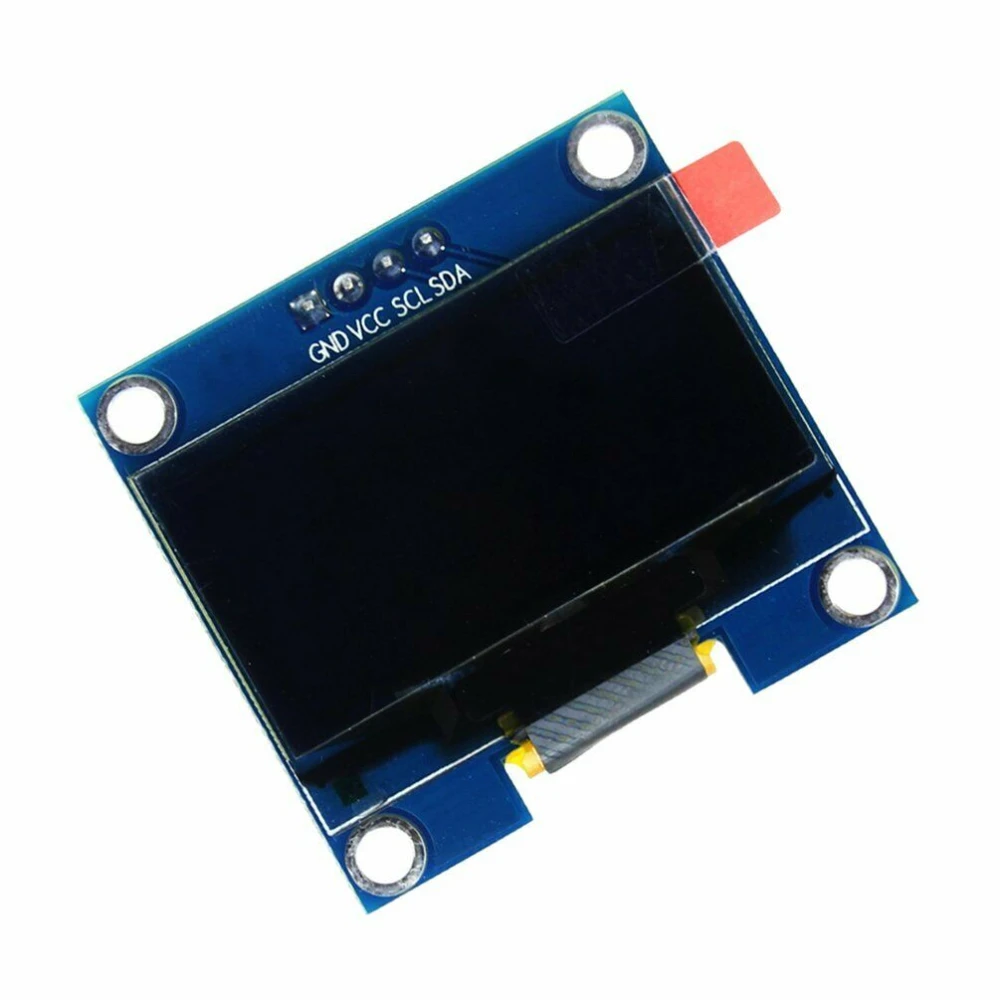

- 4-pin IIC interface: easy connection via GND, VCC, SCL and SDA pins, compatible with most Arduino boards.
- Self-emitting light: no backlight needed, offering high brightness and wide viewing angles.
- Low power consumption: operates at voltages from 3.3 to 5V, ideal for portable and efficient projects.
- Wide temperature range: operates between -40 and 70 °C, suitable for various environmental conditions.
- Reversible VDD and GND pins: make connection easier and reduce assembly errors.
Typical uses:
- Data display in Arduino projects such as sensors, clocks or control systems.
- Graphical interfaces for small electronic devices.
- Low-power projects where energy efficiency is key.
Compatibility: This module is compatible with most Arduino boards that support IIC communication, making it easy to integrate into existing projects or new developments.
Technical specifications:
- Size: 1.3 inches
- Resolution: 128 x 64 pixels
- Control chip: SSH1106
- Viewing area: 29.42 x 14.7 mm
- Operating voltage: 3.3-5V
- Operating temperature: -40 to 70 °C
- Interface: IIC (4 pins: GND, VCC, SCL, SDA)
- Light colour: white
Package contents:
- 1 x 1.3'' SH1106 IIC 128x64 OLED display module for Arduino
- 1.3-inch OLED display with 128x64 resolution for Arduino projects
- 4-pin IIC interface: GND, VCC, SCL and SDA for easy connection
- SSH1106 chip for high speed and fast response
- White self-emitting light, no backlight required
- Low power consumption, operates between 3.3 and 5V
- Wide operating temperature range: -40 to 70 °C
- Reversible VDD and GND pins for easier installation
Customer Questions & Answers
What are the key advantages of using an SH1106 OLED display over a conventional LCD in Arduino projects?
The SH1106 OLED display emits its own light (no backlight required), offering higher contrast and a wide viewing angle. It also consumes less power and responds faster than a traditional LCD. On the downside, OLED displays usually have a shorter lifespan when exposed to prolonged static images.
What common problems can arise when starting up the display and how can they be solved?
The most common issues are no image (due to incorrect GND/VCC polarity), undetected I2C addresses, or incompatible libraries. I recommend checking the wiring, verifying the I2C address with an Arduino scanner, and using compatible specific libraries such as 'U8g2'.
What temperature range can it withstand without failure, and does performance change in extreme environments?
The display operates between -40 °C and +70 °C. At the extremes, slight changes in brightness or refresh speed may occur, but within the stated range operation remains stable without significant degradation under normal conditions.
How do you connect the 1.3-inch OLED display to Arduino?
It connects via the IIC interface using the four pins: GND (ground), VCC (power), SCL (clock) and SDA (data). Make sure each pin is connected correctly to avoid damage.
What voltage does this OLED display need to work?
The display works with a supply voltage between 3.3 and 5 volts, compatible with most Arduino boards.
Does this OLED display need a backlight?
No, the display uses self-emitting light, so it does not require a backlight and offers high brightness even in dark environments.
Is this display compatible with all Arduino boards?
It is compatible with most Arduino boards that support IIC communication, but it is recommended to check software and pin compatibility on your specific model.
What is the resolution and size of this OLED display?
The display has a size of 1.3 inches and a resolution of 128 x 64 pixels, ideal for showing text and simple graphics.
