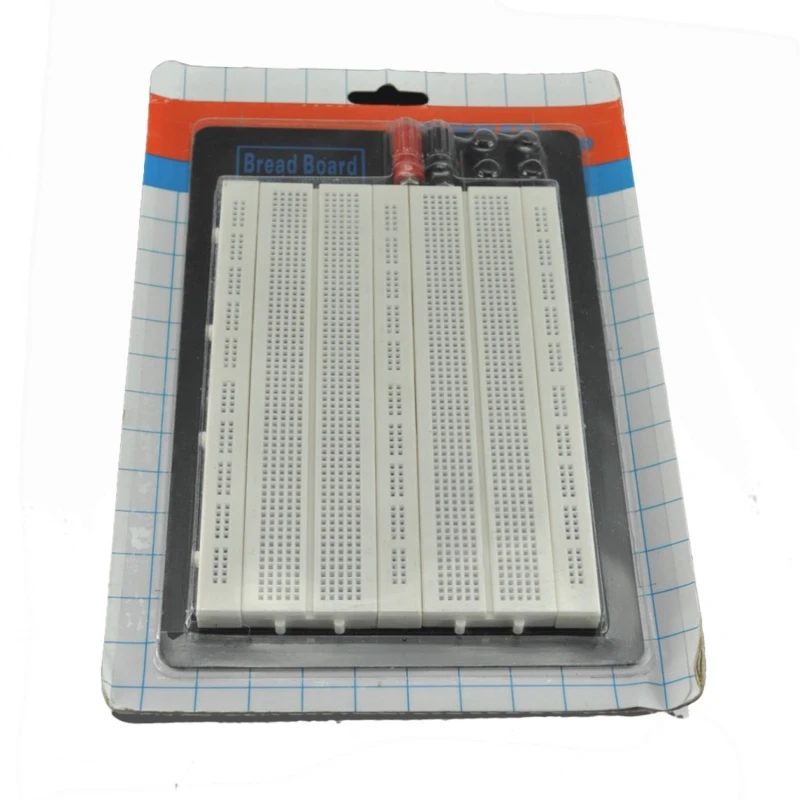

1660 Point Breadboard 21.5cm x 13cm with Metal Base and Power Connection
Brand: satkit
11.69€
VAT included (Ex VAT: 9.50 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 11.22 € | -4% |
| 10+ | 10.32 € | -12% |
| 20+ | 9.58 € | -18% |
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The 1660 point breadboard is an essential tool for any electronics enthusiast and DIY project developer. With dimensions of 21.5cm x 13cm and a robust metal base, this board allows for secure and stable connections for building and testing electronic circuits.
Main features:
- 2 terminal strips with 1260 connection points for electronic components.
- 4 distribution strips with 400 connection points, making circuit organisation easier.
- 2 connection terminals that allow direct electrical power to the board.
- Black aluminium metal base that provides stability and thermal dissipation.
- Compact size of 21.5cm x 13cm, ideal for smaller workspaces.
- Coloured connection points for quick and accurate component placement.
- Compatible with different cable sizes (AWG 20-29), adapting to various prototyping needs.
This board is perfect for prototyping, experimentation and electronics DIY projects, especially for users working with Arduino and other microcontrollers. Its metal base and connection terminals make it easy to power and connect circuits safely and efficiently.
In addition, the board has a design intended to make it easy to connect and disconnect components quickly, making it a versatile tool for students, engineers and electronics hobbyists.
- 2 terminal strips with 1260 connection points
- 4 distribution strips with 400 connection points
- 2 power connection terminals
- Black aluminium metal base for stability
- Compact size: 21.5cm x 13cm
- Coloured points for easy component placement
- Compatible with AWG 20-29 cables
Customer Questions & Answers
What advantages does the aluminium metal base offer compared with prototyping boards without a base?
The aluminium metal base provides greater mechanical stability during use and dissipates heat more efficiently than boards without a base. It also reduces the risk of warping and makes bench work easier. However, it adds weight and may be susceptible to short circuits if not used correctly with insulation.
What types of cables can I use with this prototyping board, and what are the connection limitations?
The board accepts cables to AWG standard between 20 and 29 (0.81 mm to 0.29 mm diameter). It is important to avoid cables outside that range, as they may not make good contact or could damage the connectors. Rigid wires are recommended for secure connections and to avoid intermittent faults.
What is the maximum current each connection point can handle without compromising the integrity of the breadboard?
Each contact point typically supports up to 1 A, although a conservative recommendation is not to exceed 0.5 A per point for prolonged use. Higher currents can heat up and deform the internal contacts, reducing the breadboard's service life.
Is any specific procedure required to fix the board to a surface, or is it portable?
The board is portable and can be used directly on any flat surface. For fixed installation, the holes in the base should be used to screw it down or secure it properly if the environment requires it.
Does the board include any protection against electrostatic discharge, or are precautions recommended when handling sensitive components?
The product does not include specific electrostatic discharge (ESD) protection. It is recommended to use anti-static wrist straps or work on ESD-safe surfaces when handling sensitive electronic components.
What size is the breadboard?
The board measures 21.5cm long by 13cm wide.
How many connection points does the board have?
The board has a total of 1660 connection points, distributed across terminal and distribution strips.
What type of base does the board have?
The board has a black aluminium metal base that provides stability and thermal dissipation.
What type of projects is this board suitable for?
It is ideal for DIY projects, electronic prototypes, experimentation and Arduino projects.
What cable sizes does the board accept?
It accepts cables with AWG sizes from 20 to 29.
