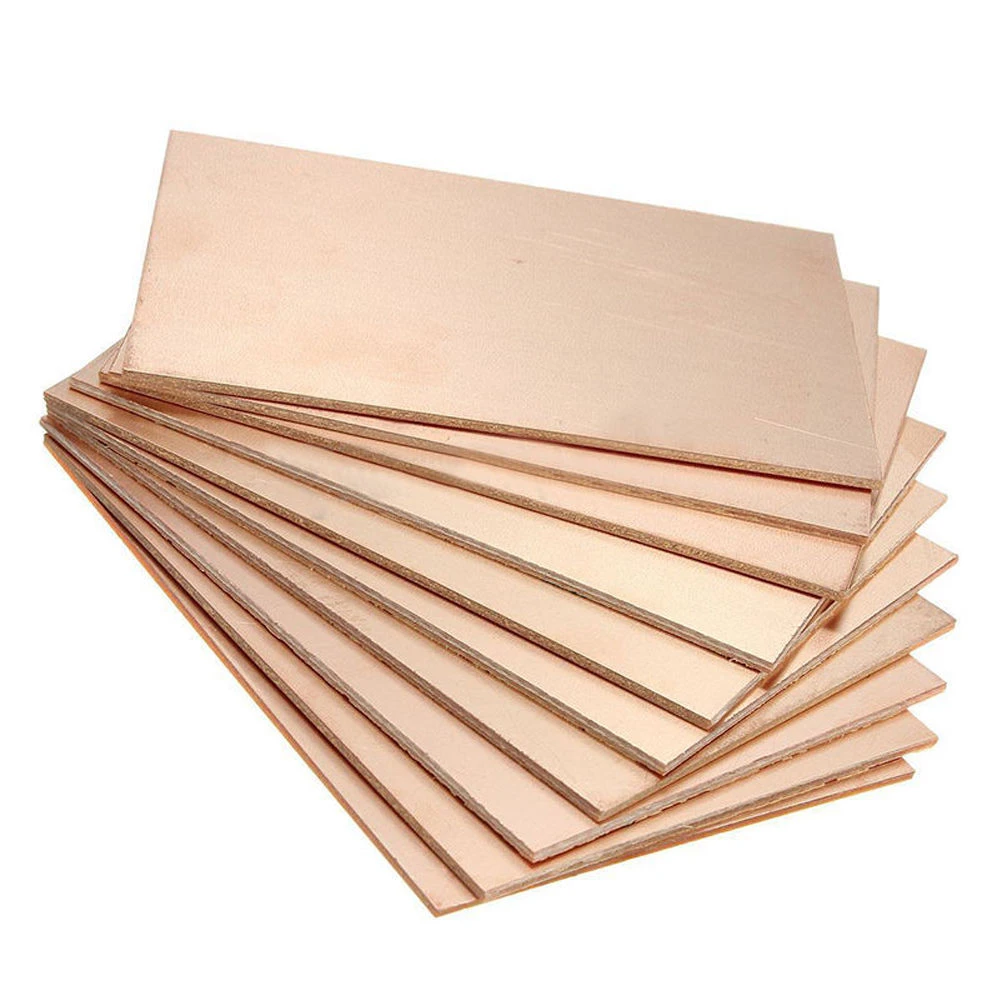

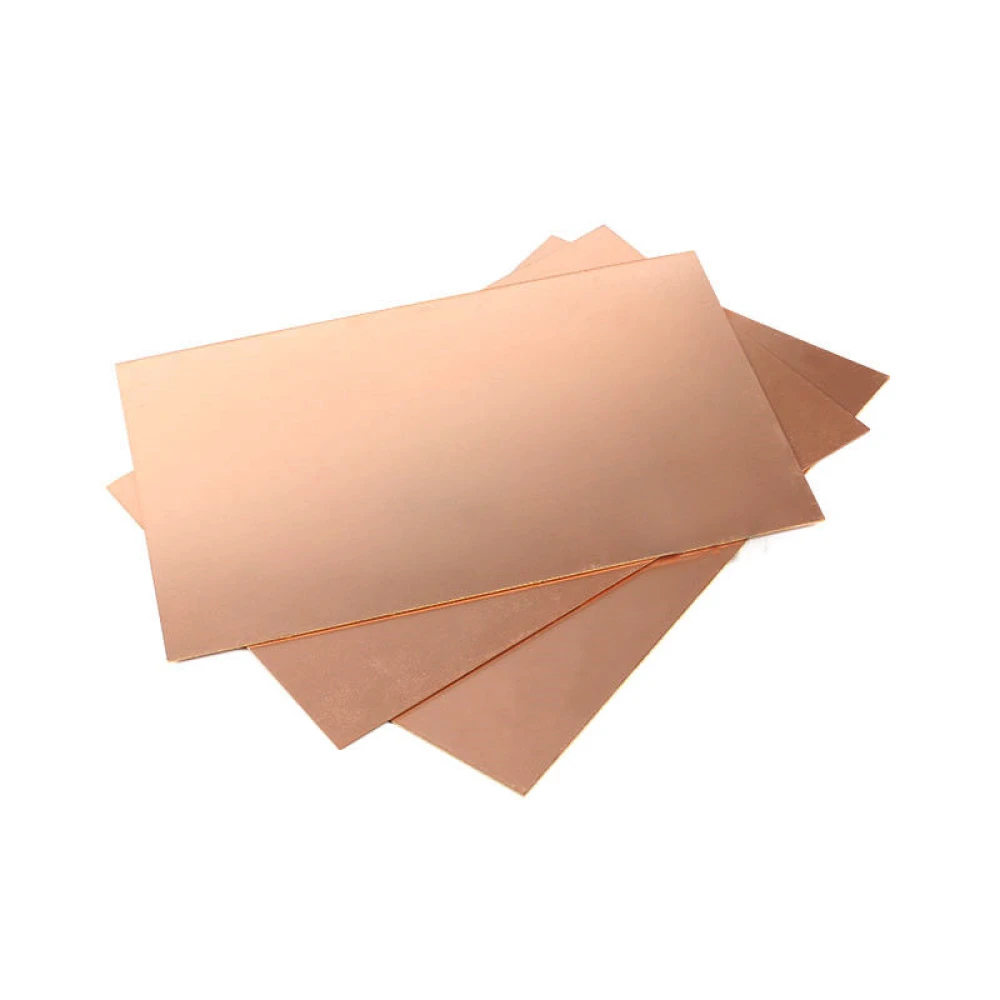

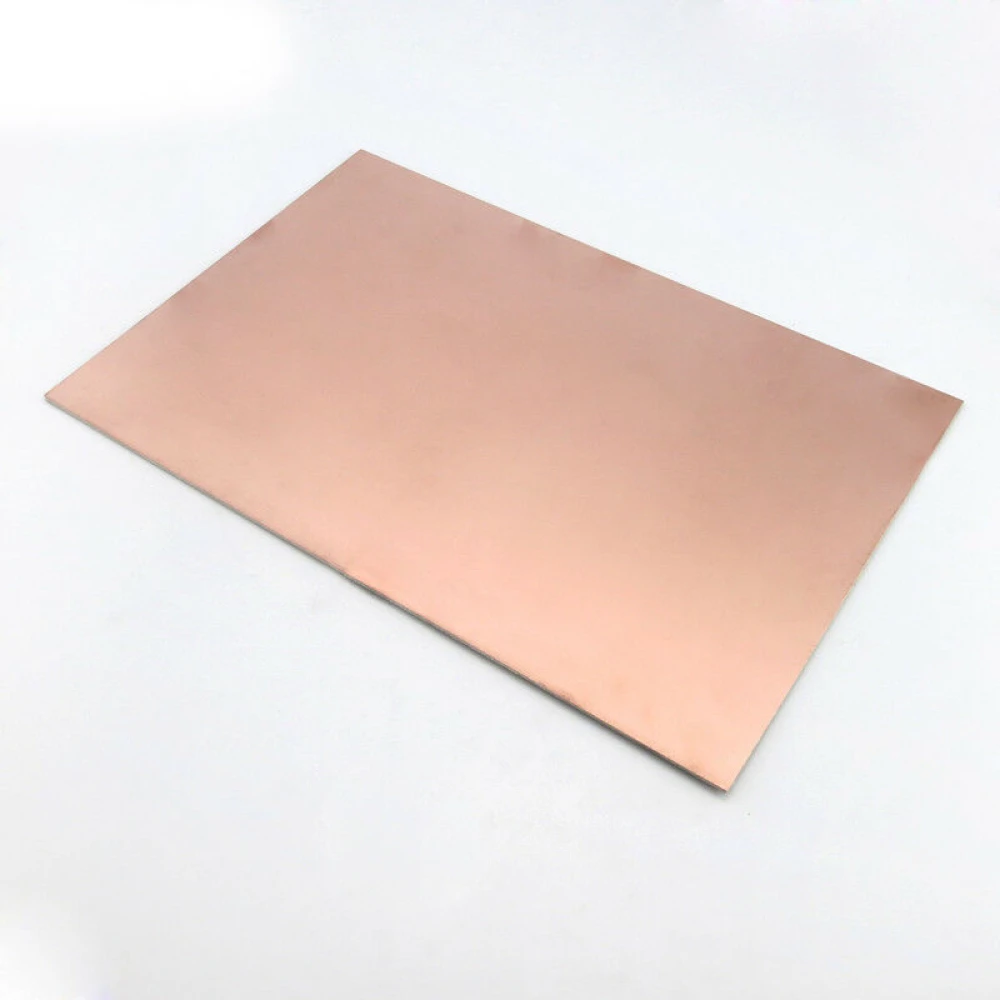

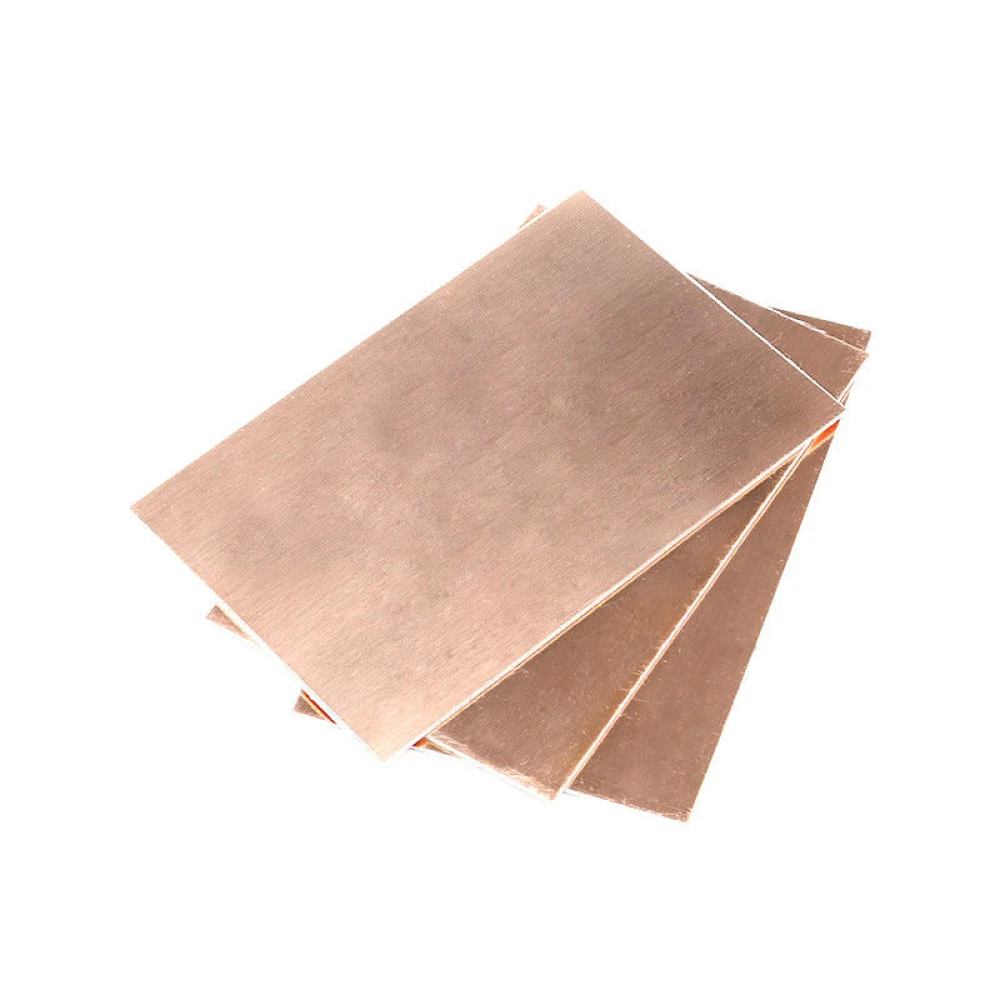

10x15cm single-sided fibreglass copper PCB board for DIY projects
Brand: satkit
1.98€
VAT included (Ex VAT: 1.61 €)
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The 10x15cm fibreglass copper PCB board is a perfect solution for hobbyists and professionals looking to make their own printed circuits with high-quality materials. This single-sided printed circuit board is made from FR4 material, known for its strength and stability, and features a copper coating that makes it easier to create precise and durable electrical connections.
Main features:
- Size: 10 x 15 cm, ideal for small and medium projects.

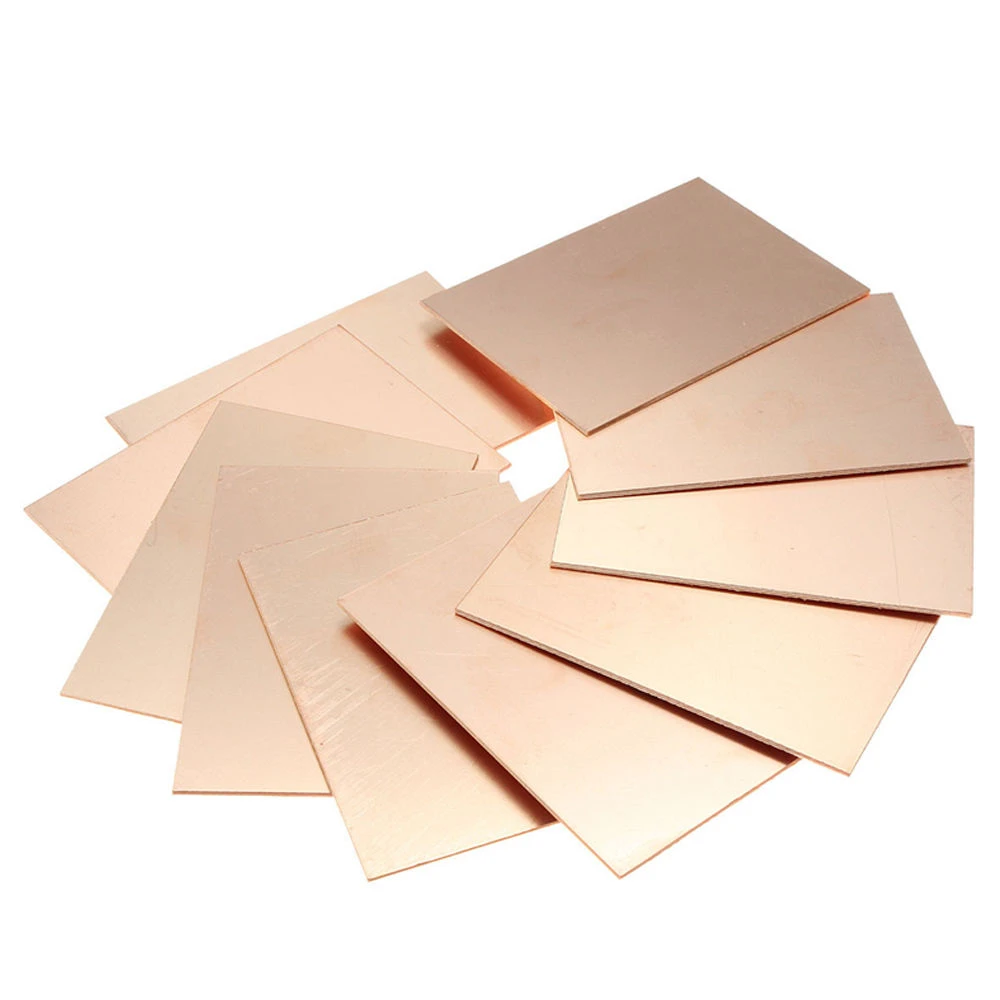

- Thickness: 1.5 mm, providing rigidity and durability.
- Layers: Single copper layer to simplify design and manufacturing.

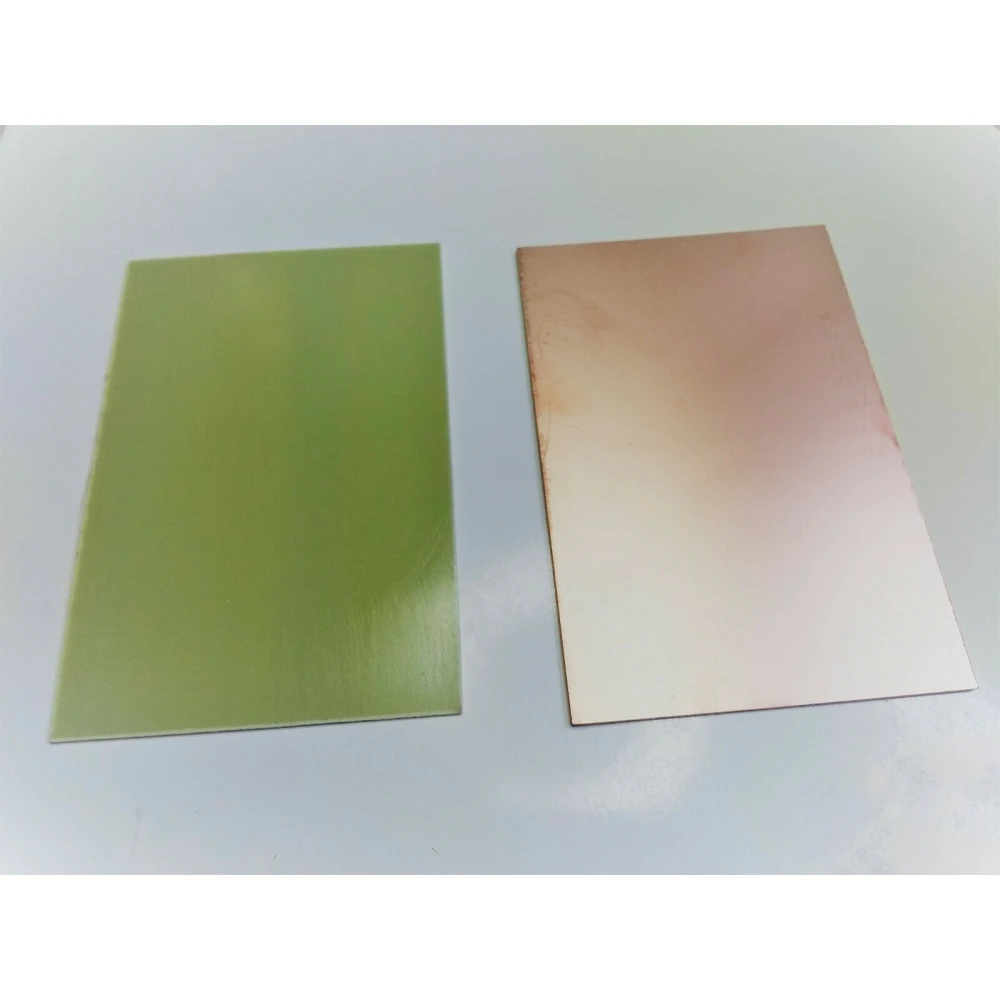

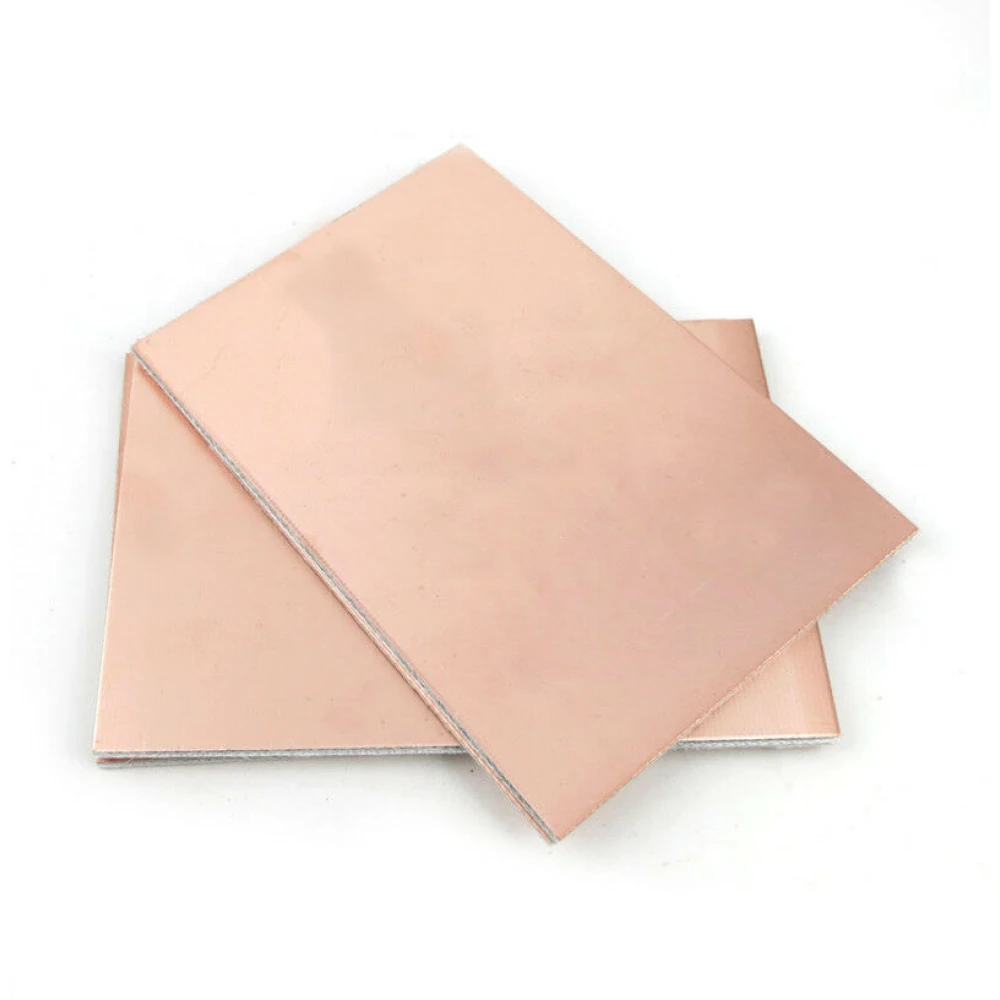

- Material: FR4 fibreglass, ensuring thermal and mechanical resistance.

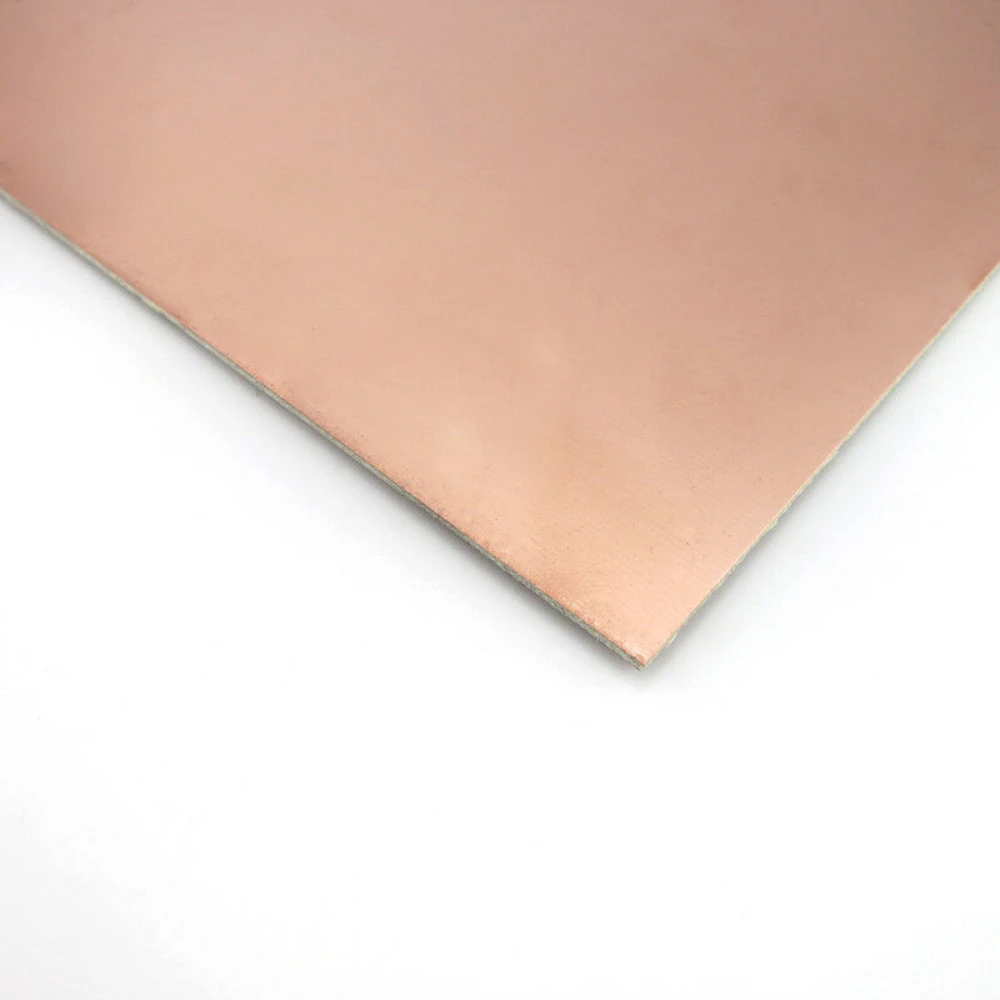

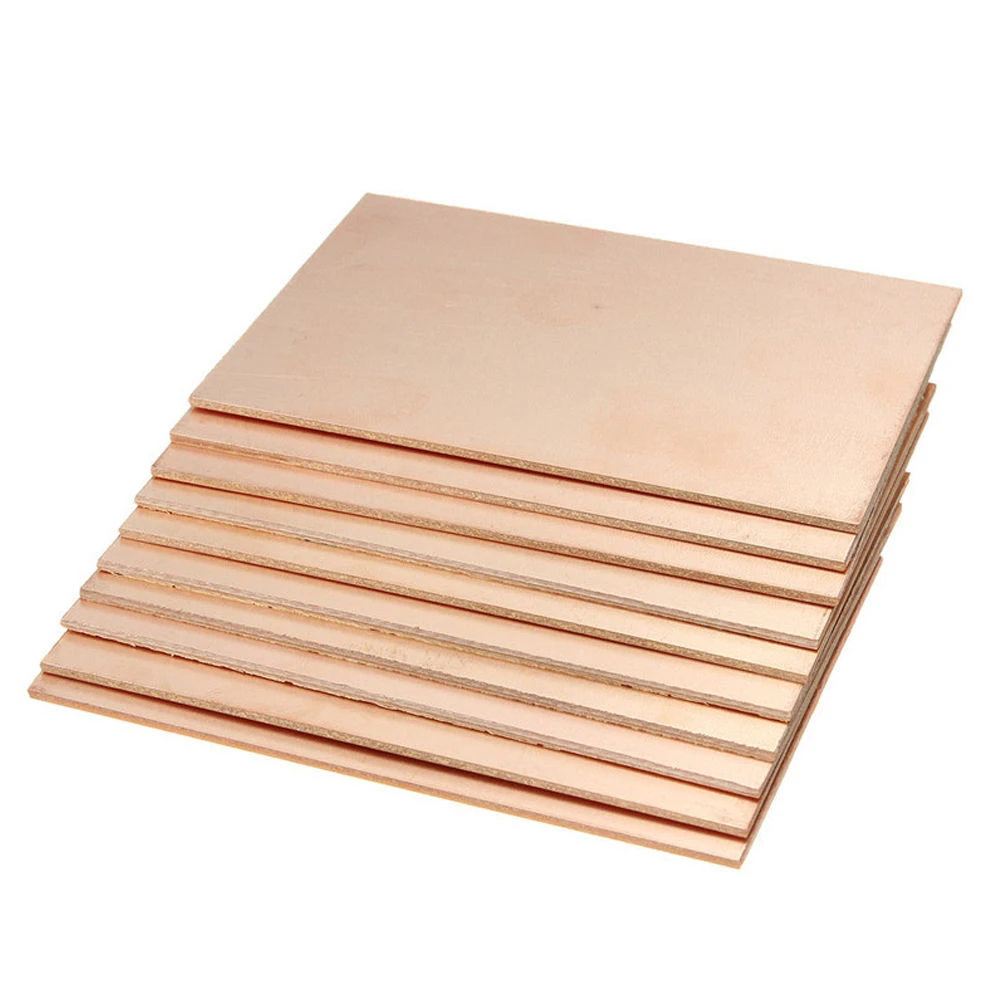

- Finish: High-quality copper coating for better conductivity.
This printed circuit board is suitable for DIY projects, prototypes and electronic repairs. Its compact size and durable material make it compatible with a wide range of electronics applications, from small devices to more complex systems that require a solid base for soldering and assembly.
Typical uses:
- Manufacture of custom printed circuits.
- Educational and learning projects in electronics.
- Repair and upgrade of electronic devices.
- Rapid prototyping for product development.
The 10x15cm fibreglass copper PCB board is easy to work with common electronics tools such as CNC routers, drills and soldering equipment. Its copper finish allows for clean and secure soldering, making it easier to create reliable electrical connections.
Compatible with standard printed circuit board manufacturing techniques, this board is a versatile option for those looking for quality and precision in their DIY projects.
- Compact 10 x 15 cm size for DIY projects and prototypes
- FR4 fibreglass material for high strength and durability
- 1.5 mm thickness for rigidity and stability
- Single layer with copper coating for precise electrical connections
- Ideal for manufacturing, repair and prototyping of printed circuits
Customer Questions & Answers
What is the main advantage of using a copper-clad FR4 fibreglass PCB compared with bakelite boards or other materials?
The main advantage of the FR4 PCB is its excellent mechanical stability and thermal resistance, which allows it to withstand soldering and repeated handling without warping. It also has lower moisture absorption and better electrical insulation than bakelite, although it is slightly more expensive.
What tools are needed to cut, drill or modify the board without damaging it?
It is recommended to use fine saws for straight cuts and tungsten carbide drill bits for precise drilling, as FR4 is abrasive and can wear down conventional tools quickly. Wearing safety glasses and a mask is also advisable due to the dust generated.
Does this board support standard toner transfer and chemical etching processes for DIY PCBs?
Yes, its copper coating is compatible with toner transfer, UV exposure and common chemical etching processes (for example, with ferric chloride). It is recommended to clean the surface thoroughly before processing to achieve good results.
Are there any standards or regulations this board must meet for safe electronic applications?
FR4 material usually complies with UL 94 V-0 fire performance standards, but for critical applications it is advisable to verify the manufacturer’s certification. For professional circuits, RoHS compliance should also be confirmed, as it restricts hazardous materials.
What size is the PCB board?
The PCB board measures 10 x 15 cm.
What material is the board made from?
It is made from FR4 fibreglass material with a copper coating.
How many layers does the board have?
The board has a single copper layer.
What type of projects is this board suitable for?
It is suitable for DIY projects, prototypes, repairs and the manufacture of custom printed circuits.
What is the thickness of the board?
The thickness of the board is 1.5 mm.
