15x20cm Single-Sided FR4 Fibreglass Copper PCB Board for DIY Projects
Brand: satkit
2.71€
VAT included (Ex VAT: 2.20 €)
Limited stock
Standard delivery
Thu, Apr 30 - Mon, May 4
Express delivery
Tue, Apr 28 - Wed, Apr 29
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

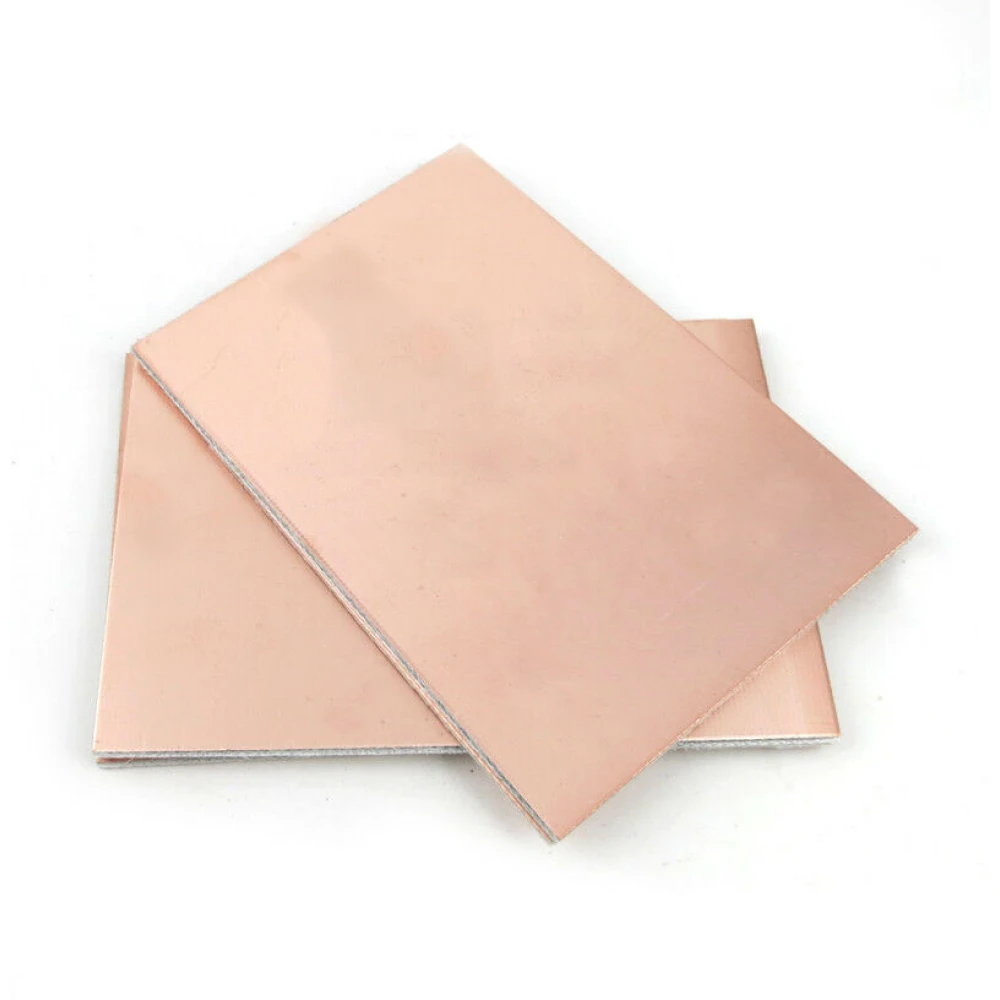

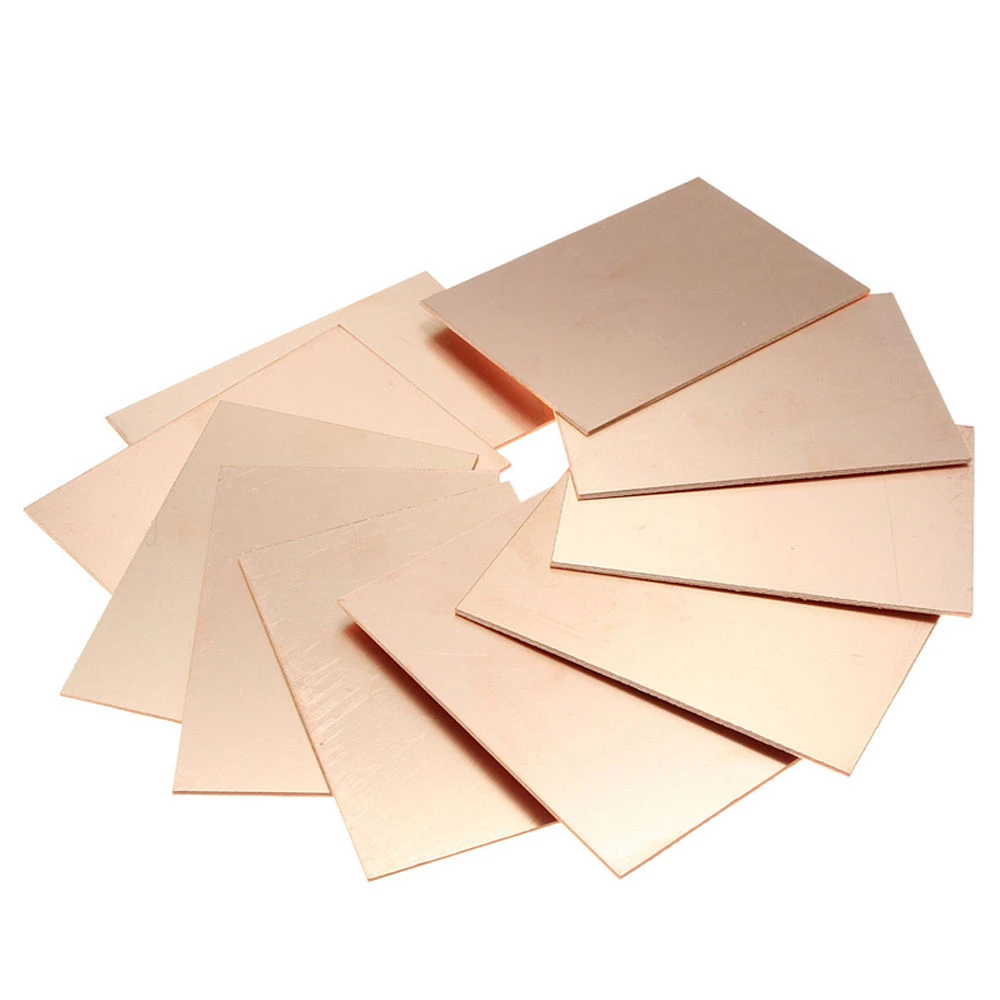

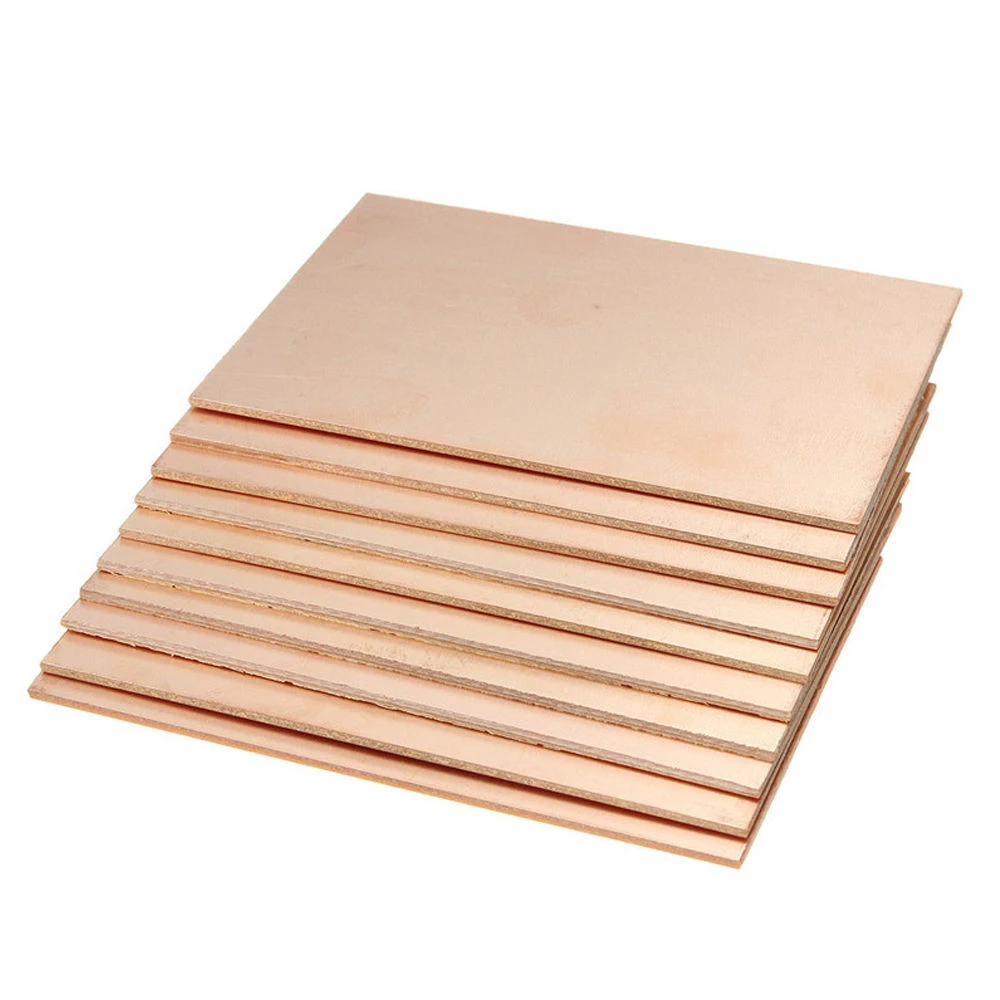

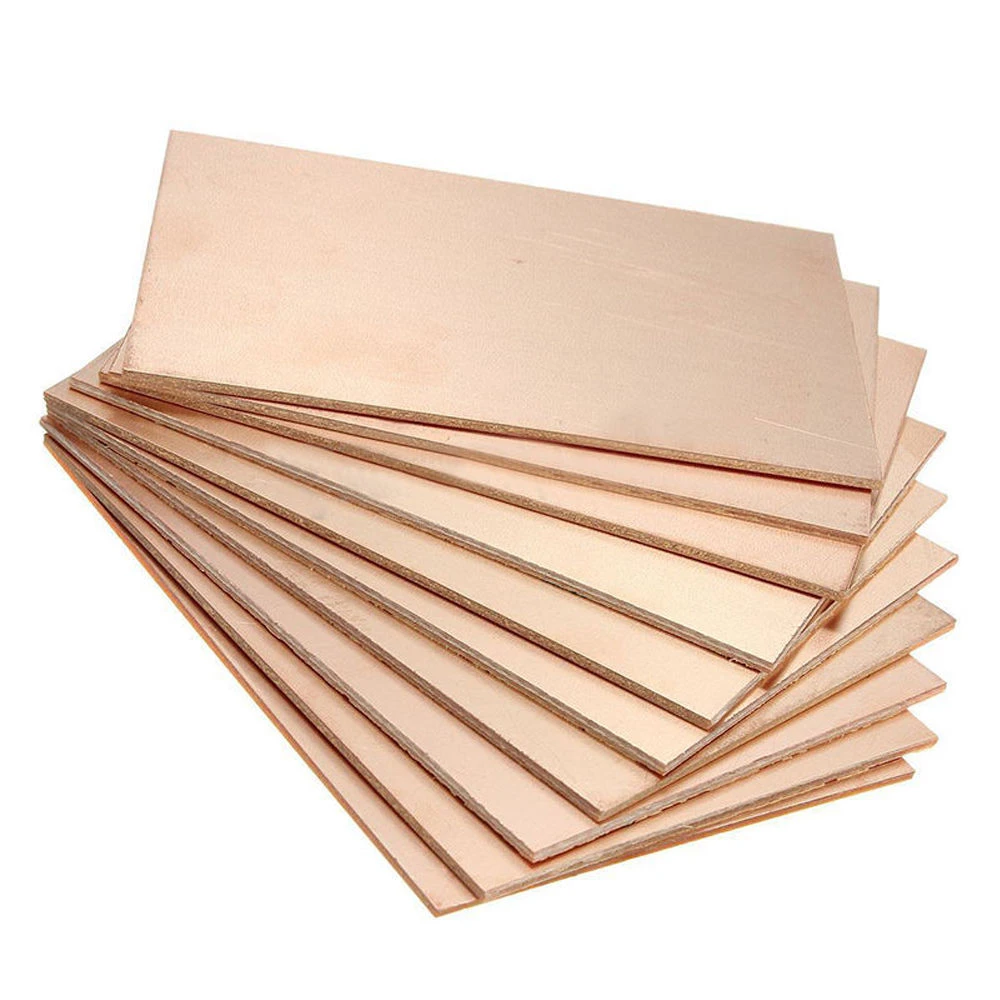

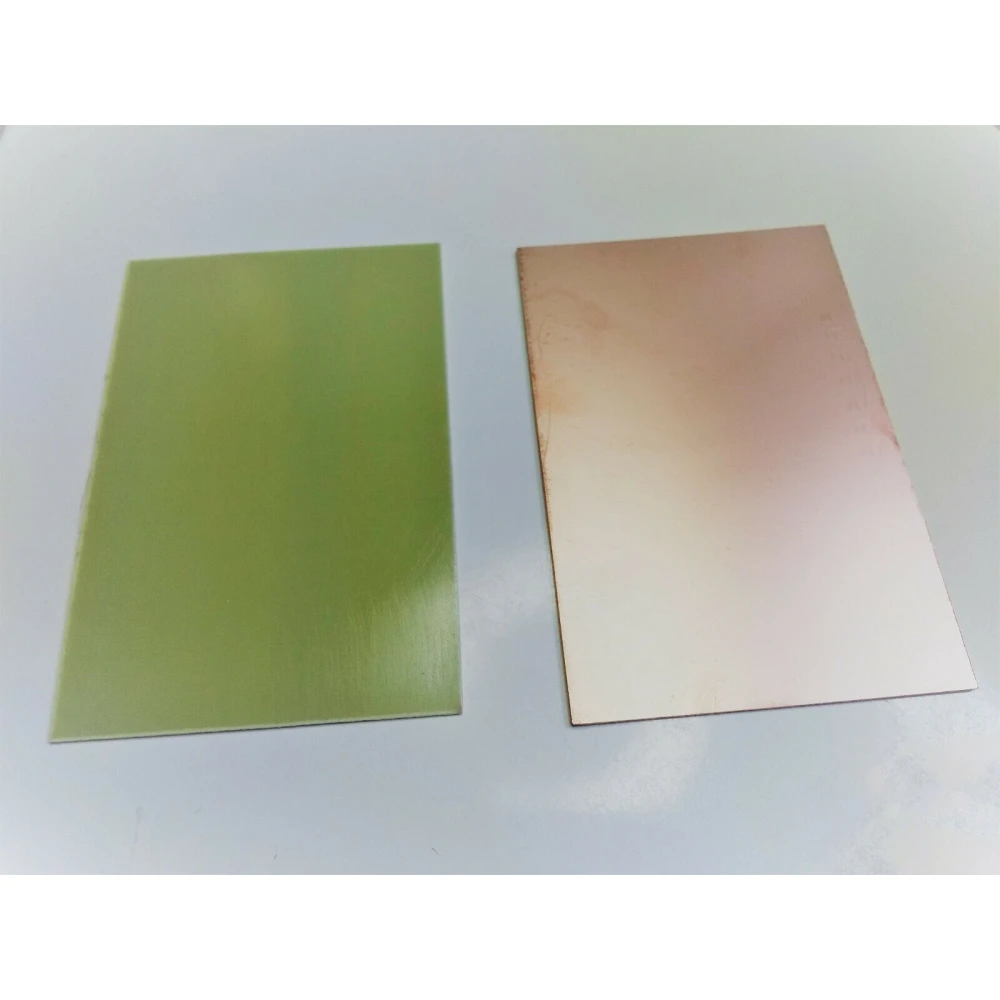

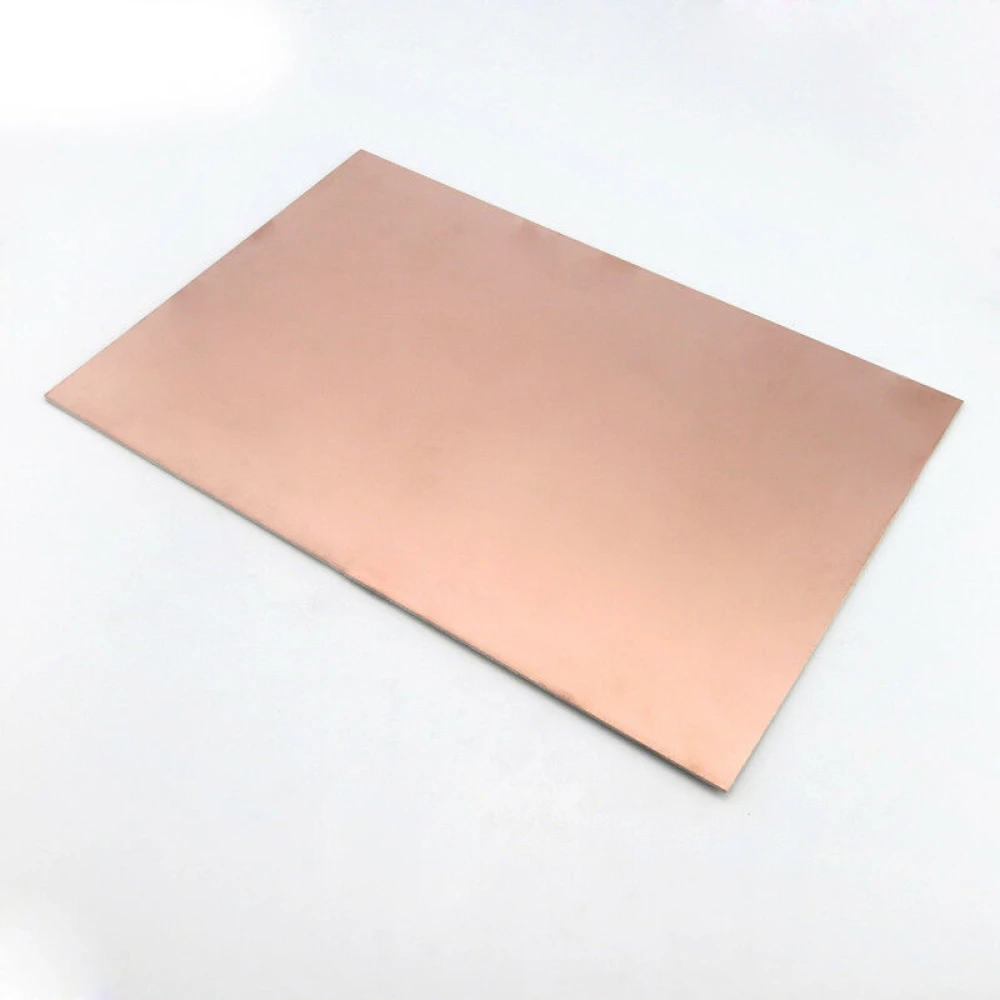

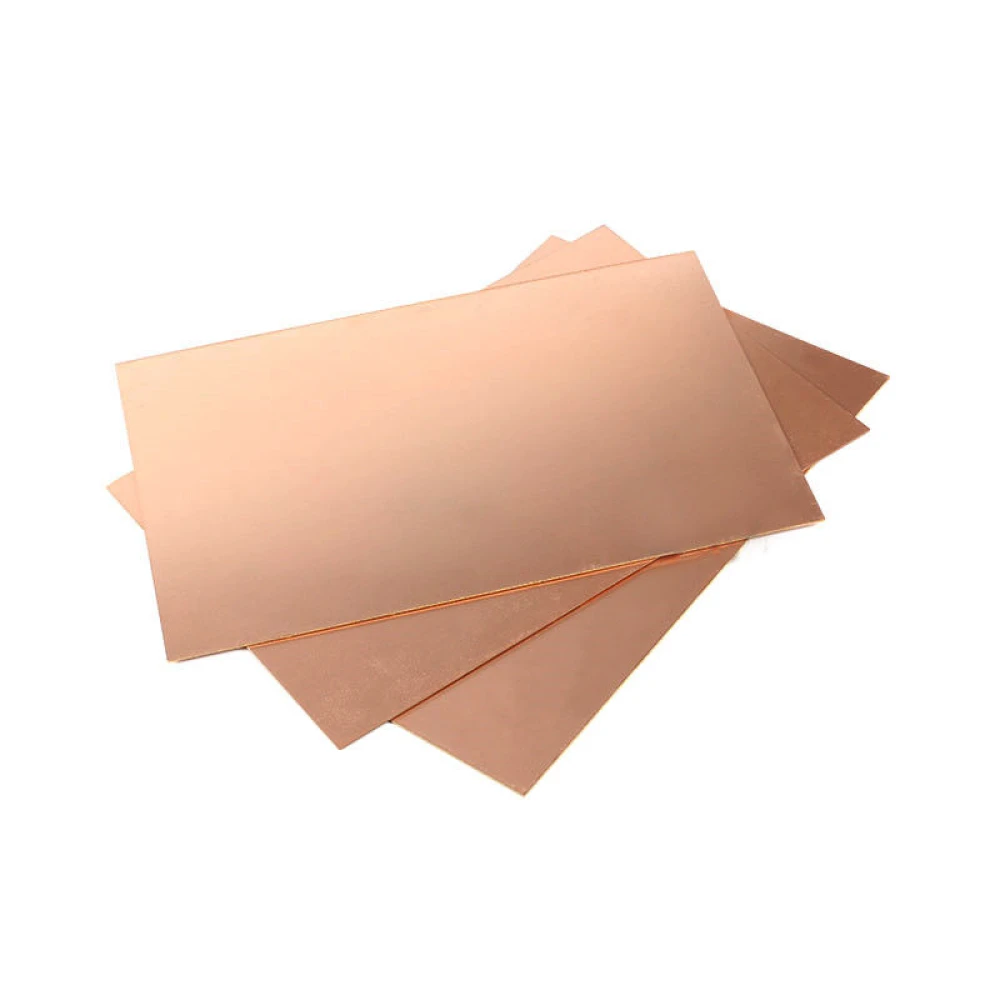

The 15x20cm Single-Sided Copper PCB Board from satkit is a laminated board made from FR4 fibreglass, specially designed for creating printed circuits in DIY electronics projects. This single-sided printed circuit board features a copper coating that makes it easy to create secure and durable electrical connections.
Main features:
- Material: FR4 fibreglass, recognised for its high mechanical and thermal resistance.
- Size: 15 x 20 cm, ideal for medium-sized projects.

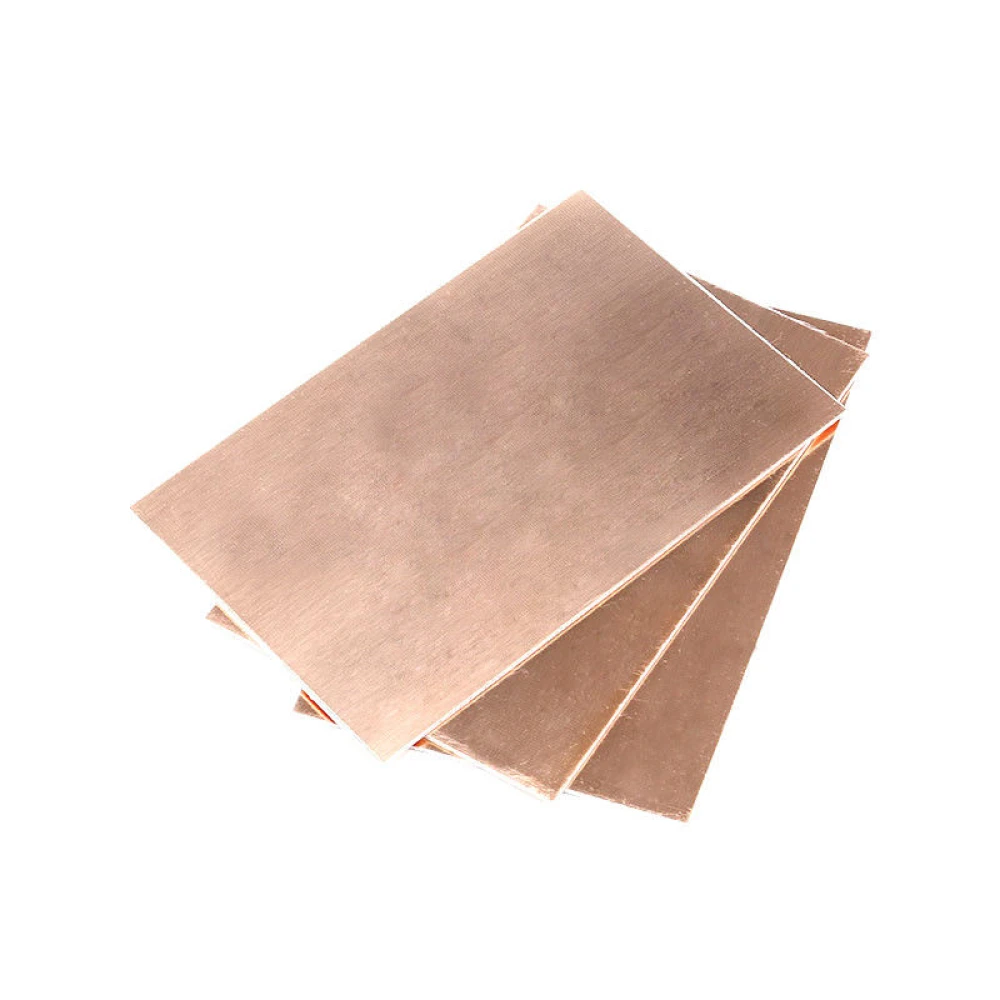

- Thickness: 1.5 mm, providing rigidity and stability to the board.
- Layers: One copper layer, perfect for simple and low-cost circuits.
- Finish: Copper coating for excellent electrical conductivity.
Uses and applications:
This PCB board is ideal for hobbyists and professionals who want to make their own printed circuits for electronics projects, prototypes or repairs. Its size and features make it suitable for electronic devices, educational experiments and DIY developments.
Compatibility:
Compatible with common etching and soldering techniques for PCB boards. It can be used with standard electronic components for surface mount or through-hole assembly, provided the design is for a single side.
With satkit, you get a reliable product that meets quality standards for DIY electronics. Take advantage of this 15x20cm single-sided copper PCB board to create custom circuits with ease and precision.
- Durable and resistant FR4 fibreglass material
- 15 x 20 cm dimensions for medium-sized projects
- 1.5 mm thickness for added board rigidity
- Single layer with copper coating for conductivity
- Ideal for DIY projects and electronic prototypes
Customer Questions & Answers
What are the advantages of choosing a single-sided FR4 fibreglass PCB over alternatives such as bakelite?
The FR4 fibreglass board offers better mechanical strength, higher thermal tolerance and lower moisture absorption compared with bakelite. This provides greater reliability in prototypes and circuits exposed to moderately harsh environments. However, bakelite may be sufficient for low-cost builds with less demanding electrical requirements.
What is the exact thickness of the copper and FR4 on this board, and how does it affect current-carrying capacity?
The standard copper thickness on these boards is usually 35 µm (1 oz/ft²), although this may vary by batch. The FR4 is 1.5 mm thick. A 35 µm copper layer can carry currents of up to 2–3 A on a wide track without overheating, provided the track design supports it. For higher currents or heat dissipation, detailed analysis is required.
Can the board be easily cut and drilled to suit projects of different sizes and shapes?
Yes, the board can be cut with a hand saw or rotary tool and drilled with carbide bits suitable for FR4. Respiratory protection is necessary, as fibreglass dust is irritating. The 15 cm x 20 cm dimensions have an approximate tolerance of ±0.5 mm.
Does any safety standard or classification apply to this type of PCB material?
FR4 material used in PCBs usually complies with UL94-V0 flame-retardant standards, meaning it self-extinguishes once the fire source is removed. However, it is necessary to confirm with the manufacturer whether this specific board has UL certification. It is not suitable for high-voltage applications or temperatures above 130°C.
What practices are recommended to extend the board’s service life and prevent oxidation of the exposed copper before tinning?
It is recommended to handle the board with gloves to avoid fingerprints, store it in a dry place away from corrosive agents, and, if it will not be used immediately, apply a thin layer of flux or protective lacquer to the copper to reduce oxidation. Carrying out tinning or soldering shortly after etching ensures better adhesion.
What material is used in this PCB board?
The board is made from FR4 fibreglass, known for its strength and durability.
What are the size and thickness of the board?
The board measures 15 x 20 cm and has a thickness of 1.5 mm.
Is it a single-sided or double-sided board?
It is a single-sided printed circuit board with a copper coating.
What type of projects is this board suitable for?
It is ideal for DIY projects, prototypes and electronic repairs that require a single-sided board.
Is it compatible with common etching and soldering techniques?
Yes, it is compatible with standard etching and soldering techniques for PCB boards.
