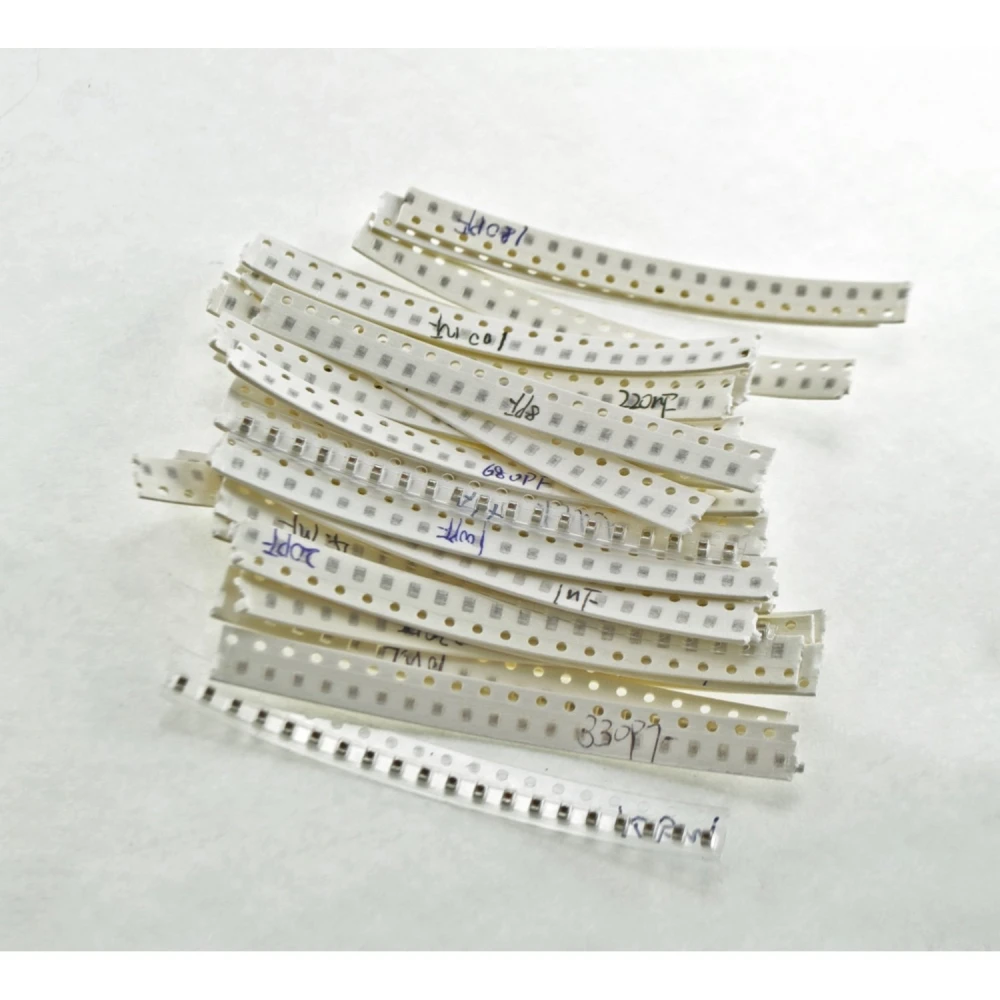

SMD 0603 capacitor kit - 720 capacitors, 36 values from 1pF to 10uF
Brand: satkit
Save 4% Was: 8.51 €
8.17€
VAT included (Ex VAT: 6.64 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 7.08 € | -17% |
| 10+ | 6.52 € | -23% |
| 20+ | 6.05 € | -29% |
In Stock - Ships immediately
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
This SMD 0603 capacitor kit offers a complete solution for electronics hobbyists and professionals who need a wide range of values in one set. With a total of 720 capacitors, split across 36 different values, this kit is ideal for surface mount (SMT) projects and electronic circuit repairs.
Key features:
- Size: SMD 0603, standard for surface mount.
- Total quantity: 720 capacitors.
- Included values: 36 different values, from 1pF to 10uF, with 20 pieces of each value.
- Labelling: Each value is clearly labelled for easy identification and quick use.
Specific values included (20 pieces each):
- 1pF, 4.7pF, 8pF, 10pF, 15pF, 18pF, 20pF, 22pF, 30pF, 47pF, 68pF, 100pF, 150pF, 180pF, 220pF, 330pF, 470pF, 680pF, 1nF, 2.2nF, 3.3nF, 4.7nF, 10nF, 22nF, 33nF, 47nF, 68nF, 100nF, 220nF, 330nF, 470nF, 1uF, 2.2uF, 4.7uF, 10uF.
Typical uses:
- Assembly and repair of SMT electronic circuits.
- Prototyping and development of electronic projects.
- Replacement of capacitors on electronic boards.
Compatibility: Compatible with any board or circuit that uses 0603 size SMD capacitors. Ideal for consumer, industrial and educational electronics.
This kit is an excellent choice for anyone looking for a complete and organised assortment of capacitors for a range of electronic applications. satkit quality guarantees a reliable and practical product for your workshop or lab.
- 720 SMD 0603 capacitors for surface mount use
- 36 different values from 1pF to 10uF
- 20 pieces per value, 720 capacitors in total
- Each value is clearly labelled for easy identification
- Ideal for electronics projects, repairs and prototyping
Customer Questions & Answers
What advantages does the SMD 0603 format of these capacitors offer compared with other sizes such as 0805 or THT for PCB assembly?
The SMD 0603 format allows a higher component density on PCBs thanks to its compact dimensions (approx. 1.6 mm x 0.8 mm). Compared with 0805 (2.0 mm x 1.25 mm) or THT, 0603 reduces the space required and parasitic inductance, enabling smaller boards and better high-frequency response, although manual handling requires greater precision and suitable tools.
What dielectric material are these capacitors made from, and how does it affect their stability with temperature and voltage?
Although the description does not specify it, low- and mid-value 0603 SMD capacitors are usually multilayer ceramic, typically with an X7R or NP0/C0G dielectric. NP0/C0G offers high thermal stability and a low temperature coefficient, while X7R has greater variation but allows higher capacitance per volume. This affects accuracy and behaviour in variable environments.
What maximum voltage range do these capacitors support, and how does this affect their use in different circuits?
The maximum supported voltage depends on the value and dielectric type, but in 0603 packages typical ranges are from 16 V to 50 V DC. It is essential to check the datasheet for the specific batch and value before using them in power or protection applications, as exceeding the voltage can cause premature failure.
What are the best practices for storing these SMD capacitors and avoiding moisture or oxidation issues over time?
It is recommended to store the SMD capacitors in airtight containers, in a dry, temperature-controlled environment (15-25°C), using anti-static bags or silica gel to prevent moisture. Prolonged exposure can cause oxidation of the terminals and deterioration of electrical characteristics.
For prototyping projects, are there practical limitations when soldering these 0603 SMD capacitors by hand compared with reflow?
Yes, hand soldering 0603 SMD components can be tricky due to their size; it requires precision tweezers and a fine soldering iron tip (ideally ≤0.8 mm). Reflow ensures more consistent joints and less thermal stress. When soldering by hand, there is a higher risk of damaging the ceramic body through excessive heat or poor solder application.
What size are the capacitors in this kit?
The capacitors are SMD 0603 size, suitable for surface mount use.
How many capacitors are included in total?
The kit includes a total of 720 capacitors.
How many different capacitor values are in the kit?
It contains 36 different values, with 20 pieces of each value.
What type of projects is this kit suitable for?
It is suitable for electronics projects, SMT circuit repairs and prototyping.
Are the capacitors labelled?
Yes, each value is clearly labelled to make identification and use easier.
