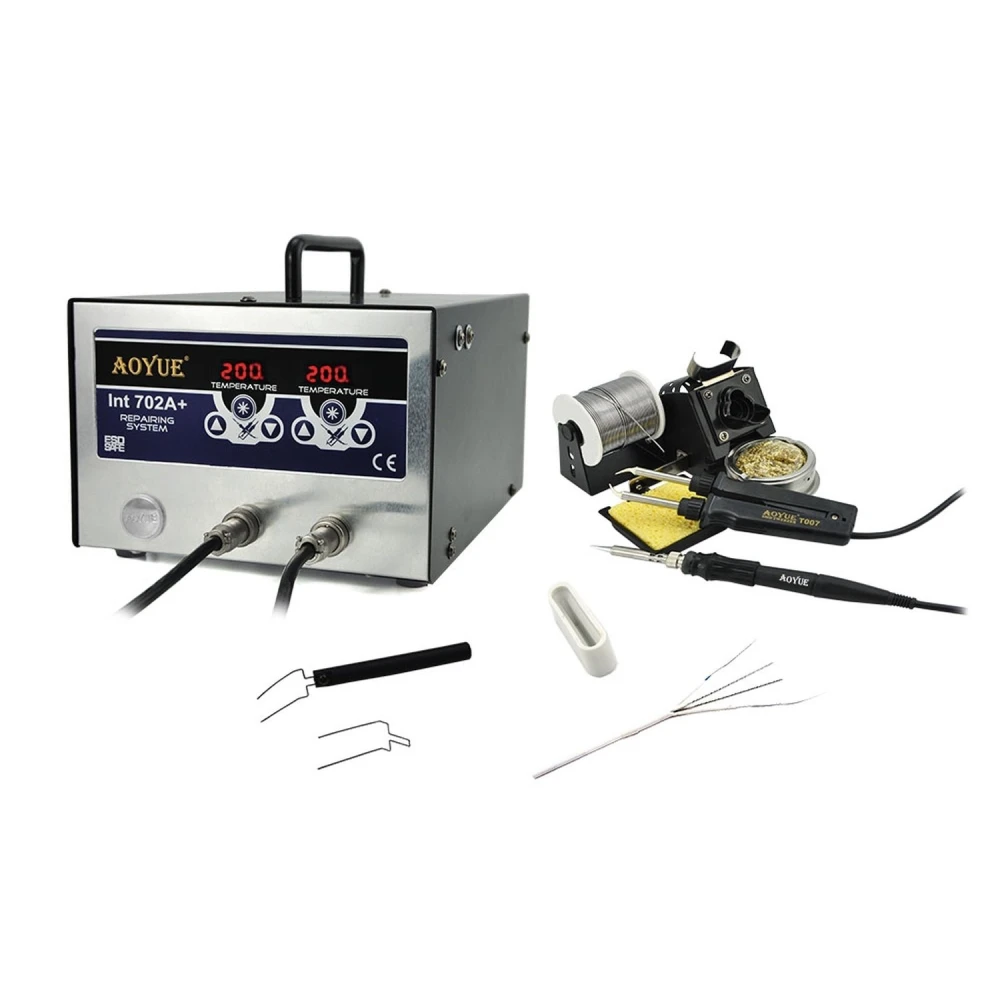

Aoyue Int 702a+ soldering station with iron and tweezers for PCB repair

Name: Aoyue Int 702a+ soldering station with iron and tweezers for PCB repair
Brand: Aoyue
SKU: 6329
Price: 219.25 EUR
Availability: InStock

Brand: Aoyue

Be the first to review this product

219.25€

VAT included (Ex VAT: 178.25 €)

Only 1 left in stock - order soon!

Standard delivery Mon, May 4 - Wed, May 6

Express delivery Thu, Apr 30 - Fri, May 1

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The Aoyue Int 702a+ soldering station is a professional unit designed to provide a simple and efficient soldering process for repairing all types of PCB. This dual system combines a soldering iron and soldering tweezers that can be used simultaneously, making complex electronics work easier.

Both tools use a ceramic heater that ensures a stable and precise temperature, delivering optimum results in every job. CPU control and digital temperature display via a touch panel make it intuitive and comfortable to use.

Main features

CPU digital control: Allows precise temperature adjustment and display.
2-in-1 system: Combines soldering iron and soldering tweezers for greater versatility.
Ceramic heater: Provides thermal stability and energy efficiency.
Touch panel: Makes digital temperature control and calibration easy.
Ergonomic design: Comfortable handle and gun design for extended use.
Output voltage: 24 V for both devices.

Technical specifications

Size: 188 mm (width) x 126 mm (height) x 250 mm (depth).
Power supply: 220 V.

Soldering iron (Model B016)

Power consumption: 70 W.
Temperature range: 200-480 ºC.
Ceramic heater.
Ground resistance: < 2 ohms.
Ground potential: < 2 mV.
Includes 10 tips (1 installed and 9 additional) compatible with tips starting with "T".
Includes a free resistor for the B016 soldering iron.

Soldering tweezers (Model T007)

Power consumption: 70 W.
Temperature range: 200-480 ºC.
Ceramic heater.
Ground resistance: < 2 ohms.
Ground potential: < 2 mV.
Includes 2 pairs of tips (one installed and one in a bag).
Tool for aligning tips in case of bending.
Tips compatible with 950 tweezers tips.

Uses and compatibility

This soldering station is perfect for technicians and hobbyists working on the repair and maintenance of electronic circuits, especially PCB boards. Its dual system allows precise soldering on delicate components and tasks that require specific tools such as soldering tweezers.

Compatibility with various tips and the ease of digital calibration make it a versatile unit adaptable to multiple electronics needs.

Note: The resistor and tips are excluded from warranty.

CPU digital control for precise temperature adjustment
2-in-1 system with soldering iron and tweezers for simultaneous use
Ceramic heater for stability and efficiency
Touch panel for easy operation and calibration
Includes 10 soldering iron tips and 2 pairs for tweezers
Ergonomic design for comfort during extended use
24 V output voltage for both devices

Customer Questions & Answers

What are the main functions offered by the Aoyue Int 702A+ station compared with conventional soldering models?

The Aoyue Int 702A+ combines two tools in one station: a soldering iron and soldering tweezers, allowing SMD components to be desoldered and soldered with greater versatility and convenience. It also includes independent digital control and temperature display for each tool, something that in conventional models is usually manual or shared.

What materials and exact dimensions does the station have, and what is included in the box when purchased?

The station is mainly made from steel and high-temperature-resistant plastics. Its dimensions are 188 mm (width) x 126 mm (height) x 250 mm (depth). The contents include the station, soldering iron (model B016), soldering tweezers, 10 soldering tips (1 fitted and 9 in a bag), and probably the manual and safety indicators. Solder and cleaning sponges are not included according to the information provided.

Is it compatible with all electrical networks, and what are the main electrical requirements?

The unit requires a 220 V AC supply and 50/60 Hz, standard in many regions of Europe and Latin America. It is not directly compatible with 110 V mains without an external transformer. The soldering iron operates internally at 24 V, which improves safety and thermal stability.

How is the temperature calibrated and what accuracy can be expected for sensitive work?

Calibration is digital and is carried out via the front touch panel. The ceramic heating element, together with CPU control, allows temperature regulation in a range of 200°C to 480°C, with deviations typically below ±5°C under normal working conditions. This is suitable for most PCB and sensitive electronic components.

What kind of maintenance does the unit require to ensure durability, and what safety standards does it meet?

It is recommended to clean the tips regularly, replace worn tips and avoid internal moisture. It is important to periodically check resistance and earth potential (<2 Ω and <2 mV) to avoid electrostatic discharge. Although exact standards are not specified, the digital control and earth connection suggest compliance with basic electrical safety standards. If any thermal anomaly occurs, the unit should be checked by specialist personnel.

What type of heater does the Aoyue Int 702a+ soldering station use?

It uses a ceramic heater that ensures precision and temperature stability.

Can I use the soldering iron and soldering tweezers at the same time?

Yes, the 2-in-1 system allows the soldering iron and soldering tweezers to be used simultaneously.

What temperature range do the soldering iron and soldering tweezers have?

Both devices have a temperature range of 200 to 480 ºC.

What accessories are included with the soldering station?

It includes 10 tips for the soldering iron, 2 pairs of tips for the tweezers and a free resistor for the B016 soldering iron.

Is the soldering station suitable for repairing PCB boards?

Yes, it is specifically designed for repairing all types of PCB with high precision.
