Mlink X0 Reballing Station with HD Camera for Professional BGA Soldering
Brand: Mlink
VAT included (Ex VAT: 799.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 943.46 € | -4% |
| 10+ | 923.80 € | -6% |
| 20+ | 884.49 € | -10% |

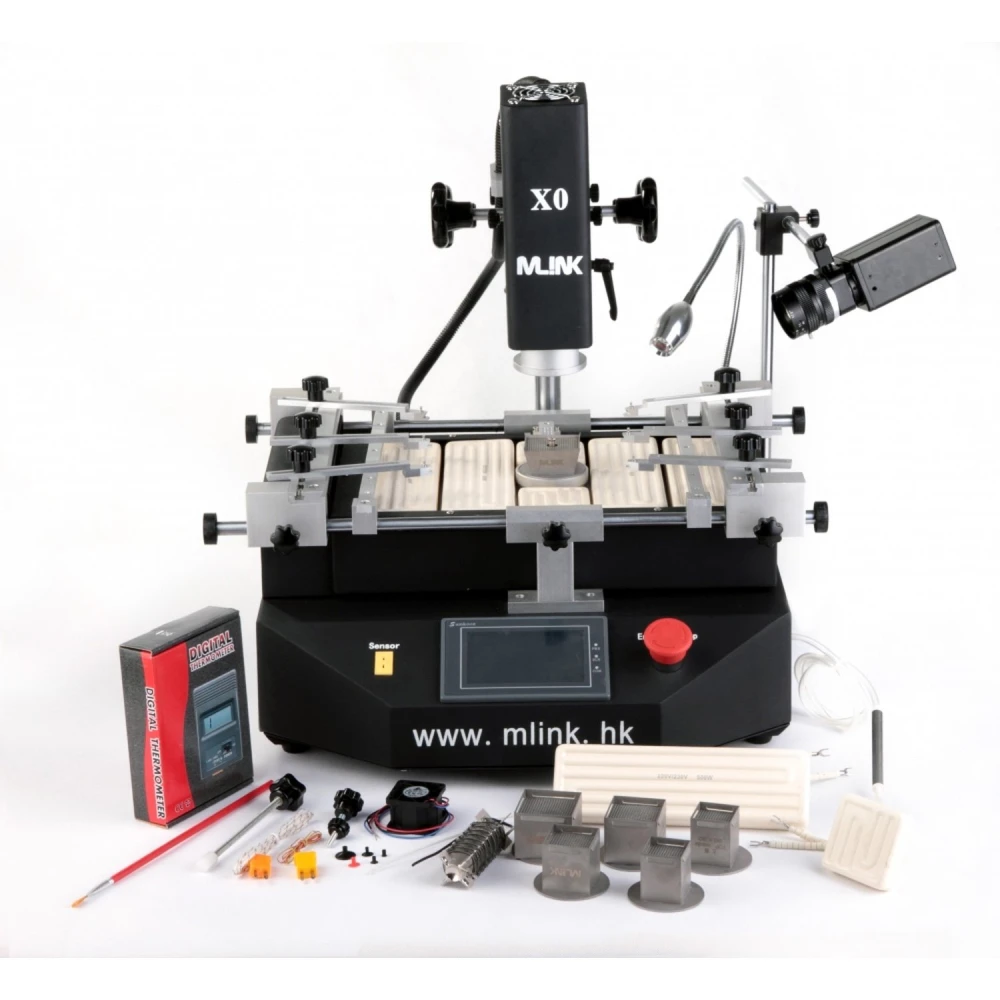

Mlink X0 reballing station with HD camera is a professional tool designed for soldering and desoldering BGA components with high precision and advanced control.
This station features a positioning system on the X, Y and Z axes that allows precise adjustments and fast positioning, ensuring efficient manoeuvrability during the work process.
- High-definition touchscreen with PLC control that allows multiple profiles to be saved and password protected. Includes an instant temperature curve analysis function for detailed control.
- Three independent heating zones: two hot air heaters and one infrared (IR) heater for preheating. Temperature is controlled with an accuracy of ±3 °C. The upper heater is freely adjustable and the second can move vertically for optimal control. The IR heater allows power consumption to be adjusted.
- 360° rotating hot air nozzles with a magnet for easy installation and replacement, customisable as needed. The lower IR heater ensures even heating of the PCB.
- Imported high-precision K thermocouple with closed-loop control and automatic temperature compensation system, combined with PLC module for exact control.
- V-groove positioning system and flexible accessory to secure the PCB, preventing deformation during heating or cooling. Compatible with any BGA package size.
- Powerful cross-flow fan for rapid PCB cooling, increasing process efficiency. Includes built-in vacuum pump and an external suction pen for fast chip handling.
- CE-certified safety systems with emergency stop, automatic shutdown in the event of an accident and double overheat protection.
- CCD vision system that provides precise visual control during the BGA soldering and desoldering process, making critical real-time decisions easier.
Technical specifications:
| No. | Feature | Details |
|---|---|---|
| 1 | Total power | 4400W |
| 2 | Upper heater | 800W |
| 3 | Lower heater | Second heater 800W, third IR heater 2300W |
| 4 | Power supply | AC220V ±10%, 50/60Hz |
| 5 | Dimensions | 600×600×500 mm |
| 6 | Positioning | V-groove, PCB holder adjustable in any direction with external universal accessory |
| 7 | Temperature control | K-type sensor, closed-loop control, accuracy ±3°C |
| 8 | PCB size | Max. 410×330 mm, Min. 20×20 mm |
| 9 | Electrical selection | Highly sensitive temperature control module + 4" touchscreen + Mitsubishi PLC compatible |
| 10 | Net weight | 30 kg |
The Mlink X0 reballing station with HD camera is ideal for technicians and electronics repair professionals who need reliable, precise equipment for BGA soldering. Its vision system and advanced control ensure high-quality results in delicate processes.
- Precision positioning on X, Y and Z axes with fast adjustment and high accuracy
- HD touchscreen with PLC control and password protection
- Three independent heating zones: two hot air and one IR
- 360° rotating nozzles with magnet for easy swapping and customisation
- Imported K-type thermocouple with closed-loop control and automatic compensation
- V-groove with flexible accessory to prevent PCB deformation
- Powerful fan for rapid cooling and built-in vacuum pump
- CE safety system with emergency stop and double overheat protection
- CCD vision system for visual control during soldering and desoldering
- Compatible with PCBs up to 410×330 mm and down to 20×20 mm
Customer Questions & Answers
What are the main materials, dimensions and approximate weight of the Mlink X0 station with HD camera?
The Mlink X0 combines a steel and anodised aluminium metal structure in its rails. Its approximate dimensions are 460 mm x 510 mm x 430 mm and the weight is around 24 kg. The kit includes the station, HD camera, interchangeable nozzles and installation accessories.
What connection requirements and electrical compatibility does this equipment have?
The Mlink X0 operates on 220 V AC ±10%, 50/60 Hz and requires a safe earth connection. The estimated maximum consumption is 3.3 kW. It is universally compatible with standard PCBs and allows work with multiple nozzle sizes.
What periodic maintenance does the manufacturer recommend to ensure the station's longevity and accuracy?
It is recommended to clean the filters and nozzles regularly to prevent blockages, check the electrical connections and thermocouples, calibrate the camera and temperature sensors every 6 months, and lubricate the linear rails with suitable grease.
How does the triple-zone heating system compare with dual-zone alternatives in terms of thermal control?
The Mlink X0's triple-zone system, with two hot-air heaters and one IR pre-heater, provides greater thermal uniformity and precision (±3 °C control), ideal for multilayer PCBs or BGA, whereas dual-zone systems often show limits in homogeneity for more complex jobs.
Is the Mlink X0 HD camera station available to buy?
Currently, the Mlink X0 reballing station with HD camera is out of stock.
What PCB sizes does this station support?
It supports PCB boards up to 410×330 mm and as small as 20×20 mm.
What safety systems does the station include?
It has CE certification, emergency stop, automatic shutdown in the event of accidents and double overheat protection.
Can the station save temperature profiles?
Yes, its PLC control allows multiple profiles to be saved and password protected.
What type of temperature control does it use?
It uses a K-type sensor with closed-loop control and automatic compensation, with accuracy of ±3 °C.
