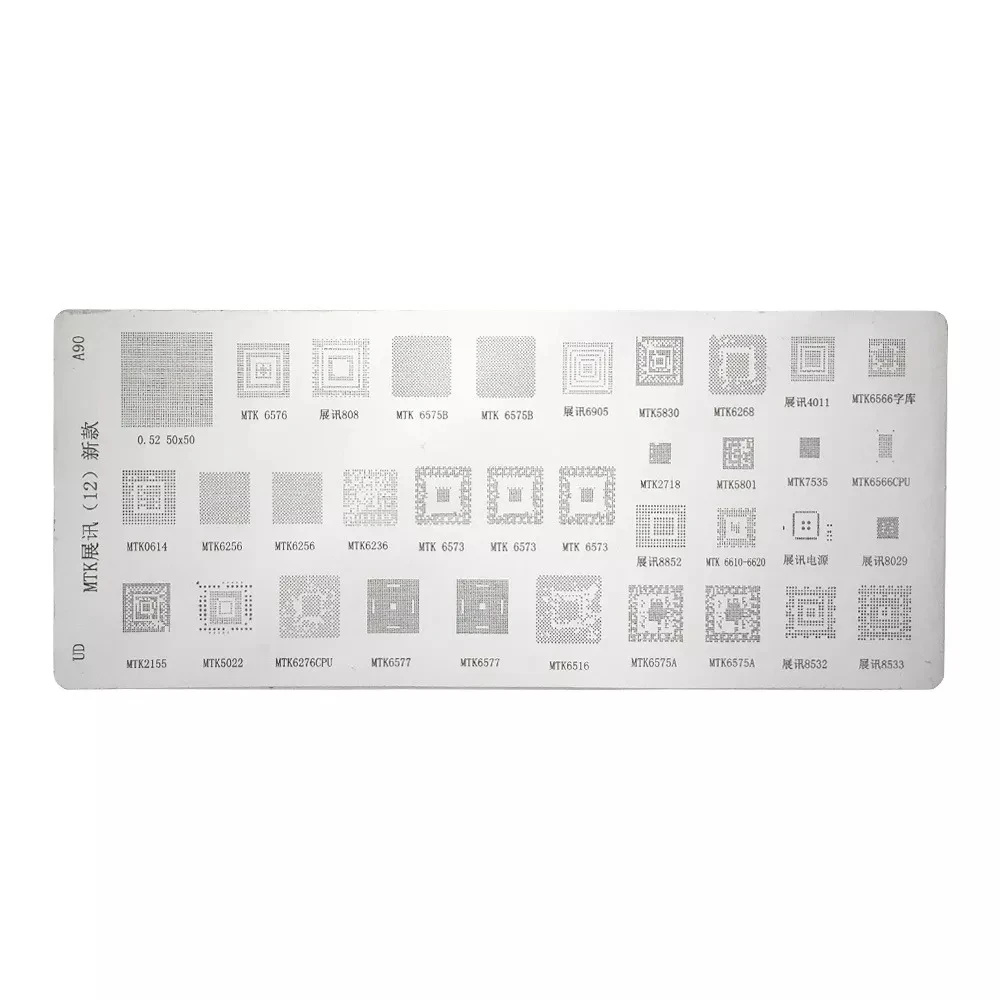

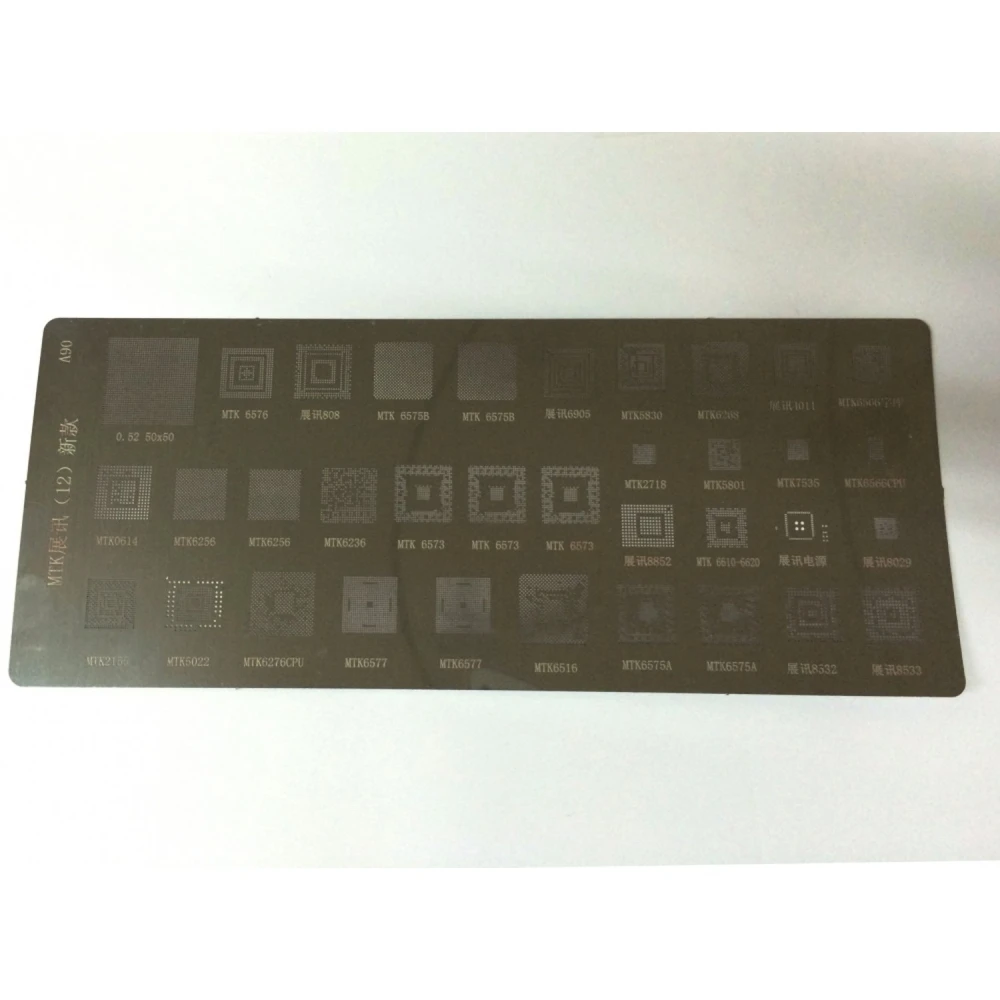

MTK 36 Stencil Board for A90 Mobile Phones - IC Reballing Tool
Brand: Mlink
VAT included (Ex VAT: 3.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 3.54 € | -4% |
| 10+ | 3.36 € | -9% |
| 20+ | 2.95 € | -20% |
The MTK 36 stencil board for A90 mobile phones is a specialised accessory designed to make the reballing process easier on mobile device motherboards with MTK chipset. This product is ideal for technicians and professionals looking to improve precision and efficiency when repairing BGA (Ball Grid Array) components.
Key features:
- Includes 36 stencils designed specifically for mobile phone ICs with MTK chipset.
- Made from durable materials that ensure long-lasting use and precision every time.
- Compatible with soldering stations and BGA reballing tools.
- Helps apply solder balls accurately, optimising the repair process.
Typical uses:
- Reballing IC chips on MTK A90 boards for mobile phones.
- Repair and maintenance of mobile devices with issues in BGA components.
- Support in electronics repair workshops to improve work quality.
Compatibility: This board is compatible with a wide range of mobile phone ICs based on MTK chipset, making it an essential tool for technicians specialising in this type of device.
With this stencil board, repair professionals can ensure high-quality work, reducing errors and repair times. Although it is currently out of stock, we recommend checking back for future restocks so you do not miss the chance to have this tool in your workshop.
- 36 stencils for MTK mobile phone ICs
- Durable material for long-term use
- Compatible with soldering stations and BGA reballing tools
- Improves precision when applying solder balls
- Ideal for repair and maintenance of MTK A90 boards
Customer Questions & Answers
What is the main function of the set of 36 A90 MTK stencils for mobile phone ICs?
This stencil set is designed to help apply solder paste precisely to specific IC components in mobile phones, enabling efficient repair and re-soldering of MTK-type integrated circuits. It is especially useful for technicians carrying out reballing or chip replacement work on mobile motherboards.
What material are the stencils made from, and what is their typical thickness?
The stencils are generally made from stainless steel, with a standard thickness of between 0.10 mm and 0.15 mm, giving them a good balance of strength and flexibility for repeated use without significant deformation.
Which phone models and chips are these templates compatible with?
The set includes 36 templates designed for commonly used MTK integrated circuits in mobile phones from various Asian brands. They are not universal; it is advisable to check each stencil’s compatibility with the IC part number before use.
What cleaning and maintenance care is recommended to extend the life of the stencils?
It is recommended to clean the stencils after each use with isopropyl alcohol (min. 90%) and a soft cloth, avoiding abrasive brushes that could damage the apertures. Store in a dry place to prevent corrosion.
How does the A90 MTK set compare with other alternatives in terms of precision and number of templates included?
Compared with generic sets, the A90 MTK offers greater specialisation for MTK ICs and covers a wide range of models (36 templates). Its aperture punching precision is suitable for professional work, although a higher-end alternative may include support for more chip families and even tighter tolerances.
What is the MTK 36 stencil board for A90 mobile phones used for?
It is used to make the reballing process easier on MTK board IC chips, improving precision and efficiency in mobile phone repairs.
Which devices is this board compatible with?
It is compatible with mobile phone ICs based on MTK chipset, especially for A90 models.
Can I use this board with any soldering station?
Yes, it is compatible with most standard soldering stations and BGA reballing tools.
Is this product currently available?
It is currently out of stock. We recommend checking regularly for future restocks.
