90x90 Stencil Pack for MK-15 HT-90 Consoles - Repair Templates

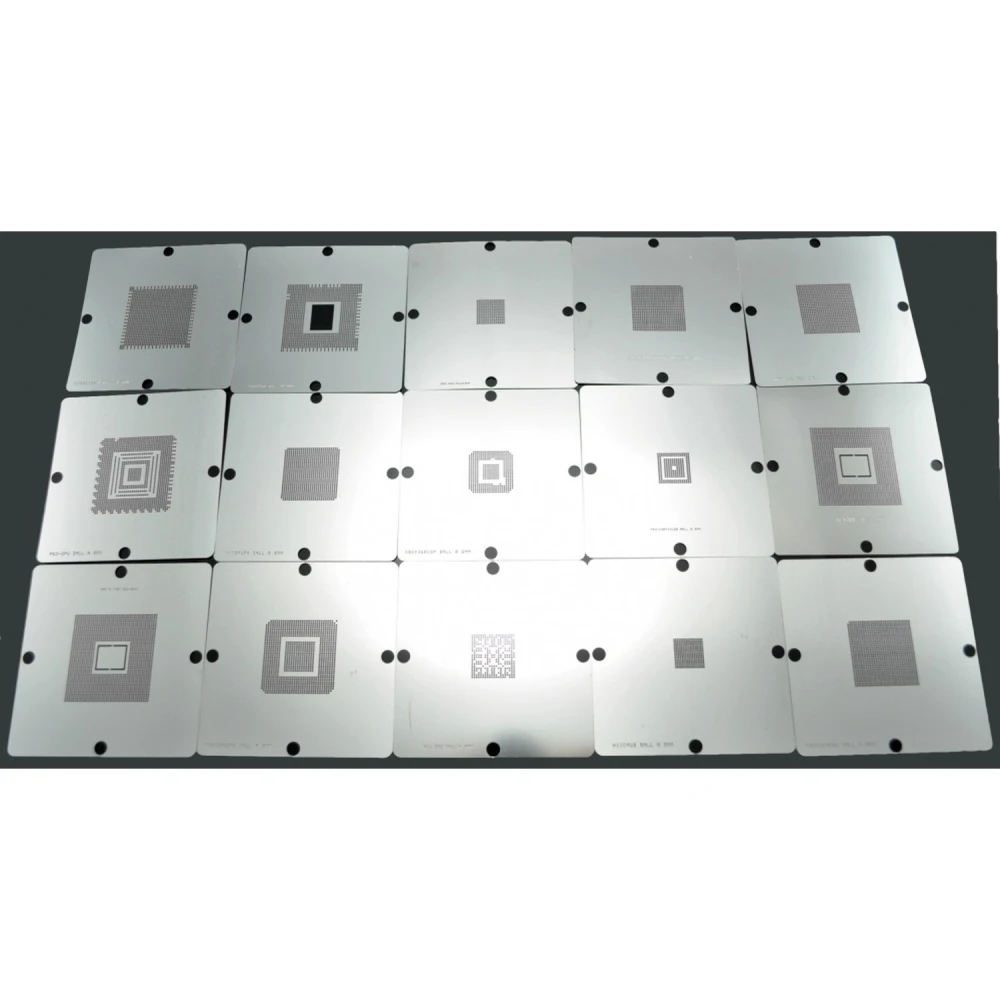

The Pack Consolas 15 Stencils 90x90 MK-15 HT-90 is a specialised set of soldering templates designed to make repair and maintenance of popular video game consoles such as Xbox 360, PS3 and Wii easier. This pack includes a high-precision stencil that allows the correct application of solder on specific integrated circuits in these consoles, ensuring professional and efficient work.

Key features:

• Includes 1 stencil unit for multiple console integrated circuits (IC).
• Compatible with Xbox 360 CPU, GPU, XCPU C-A01, HANA and CSP (Southbridge).
• Compatible with PS3 CPU (new model), GPU (old model), and models CXR714120, CXR714123, CXD2964GB, CXD2973GB and 2976GB.
• Compatible with Wii GPUAA (new model), GPU (old model), CPU (new model) and WIICPUB.
• Stencil dimensions: 90x90 mm, MK-15 HT-90 format.
• Manufactured by Mlink, recognised for its quality in electronics tools and soldering stations.

Typical uses:

This pack is ideal for technicians specialising in console repair who require precise templates for soldering on CPUs and GPUs in both newer and older console models. It is compatible with AOYUE soldering stations and other professional electronic tools.

Compatibility:

• Xbox 360: CPU, GPU, XCPU C-A01, HANA, CSP (Southbridge).
• PlayStation 3: CPU new model, GPU old model, CXR714120, CXR714123, CXD2964GB, CXD2973GB, 2976GB.
• Wii: GPUAA new model, GPU old model, CPU new model, WIICPUB.

With this pack, professionals and hobbyists can carry out repairs with greater precision and quality, ensuring better performance and durability for repaired consoles.

• Includes 1 stencil for Xbox 360, PS3 and Wii console ICs
• Compatible with CPUs and GPUs on new and old models
• 90x90 mm dimensions, MK-15 HT-90 format
• Manufactured by Mlink, professional quality
• Ideal for AOYUE soldering stations and electronics tools
