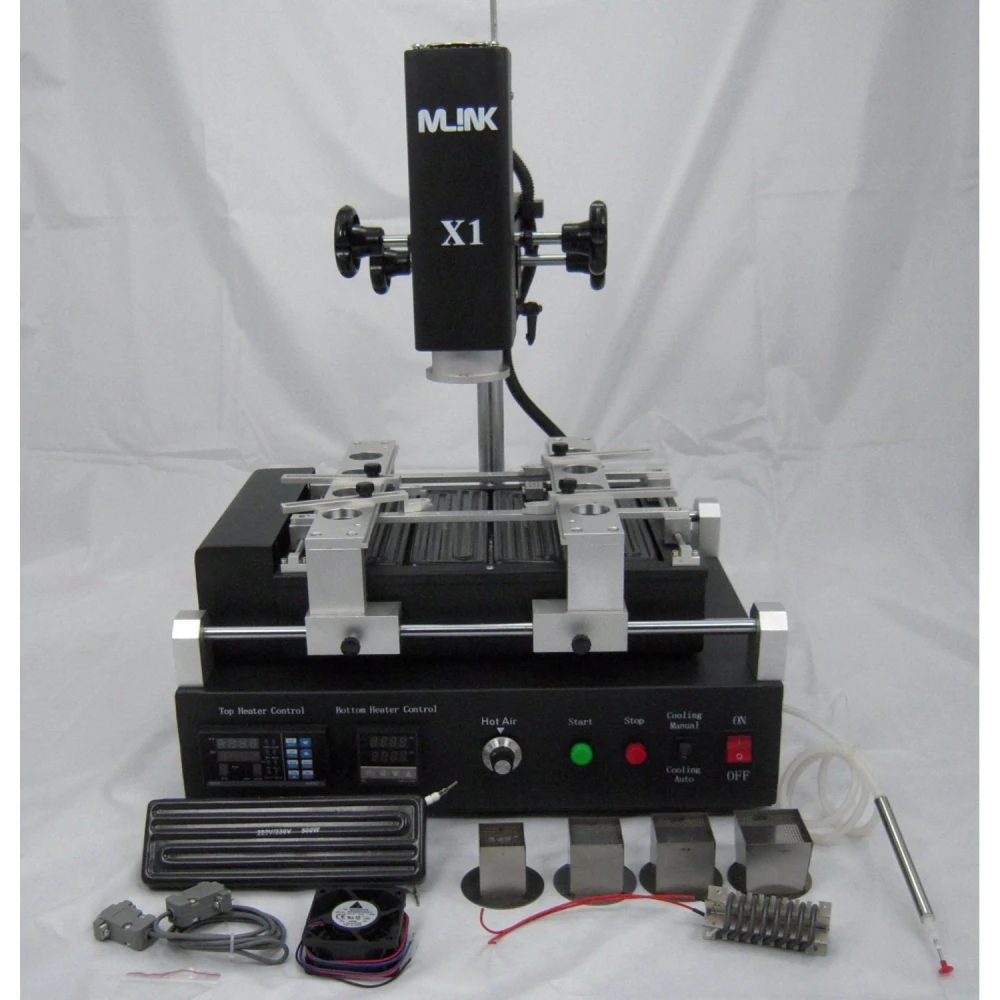

Mlink X1 BGA Soldering Station with Precise Temperature Control
Brand: Mlink
VAT included (Ex VAT: 699.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 825.38 € | -4% |
| 10+ | 808.18 € | -6% |
| 20+ | 773.79 € | -10% |
The Mlink X1 Station is a professional soldering station designed for reballing and BGA repair work, offering precise and efficient control for soldering and desoldering processes. This station stands out for its dual heating system: an infrared heater at the bottom and a hot air heater at the top, allowing uniform and controlled heating of electronic components.
This station uses imported high-precision materials, including temperature sensors, PLC and heaters, to ensure exact control during soldering and desoldering procedures. It also features computer communication via an integrated serial port and an external temperature interface, allowing control and monitoring through specialised software.
The high-precision K-type thermocouple ensures exact temperature detection with an accuracy of ±3 degrees, while the upper and lower heaters operate independently to optimise the process. A cross-flow fan quickly cools the PCB to prevent warping during soldering.
The Mlink X1 station is equipped with a V-slot support and flexible fixing to position the PCB securely and prevent damage. It can handle PCBs with a maximum size of 310×300 mm and a minimum of 20×20 mm, adapting to different projects and needs.
This station is ideal for work that requires high thermal capacity, lead-free soldering and high-temperature processes, making it easier to repair and manufacture electronic devices with precision and safety.
Main features:
- Total power of 3200W: 800W in the upper heater and 2400W in the lower infrared plate.
- Power supply: AC 220V ± 10%, 50/60Hz.
- Compact dimensions: 445×430×500 mm.
- Temperature control with K-type thermocouple and closed-loop system.
- Adjustable V-slot support with universal PCB fixing.
- Net weight of 25 kg, robust and stable for professional use.
Typical uses:
- BGA chip repair and reballing.
- Soldering and desoldering electronic components on PCB boards.
- Projects requiring precise thermal control and PCB protection.
- Applications in industrial electronics and repair workshops.
Compatibility: Compatible with PCBs of various sizes within the specified ranges and with soldering processes that require independent upper and lower heating control.
- 2400W lower infrared heater and 800W upper hot air heater.
- Precise temperature control with K-type thermocouple and closed-loop system.
- Computer communication function with serial port and control software.
- Adjustable V-slot support to protect and position the PCB.
- Cross-flow fan for rapid cooling and PCB protection.
- 3200W total power to handle high thermal demands.
- Dimensions: 445×430×500 mm, net weight 25 kg.
Customer Questions & Answers
What are the dimensions, weight and main materials used in the Mlink X1 station?
The Mlink X1 uses imported precision materials such as temperature sensors and high-quality heating elements. Although the exact dimensions and weight are not specified in the summary, stations of this type usually measure between 400–600 mm wide and weigh between 25–45 kg, providing stability when handling large PCBs. It is recommended to consult the manual or contact the supplier for exact data.
Is it compatible with lead-free soldering, and what are the maximum power and operating temperature parameters?
Yes, the station is suitable for lead-free soldering processes, which require temperatures above 230 °C. Total power is 3200 W. Temperature control is precise thanks to highly sensitive thermocouples, allowing safe operation even in demanding high-thermal-capacity jobs.
What kind of maintenance does the station require to ensure durability and safe operation?
Maintenance focuses on periodic cleaning of the air filters, inspection of the heaters and fans, and routine checking of the temperature sensors and electrical connections. Preventive inspections are recommended every 6 months, and original spare parts should be used to preserve thermal accuracy.
What practical differences are there between the Mlink X1 and other BGA stations, such as lower-power models or those with only a top heater?
Stations with only a top heater present a greater risk of localised overheating and thermal stress, especially on large or multi-layer PCBs. The Mlink X1, by incorporating lower IR heating and upper air heating with independent control and computerised regulation, can process a wider range of components and PCB sizes with less risk of warping or solder joint failure.
What type of heaters does the Mlink X1 station use?
The Mlink X1 station uses a lower infrared heater and an upper hot air heater, which operate independently for precise control.
How accurate is the temperature control?
The station has a K-type thermocouple and a closed-loop system that offers an accuracy of ±3 degrees in temperature control.
What PCB sizes can this station handle?
It can handle PCB boards with a maximum size of 310×300 mm and a minimum size of 20×20 mm.
Does the Mlink X1 station allow computer control?
Yes, it has an integrated serial port and an external temperature interface that allow control and monitoring through computer software.
Is the Mlink X1 station currently available?
The Mlink X1 station is currently out of stock. Please check availability or alternative products in the store.
