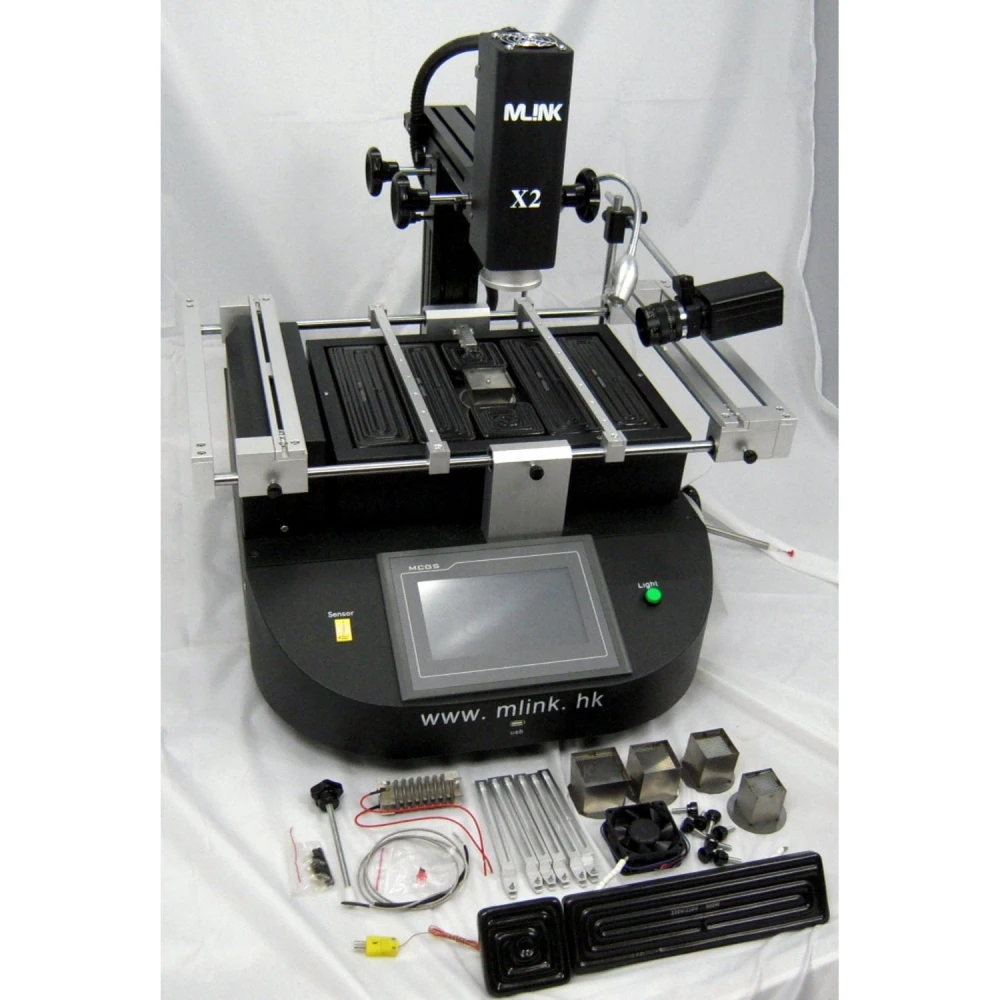

Mlink X2 soldering station with camera for professional electronics work
Brand: Mlink
VAT included (Ex VAT: 1,229.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 1,451.20 € | -4% |
| 10+ | 1,420.97 € | -6% |
| 20+ | 1,360.50 € | -10% |
The Mlink X2 soldering station with camera is a professional tool designed for soldering and desoldering electronic components with high precision and efficiency. Ideal for repair work and BGA reballing, this station offers advanced temperature and positioning control to ensure optimal results.
Main features:
- Precise positioning: Equipped with a linear sliding system that allows precise adjustments on the X, Y and Z axes, making fast and accurate component positioning easier.
- High-definition touchscreen: PLC control with a Taiwan touchscreen that allows multiple profiles to be saved, password protection and editing functions, plus instant temperature curve analysis.
- Independent three-zone heating: Features three independent heating areas: two hot air heaters (800W and 1200W) and one infrared heater (2700W) for preheating, with temperature control within ±3 °C.
- Rotating hot air nozzles: 360° rotating nozzles with a magnet for easy installation and replacement, customisable as needed.
- Advanced temperature control: High-precision K-type thermocouple with closed-loop control and automatic compensation, managed by a PLC module for exact control.
- PCB positioning system: V-groove with flexible support to protect the board during heating and cooling, compatible with any BGA package size.
- Fast cooling: Powerful cross-flow fan to speed up board cooling and improve work efficiency.
- Built-in vacuum pump: Includes a vacuum pump and external suction pen for fast chip handling.
- Alarm and safety system: Alarm after soldering or desoldering is complete, CE certification, emergency stop and automatic protection against overheating and electrical faults.
- CCD vision system: Allows precise visual control of the BGA soldering and desoldering process, ensuring work quality and accuracy.
Technical specifications:
| # | Parameter | Detail |
|---|---|---|
| 1 | Total power | 4800W |
| 2 | Top heater | 800W |
| 3 | Bottom heater | Second heater 1200W, third IR heater 2700W |
| 4 | Power supply | AC 220V ±10%, 50/60Hz |
| 5 | Dimensions | 635 × 600 × 560 mm |
| 6 | Positioning | V-groove, PCB support adjustable in all directions with external universal fixing |
| 7 | Temperature control | K-type sensor, closed loop, accuracy ±3°C |
| 8 | Compatible PCB size | Minimum 20 × 20 mm, maximum 410 × 370 mm |
| 9 | Electrical selection | Sensitive temperature control module + Taiwan touchscreen + Delta PLC |
| 10 | Net weight | 50 kg |
Typical uses:
- Repair and reballing of BGA chips on electronic boards.
- Soldering and desoldering electronic components in consumer electronics and automotive electronics.
- Processes that require precise temperature and positioning control to avoid PCB damage.
- Professional applications in electronics repair workshops and technical service centres.
Compatibility: Compatible with PCB boards of various sizes from 20×20 mm to 410×370 mm and with any BGA package size, ideal for advanced electronics and precision work.
Important note: This product is currently out of stock. You can request a notification to be informed when it becomes available again.
- Precise X, Y and Z axis positioning with quick adjustment
- High-definition touchscreen with PLC control and saveable profiles
- Three independent heating zones with ±3 °C control
- 360° rotating hot air nozzles with magnet for easy swapping
- K-type thermocouple with closed-loop control and automatic compensation
- V-groove with flexible support to protect the PCB during the process
- Cross-flow fan for fast board cooling
- Built-in vacuum pump and suction pen for fast handling
- Alarm and safety system with emergency stop and dual protection
- CCD vision system for visual control during soldering and desoldering
Customer Questions & Answers
What are the main advantages of working with the Mlink X2 station compared with similar BGA rework stations?
The Mlink X2 station stands out for its linear sliding system on the X, Y and Z axes, allowing precision adjustment and fast positioning. It includes a high-definition touchscreen for intuitive control, profile management and password protection. It offers three independent heating zones with fine temperature control (±3 °C tolerance) and immediate thermal curve analysis, improving repeatability and allowing processes to be tailored to the component. Compared with alternatives, it generally makes nozzle changes and heating adjustments easier, optimising time and reducing handling errors.
What dimensions and approximate weight does the Mlink X2 station have, and what is included in the box when purchased?
Exact dimensions and weight may vary slightly by batch, but this type of equipment generally has a base of approximately 600 mm x 500 mm and a height close to 500 mm, with a weight of around 30–40 kg. Typical box contents include the main station, integrated camera, hot-air nozzles (various sizes), power cable, set of BGA handling accessory tools, manual and basic maintenance kit. It is advisable to confirm the latest list with the distributor.
What voltage and electrical requirements does the Mlink X2 station need?
The Mlink X2 station usually operates on standard 220 V AC, 50/60 Hz supply and requires an earthed socket capable of supporting peak consumption above 2 kW, depending on the heaters activated. It is not compatible with 110 V mains without a suitable transformer. Using a voltage stabiliser is recommended to protect the control electronics.
What preventive maintenance is needed to ensure the station's lifespan and accuracy?
Periodic cleaning of the linear rails and movement systems is recommended to prevent dust or residue build-up, checking the condition of the nozzles and annual adjustment/maintenance of the temperature sensors. Air filtration and visual checks of the cables and power connections help prevent premature failures. It is essential to use only original spare parts and follow the manufacturer's recommended schedule.
What technical limitations are there regarding the maximum and minimum BGA component sizes it can handle?
The Mlink X2 station can handle a wide range of BGA components, generally supporting packages from 5 mm x 5 mm up to full boards of around 400 mm x 400 mm. However, the exact limit depends on the supplied nozzles and the capacity of the movement and clamping system. Handling significantly smaller or larger components outside this range may require special accessories.
Is the Mlink X2 soldering station with camera available to buy?
The Mlink X2 soldering station with camera is currently out of stock. You can request a notification to be informed when it becomes available again.
What PCB sizes does the Mlink X2 station support?
It supports PCB boards from a minimum size of 20×20 mm up to a maximum of 410×370 mm, compatible with any BGA package size.
What temperature control systems does the station have?
It has a high-precision K-type sensor with closed-loop control and automatic compensation, managed by a PLC module for exact control within ±3 °C.
Does the station include a vision system for soldering?
Yes, it has a CCD vision system that allows precise judgement of the BGA soldering and desoldering process.
What safety features does the station offer?
It includes CE certification, emergency stop, automatic overheating protection and automatic shut-off in the event of an accident.
