Mlink X3 BGA reballing station with advanced control and high precision
Brand: Mlink
VAT included (Ex VAT: 3,200.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 3,778.56 € | -4% |
| 10+ | 3,699.84 € | -6% |
| 20+ | 3,542.40 € | -10% |

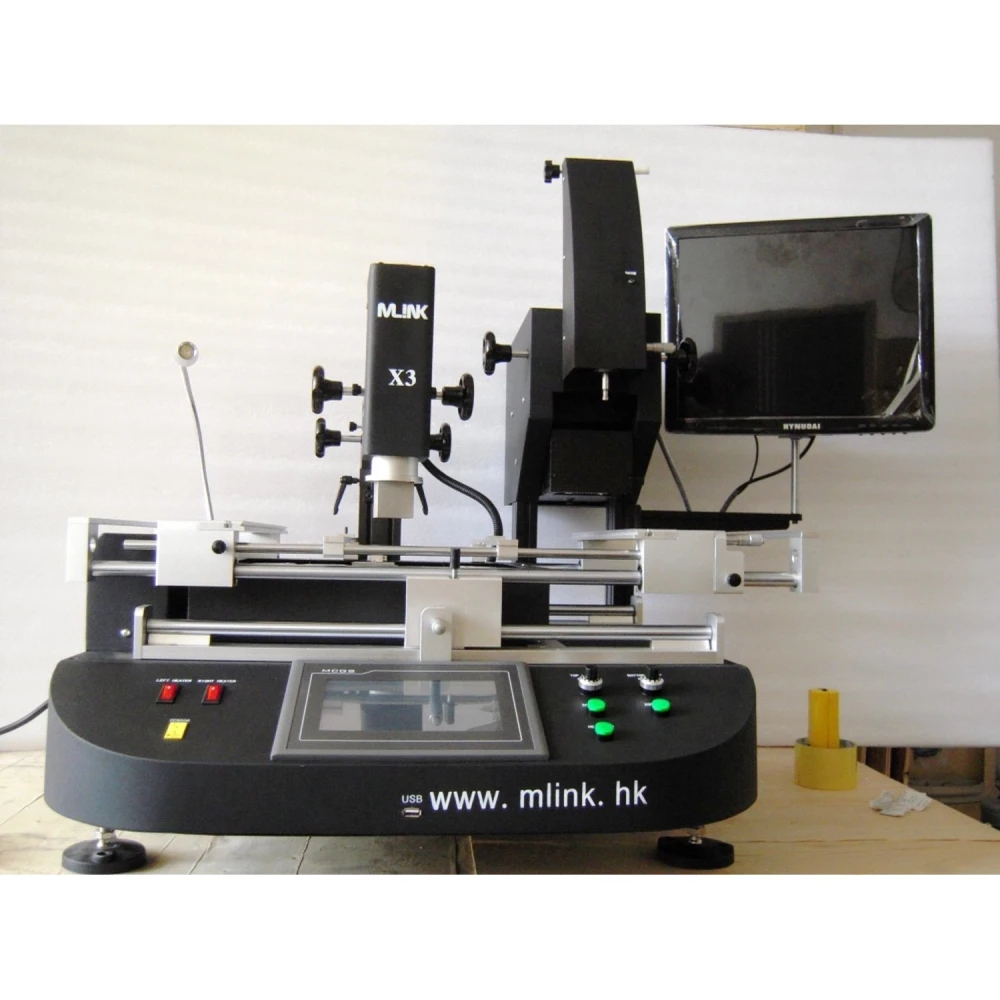

Mlink X3 BGA reballing station is a professional tool designed for high-precision soldering and reballing work on electronic boards. This station stands out for its advanced technology and versatility, allowing detailed and safe control during the soldering and desoldering process of BGA components.
It features a precise adjustment system on the X, Y and Z axes thanks to its liner slider, which makes both quick positioning and fine adjustment easier, ensuring high precision and manoeuvrability.
Main features:
- High-definition touchscreen with PLC control that allows multiple work profiles to be saved and protected by password.
- Three independent heating zones: two hot air heaters and one infrared heater for preheating, with precise temperature control within ±3 °C.
- 360° rotating hot air nozzles with magnet for easy installation and replacement, adaptable to different needs.
- High-precision imported K-type thermocouple with closed-loop control system and automatic temperature compensation.
- Positioning system with V-groove and flexible clamping to protect the PCB and allow work with any BGA package size.
- Powerful cross-flow fan for rapid board cooling, increasing process efficiency.
- Integrated vacuum pump and external suction pen for fast and safe chip handling.
- Pre- and post-soldering alarm for greater safety and control.
- CE certification, with emergency stop button and automatic shutdown protection in the event of anomalies.
- CCD vision system that allows precise visual monitoring of the melting process during soldering and desoldering.
- Large heating area, suitable for large boards such as laptops, game consoles, servers and smart TVs.
Technical specifications:
| Nº | Parameter | Detail |
|---|---|---|
| 1 | Total power | 5600W |
| 2 | Top heater | 800W |
| 3 | Bottom heater | Second heater 800W, third IR heater 3900W |
| 4 | Power supply | AC220V ±10%, 50/60Hz |
| 5 | Dimensions | 940×550×500 mm |
| 6 | Positioning | V-groove with adjustable support in all directions via external universal fixing |
| 7 | Temperature control | Closed system with K-type sensor, independent heating, precision ±3°C |
| 8 | Maximum PCB size | Maximum 570×370 mm, minimum 20×20 mm |
| 9 | Electrical selection | Highly sensitive temperature control module, touchscreen (Taiwan), compatible with Mitsubishi Fx2n PLC |
| 10 | Net weight | 70 kg |
Typical uses:
The Mlink X3 Station is ideal for professional electronics repair technicians who need a reliable solution for BGA chip reballing, soldering and desoldering on boards of different sizes and complexities, including laptops, game consoles, servers and smart TVs.
Its advanced control system and the ability to adjust multiple parameters simultaneously help optimise each process, reducing the risk of damage and improving work quality.
Compatibility:
Compatible with a wide range of BGA boards and components, thanks to its flexible positioning system and broad supported PCB size range.
The product is currently out of stock. We recommend checking availability or alternative products in our store.
- 5600W total power for optimal performance
- Three independent heating zones with precise ±3°C control
- HD touchscreen with PLC control and password-protected profiles
- CCD vision system for visual monitoring of the soldering process
- Adjustable V-groove positioning to protect the PCB
- Integrated vacuum pump and suction pen for chip handling
- Pre- and post-process alarm for added safety
- CE certified with emergency stop and overheat protection
- Large heating area for boards such as laptops and consoles
- Compatible with Mitsubishi Fx2n PLC and sensitive temperature control module
