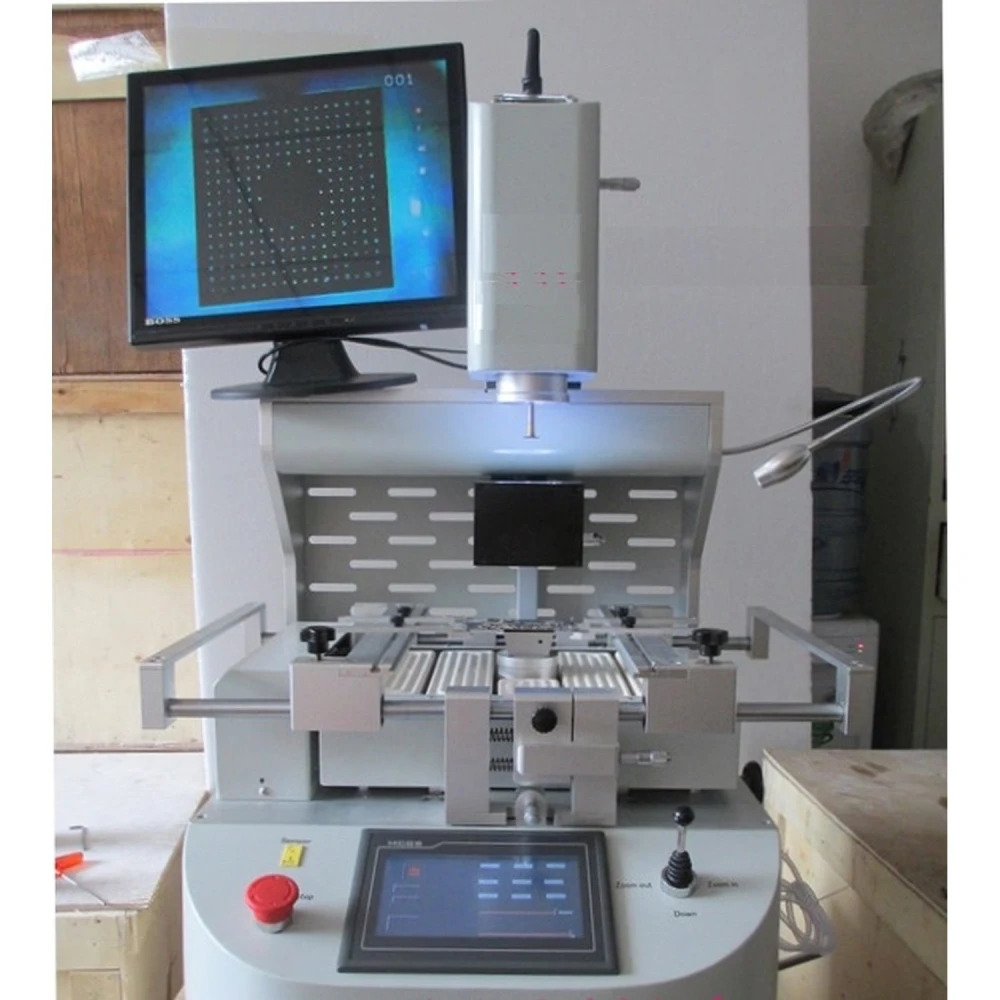

Mlink X5 BGA reballing station with triple heating zones and touch control
Brand: Mlink
VAT included (Ex VAT: 3,100.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 3,660.48 € | -4% |
| 10+ | 3,584.22 € | -6% |
| 20+ | 3,431.70 € | -10% |
The Mlink X5 BGA Reballing Station is an advanced tool designed for professionals who require precision and versatility in soldering and BGA component rework processes. This station stands out for its innovative control system and powerful thermal capacity, ideal for demanding electronics work.
Main features:
- Linear sliders that allow precise adjustment and fast positioning on the X, Y and Z axes, ensuring high accuracy and manoeuvrability.
- High-definition touchscreen with PLC control that allows multiple work profiles to be saved, password protection and instant temperature curve analysis.
- Three independent heating zones: two hot air heaters (800W each) and an infrared pre-heater (3900W), with temperature control within ±3 °C.
- 360° rotating hot air nozzles with a magnet for easy installation and replacement, plus an IR bottom heater that ensures even heating of the PCB board.
- Imported high-precision K-type thermocouple with closed-loop control and automatic temperature compensation system, integrated with PLC module for exact control.
- Positioning system with V-groove and flexible clamping to protect the PCB board from deformation during heating or cooling, compatible with any BGA package size.
- Powerful cross-flow fan for rapid board cooling, integrated vacuum pump and suction pen for efficient chip handling.
- CCD vision system that allows precise visual control during BGA soldering and desoldering processes.
- Large heating area suitable for large boards such as laptops, game consoles, servers and smart TVs.
- CE certification, with emergency stop and automatic protection against overheating and electrical faults.
Technical specifications:
| Número | Parámetro | Detalle |
|---|---|---|
| 1 | Total power | 5600W |
| 2 | Top heater | 800W |
| 3 | Bottom heater | Second heater 800W, third IR heater 3900W |
| 4 | Power supply | AC 220V ±10%, 50/60Hz |
| 5 | Dimensions | 640 × 630 × 900 mm |
| 6 | Positioning | V-groove, PCB support adjustable in any direction with external universal fixing |
| 7 | Temperature control | K-type sensor, closed loop, independent heating, accuracy ±3 °C |
| 8 | Compatible PCB size | Maximum 570 × 370 mm, minimum 20 × 20 mm |
| 9 | Electrical selection | Highly sensitive temperature control module + touchscreen (Taiwan) + compatible with Mitsubishi Fx2n PLC |
| 10 | Net weight | 70 kg |
Typical uses:
This station is ideal for repair and reballing of BGA components on complex electronic boards, including laptops, video game consoles (Xbox, PS3), servers and smart TVs. Its advanced control system and triple heating zone allow efficient and safe work, minimising the risk of heat damage.
Compatibility:
Compatible with a wide range of PCB board sizes and BGA packages. Its flexible clamping system and precise temperature control make it suitable for different professional applications in electronics repair and manufacturing.
Important note: This product is currently out of stock. You can check alternatives or contact us for information about future availability.
- 5600W total power with triple independent heating zones
- HD touchscreen with PLC control and savable profiles
- Hot air heaters and IR heater with precise adjustment
- CCD vision system for visual control during BGA soldering
- V-groove positioning and flexible clamping for PCBs
- Cross-flow fan for rapid cooling
- Integrated vacuum pump and suction pen for chip handling
- CE certified with overheat and fault protection
- Compatible with boards up to 570×370 mm and a wide range of BGA packages
- Dimensions of 640×630×900 mm and net weight of 70 kg
Customer Questions & Answers
What are the main advantages of the Mlink X5 compared with other BGA rework stations in the same range?
The Mlink X5 stands out for its high-precision temperature control (±3 °C), three independent heating zones (two hot-air and one infrared), fine X-Y-Z axis adjustment for positioning, HD touchscreen with PLC control and storable temperature profiles. This allows greater repeatability, lower risk of PCB damage and adaptability to different packages. Compared with basic models, it offers better thermal stability and more customisation options.
What dimensions, weight and materials make up the station, and what is included in the standard box?
The station uses robust metal materials, possibly a steel chassis and industrial electronic components, although the manufacturer does not specify the exact composition. Approximate dimensions are usually around 500 x 600 x 450 mm and the weight is between 35 and 50 kg, so it requires a fixed location. The standard package usually includes the main unit, touchscreen, set of hot-air nozzles, K-type thermocouples, PCB base and basic connection accessories.
What voltage and frequency does the Mlink X5 station operate on, and what electrical or ventilation requirements are needed?
The station is designed to operate on a standard 220 V (±10%), 50/60 Hz mains supply, and maximum consumption may vary between 2000 and 4000 W depending on simultaneous use of the three heaters. It requires an earth connection and a well-ventilated environment, as heater operation generates significant residual heat.
What routine maintenance does the station require and what is its expected lifespan under typical use?
Basic maintenance includes periodic cleaning of the nozzles and filters, checking thermocouple calibration and inspecting mechanical connections every 6 months. Critical components such as K-type thermocouples and heating elements have cycles of 5,000 to 10,000 hours, depending on use. With proper maintenance, expected service life is over 8 years in an industrial environment.
Are there any PCB size limits or compatible component types I should consider before choosing this station?
The Mlink X5 can handle most standard industry PCBs, with maximum dimensions typically in the 400 x 400 mm range. BGA, QFN and CSP packages are compatible, provided the size suits the nozzles and heating area. For unusually large or oddly shaped components, a custom nozzle may be required.
Is the Mlink X5 station available to buy?
The Mlink X5 station is currently out of stock. You can check alternatives or contact us for information about future availability.
What is the maximum PCB size the station can handle?
The station can handle PCB boards up to 570×370 mm and a minimum size of 20×20 mm.
What type of temperature control does it use?
It uses a K-type sensor with closed-loop control and accuracy within ±3 °C, with independent control for each heating zone.
Is it compatible with custom work profiles?
Yes, the station allows multiple work profiles to be saved with password protection and parameter adjustment.
What protection systems does the station include?
It has CE certification, emergency stop, automatic shutdown protection in the event of accidents, and dual overheat protection.
