Shuttle Star SP360C V3 BGA Rework Station with Precise Control
Brand: Shuttle Star
VAT included (Ex VAT: 1,299.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 1,533.86 € | -4% |
| 10+ | 1,501.90 € | -6% |
| 20+ | 1,437.99 € | -10% |
The Shuttle Star SP360C V3 Station is a BGA rework station designed to provide precise and efficient control in soldering and desoldering processes. Its advanced technology allows it to handle high temperatures with precision, ensuring optimal results in delicate electronic repair work.

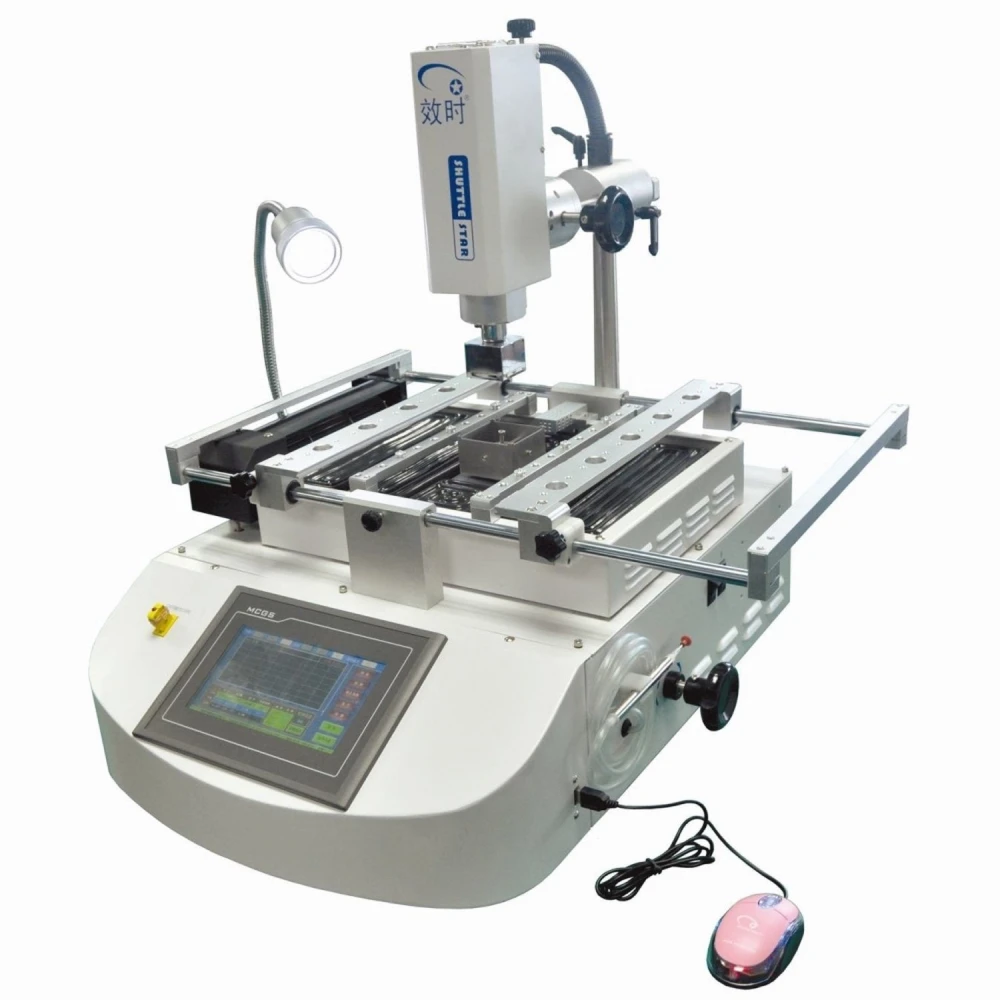

This unit features a movable heating head that moves horizontally, making operation and adjustment easier during the process. It incorporates an integrated industrial computer with touchscreen interface and PLC control, which displays the temperature curve in real time, allowing the set profile to be compared with the actual profile during work.
The 7.2-inch high-definition screen offers clear and comfortable viewing for the user, improving handling and control. In addition, the station allows unlimited temperature profiles to be saved and practical profiles to be analysed, with support for English and Chinese input.
Main features
- High-quality heating materials that generate a high-temperature breeze for precise control in soldering and desoldering.
- Movable heating head with horizontal movement for easy operation.
- PLC control with integrated industrial computer and large touchscreen.
- Real-time temperature profile display, with the ability to save and analyse multiple profiles.
- Precise temperature control in upper and lower hot air heaters.
- Infrared heating zone with constant temperature at the bottom for greater safety and reliability.
- Micro-adjustable supports for the BGA soldering frame that prevent local sinking.
- Powerful cross-flow for cooling the lower heating area.
- Audible alarm when soldering or desoldering is finished and adjustable manual suction for BGA removal.
- Adjustable supports for positioning PCB easily and quickly, compatible with special accessories for alloy boards.
- Interchangeable alloy hot air nozzles according to specific needs.
- Integrated machine and chassis design that saves space.
- USB software update for future automatic profiles.
Technical specifications
- Compatibility with PCB up to 430x350 mm.
- Compatibility with chips of maximum dimensions 55x55 mm and minimum 7x7 mm.
- Maximum supported weight: 80 grams.
- Operating power: 400 W.
- Main heater: 800 W.
- Lower heater: 800 W.
- Additional lower heater: 2400 W.
- Dimensions: 650x500x600 mm.
- Total weight: 36 kg.
- Electrical requirements: AC 220V, 4KW.
Package contents
- 1x Shuttle Star RW-SP360C BGA Rework Station.
- 5x Nozzles (44, 41, 38, 34, 31).
- 1x Tool box.
- 1x Hex key set.
- 1x Clip.
- 1x Brush.
- 1x Suction nozzle.
- 1x Aluminium plate.
- 2x Aluminium nozzles (large and small).
- 1x Temperature cable.
- 1x High-temperature resistant cloth.
- 1x User manual.
Typical uses and compatibility
This station is ideal for technicians and professionals carrying out reballing and repair of BGA components on electronic boards. Its design and features make it compatible with a wide variety of boards and chips, making precision work in advanced electronics easier.
Thanks to its advanced control and customisable profiles, it is suitable for production and repair environments that require high reliability and repeatability in soldering processes.
- Precise temperature control for BGA soldering and desoldering
- Movable heating head with horizontal movement
- 7.2-inch touchscreen with real-time display
- Unlimited temperature profiling and storage
- Micro-adjustable supports to prevent local sinking
- Powerful cross-flow for efficient cooling
- Audible alarm and adjustable manual suction
- Compatible with PCB up to 430x350 mm and chips from 7x7 to 55x55 mm
- 400W operating power, with heaters up to 2400W
- Compact integrated design that saves space
Customer Questions & Answers
What advantages does the computer control system with touchscreen offer over analogue BGA station models?
The computer control system with touchscreen allows precise temperature profiles to be managed, multiple thermal curves to be stored and compared, and process repeatability to be improved. Unlike analogue models, it offers greater precision in soldering/desoldering and reduces the risk of human error when operating and monitoring in real time.
What power supply, connectivity and nozzle compatibility requirements does the SP360C V3 station need to operate properly?
It operates on 220 V AC (±10%), 50/60 Hz and requires a mains socket capable of supporting at least 2.5 kW load. The nozzles are interchangeable and compatible with the Shuttle Star modular system, but it is advisable to check the diameter before buying spare parts from other manufacturers.
How is preventive maintenance carried out, and what is the estimated service life of the station's main components?
Maintenance includes regular cleaning of nozzles and filters, checking electrical connections and light lubrication of moving guides. Heaters usually have a service life of 6,000 to 10,000 hours, depending on use. The display and PLC usually last over 5 years under normal laboratory or workshop conditions.
Does the station comply with international safety and ESD protection standards for use in electronics laboratories?
Yes, this station has been designed with standards such as CE for electrical safety and relevant ESD recommendations for rework equipment in mind, although it is recommended to check with the manufacturer for the availability of specific certifications depending on the country of use.
What is the maximum PCB size supported by the Shuttle Star SP360C V3 Station?
It supports PCB boards with maximum dimensions of 430x350 mm.
Can temperature profiles be saved on the station?
Yes, it allows an unlimited number of temperature profiles to be saved and analysed in real time.
What is included in the Shuttle Star SP360C V3 package?
It includes the RW-SP360C station, 5 nozzles, tool box, hex key set, clip, brush, suction nozzle, aluminium plates, temperature cable, resistant cloth and manual.
What total power is required to operate this station?
The station requires an operating power of 400W and an electrical supply of AC 220V, 4KW.
Can the station software be updated?
Yes, the software can be updated via USB to add automatic profiles in the future.
