Universal BGA Stencil Set 90mm x 90mm MK-15 HT90, 150 pcs
Brand: Mlink
VAT included (Ex VAT: 89.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 105.09 € | -4% |
| 10+ | 102.90 € | -6% |
| 20+ | 96.33 € | -12% |

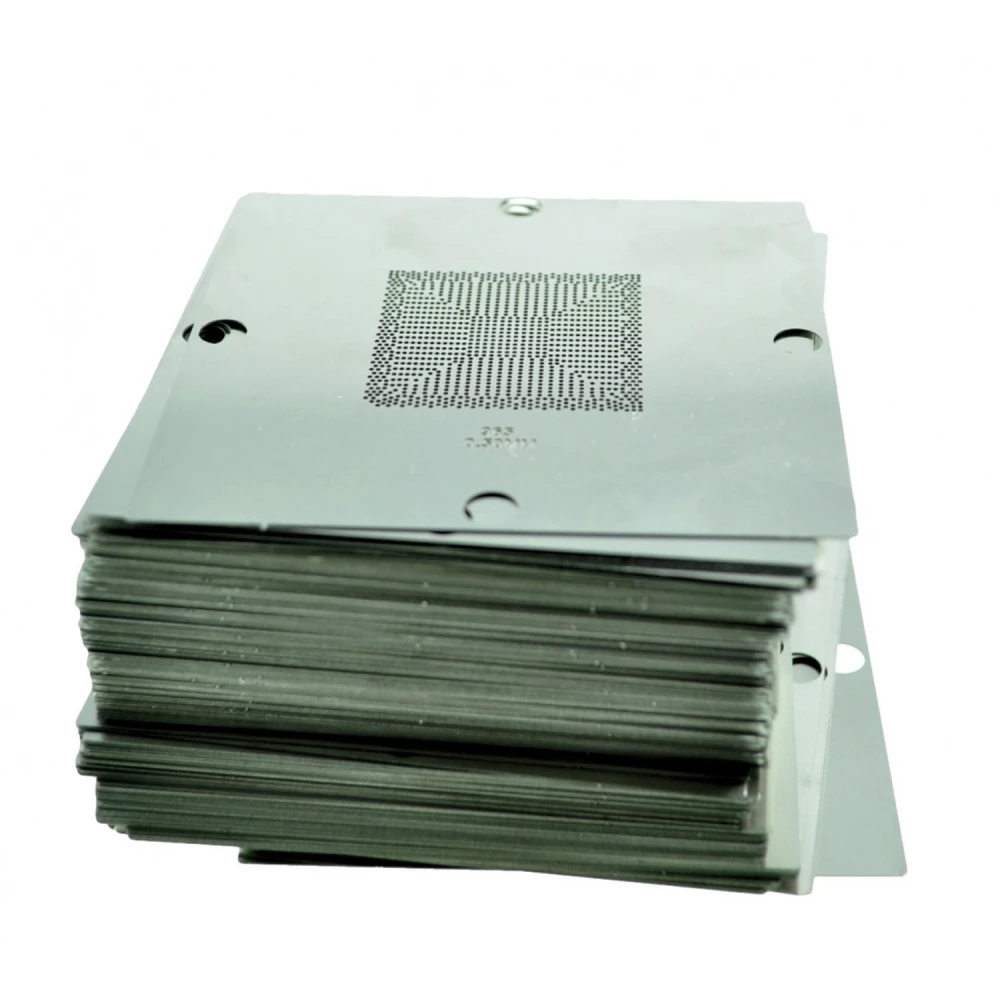

Set of 7 Universal Stencils 90mmx90mm Mk-15/Ht90 with 150 Stencils
This professional set of BGA soldering stencils offers a complete solution for reballing and electronics repair work. It includes 150 high-precision stencils, designed to fit a wide range of integrated circuits (ICs) and memory chips, making solder paste application more even.
Key features
- Dimensions: 90mm x 90mm
- Brand: Mlink
- Quantity: 150 stencils
- Compatibility: Compatible with ICs such as BD82HM55, BD82P55, DDR1, DDR2, DDR3, Xbox360 Cache Memory, and multiple ATI, NVidia, PS3, Wii models, among others.
- Stencil thickness: Ranges from 0.30mm to 0.76mm to suit different component types
Detailed contents by thickness
- 0.30mm (1 piece): Universal
- 0.35mm (2 pieces): BD82HM55 and Universal
- 0.4mm (2 pieces): BD82P55 and Universal
- 0.45mm (6 pieces): DDR1, DDR2, DDR3, AC82GM45, AC82P45, Universal
- 0.5mm (33 pieces): Compatible with multiple ATI, MCP, NVIDIA models, among others
- 0.6mm (80 pieces): Includes stencils for Xbox 360, PS3, Wii, VIA, ATI, SIS, NVIDIA and more
- 0.76mm (26 pieces): Compatible with models such as 845GL, 855GM, SIS630, CXD2949CGB, among others
Typical uses
Ideal for technicians and professionals carrying out reballing and circuit board repair, especially on games consoles, graphics cards and memory chips. It helps ensure precise solder paste application for reliable, long-lasting connections.
Compatibility
This set is compatible with a wide range of ICs and memory chips, including popular models in the electronics and gaming industries such as Xbox 360, PS3, ATI, NVIDIA, and more, ensuring versatility across different projects.
Note: This product is currently out of stock. Please contact our team for alternatives or restock dates.
- Set of 150 universal BGA soldering stencils, 90mm x 90mm
- Compatible with multiple ICs, DDR memory and Xbox360, PS3, Wii consoles
- Variable thickness from 0.30mm to 0.76mm for different applications
- Mlink brand, known for BGA soldering and reballing accessories
- Ideal for electronics repair professionals and precision soldering
- Includes stencils for ATI, NVIDIA, VIA, SIS and more models
- Helps apply solder paste evenly for reliable connections
Customer Questions & Answers
What material are the stencils made from, and what is their typical thickness?
The included stencils are usually made from stainless steel, for strength and durability at high temperatures. The standard thickness for this type of stencil is 0.12 mm, which provides a balance between solder application precision and mechanical tolerance when using small balls.
What is the recommended procedure for cleaning and maintaining the stencils after use?
It is recommended to clean the stencils with electronics solvents or 99% isopropyl alcohol immediately after use. Abrasive tools should be avoided so as not to deform the apertures. Dry thoroughly before storing to prevent corrosion. Storage in an anti-static bag improves the longevity of the stainless steel.
Does the set include a template or instructions for correctly aligning the stencil on the component?
The set includes only the stencils; it generally does not include a template or physical alignment system. It is recommended to use a BGA station with a camera or external guides for precise positioning, especially on components with a pitch below 0.5 mm. It is important to manually check pad alignment before soldering.
What types of components are these stencils compatible with?
They are compatible with a wide range of integrated circuits (ICs) and memory chips, including DDR1, DDR2, DDR3, Xbox360, PS3, Wii consoles, and multiple ATI, NVIDIA, VIA and SIS models.
What is the size of the stencils included in the set?
The stencils have a universal size of 90mm x 90mm, suitable for most BGA soldering applications.
How many stencils are included in the set?
The set includes a total of 150 stencils of different thicknesses and compatibilities to cover various needs.
Is the product available for immediate purchase?
The product is currently out of stock. We recommend contacting the seller to check availability or alternatives.
What brand makes this stencil set?
The set is made by Mlink, a brand specialising in accessories and consumables for BGA soldering and reballing.
