SMT manual solder paste printer with 440x320mm stencils
Brand: Mlink
VAT included (Ex VAT: 40.00 €)
Product description

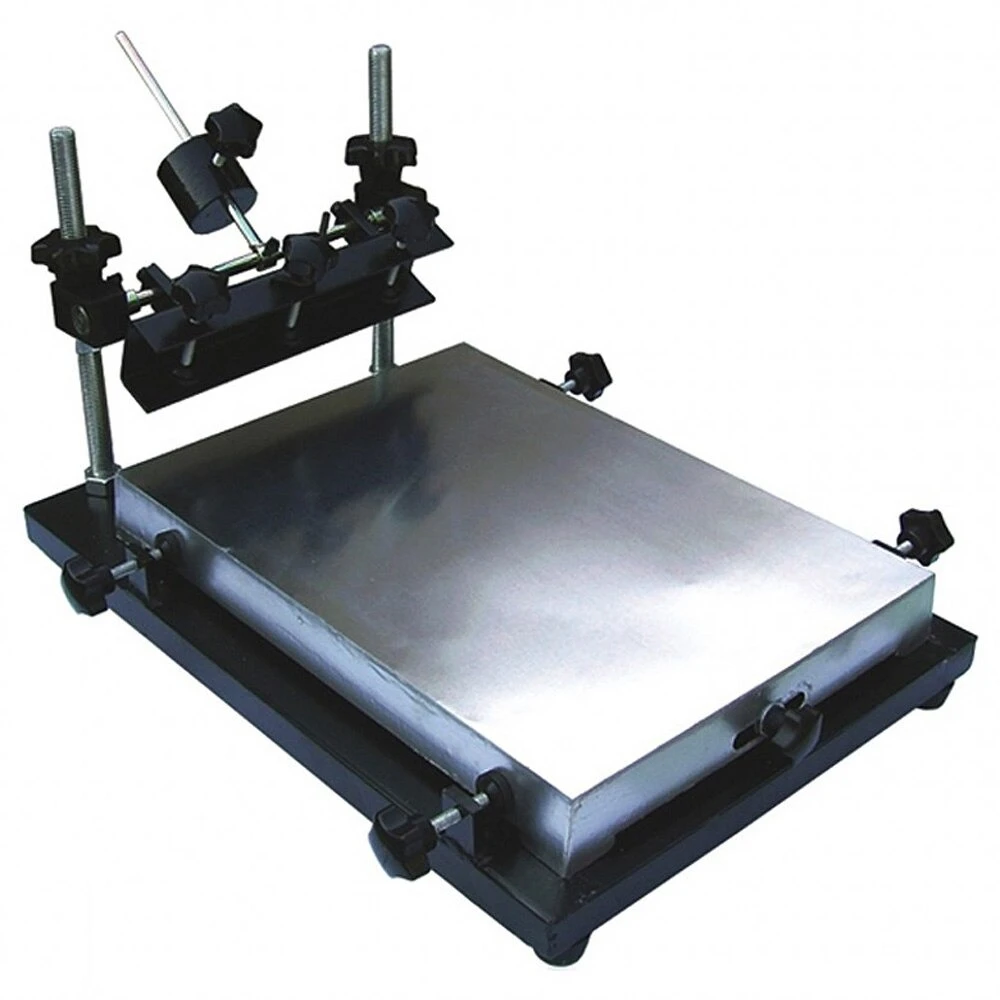

The SMT manual solder paste printer is an essential tool for small-batch PCB production. This machine allows precise printing of solder paste onto PCB pads using a metal stencil, ensuring a uniform and controlled application.
Main features:
- Edge positioning: Makes it easier to align the stencil accurately on the PCB.
- Manual adjustment: Allows manual control of the printing process for greater precision and flexibility.
- Adjustable direction: Movement forwards, left, right, up and down for exact positioning.
- Adjustable distance around the table: ±10mm for fine stencil placement adjustment.
- Maximum adjustable height: Up to 120mm to suit different stencil and board sizes.
Technical specifications:
- Model: Medium size printer

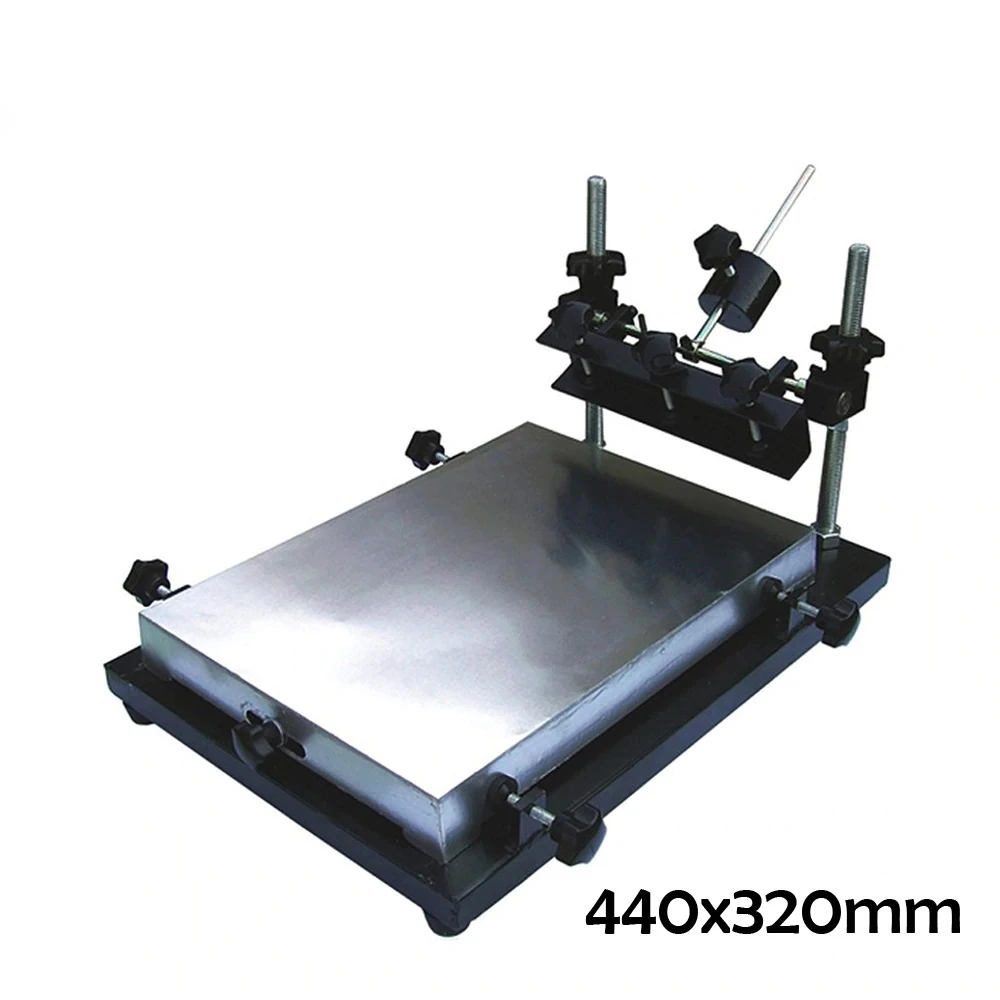

- Working area: 440x320mm
- Weight: 10 kg
Typical uses:
This printer is ideal for workshops and small production lines that need to apply solder paste to SMT boards with precision. It is especially useful for prototypes, repairs and limited production runs where quality and manual control are priorities.
Compatibility:
Compatible with any suitable metal stencil (up to 440x320mm) and PCB boards that require manual solder paste application.
Additional advantages:
- Easy to use and adjust to suit the specific needs of the project.
- Compact and lightweight, ideal for smaller workspaces.
- Allows detailed control to avoid paste waste and ensure quality soldering.
- Accurate edge positioning for stencil alignment
- Manual adjustment for detailed print control
- Adjustable direction: forwards, left, right, up and down
- Adjustable distance around the table ±10mm
- Maximum adjustable height up to 120mm
- Working area of 440x320mm
- Lightweight at 10 kg for easy handling
Customer Questions & Answers
What is the main advantage of using this manual SMT solder paste printer for small PCB batches compared with fully automatic methods?
The main advantage is its flexibility for small runs, offering precise manual adjustment in the X, Y and height directions, which allows prototypes or small series without the investment and complexity of an automatic machine. It gives full control over stencil positioning and the amount of paste deposited, ideal when production changes frequently or requires customisation.
What materials make up the main structure of this printer and how does this affect its durability?
Generally, the structure is made from steel and aluminium to provide mechanical strength, stability and long service life under regular use. These materials withstand frequent handling of stencils and PCBs without deforming, increasing the product's lifespan.
What regular maintenance is recommended to ensure accuracy and good performance over time?
Maintenance includes periodic cleaning of the surface and moving parts to prevent residue build-up, checking and lubricating guides and adjustment screws, and making sure there are no loose or worn parts. Following these guidelines extends the printer's accuracy and reliability.
Are there any technical limitations in alignment or PCB type that could affect print quality with this manual model?
Yes, because adjustment is manual and positioning is done by edges, the PCBs must be flat and within the specified size range. Very small or irregular PCBs can be difficult to align, which may affect paste deposition accuracy.
What type of production is this printer suitable for?
It is suitable for small-batch PCB production, ideal for prototypes and repairs.
What is the maximum stencil size it supports?
It supports metal stencils with a working area of up to 440x320mm.
How is the printer adjusted?
Adjustment is manual, allowing the stencil to be moved in several directions and the height and position to be adjusted precisely.
Is this printer compatible with any stencil?
It is compatible with metal stencils that fit the maximum size of 440x320mm.
What is the weight of the unit?
The unit weighs approximately 10 kilograms.
