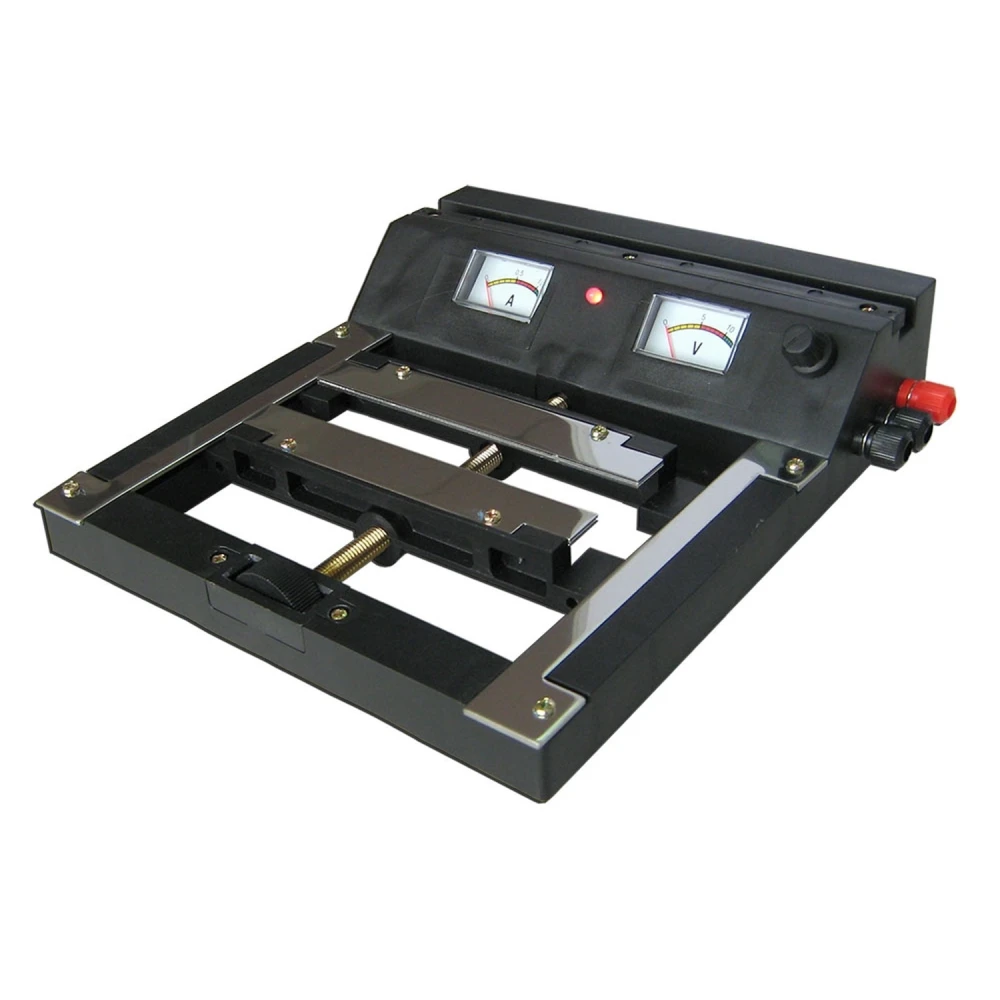

Aoyue 398 SMD Repair Platform with Power Supply for PCB Boards

Name: Aoyue 398 SMD Repair Platform with Power Supply for PCB Boards
Brand: Aoyue
SKU: S010104
Price: 35.88 EUR
Availability: InStock

Brand: Aoyue

Be the first to review this product

Save 2% Was: 36.78 €

35.88€

VAT included (Ex VAT: 29.17 €)

Limited stock

Standard delivery Thu, Apr 30 - Mon, May 4

Express delivery Tue, Apr 28 - Wed, Apr 29

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

Aoyue 398 SMD Repair Platform with Power Supply

This platform is designed to make the repair and maintenance of electronic circuits easier, especially mobile phone motherboards. Its solid steel construction and anti-static coating ensure durability and protection against electrostatic discharge during work.

Robust structure: Steel construction with anti-static cover to protect sensitive electronic components.
Threaded clamp: Allows the circuit board to be secured safely for stable and precise work.
Integrated support: Includes a holder for placing tools, making organisation easier during repairs.
Integrated power supply: Adjustable constant output voltage from 0 to 15V DC to power PCB boards directly.
Ergonomic design: Provides an elevated position that reduces the risk of work surface damage caused by hot air soldering stations.

Technical specifications:

Power supply: 210V/230V
Consumption: 20W
Output voltage: 0-15V DC
Weight: 1.5 kg

Typical uses:

Ideal for electronics repair technicians working with PCB boards and SMD components, especially when repairing mobile phone motherboards. Its integrated power supply allows circuits to be powered during testing and repairs without the need for additional equipment.

Compatibility:

Compatible with most PCB boards and SMD electronic components. Especially useful for jobs that require secure clamping and stable power supply for mobile motherboards.

Solid steel frame with anti-static material
Threaded clamp for securely holding PCB boards
Integrated tool holder for work tools
Integrated power supply with 0-15V DC output
Designed for mobile phone motherboard repair
Raised position to protect the work surface
210V/230V power supply with low 20W consumption
Lightweight at 1.5 kg for easy handling

Customer Questions & Answers

What is the advantage of having an integrated power supply in the repair platform compared with using an external power supply?

The integrated power supply allows electronic boards to be powered immediately and safely during repair tasks, making quick testing easier without the need for extra cables. It also reduces the space required and helps avoid connection errors between devices, although it offers a limited voltage range (0-15V DC) compared with some more advanced external power supplies.

What electrical compatibility and safety considerations should be taken into account when installing it in different countries?

The platform is designed to operate at 210V/230V AC, so it is compatible with European and Latin American mains supplies. In countries with 110V, a transformer would be required. The anti-static coating reduces the risk of discharge to sensitive components. As a general precaution, earth connection is recommended and the supply should not be overloaded with boards drawing more than 20W.

What maintenance does the platform need to ensure long-term durability and safe operation?

It is recommended to clean the anti-static surface periodically with a soft cloth and non-abrasive products, avoid dust build-up in the ventilation slots, check the condition of the cables and make sure the electrical connections are secure. Frequent calibration is not required, but the clamping system and clamp should be visually checked before each use.

What output voltage does the Aoyue 398 platform provide?

It provides an adjustable constant voltage from 0 to 15V DC.

What type of repairs is this platform ideal for?

It is ideal for PCB board and mobile phone motherboard repair, especially SMD work.

Does the platform include a tool holder?

Yes, it has an integrated holder for placing tools during work.

What is the product weight?

The weight is 1.5 kg, which makes it easy to handle and transport.

What type of construction does the platform have?

It is built from solid steel and covered with anti-static material to protect electronic components.
