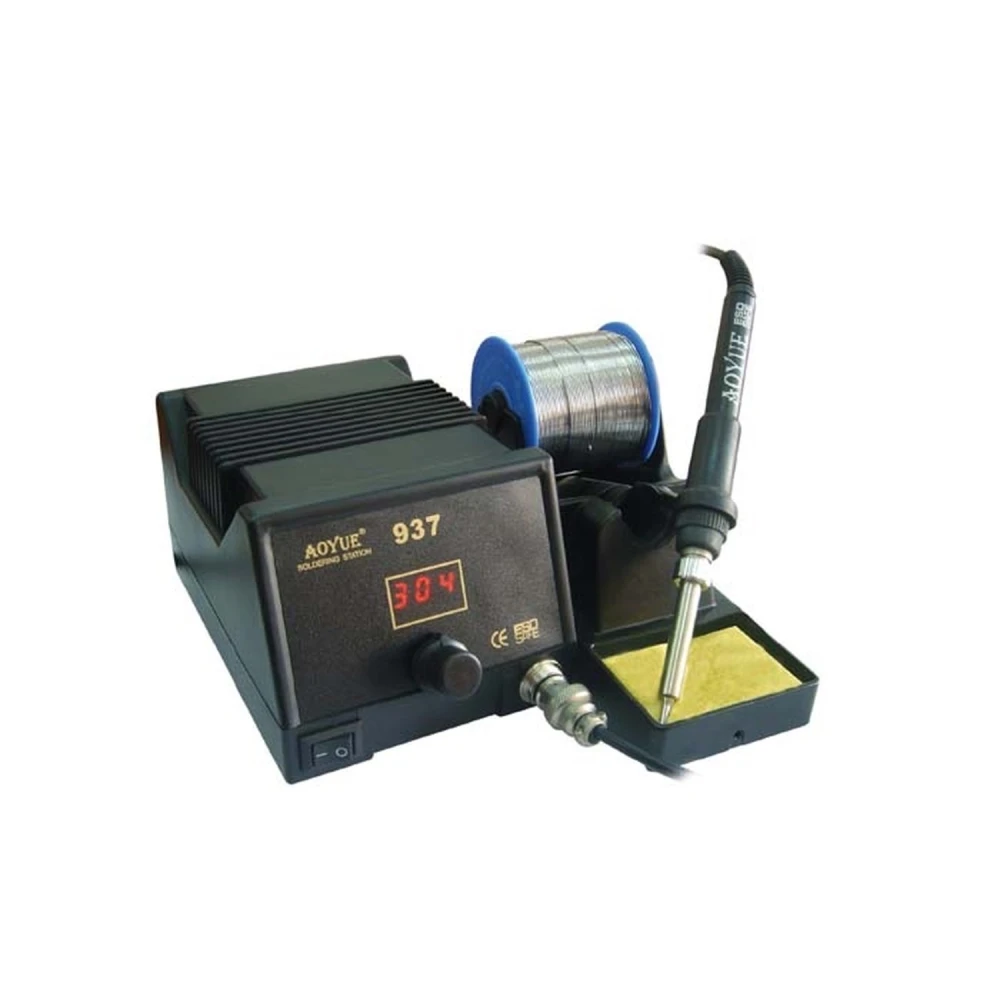

Aoyue 937 professional soldering station with microprocessor digital control
Brand: Aoyue
VAT included (Ex VAT: 56.35 €)
Overview:
The Aoyue 937 soldering station is a professional tool designed to provide precise and stable temperature control during the soldering process. Controlled by a microprocessor and fitted with a built-in sensor, this station delivers optimum results for electronics and repair work.
Key features:
- Digital microprocessor control to maintain the exact temperature.
- Built-in sensor that ensures constant thermal stability.
- Touch control with digital readout of the current and set temperature.
- Compact, robust design that takes up little space in the work area.
Technical specifications:
- Power supply: 220V.
- Power consumption: 45W.
- Temperature range: 200 - 480ºC.
- Output voltage: 24V.
- Heating element: ceramic base for efficient heating.
- Tip-to-ground resistance: less than 2 ohms.
- Tip-to-ground potential: less than 2mV.
- Dimensions: 120 mm (width) x 80 mm (height) x 140 mm (depth).
- Weight: 2.5 kg.
Typical uses:
This soldering station is ideal for technicians and hobbyists who require precision when soldering electronic components, circuit repairs, board assembly, and work that demands strict thermal control.
Compatibility:
Compatible with standard soldering tips (heater and tips not included under warranty). Its design and output voltage allow use with a wide range of accessories and electronic components.
Important note:
The heater and tips are excluded from warranty.
- Microprocessor control for precise, stable temperature
- Built-in sensor to maintain a constant temperature
- Touch control with digital display of current and set temperature
- Compact design that saves workspace
- Adjustable temperature range from 200 to 480ºC
- Efficient 45W power consumption with 220V supply
- Ceramic-base heating element for greater durability
- Compact dimensions: 120x80x140 mm and weight of 2.5 kg
Customer Questions & Answers
What advantages does microprocessor regulation offer over conventional analogue soldering stations?
Microprocessor regulation provides greater thermal stability and more precise temperature control, helping to reduce unwanted fluctuations and minimising the risk of damaging sensitive components. By contrast, analogue stations can show wider variations and less ability to maintain a constant temperature during repeated soldering.
What are the main materials of the station and how much does the assembled unit weigh?
The station uses a ceramic heating element and electronic components in a compact metal and plastic housing. The total weight of the assembled unit is 2.5 kg, which ensures stability during use and makes it easy to handle on the workbench.
Can this soldering station be used in regions with different voltages, such as 110V, or does it only work at 220V?
The specified model is designed to work exclusively with a 220 V supply. It is not factory-compatible with 110 V, and connecting it to a lower voltage may cause poor performance or damage to the unit unless an appropriate external transformer is used.
What recommendations are there for maintaining the durability of the ceramic heating element and tips?
It is recommended to clean the tips regularly, use only damp sponges and avoid overheating the soldering iron for long periods without soldering. As the heating element and tips are not covered by warranty and are consumables, careful use and proper cleaning extend their service life, but wear is inevitable with heavy use.
What is the actual operating temperature range and how does this affect handling different types of electronic components?
The adjustable temperature range is 200°C to 480°C. This makes it possible to solder everything from delicate components at lower temperatures to more robust soldering applications that require higher heat at higher temperatures. It is essential to set the temperature according to the type of component to avoid thermal damage or poor solder joints.
What is the temperature range of the Aoyue 937 soldering station?
The adjustable temperature range is from 200 to 480 degrees Celsius.
What type of control does this soldering station have?
It has digital microprocessor control and touch control with digital temperature readout.
Is it compatible with different soldering tips?
Yes, it is compatible with standard tips, although the heater and tips are excluded from warranty.
What is the power consumption of the station?
It has a power consumption of 45W with a 220V supply.
Is it in stock?
Currently, the Aoyue 937 soldering station is out of stock.
