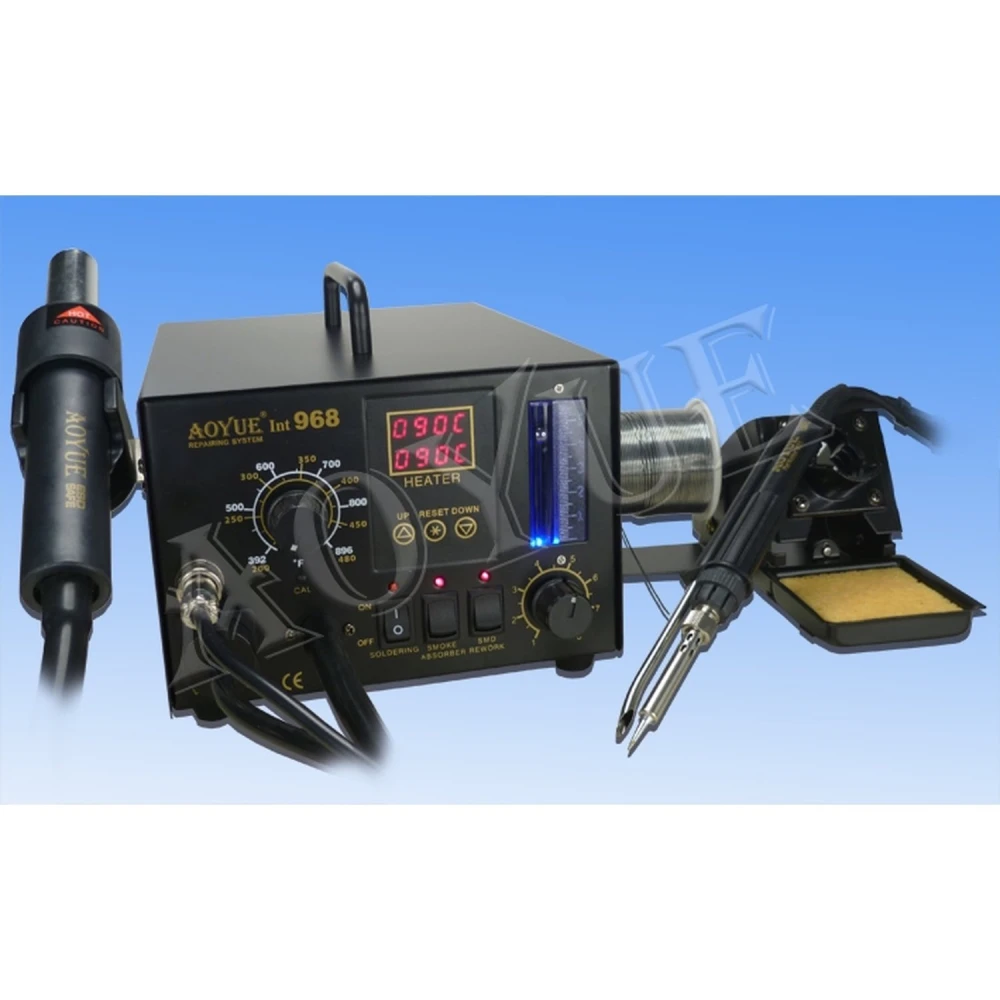

Aoyue 968 soldering station with digital control and smoke extraction

Aoyue 968 soldering station: Precision and functionality in one unit

The Aoyue 968 soldering station is a complete solution for professionals and hobbyists who need reliable and efficient tools for soldering and electronics repair work. This station combines a soldering iron, a hot air gun and a smoke extraction system, all controlled by a microprocessor that ensures precision and safety in every operation.

Main features:

• Advanced digital control: Digital display showing temperature settings, airflow and current temperature for accurate operation.
• Built-in smoke extraction: Integrated system that removes smoke generated during soldering for a cleaner working environment.
• Microprocessor with self-check system: Detects ageing or failure of the hot air heating core, alerting the user for timely maintenance.

Technical specifications:

• Power supply: 220V
• Dimensions: 188 mm (width) x 126 mm (height) x 250 mm (depth)

Soldering iron:

• Power consumption: 35W
• Temperature range: 200 - 480°C
• Heating element: Ceramic
• Output voltage: 24V
• Ground resistance: less than 2 ohms
• Ground potential: less than 2 mV

Hot air:

• Power consumption: 550W
• Temperature range: 100 - 480°C
• Heating element: Metal core
• Ground resistance: less than 2 ohms
• Compressor type: Diaphragm Pump
• Maximum air capacity: 23 L/min
• Automatic operating time: 20 to 9999 seconds

Smoke extractor:

• Vacuum pressure: 600 mm Hg

Package contents:

• 1 x 968 station with hot air gun
• 1 x B003 soldering iron
• 1 x 2630 soldering iron stand
• 1 x Z003 hot air gun stand
• 4 x air nozzles
• 1 x G001 IC holder
• 2 x filter panels
• 1 x power cable
• 1 x user manual

Typical uses:

This station is ideal for soldering electronic components, repairing printed circuit boards, hot air desoldering work and maintenance of electronic equipment. Its digital control and smoke extraction system make it suitable for professional environments that require precision and cleanliness.

Compatibility:

Compatible with standard soldering accessories and interchangeable nozzles that allow it to adapt to different types of jobs and components.

Important note: The resistance of Aoyue stations is excluded from warranty.

• Digital control with display for temperature and airflow
• Built-in smoke extractor for a clean working environment
• Microprocessor with self-check system for the heating core
• Soldering iron with ceramic element and 200-480°C temperature range
• Hot air gun with metal core and 23 L/min capacity
• Adjustable automatic operating time from 20 to 9999 seconds
• Includes stands for the soldering iron, hot air gun and ICs, plus nozzles and filters
