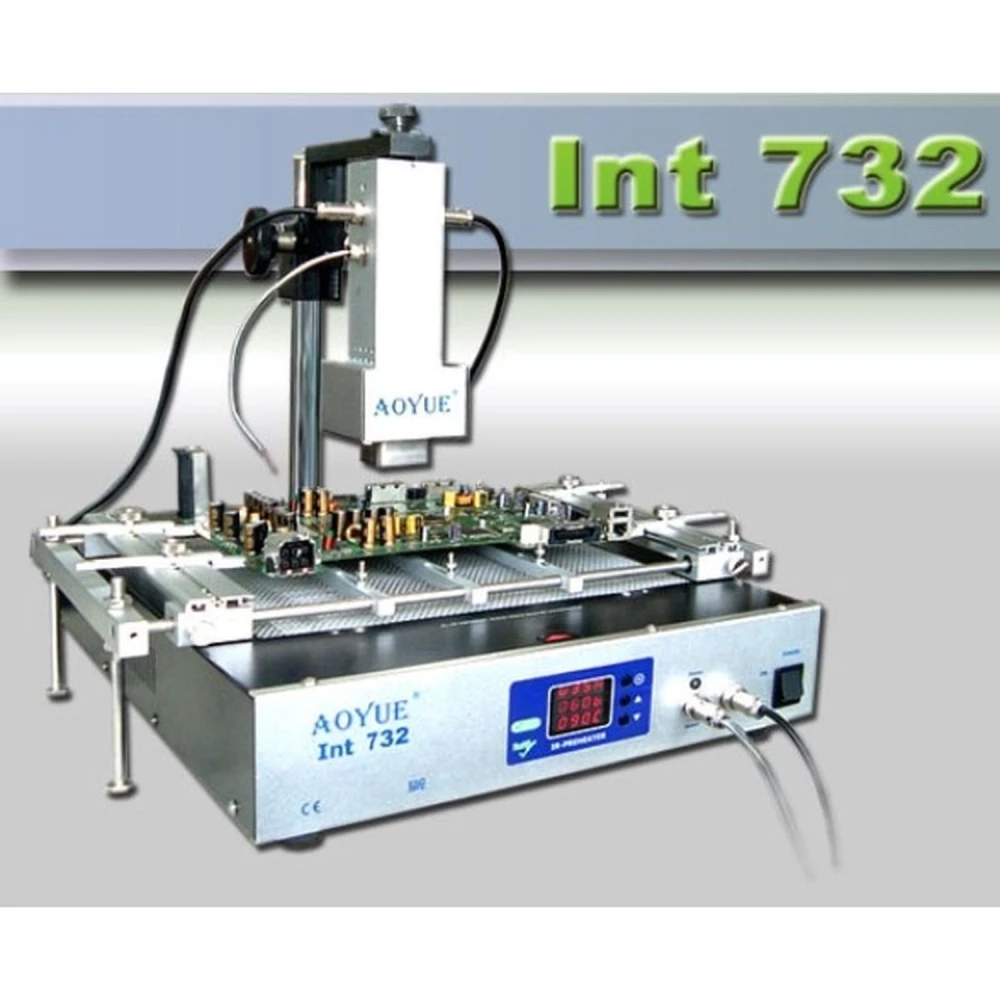

Aoyue INT732 3-in-1 digital soldering station with infrared technology
Brand: Aoyue
VAT included (Ex VAT: 977.50 €)
Product overview
The Aoyue INT732 soldering station is an advanced soldering station that integrates three essential functions into one unit: hot air soldering, a soldering iron and a preheater. Designed to deliver precision and efficiency, this system uses infrared wave heating technology instead of traditional hot air, which minimises the movement of nearby components during the soldering process.
Key features
- 3-in-1 repair system: Combines hot air soldering, soldering iron and preheater for a complete solution.
- Adjustable infrared emitter: Fixed, adjustable support that improves soldering precision.
- Built-in vision protector: Protects the user’s eyes from infrared rays during work.
- Digital, programmable control: Allows precise adjustment of time and temperature for infrared soldering, soldering iron and preheater.
- Infrared wave heating technology: Avoids common hot air issues such as component movement.
- Closed-loop temperature control range: Ensures a more precise and controlled soldering process.
Technical specifications
- Station: 220V power supply, 600W consumption, dimensions 348x242x98 mm.
- Infrared instrument: 165W consumption, temperature range 0-480°C, IR heating element halogen tube, output power 15VAC.
- Soldering iron: 70W consumption, temperature range 200-480°C, ceramic heating element, output power 24VAC.
- Preheater: 400W consumption, maximum temperature 350°C at the source, dark infrared heating element, output power 220VAC.
Typical uses
This system is ideal for professionals and technicians who need a versatile and precise soldering station for electronic repairs, BGA component mounting and reballing work. Its infrared technology and digital control make it possible to carry out delicate soldering without damaging sensitive components.
Compatibility
Compatible with a wide range of electronic components and circuit boards, especially useful for repairs to mobile devices, computers and electronic equipment that require precision and thermal control.
Important note: Heating elements and tips are not covered by the warranty.
- 3-in-1 repair system: hot air soldering, soldering iron and preheater
- Fixed, adjustable infrared emitter for greater precision
- Vision protector for protection against infrared rays
- Programmable digital time and temperature control
- Infrared wave heating technology to prevent component movement
- Closed-loop temperature control range for greater precision
- Station with 220V power supply and 600W consumption
- Infrared instrument with 0-480°C range and halogen tube
- Soldering iron with 200-480°C range and ceramic element
- Preheater with maximum temperature of 350°C and dark infrared element
Customer Questions & Answers
What are the main advantages of using an infrared soldering system compared with a traditional hot air one?
Infrared soldering significantly reduces the movement of nearby components because there is no airflow, offering greater precision in electronic assemblies. It also allows more precise and even temperature control, which minimises thermal stress and defects caused by overheating or uneven heat distribution.
Is the system compatible with mains supplies other than 220 V, and are there any electrical consumption considerations?
The Aoyue Int732 is specified to operate at 220 V AC; using it on a different voltage supply (e.g. 110 V) would require a suitable transformer. Its maximum power consumption is 600 W, so it is not recommended to connect it to overloaded or unregulated sockets.
Does the infrared emitter or preheater require special maintenance, and what is its estimated service life?
The infrared emitter and preheater require regular cleaning to prevent dust build-up, which can affect thermal efficiency. Halogen tubes usually have a service life of 2,000 to 5,000 hours under normal conditions. Replacement depends on usage intensity and proper ventilation.
Are there any specific safety risks associated with using infrared rays in this system, and does it comply with international standards?
The system includes a viewing shield to reduce the risk to the eyes from exposure to infrared rays. It is recommended to always use the shield and avoid direct contact with hot elements. Compliance with specific international standards (such as CE, RoHS) is not listed in the technical sheet, so it is advisable to check with the supplier for up-to-date certifications.
What functions does the Aoyue INT732 soldering station combine?
It combines hot air soldering, a soldering iron and a preheater in one 3-in-1 system.
What heating technology does it use?
It uses infrared wave heating technology instead of traditional hot air.
What is the temperature range of the soldering iron?
The soldering iron has a temperature range of 200 to 480°C.
Are heating elements and tips covered by the warranty?
No, heating elements and tips are excluded from the warranty.
What is the station’s power supply?
The station operates on a 220V power supply.
