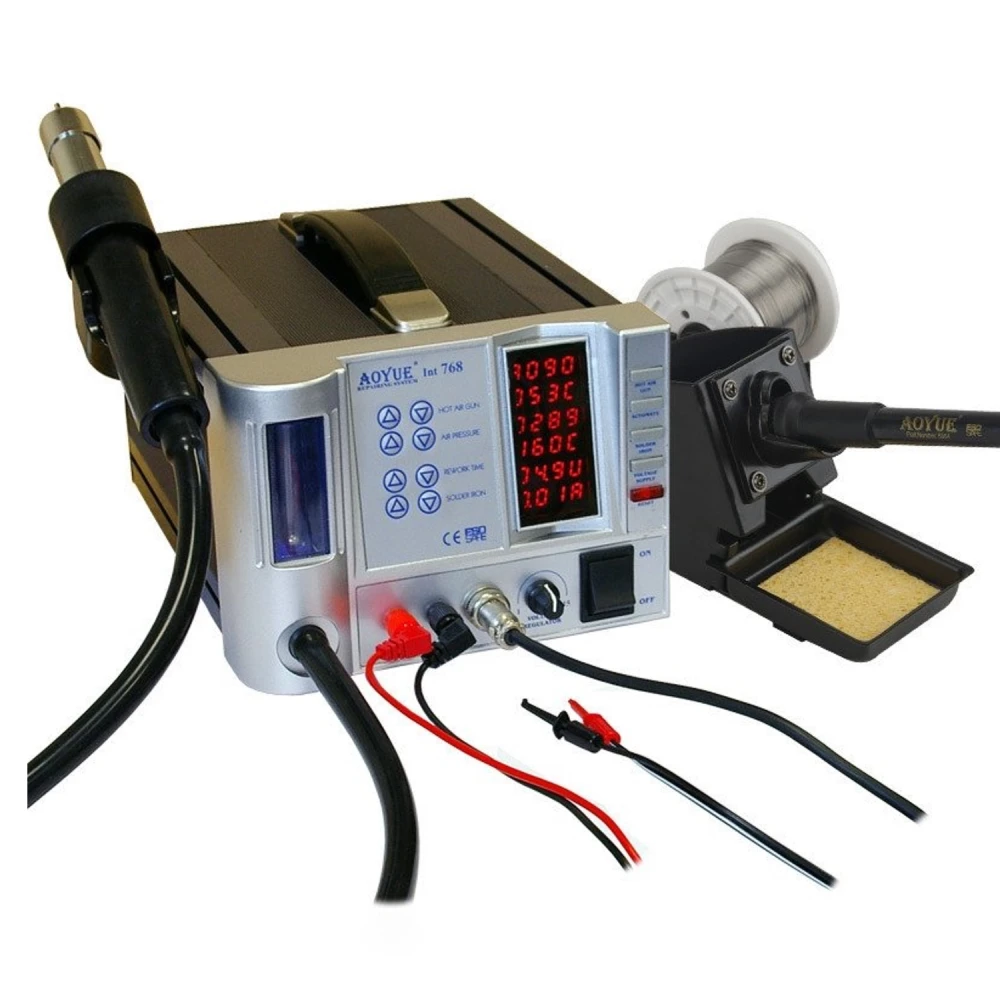

Aoyue INT768+ professional repair system [New 60W version]
Brand: Aoyue
VAT included (Ex VAT: 224.25 €)
Product overview
The Aoyue INT768+ professional repair system is an advanced soldering station designed to deliver precision and stability for electronics repair work. This new 60W version integrates microprocessor digital control, allowing exact temperature management and a stable power supply, making professional repair of electronic components easier.
Main features
- Microprocessor digital control: Digital display clearly shows the temperature and power supply for exact control.
- Thermal stability: Microprocessor design keeps temperature and airflow stable during soldering and resumption.
- Power supply: 1,5A and 15V power supply ensures stable current for reliable operation.
- Built-in sensor: For exact and safe operation of the system.
- Automatic stand-by mode: The station enters power-saving mode after 10 minutes of inactivity and resumes the previous setting on restart.
Technical specifications
- Power supply: 220V
- Dimensions: 188 mm (width) x 126 mm (height) x 250 mm (depth)
- Weight: 6.03 kg
Soldering iron
- Power consumption: 60W
- Temperature range: 200 - 480 °C
- Heating element: Ceramic heater
- Output voltage: 24V
- Tip resistance: Less than 2 ohms
- Electrical noise: Less than 2mV
Hot air
- Power consumption: 600W
- Temperature range: 100 - 480 °C
- Heating element: Metal base
- Injector resistance: Less than 2 ohms
- Pump type: Diaphragm pump
- Air capacity: 23 litres/minute (maximum)
- Automatic resumption time: 20 to 9999 seconds
Power supply
- Total current: 1.5A
- DC output voltage: 0-15 V
Typical uses
This system is ideal for technicians and professionals who need a reliable and precise soldering station for electronics repairs, component assembly and circuit maintenance. Its hot air function makes it easy to work with sensitive components and carry out rework.
Compatibility and maintenance
Compatible with standard tips and heating elements for Aoyue soldering stations. Regular maintenance of the equipment is recommended to ensure optimum performance. Note: The heating element and tips are not covered by warranty.
- Microprocessor digital control for precision and stability
- Soldering iron temperature range: 200-480°C with ceramic heater
- Hot air function 100-480°C with diaphragm pump
- Stable power supply 220V, 1.5A, 15V
- Automatic stand-by mode after 10 minutes of inactivity
Customer Questions & Answers
What advantages does microprocessor digital control offer compared with analogue stations?
Microprocessor digital control in the Aoyue Int768+ allows more precise and stable regulation of temperature and airflow. This technology minimises thermal variation and enables exact adjustments, compared with analogue stations that have wider tolerances and less consistency, which can affect repeatable results in demanding work.
What are the specifications in terms of dimensions, weight and box contents of this system?
The station measures 188 mm wide, 126 mm high and 250 mm deep, with a total weight of 6.03 kg. The typical package includes the main station, the 60 W soldering iron, the hot-air handpiece, stands and basic accessories depending on the batch. Components may vary slightly by sales region.
Is it compatible with 110 V electrical systems or only with 220 V?
The specified model uses 220 V power supply (nominal value). It is not factory-compatible with 110 V mains, so an external converter would be required for use in countries with that standard. Operation at the wrong voltage may void the warranty and affect performance.
What temperature range and airflow does the hot-air function offer? Are there recommended limits for sensitive SMD components?
The hot-air function has an adjustable temperature range of 100 to 480 °C and a maximum airflow of 23 litres/minute. For sensitive SMD components, it is recommended to operate between 250-350 °C and keep exposure time to a minimum to avoid heat damage.
What is the typical lifespan of the heating element and what maintenance is recommended for maximum durability?
The ceramic heating element in the soldering iron usually lasts between 800 and 1200 hours of use, depending on conditions and maintenance. It is advisable to clean solder residue regularly, avoid excessive pressure and switch the unit off when not in use to extend its service life. Spares are available from the manufacturer or authorised distributors.
What is the temperature range of the soldering iron on the Aoyue INT768+?
The soldering iron has an adjustable temperature range between 200 and 480 degrees Celsius.
What type of heating element does the station use?
The soldering iron uses a ceramic heater and the hot air is heated by a metal base.
Does the station have a power-saving function?
Yes, the device enters stand-by mode automatically after 10 minutes of inactivity and resumes the previous setting on restart.
What is the power consumption of the hot air function?
The hot air consumes 600W and has a maximum air capacity of 23 litres per minute.
Is the Aoyue INT768+ available for immediate purchase?
Currently the product is out of stock and not available for immediate purchase.
