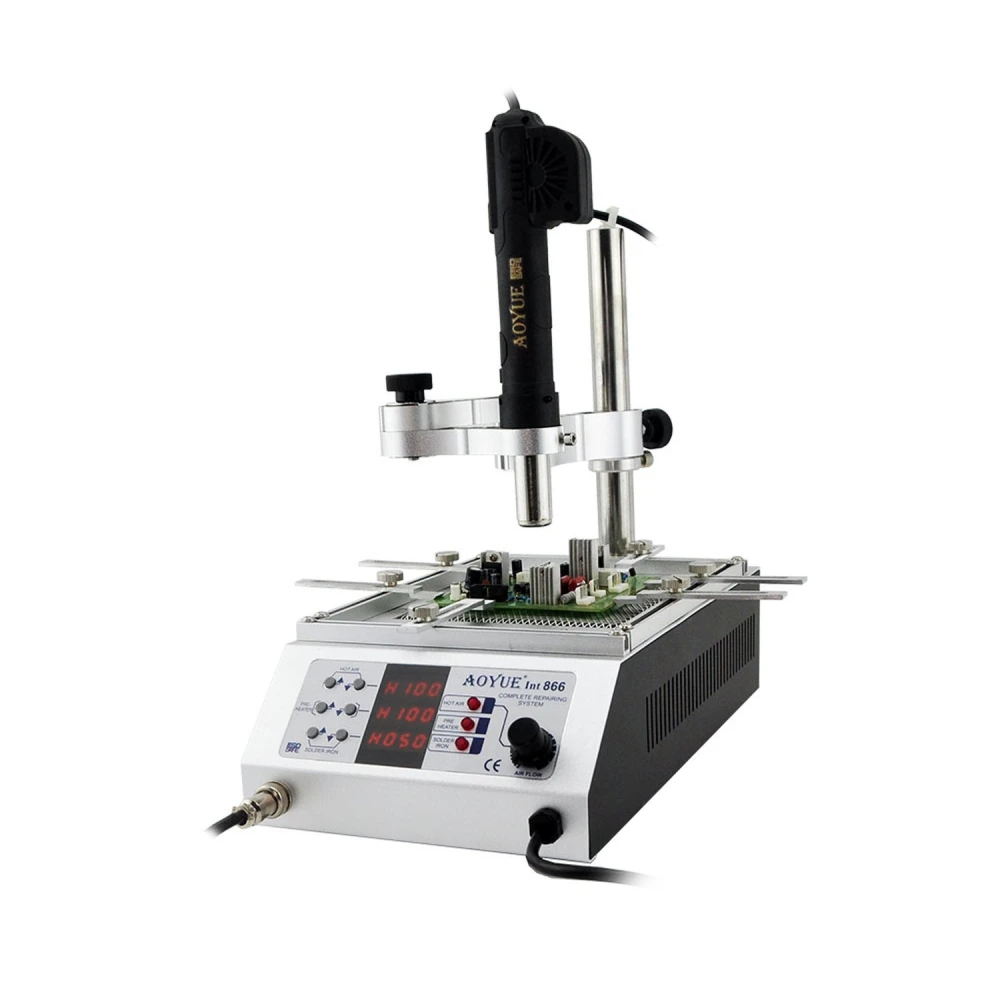

Aoyue Int866 soldering station with preheater and 3-in-1 stand
Brand: Aoyue
VAT included (Ex VAT: 182.86 €)
The Aoyue Int866 soldering station with preheater and 3-in-1 stand is a professional tool designed to deliver precision and comfort in electronics soldering and circuit board repair work.
Its design includes an articulated stand for the hot air gun that allows free movement across the entire surface of the preheater, making it easier to secure and handle boards without the fixed or angled position limitations common in other models.
The preheater features an external probe that attaches to the work board, allowing precise digital temperature control, essential for preventing damage and ensuring even heating.
The 400W hot air gun is equipped with a turbine mechanism that generates an adjustable airflow via a wheel regulator, and also includes a programmable auto shut-off function for greater safety and efficiency.

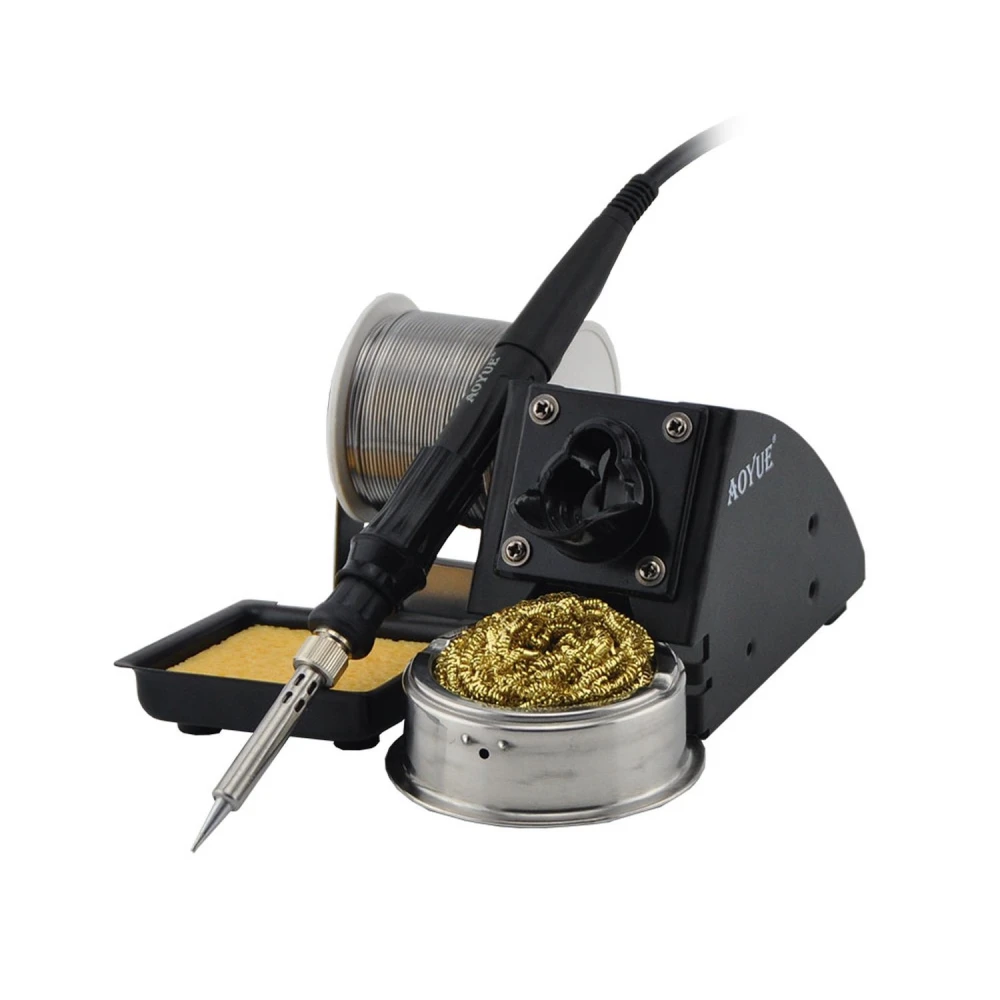

The integrated soldering iron is powerful, with 60W at 24V, and offers digitally adjustable temperature. It also features digital calibration and auto shut-off for safe and precise use.
All temperature controls are digital and accessible from the front buttons on the station, making quick and reliable adjustments during work easy.
Main features:
- Station voltage: 220V
- Dimensions: 192 mm (width) x 100 mm (height) x 325 mm (depth)
- Weight: 6,58 Kg
- Soldering iron: 60W, temperature range 200°C - 480°C, ceramic heater, 24V output
- Hot air gun: 400W, range 100°C - 480°C, metal-core heating element, turbine motor
- Preheater: 400W, range 100°C - 480°C, quartz glass heating element

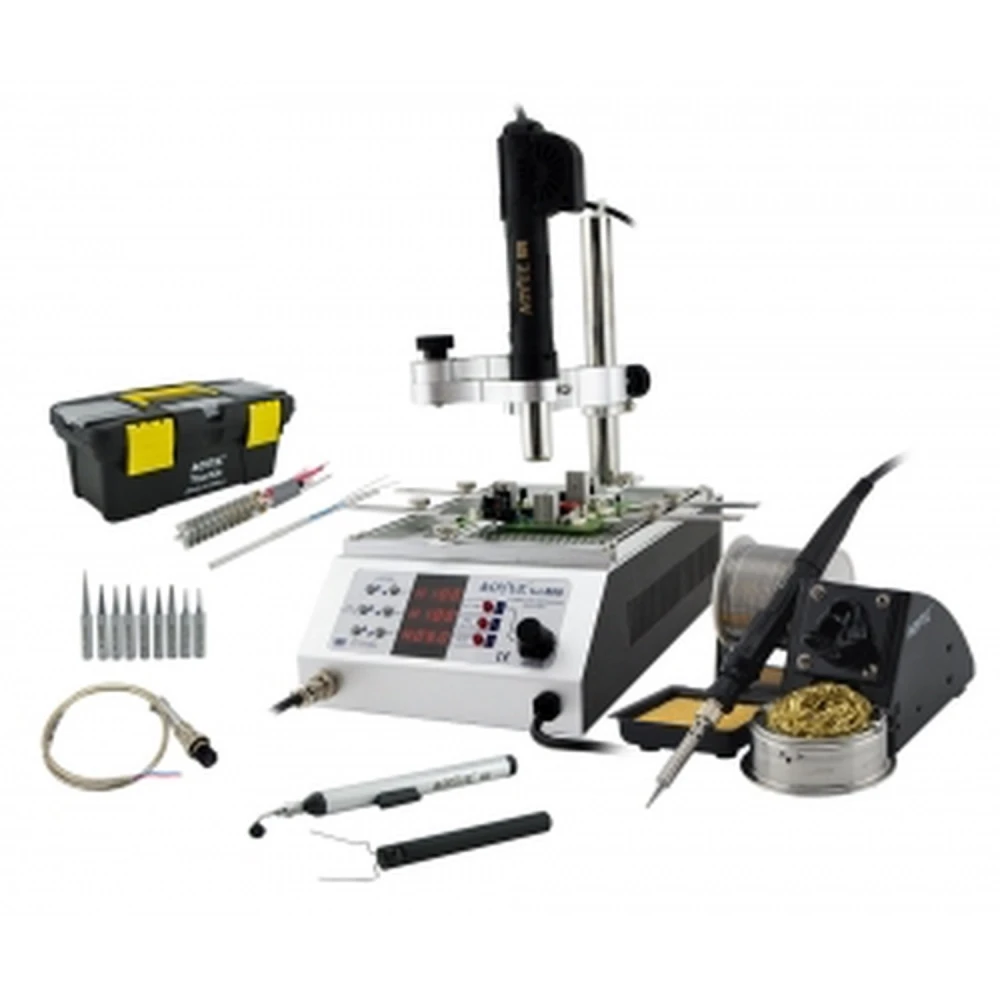

- Included accessories: 10 soldering tips, 4 hot air nozzles, replacement heating elements, 3-section articulated stand, vacuum suction pump, tool box and more.
Typical uses: Repair and maintenance of electronics, precision soldering on PCB boards, professional work that requires strict control of temperature and airflow.
Compatibility: Compatible with various electronic boards and components that require soldering and controlled preheating.
This station is ideal for technicians and professionals looking for a complete and versatile kit for electronics soldering, with advanced functions and accessories that make everyday work easier.
- Digital temperature control for the soldering iron, hot air gun and preheater
- 400W hot air gun with adjustable airflow and programmable auto shut-off
- 60W 24V soldering iron with adjustable temperature and digital calibration function
- 3-section articulated stand for greater freedom of movement
- Includes 10 soldering tips and 4 hot air nozzles for a range of applications
- Preheater with external probe for precise temperature control
- Ceramic and quartz glass heating elements for efficiency and durability

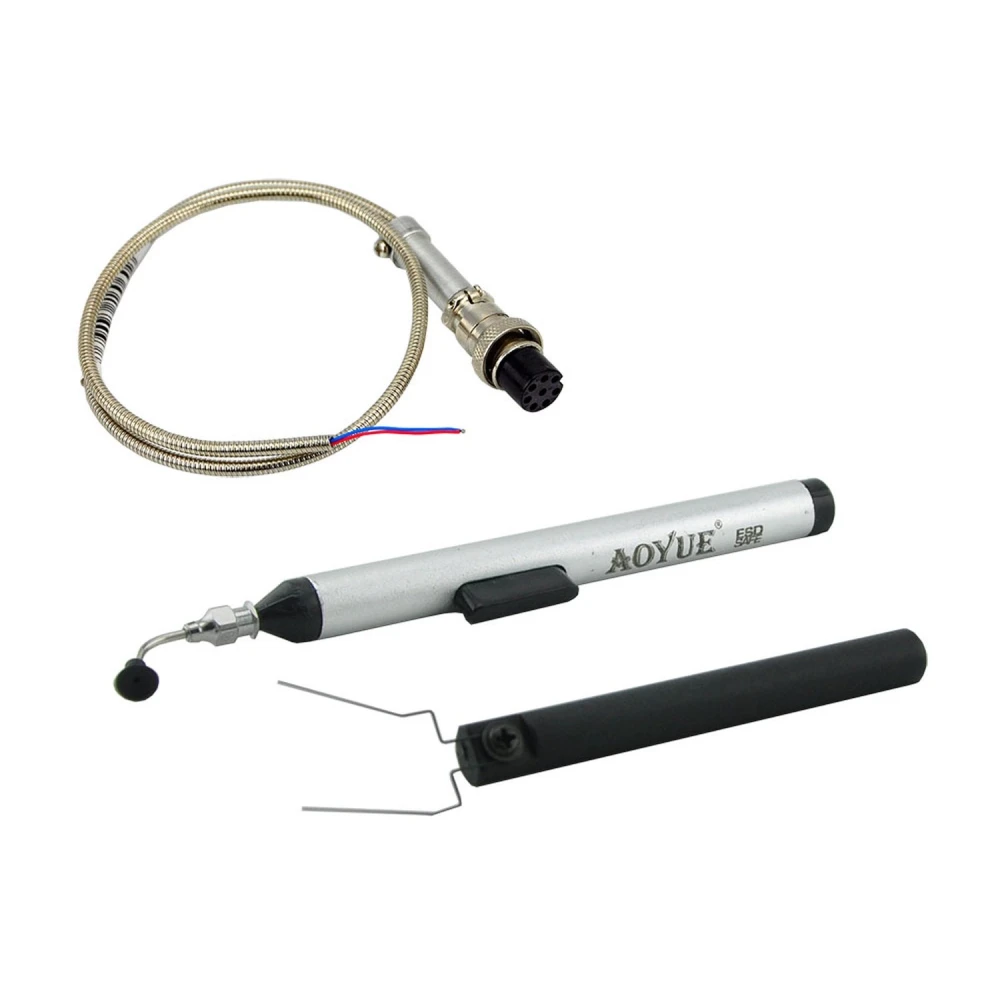

- Complete accessories: vacuum pump, IC extractor, tool box and instruction manual
Customer Questions & Answers
What are the materials, dimensions and weight of the station, and what is included in the package?
The station is mainly built from metal and technical plastics to withstand high temperatures. Its dimensions are 192 mm (width) x 100 mm (height) x 325 mm (depth) and it weighs 6.58 kg. The package includes the station, 400 W hot air gun, 60 W soldering iron, stand, 10 soldering tips, 4 hot air nozzles, an external temperature probe and spare parts for the hot air and soldering heating elements.
How is the temperature of the soldering iron and hot air gun calibrated and adjusted digitally?
Both the soldering iron and the hot air gun have digital controls on the front panel for selecting precise temperatures within their respective ranges (soldering iron: 200–480 °C; air: usually up to around 480 °C, although the listing specifies the soldering iron). The station offers a digital calibration function that allows the temperature sensors to be adjusted and recalibrated as needed, minimising drift caused by wear or intensive use.
What voltage does the Aoyue Int866 soldering station require?
The station operates on 220V.
What is the temperature range of the soldering iron?
The soldering iron has an adjustable temperature range between 200°C and 480°C.
Does the hot air gun have airflow control?
Yes, the 400W hot air gun has a wheel regulator to control the airflow.
What accessories are included with the station?
It includes 10 soldering tips, 4 hot air nozzles, replacement heating elements, articulated stand, vacuum pump, IC extractor, tool box and manual.
Is it suitable for professional use?
Yes, this station is designed for professional use in electronics soldering and board maintenance.
