Aoyue Int9378 Pro Series Digital Soldering Station with Microprocessor Control
Brand: Aoyue
VAT included (Ex VAT: 103.50 €)

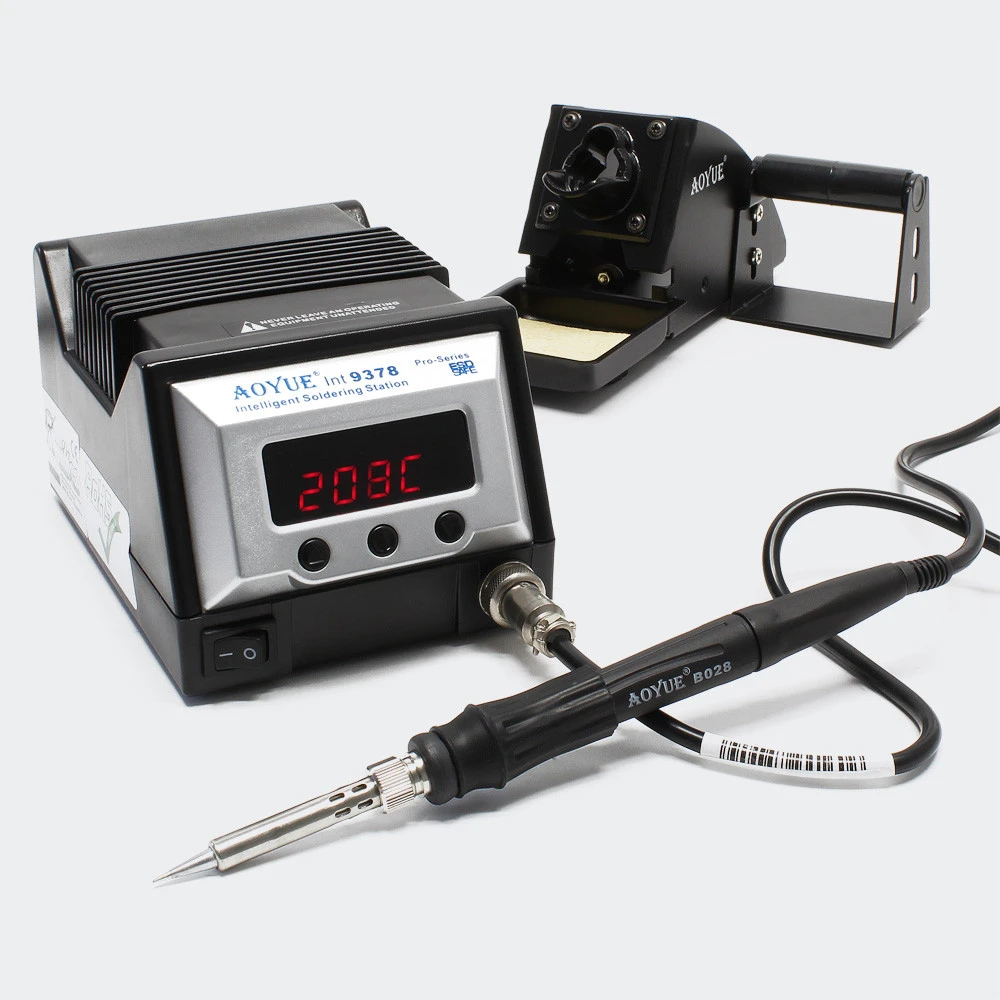

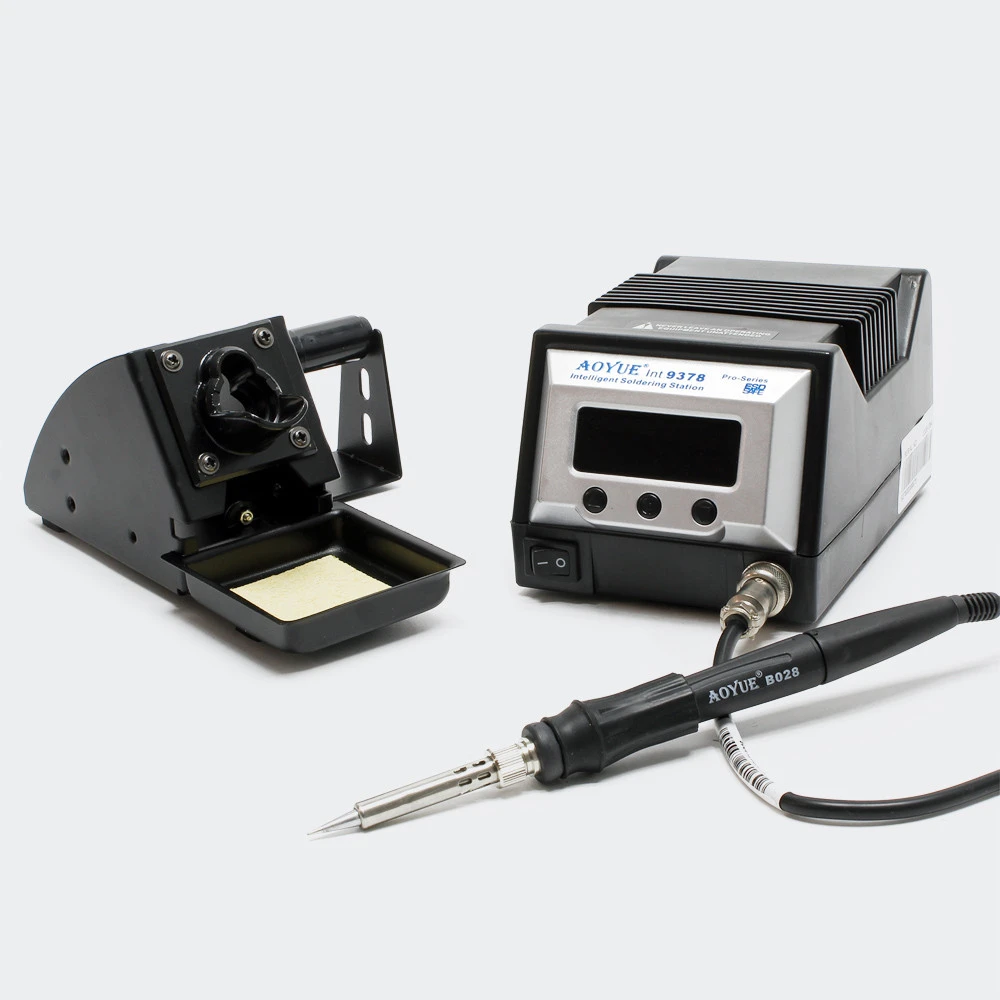

Aoyue Int9378 Pro Series Digital Soldering Station
The Aoyue Int9378 Pro Series digital soldering station is a professional tool designed to deliver precision and safety in electronic soldering work. Its anti-static design prevents damage to sensitive components and circuits caused by static charge, ensuring reliable and safe work.
Main features:
- Microprocessor-controlled for fast and stable heating.
- Wide temperature adjustment range between 200°C and 480°C, adjustable with one button.
- Temperature sensor integrated into the heater to maintain a constant and accurate temperature.
- Multi-tool including macro tweezers, micro tweezers, micro-peniques, fume extractor, LED soldering plates and sculpting pen.
- Automatic tool recognition for ease of use.
- ESD-proof station (electrostatic discharge) for advanced protection.
- Automatic shut-off and wake-up mode for energy saving and safety.
- Digital offset and fully digital control for custom adjustments.
- Programmable idle timer and system lock function to prevent accidental changes.
- Quick access to custom settings and favourites for added convenience.
Technical specifications:

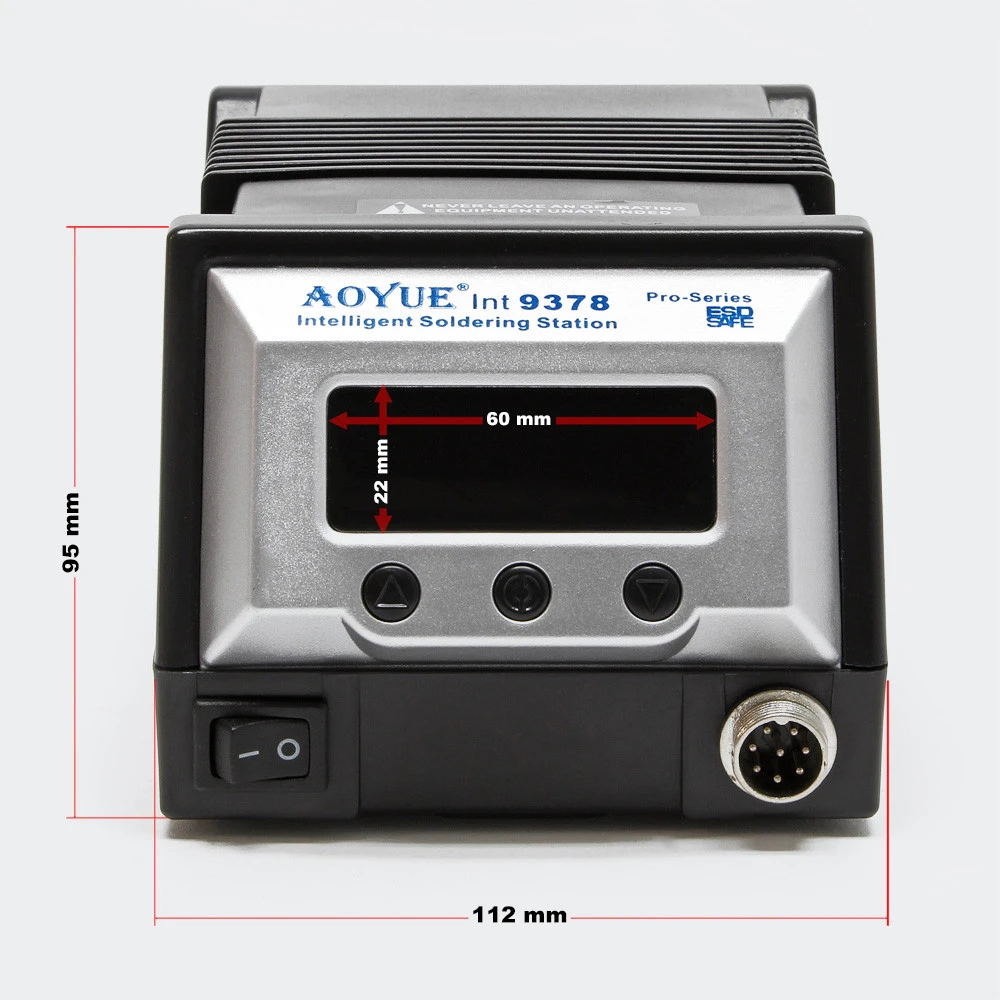

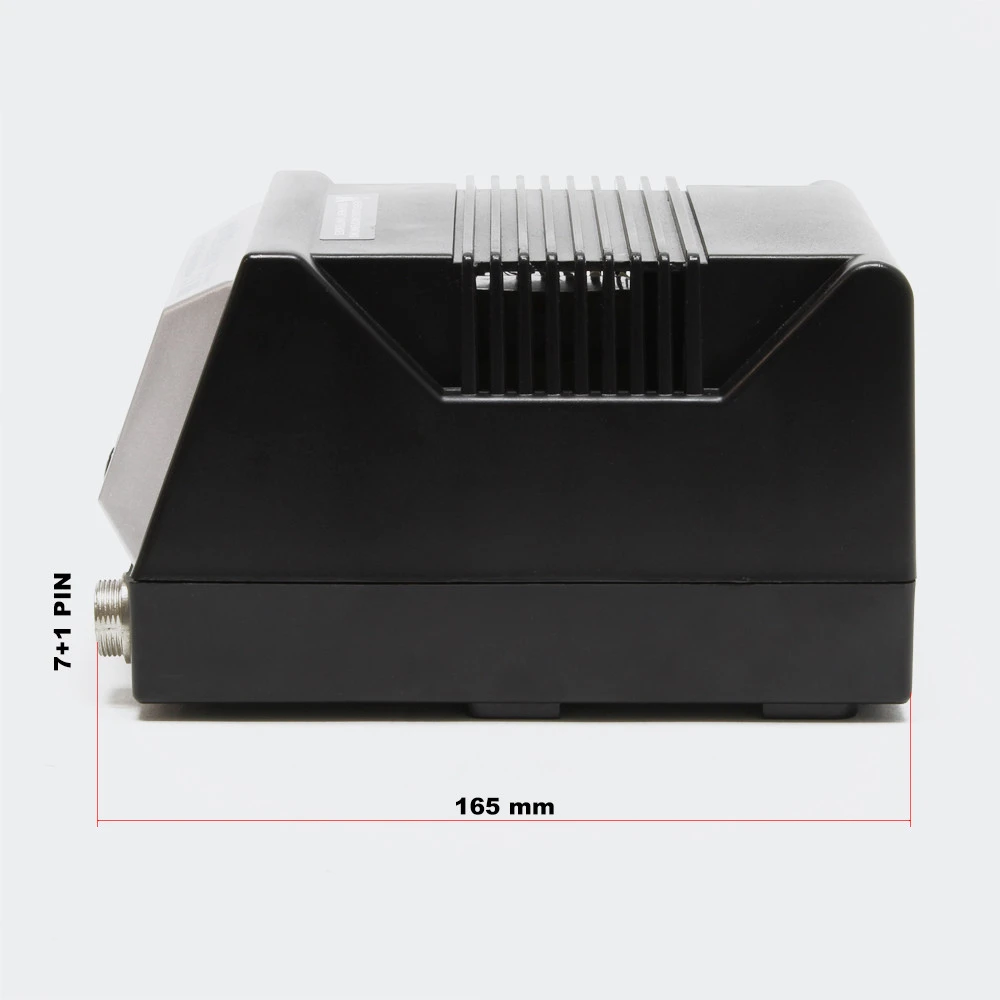

- Approximate dimensions: 110 x 98 x 155 mm.
- Power: 60 W.
- Output voltage: 24 V.
- Input voltage: 230V ~ 50Hz.
- Soldering iron with ceramic heater for greater durability and efficiency.
Typical uses:
Ideal for soldering temperature-sensitive electronic components and semiconductors, circuit repair, precision electronics work and professional projects that require exact temperature control and anti-static protection.
Compatibility:
Compatible with a wide variety of soldering tools and accessories, thanks to its automatic recognition system. Perfect for professional users and technicians looking for a reliable and efficient digital soldering station.
Package contents:
- 1 x Int9378 Pro main station.

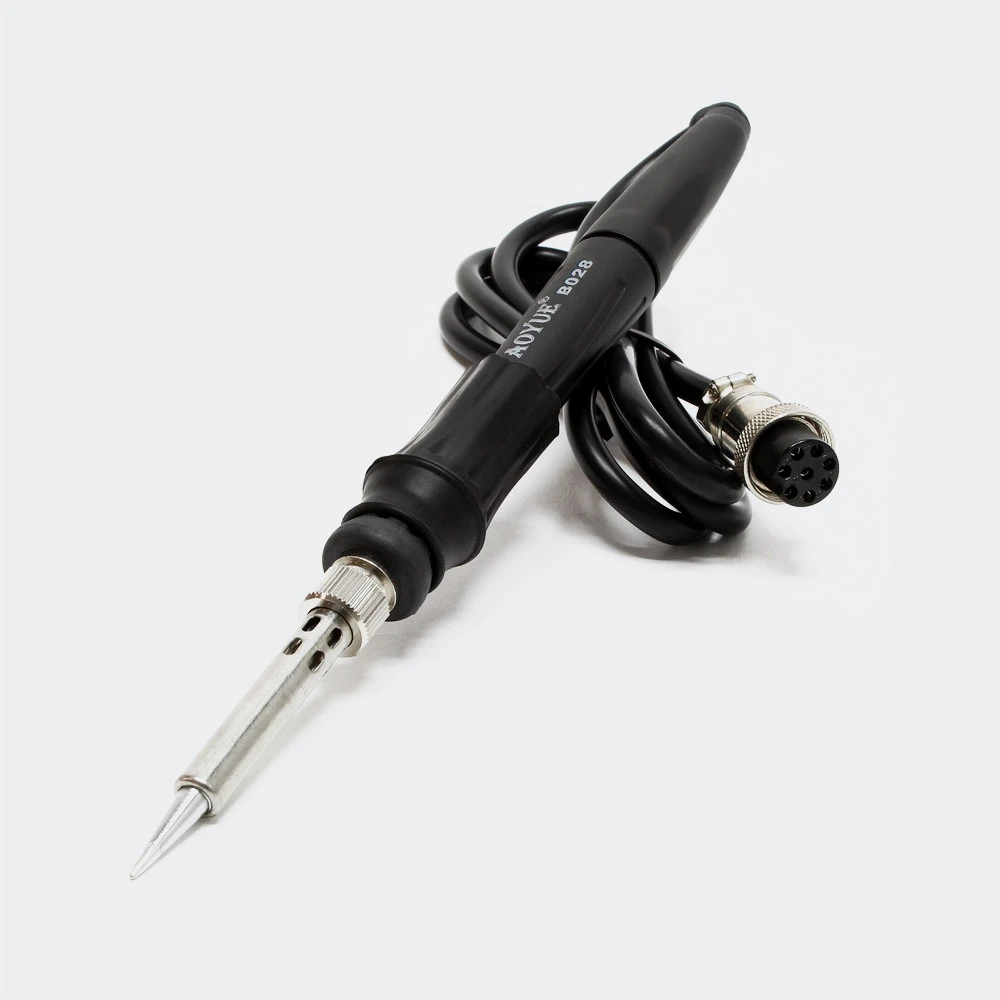

- 1 x Soldering iron.

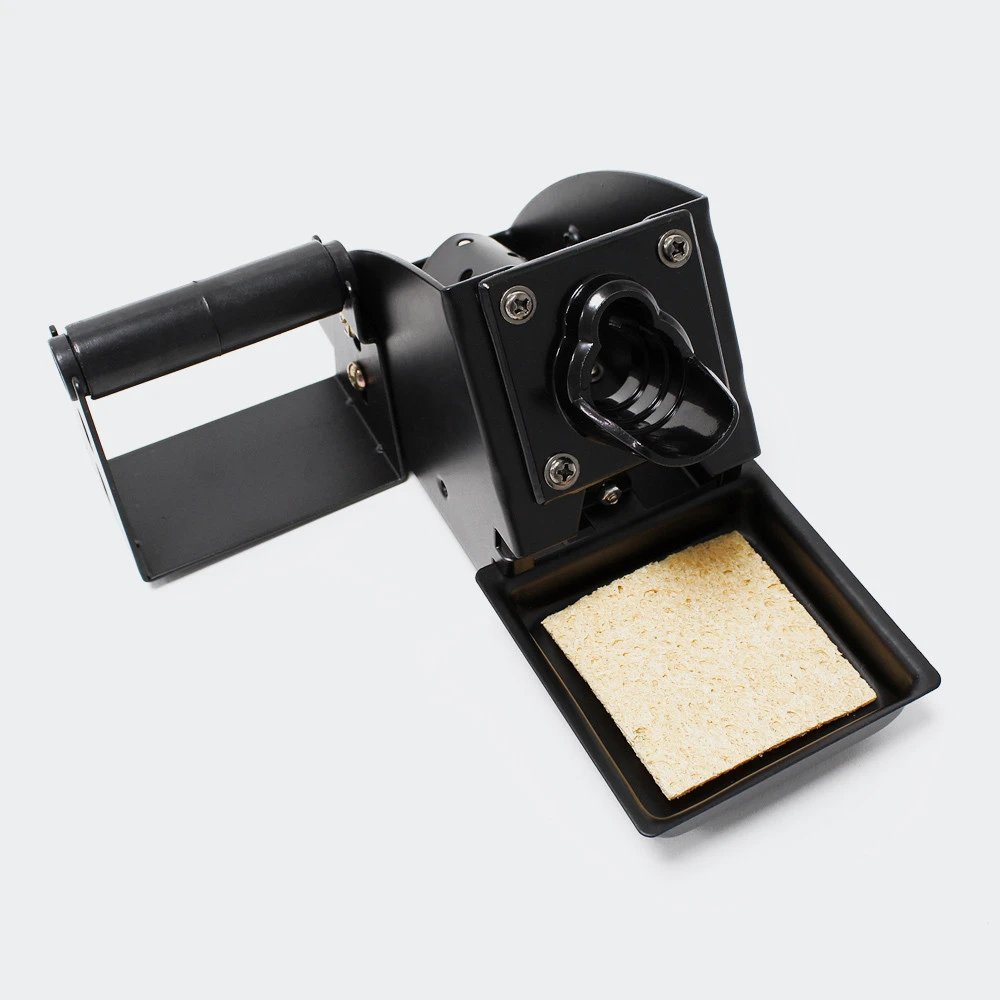

- 1 x Soldering iron stand.

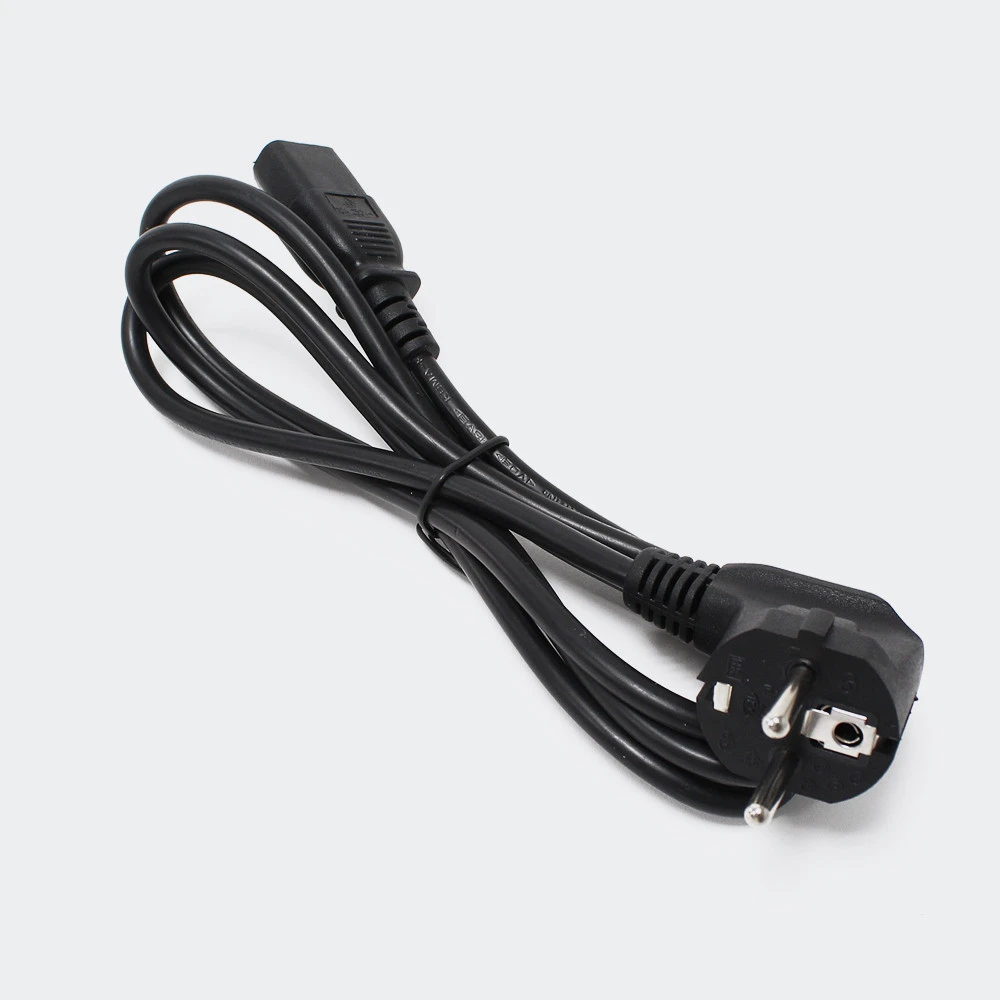

- 1 x Power cable.
- 1 x Instruction manual.
- Anti-static design to protect sensitive components
- Microprocessor control for fast, stable heating
- Adjustable temperature range from 200°C to 480°C
- Integrated sensor for constant, accurate temperature
- Multi-tool with tweezers, fume extractor and more
- Automatic tool recognition
- Automatic shut-off and wake-up mode
- Digital control with timer and system lock
- 60 W power and 24 V output voltage
- Includes station, soldering iron, stand, cable and manual
Customer Questions & Answers
What are the main safety functions built into the AOYUE Int9378 Pro Series soldering station?
The station includes ESD protection (electrostatic discharge), automatic shut-off mode and a programmable sleep timer. These functions minimise the risk of damage to sensitive components and improve operator safety by preventing overheating or accidental activation.
What type of connectors and voltage does the station use, and is it compatible with power supplies outside Europe?
The station operates on 230 V ~ 50 Hz input (European standard) and uses a 24 V output for the soldering iron. For use outside Europe, a transformer compatible with the local voltage would be required, and the power connector would need to match the country’s standard.
What advantages does microprocessor control offer compared with analogue models in terms of temperature accuracy?
Digital microprocessor control allows the temperature to be set within a range of 200°C to 480°C with high stability (generally ±2°C), which is essential for soldering sensitive components. Analogue models usually have greater tolerance and fluctuations, which can affect work quality.
What maintenance considerations does the soldering iron with ceramic heater require, and what is its typical service life?
The ceramic heater offers fast response and thermal stability, with an average service life of 2,000 to 5,000 hours depending on use and care. Mechanical impact should be avoided, the tip should be cleaned regularly, and it should be replaced if it shows excessive wear. Do not immerse the handle or heater in liquids.
What temperature range does the Aoyue Int9378 Pro Series soldering station have?
The station allows temperature adjustment in a range of 200°C to 480°C, ideal for different types of soldering.
Is the station safe for sensitive electronic components?
Yes, it has an anti-static design that prevents damage from electrostatic charges to components and circuits.
What is included in the soldering station package?
It includes the Int9378 Pro main station, a soldering iron, soldering iron stand, power cable and instruction manual.
Does the station have automatic shut-off?
Yes, it has an automatic shut-off and wake-up mode to save energy and improve safety.
