Aoyue Sp3500 BGA Reballing Plate with Precise Temperature Control
Brand: Aoyue
VAT included (Ex VAT: 205.85 €)

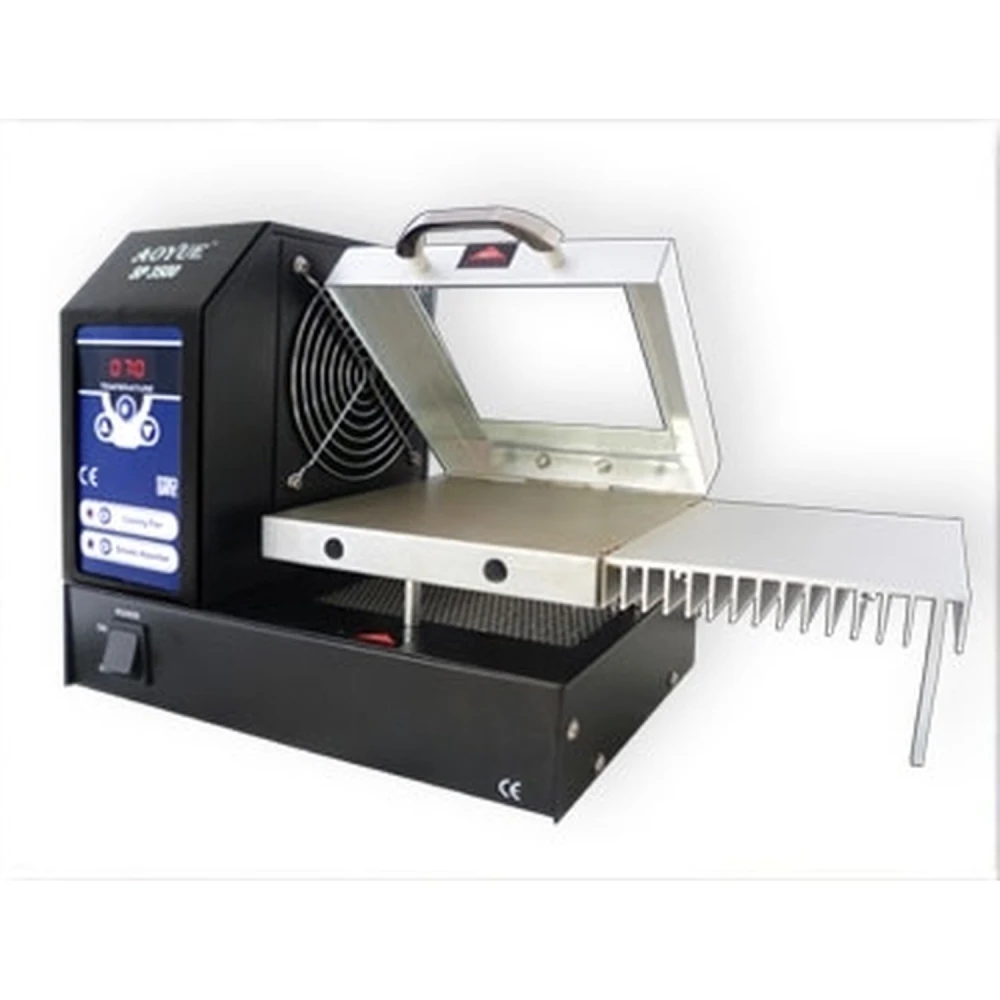

The Aoyue Sp3500 BGA reballing plate is a specialised soldering station for BGA chip reballing, designed to provide precise temperature control and support high-quality, efficient electronics repair work.

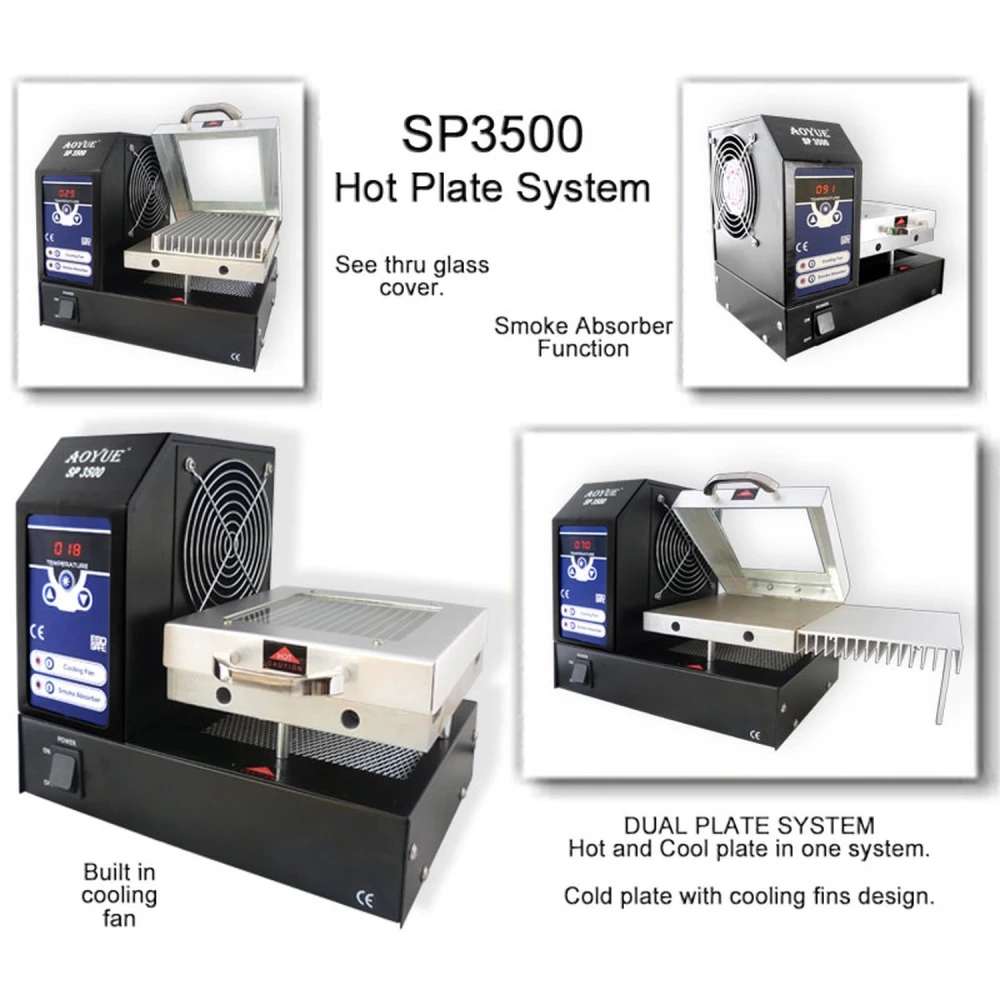

This unit features a plate with two zones: one for heating and another for cooling, allowing a controlled and safe reballing process for BGA ICs. It is ideal for technicians and professionals who require precision when soldering delicate electronic components.
Key features:
- Adjustable temperature control: Range from 80 to 380 degrees Celsius, controlled by a PID system to keep the temperature stable and accurate throughout the process.
- Power: 500 W consumption ensures efficient and fast heating.
- Working time: Adjustable from 0,1 to 9,9 minutes to suit different chip types and processes.
- Fume extraction: Built-in system to improve safety and cleanliness during soldering.
- Power supply: AC 220V, compatible with most standard electrical installations.
- Compact dimensions: 260 mm (width) x 239 mm (height) x 180 mm (depth), making it easy to fit into limited workspace.
- Weight: 5 kg, providing stability and moderate portability.
Typical uses and compatibility:
The Aoyue Sp3500 is suitable for reballing BGA ICs on electronic boards, especially for the repair and maintenance of consoles, circuit boards and other devices that require precise reballing. Its adjustable temperature and timing controls make it compatible with a wide range of chips and electronic components.
This unit is an essential tool for electronics repair workshops looking to improve the quality and efficiency of BGA chip reballing.
- Adjustable temperature control from 80 to 380 °C with PID system
- 500 W power for efficient heating
- Adjustable working time from 0,1 to 9,9 minutes
- Integrated fume extraction for added safety
- Compatible AC 220V power supply
- Compact dimensions: 260 x 239 x 180 mm
- 5 kg weight for stability and portability
Customer Questions & Answers
What advantages does PID temperature control offer over simpler systems in BGA reballing?
PID temperature control allows precise adjustments and thermal stability during reballing, minimising temperature fluctuations and reducing the risk of damaging BGA chips. Compared with analogue thermostats, PID improves repeatability and accuracy, which are critical when reballing sensitive components.
What are the exact dimensions and weight of the Aoyue SP3500, taking into account the required working space?
The station measures 260 mm wide, 239 mm high and 180 mm deep, with a weight of 5 kg. An additional space of at least 10 cm around it is recommended to ensure ventilation and safe handling of hot components.
What electrical requirements should I consider when installing the Aoyue SP3500 in my workshop?
The unit requires an AC 220 V power supply and consumes up to 500 W. It is recommended to check for a mains socket with a good earth connection and avoid plugging other high-consumption equipment into the same line to prevent voltage drops.
What maintenance recommendations and critical points are there to extend the service life of the equipment?
It is recommended to clean the heating plate regularly, check the fume extraction system and confirm the operation of the PID control. Replacing consumables as they wear and avoiding knocks or unnecessary overheating helps maintain performance and accuracy for years.
What is the Aoyue Sp3500 BGA reballing plate used for?
It is a soldering station designed for BGA chip reballing, making the repair and maintenance of electronic components easier.
What is the temperature range of the Aoyue Sp3500?
The temperature range is 80 to 380 degrees Celsius, controlled by a PID system for greater precision.
What power does the Aoyue Sp3500 use?
It uses 500 W of power for efficient and fast heating.
Is it compatible with BGA ICs of different sizes?
Yes, the plate is suitable for reballing BGA ICs of various sizes thanks to its adjustable temperature and time control.
What type of power supply does the Aoyue Sp3500 require?
It works with an AC 220V power supply, standard in most workshops.
