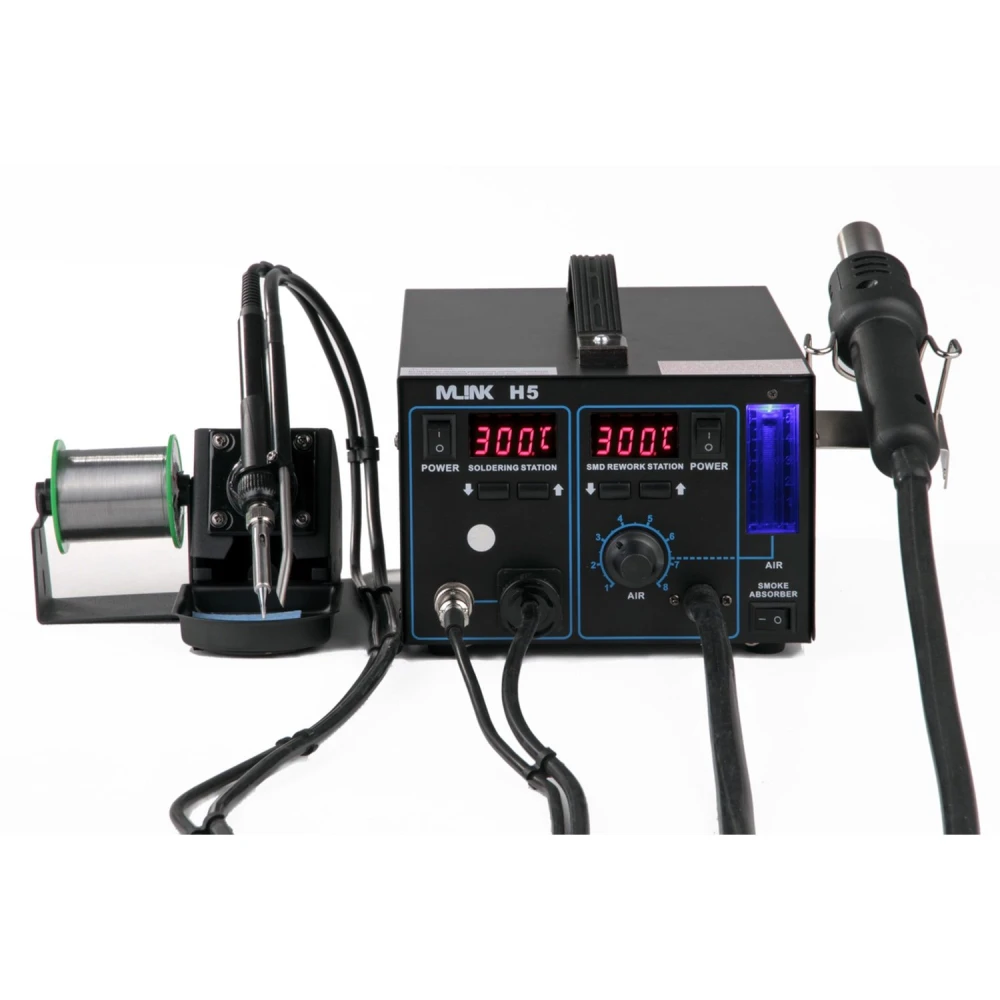

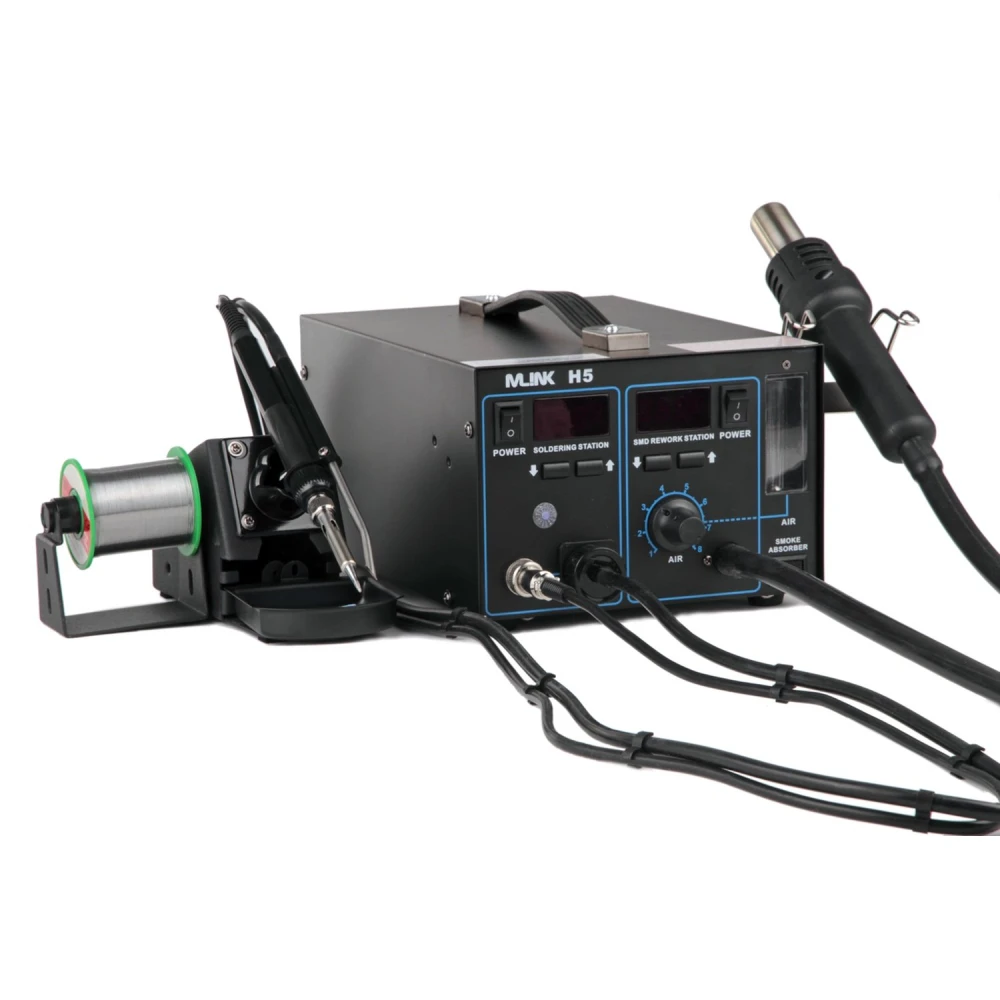

Mlink H5 2-in-1 Hot Air Soldering Station for Professional Use

The Mlink H5 2-in-1 hot air soldering station is a professional tool designed to make soldering and desoldering electronic components easier, especially SMD components. This unit combines a high-power electric soldering iron and a hot air gun, offering versatility and precision in one device.

Main features of the hot air soldering station:

• Powerful 700W heating element that ensures fast and even heating.
• Airflow controlled by a diaphragm pump with flow meter for precise adjustment.
• LED digital display showing the temperature for exact control during use.
• Includes four round nozzles in different sizes (10,7 mm, 7,3 mm, 5 mm and 3 mm) to suit various applications.
• IC extractor included to make integrated circuit removal easier.
• Replacement hot air heating element included, ensuring greater durability.
• Compatible with MLINK, Aoyue and Shuttle Star v1 nozzles, expanding usage options.
• Airflow regulator by potentiometer to adjust intensity as needed.
• Independent on/off control for added convenience.

Electric soldering iron features:

• Heating element voltage: AC 26V 50Hz.
• Maximum power of 60W for optimum performance.
• Soldering iron pencil with fume absorption for a cleaner working environment.
• Adjustable temperature range between 200°C and 480°C for different soldering tasks.
• Included soldering tip model T-B, with 10 additional replacement tips for various applications.
• Replacement heating element included to extend the soldering iron's service life.
• Compatible with Aoyue type "T-", 900m MLINK and 900m Hakko soldering tips.

Technical specifications:

• Model: H5.
• Voltage: 220V.
• Hot air heater power: 700W.
• Pump type: diaphragm pump.
• Maximum airflow: 28 L/min.
• Soldering iron power: 60W.
• Display: digital LED.
• Size: 124 mm x 187 mm x 249 mm.
• Weight: 4.04 kg.
• Noise level: less than 40 dB.

Package contents:

• Mlink H5 soldering station.
• Soldering iron pencil with fume absorption.
• Soldering iron stand with tip storage and solder holder.
• Soldering iron cleaning sponge.
• IC extractor.
• Four round hot air nozzles (10,7 mm, 7,3 mm, 5 mm, 3 mm).
• 700W gun heating element (free replacement included).
• 50W soldering iron heating element (free replacement included).
• Ten soldering tips in different models (free replacement included, models may vary).

Compatibility and recommendations:

• The hot air nozzles are compatible with Aoyue stations and the soldering tips with Aoyue type T- models or Hakko 900M-t.
• Compatible with the Aoyue932-2 vacuum absorber replacement.
• It is important to remove the safety screw from the base before using the station.
• Tips and heating elements are excluded from warranty.

The Mlink H5 2-in-1 hot air soldering station is ideal for professionals and hobbyists looking for a reliable, powerful and versatile unit for soldering and desoldering work in electronics, DIY and circuit repair.

• 2-in-1 station for soldering and desoldering SMD components
• 700W hot air heating element with adjustable airflow
• LED digital display for precise temperature control
• Includes 4 round nozzles and IC extractor
• 60W electric soldering iron with 200°C-480°C temperature range
• Includes 10 soldering tips and replacement heating elements
• Compatible with MLINK, Aoyue and Shuttle Star v1 nozzles
• Diaphragm pump with flow meter for constant airflow
• Independent on/off control
• Lightweight at 4.04 kg and low noise level (<40 dB)
