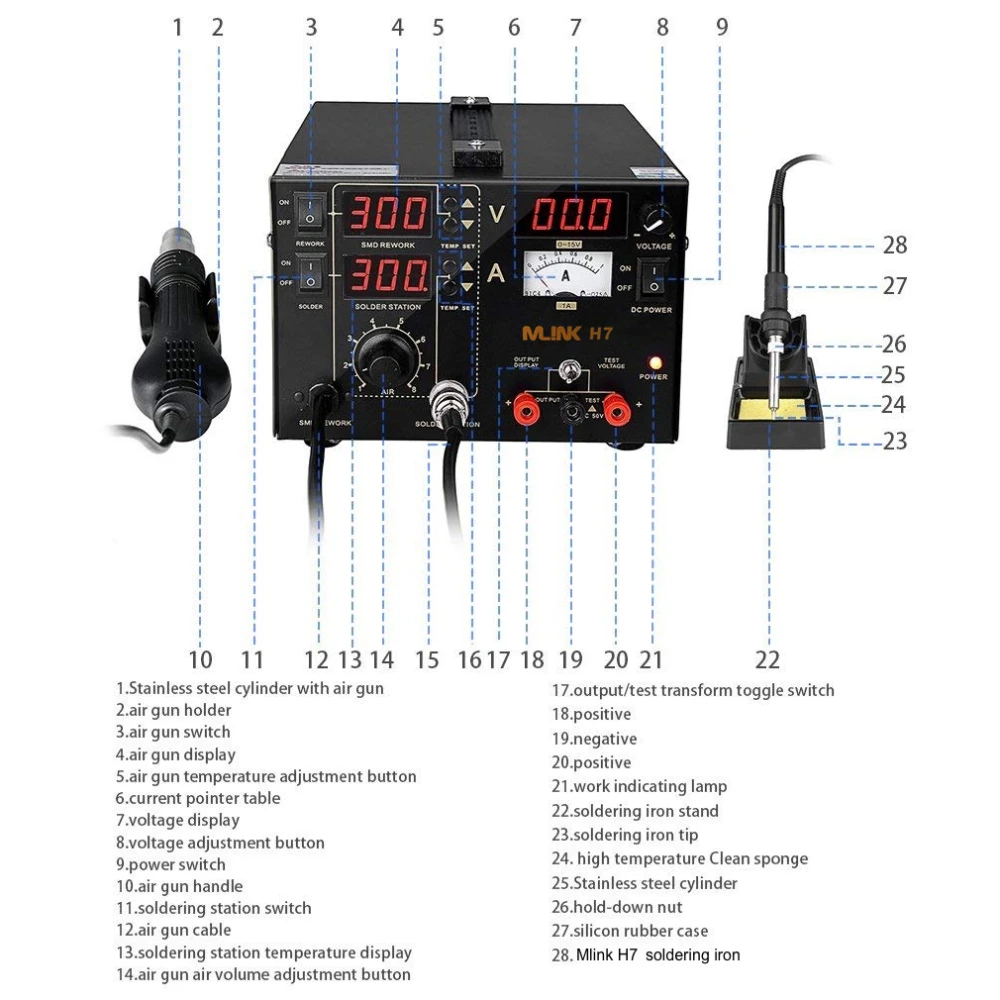

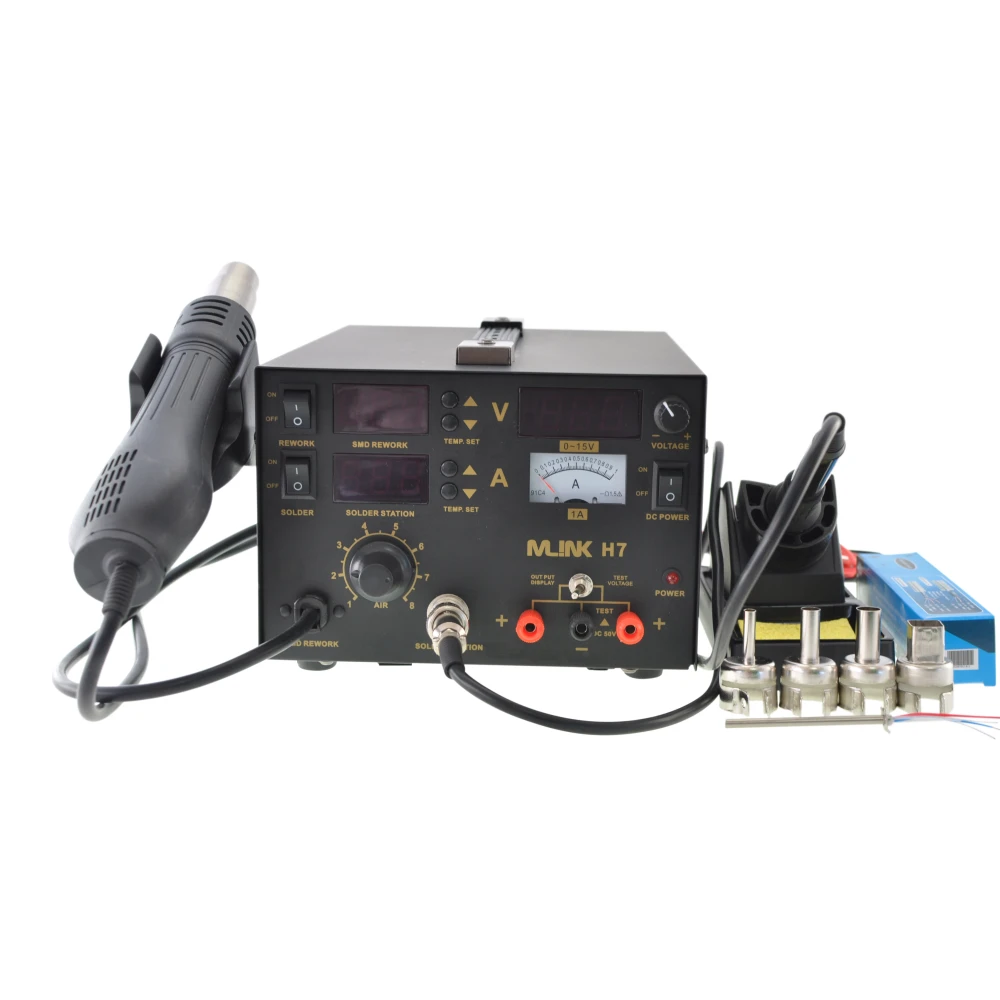

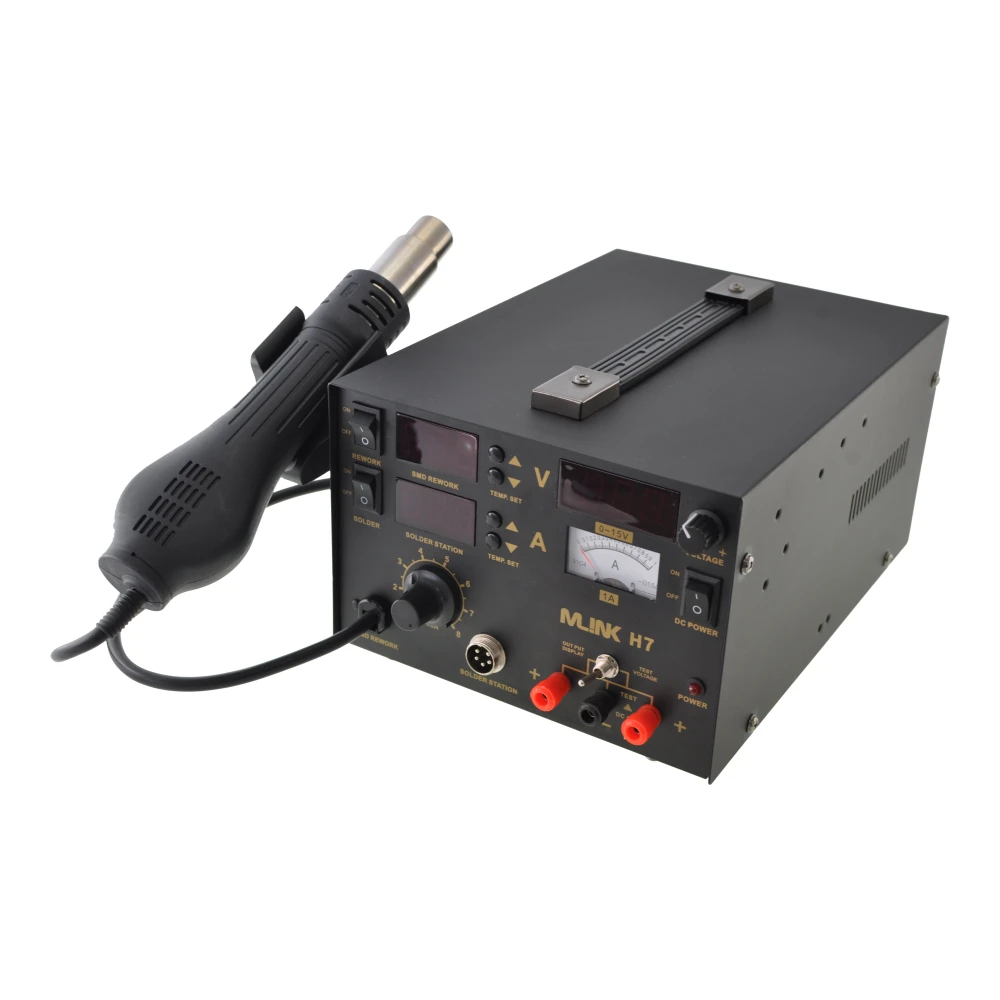

Mlink H7 3-in-1 soldering station with hot air and DC power supply

Overview:

The Mlink H7 3-in-1 soldering station is a multifunctional tool that integrates a soldering station, a hot air station and a DC power supply. Designed for professionals and hobbyists, this station offers precision, power and ease of use for soldering, desoldering and electrical testing tasks.

Key features:

• 3-in-1 design: soldering iron, hot air and DC power supply, independent or simultaneous.
• Robust construction with double-sided fibreglass printed circuit board for better signal flow.
• Dual-core microcontroller to prevent faults and ensure stable operation.

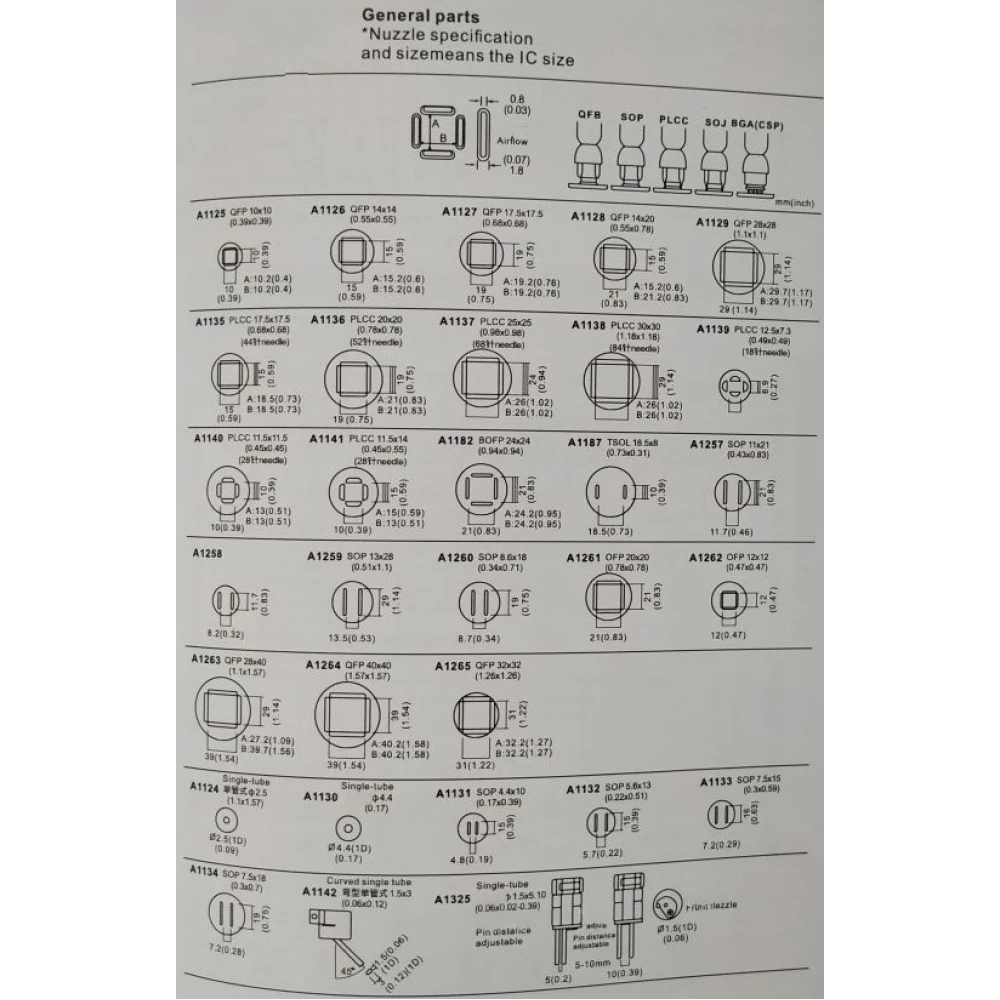

• Includes 10 soldering tips and 4 hot air nozzles for a range of applications.
• Digital temperature control with LED display for precision and easy adjustment.
• Automatic overcurrent protection in the DC power supply.

Technical specifications:

• Power consumption: 800W
• Dimensions: 260mm x 190mm x 130mm
• Working environment: 0-40ºC
• Storage environment: -20 to 80ºC
• Storage humidity: 35%-45%

Hot air station:

• Flow type: brushless fan, gentle wind
• Airflow: 120L/min
• Temperature range: 100ºC - 480ºC
• Temperature stability: ±1ºC

Soldering iron:

• Temperature range: 200ºC - 480ºC
• Temperature stability: ±2ºC
• Tip-to-ground voltage: < 2 mV
• Ground impedance: < 2 ohms

DC power supply:

• Output voltage: 0V - 15V ± 10%
• Maximum current: 1A
• Load stability: < 0.01± 2mV
• Current protection: 1A

Typical uses:

• Soldering and desoldering electronic components such as SOIC, CHIP, QFP, PLCC, BGA, SMD.
• Repair of mobile phones and electronic devices.
• Testing and power supply on circuit boards.

Compatibility: Compatible with multiple types of tips and nozzles to suit different soldering and hot air tasks.

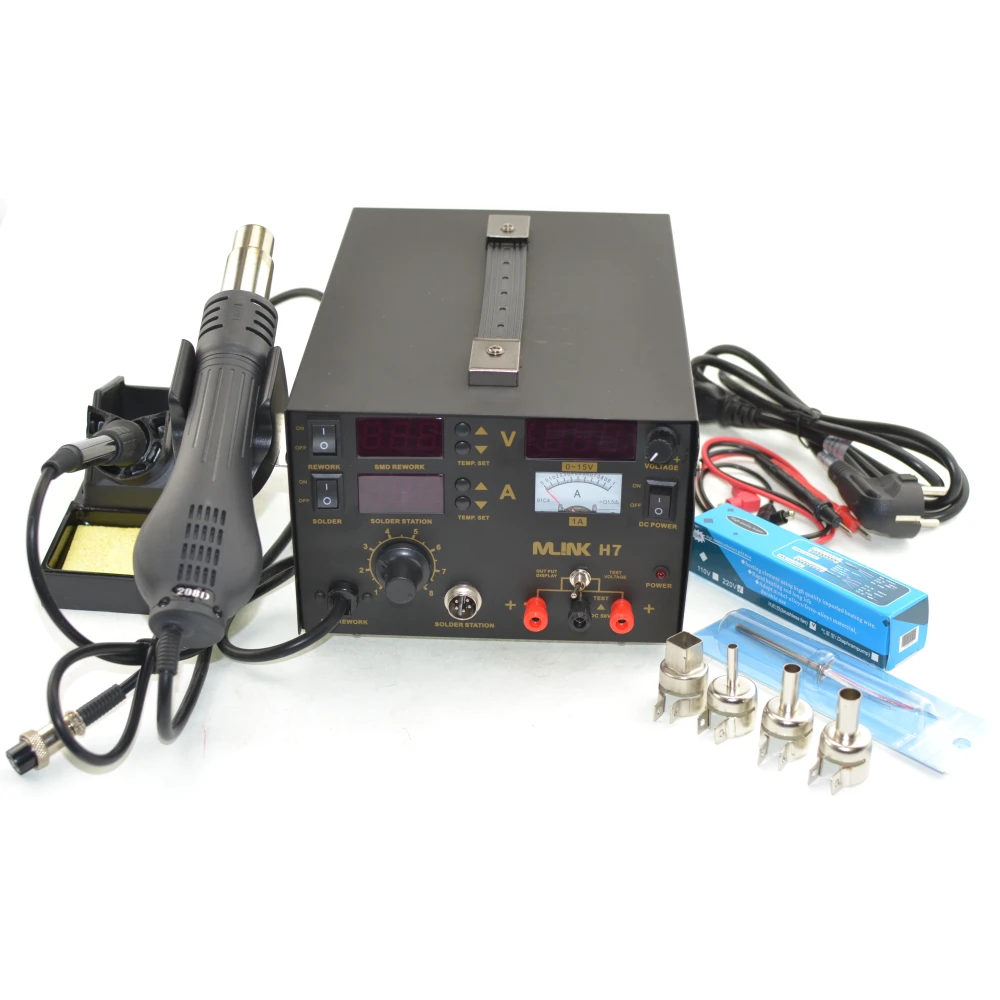

Package contents:

• 1 x Mlink H7 3-in-1 soldering station

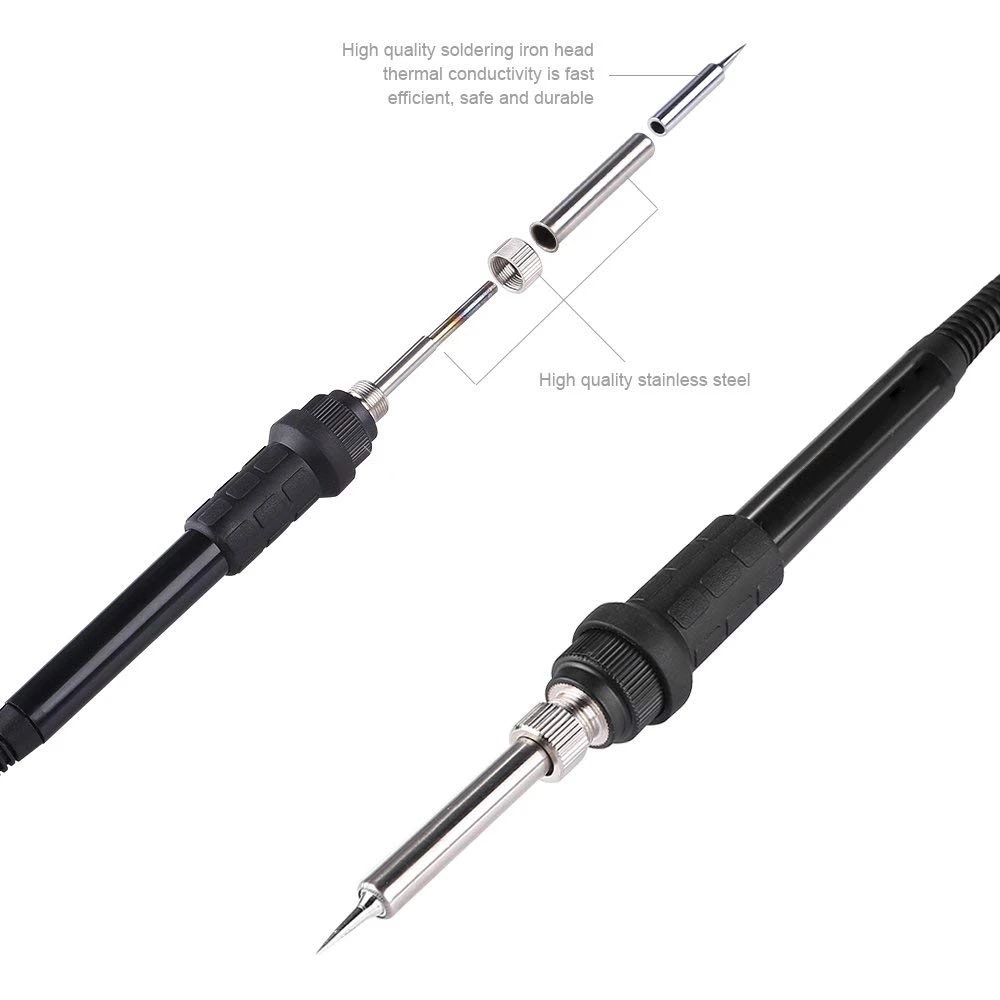

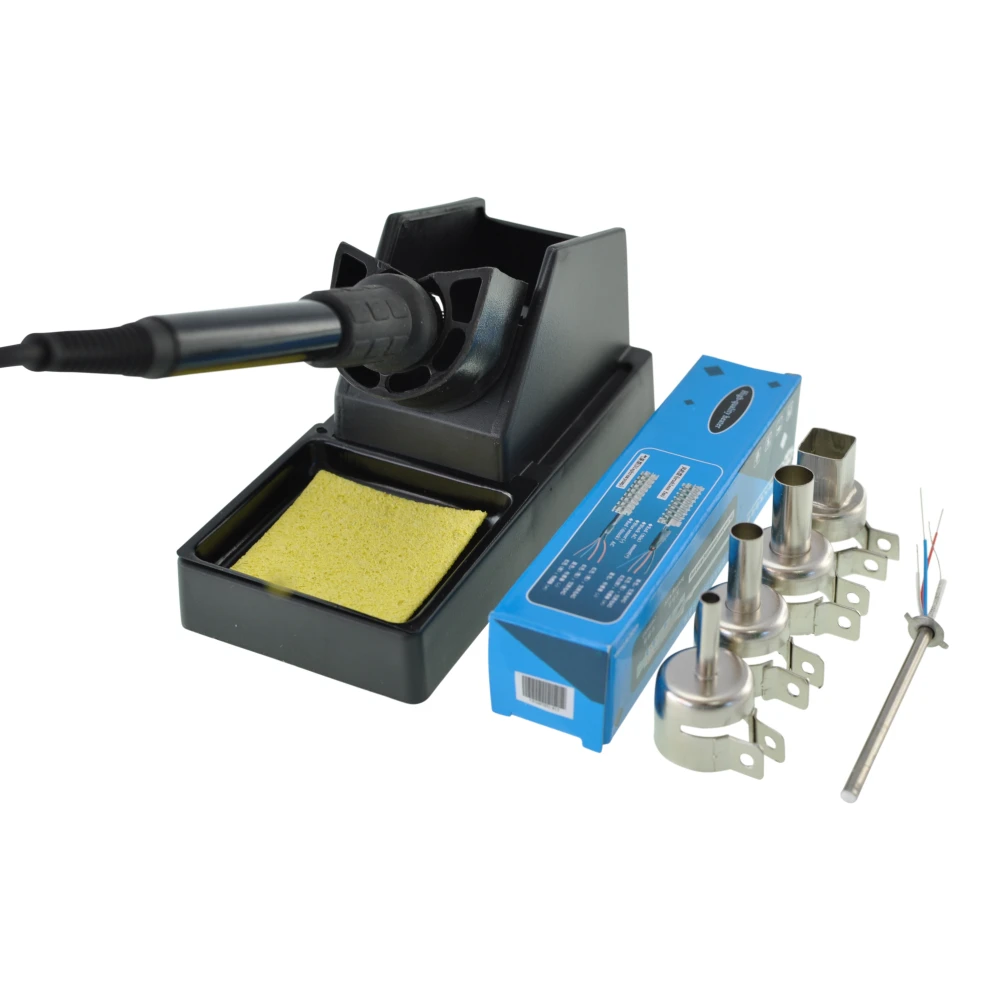

• 1 x Soldering iron
• 1 x Soldering iron stand
• 1 x Test cable
• 1 x Spare hot air heating element
• 1 x Spare soldering iron heating element

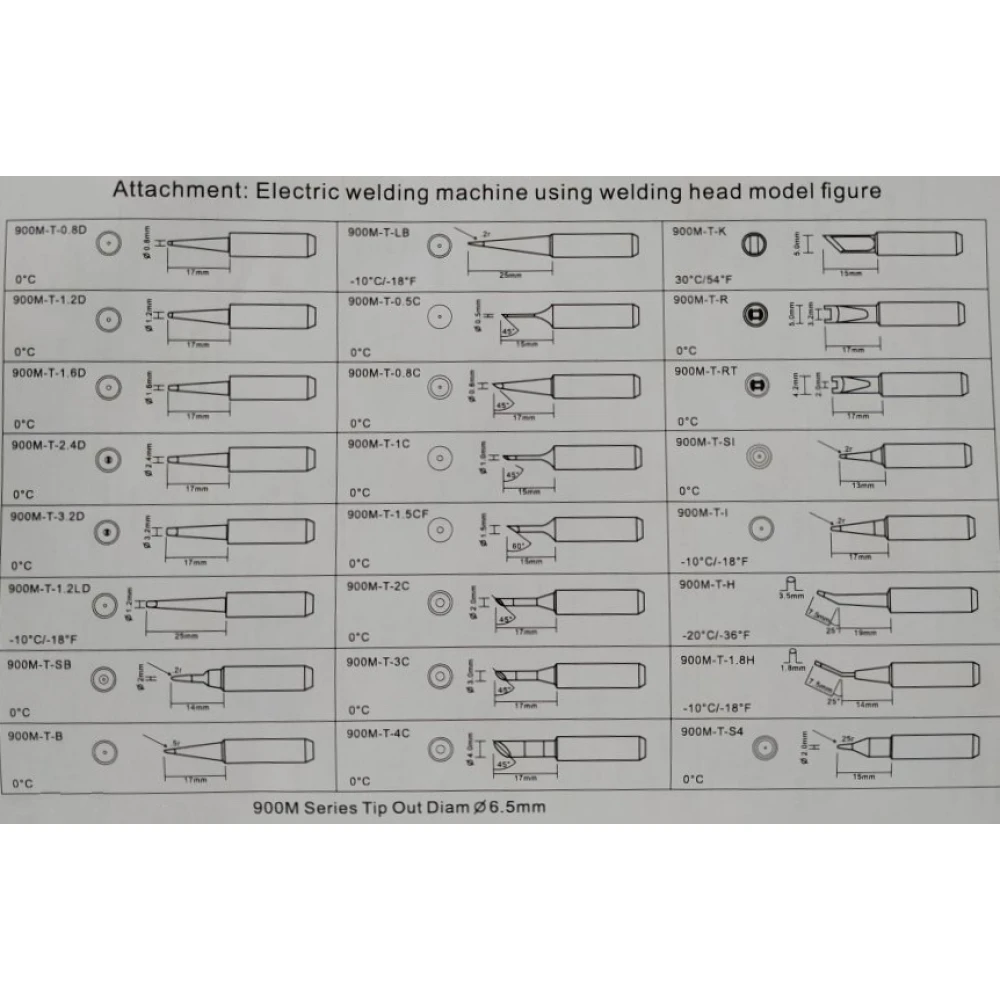

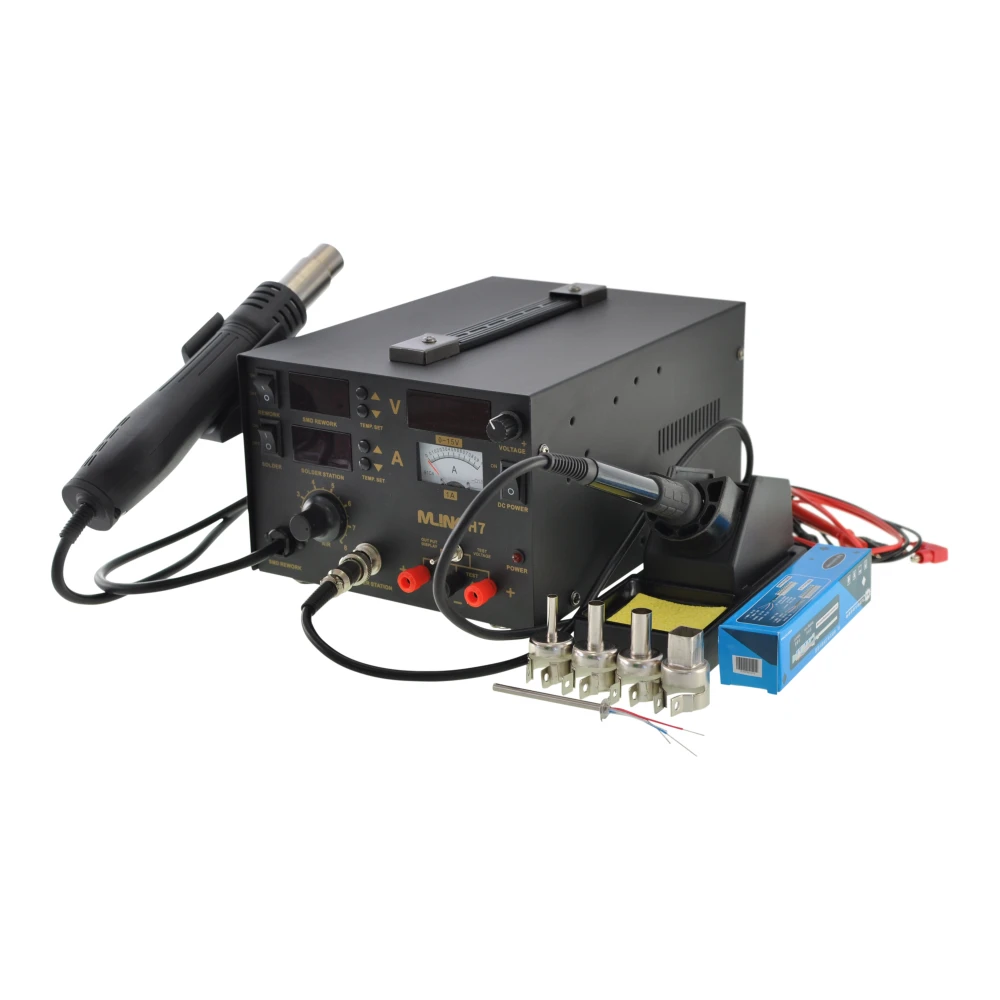

• 10 x Soldering tips

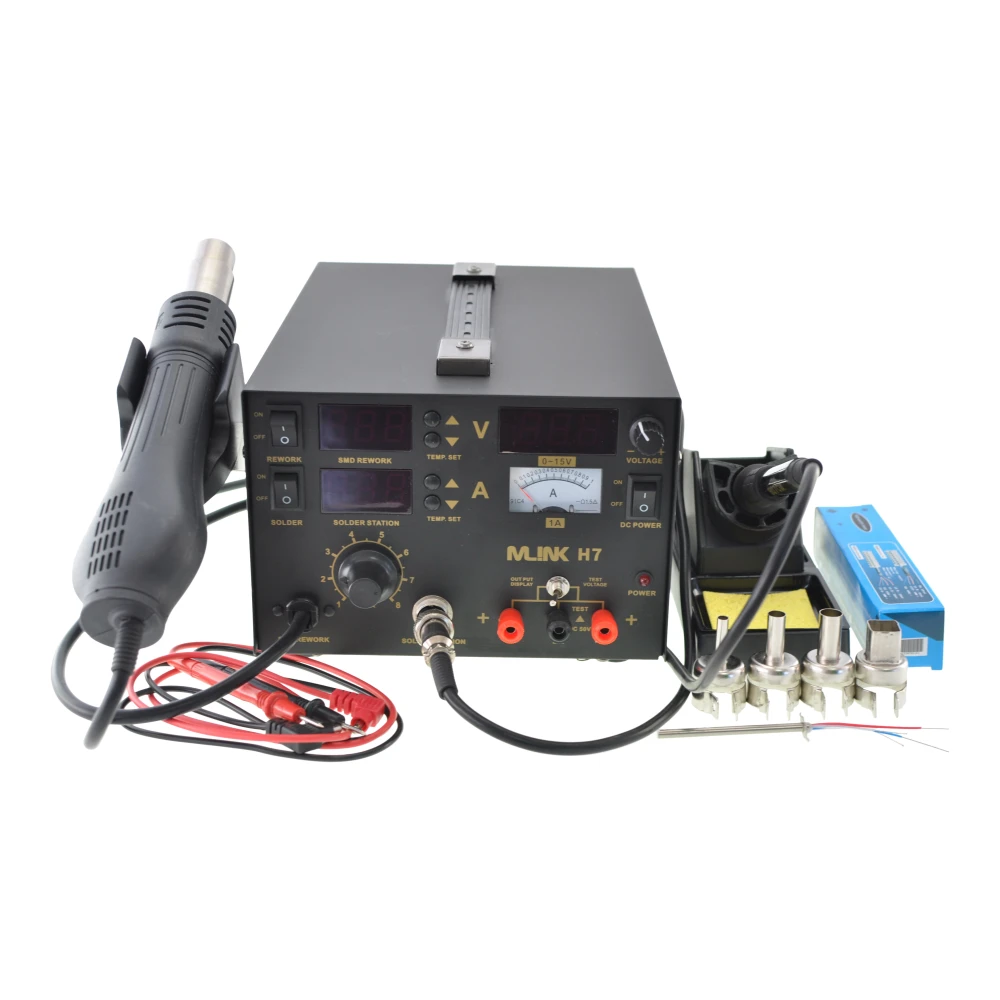

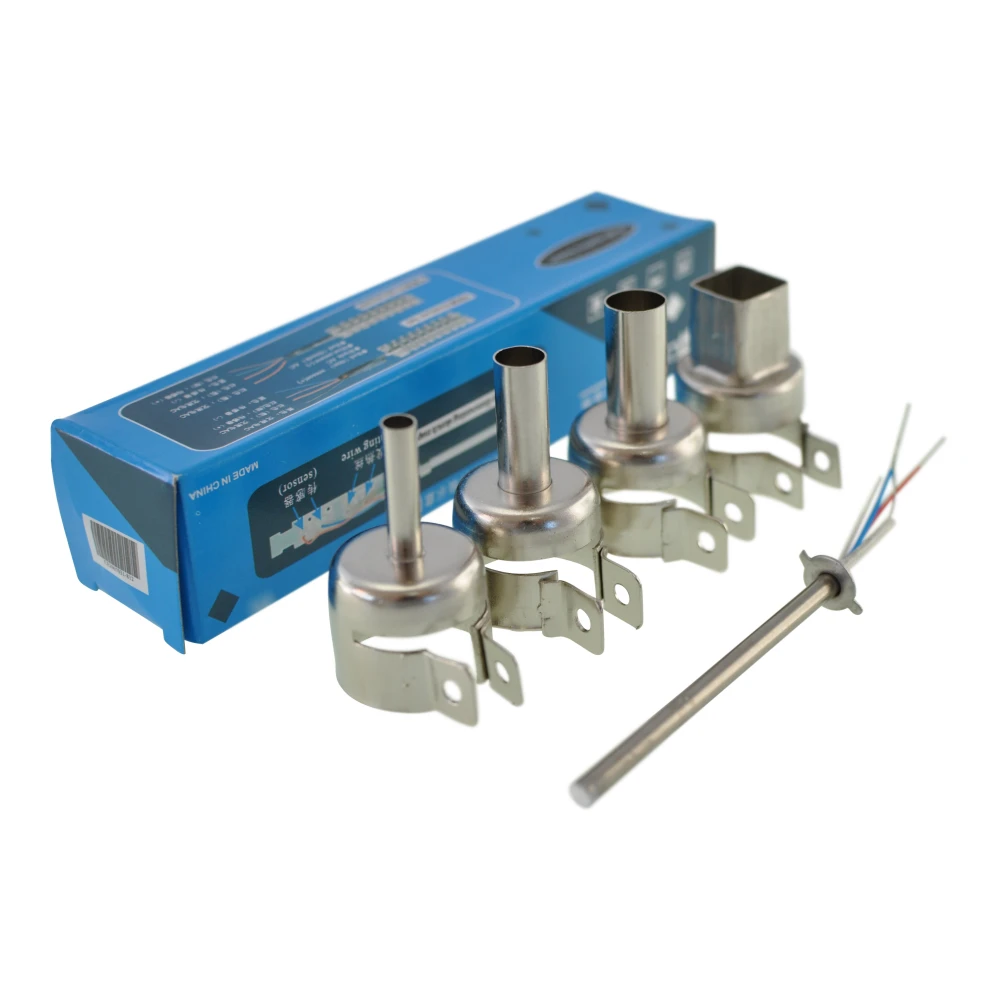

• 4 x Hot air nozzles
• 1 x Power cable
• 1 x English manual

Precautions and maintenance:

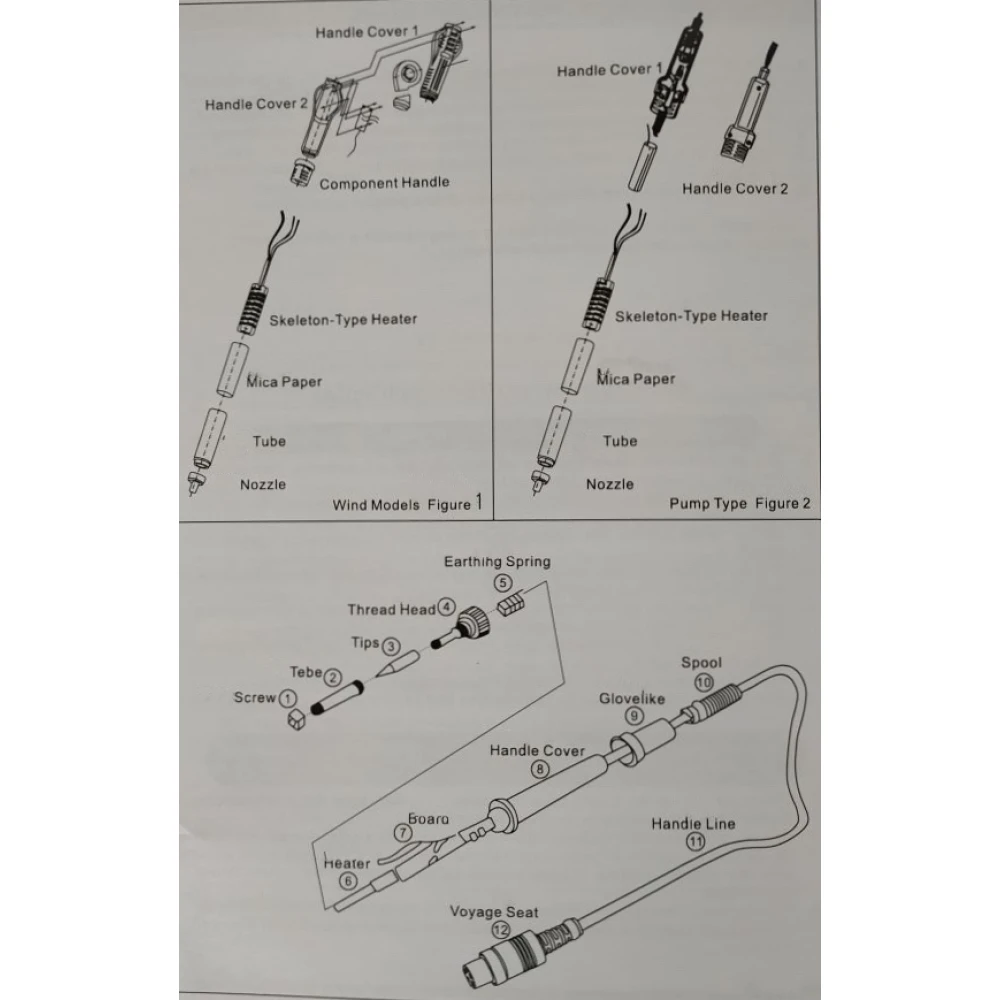

• Do not install or remove nozzles with excessive force.
• Do not use pliers to remove nozzles or overtighten screws.
• Avoid use near flammable materials and do not touch hot parts to prevent burns.
• Clean the tips regularly with a damp sponge to prevent oxidation.
• Switch off and unplug the station when not in use for long periods.

• 3-in-1 station: independent soldering iron, hot air and DC power supply
• Digital control with LED display for precise temperature setting
• Includes 10 soldering tips and 4 hot air nozzles
• Dual-core microcontroller for stable operation
• Automatic overcurrent protection on the DC supply
• Ideal for soldering and desoldering electronic components
• Compact dimensions: 260x190x130 mm, 800W power consumption
• Hot air temperature range: 100ºC - 480ºC
• Soldering iron temperature range: 200ºC - 480ºC
• DC supply output 0-15V, maximum current 1A
