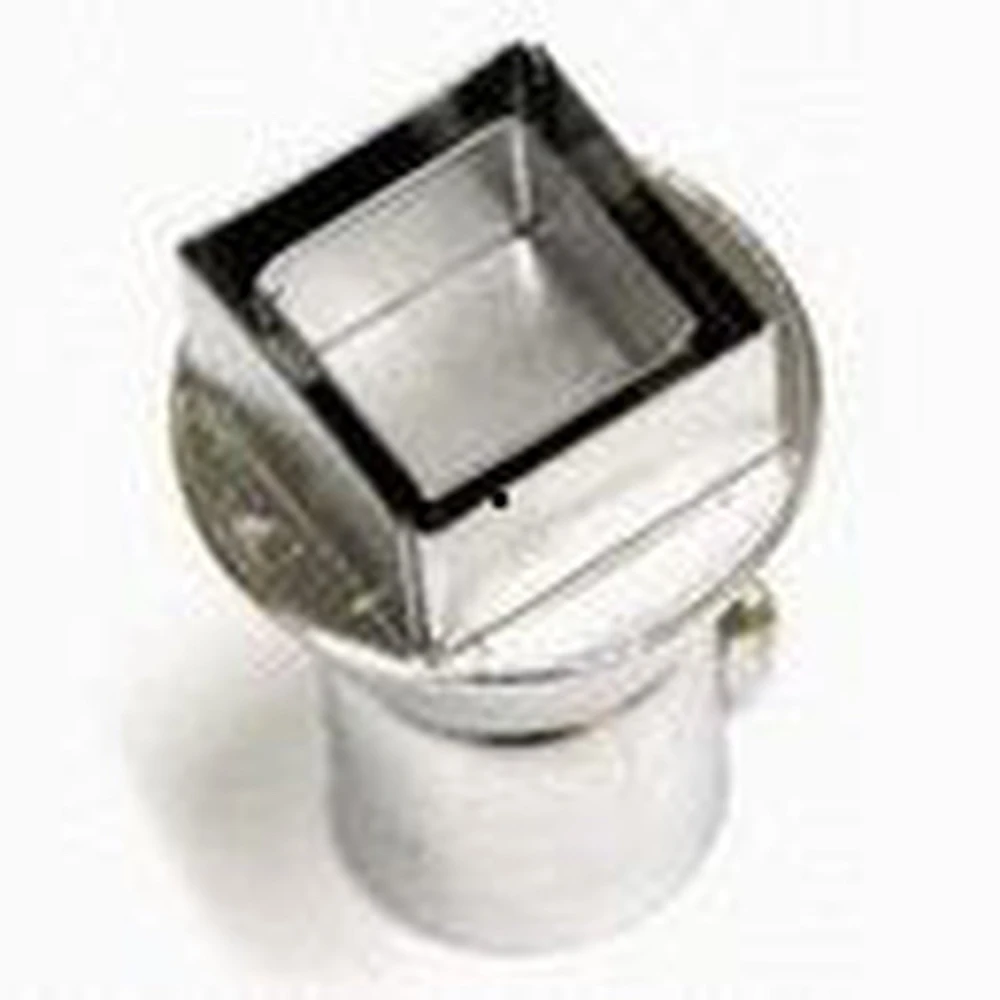

Aoyue 1135 hot air nozzle PLCC 17.5x17.5 mm 44 pins
Brand: Aoyue
14.01€
VAT included (Ex VAT: 11.39 €)
Only 3 left in stock - order soon!
Standard delivery
Mon, May 4 - Wed, May 6
Express delivery
Thu, Apr 30 - Fri, May 1
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
Aoyue 1135 hot air nozzle PLCC 17,5 x 17,5 mm (44 pins)
The Aoyue 1135 hot air nozzle is a specialised component designed for soldering stations that require precision and reliability in heat application. With exact dimensions of 17,5 x 17,5 mm and 44 pins, this nozzle is ideal for work involving soldering PLCC (Plastic Leaded Chip Carrier) components.
Main features:
- Dimensions: 17,5 x 17,5 mm, suitable for PLCC components.
- 44 pins: compatible with specific Aoyue soldering station configurations.
- Robust design that ensures even hot air distribution.
- Made by Aoyue, a well-known brand in soldering tools and spare parts.
Typical uses:
This nozzle is an ideal replacement part for soldering stations working with PLCC electronic components, making chip soldering and desoldering easier with precision and thermal control. It is especially useful for electronics technicians and professionals who need a reliable accessory for maintenance and repair.
Compatibility:
We recommend checking compatibility with your Aoyue soldering station before purchase, to ensure the model supports nozzles with these size and pin specifications.
Additional benefits:
- Easy installation and replacement on compatible stations.
- Improves thermal efficiency during soldering.
- Durable and resistant to frequent use.
With this Aoyue 1135 hot air nozzle, you get a reliable replacement part that optimises the quality of your electronic soldering work, helping deliver professional results.
- Precise 17.5 x 17.5 mm dimensions for PLCC components
- 44 pins for a secure and stable fit
- Even hot air distribution for accurate soldering
- Compatible with Aoyue soldering stations
- Easy to install and replace
- Made by Aoyue, a recognised brand in electronic soldering
Customer Questions & Answers
Which soldering station models are compatible with the Aoyue 1135 Air Nozzle PLCC 17.5 x 17.5 mm (44 pins)?
The Aoyue 1135 nozzle is mainly compatible with Aoyue hot-air stations that support interchangeable nozzles from the 1100 series, such as the Aoyue 852, 909, 968, 2702 and 2703. It may not be compatible with other brands or models without modifying the connector or using an adapter, so it is recommended to check the station’s technical specifications before purchase.
What are the exact dimensions and material of this nozzle?
The nozzle has internal dimensions of 17.5 mm x 17.5 mm, suitable for 44-pin PLCC packages. It is generally made from stainless steel, which offers good thermal resistance and durability under repeated working conditions.
What is the recommended procedure for fitting or removing the nozzle from the station?
To fit the Aoyue 1135 nozzle, first make sure the hot-air station is switched off and cold. Align the nozzle connector with the station’s air outlet and secure it with the clamping screw, if applicable. To remove it, loosen the screw or lock and carefully take the nozzle off, making sure not to damage it.
Is there any risk of deformation or premature wear when used at high temperatures?
The stainless steel used in the nozzle is resistant to deformation under typical use in soldering stations, which usually operate up to 480 °C. However, prolonged exposure to higher temperatures or mechanical impacts can reduce its service life. Avoid overheating to maximise durability.
What technical advantages does this nozzle offer over others of a different size?
The 17.5 x 17.5 mm nozzle provides a directed airflow, ideal for 44-pin PLCC packages, minimising the risk of affecting nearby components. Smaller nozzles may not fully cover the component, while larger nozzles can heat adjacent areas unnecessarily, reducing precision in rework applications.
What type of components is this nozzle suitable for?
It is suitable for PLCC components with dimensions of 17,5 x 17,5 mm and 44 pins.
Is it compatible with all Aoyue soldering stations?
We recommend checking specific compatibility with the soldering station model before purchase.
How do you install the Aoyue 1135 nozzle?
The nozzle is easy to install by removing the old one and fitting the new one onto the compatible soldering station.
What material is the nozzle made from?
The product does not specify the manufacturing material.
Does the product include a warranty?
No warranty information is provided in the product data.
