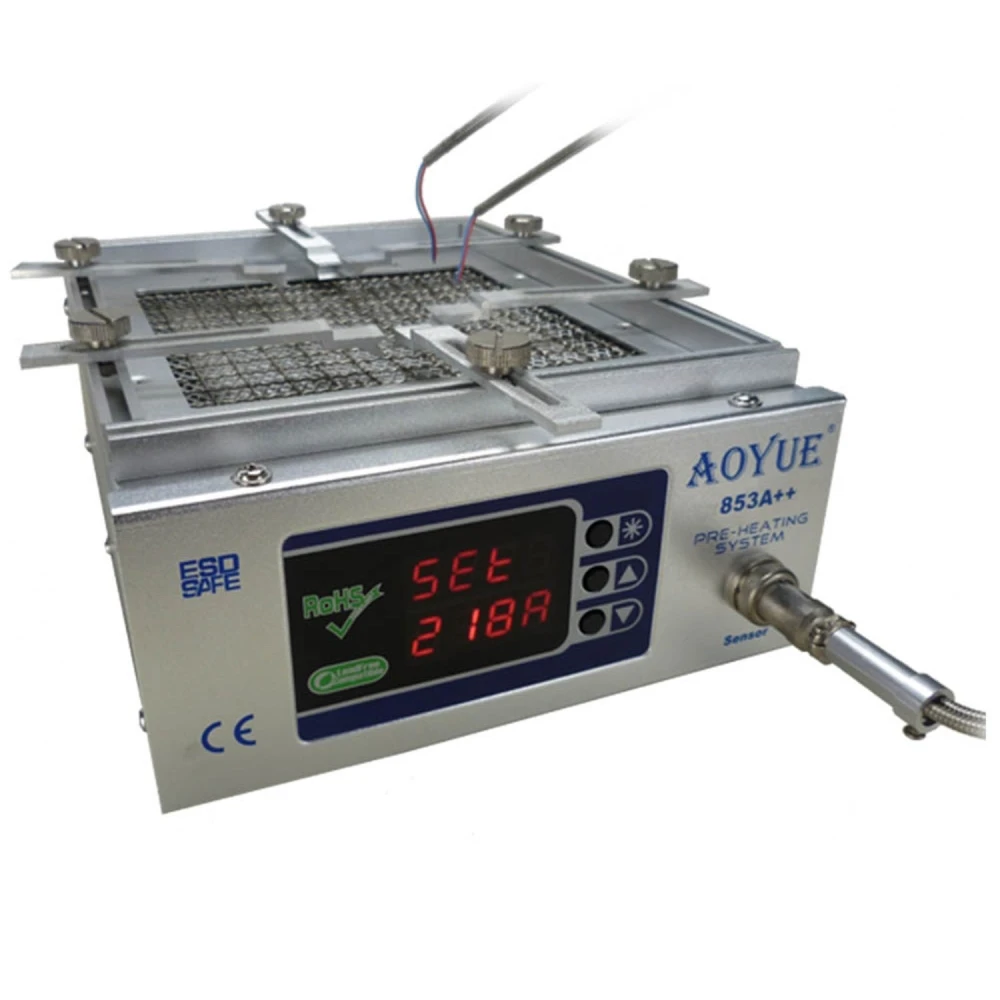

Aoyue 853A++ preheating station with digital control and extendable stand
Brand: Aoyue
VAT included (Ex VAT: 135.70 €)
Product description:
The Aoyue 853A++ preheating station is a professional tool designed to make soldering work on electronic circuits easier, especially on mobile phone motherboards, video game consoles and other similar devices. Its advanced technology allows precise temperature control, ensuring optimal results and preventing damage from overheating.
Main features:
- Real-time display: Shows both the target temperature and the current temperature, making exact control easier during the soldering process.
- Digital temperature adjustment: Allows the temperature to be changed in 1ºC increments, offering precision tailored to the specific needs of each job.
- Extendable stand: Features an adjustable stand that securely fixes boards in any position on the heating surface, improving stability and safety during work.
- Quartz infrared heater: This heating element provides even and efficient heating, ideal for soldering with paste solder.
Technical specifications:
- Model: Aoyue 853A++
- Power supply: 220V (50Hz)
- Power consumption: 600W
- Current: 3A
- Temperature range: 100ºC - 450ºC
- Heating element: Quartz IR Heating Element
- Dimensions: 220 mm (width) x 70 mm (height) x 250 mm (depth)
Recommended uses:
This preheating station is ideal for professionals and hobbyists carrying out repairs and maintenance on precision electronics. It is especially useful for paste solder work on motherboards for mobile devices, video game consoles and other delicate electronic circuits.
Compatibility:
Compatible with a wide range of electronic boards and components that require controlled preheating before soldering, improving solder adhesion and preventing thermal damage.
Important note: The heating element and tips are not covered by the warranty.
- Real-time display of target and current temperature
- Digital temperature adjustment in 1ºC increments
- Extendable stand to secure boards in any position
- Quartz heater with infrared technology
- Wide temperature range from 100ºC to 450ºC
- 600W power consumption with 220V (50Hz) supply
- Compact dimensions: 220x70x250 mm
Customer Questions & Answers
What are the dimensions, approximate weight and materials of the unit? What is included in the box when the product is received?
The station measures 220 mm (width) × 70 mm (height) × 250 mm (depth). The weight is not specified by the manufacturer, but similar units weigh between 2 kg and 3 kg. The chassis is mostly metal to dissipate heat, with an infrared quartz heating element. The box includes the station, extendable board support and basic manual; soldering accessories are not usually included.
What electrical requirements and compatibility does it have? Can it be used in countries with 110 V, or does it require any adaptation?
The model is designed for 220 V, 50 Hz power and a maximum consumption of 600 W (current up to 3 A). It is not directly compatible with 110 V mains; a suitable voltage converter is required for that use. Using the equipment without the correct voltage can damage the system.
What maintenance aspects need attention, and what is the estimated service life of the infrared quartz heater?
The IR quartz heater has a typical service life of 5,000 to 8,000 hours, although this depends on use and on/off cycles. For maintenance, it is recommended to clean the heating surface regularly and ensure adequate ventilation of the station. The heating element and tips are not covered by warranty and their deterioration is the main wear item.
Are there any specific safety risks and does the station comply with international standards? What precautions should be followed during operation?
The equipment emits intense heat and IR radiation; it is recommended not to touch the board during preheating and to avoid direct eye exposure. Although no specific certification is stated (such as CE or UL), European models usually comply with basic electrical safety standards. Always use it on a stable, well-ventilated surface, away from flammable materials.
What kind of jobs is the Aoyue 853A++ preheating station recommended for?
It is recommended for paste solder work on electronic circuits such as mobile phone motherboards, video game consoles and similar devices.
What temperature range does this preheating station offer?
The temperature range goes from 100ºC to 450ºC, digitally adjustable in 1ºC increments.
What type of heating element does the Aoyue 853A++ use?
It uses a quartz heater with infrared technology for even and efficient heating.
Does the station include a warranty for the heating element and tips?
No, the heating element and tips are excluded from the warranty according to the product specifications.
Is the Aoyue 853A++ currently available to buy?
The product is currently out of stock and not available for immediate purchase.
