Aoyue 883 infrared preheating station for professional soldering
Brand: Aoyue
VAT included (Ex VAT: 420.00 €)
Product description

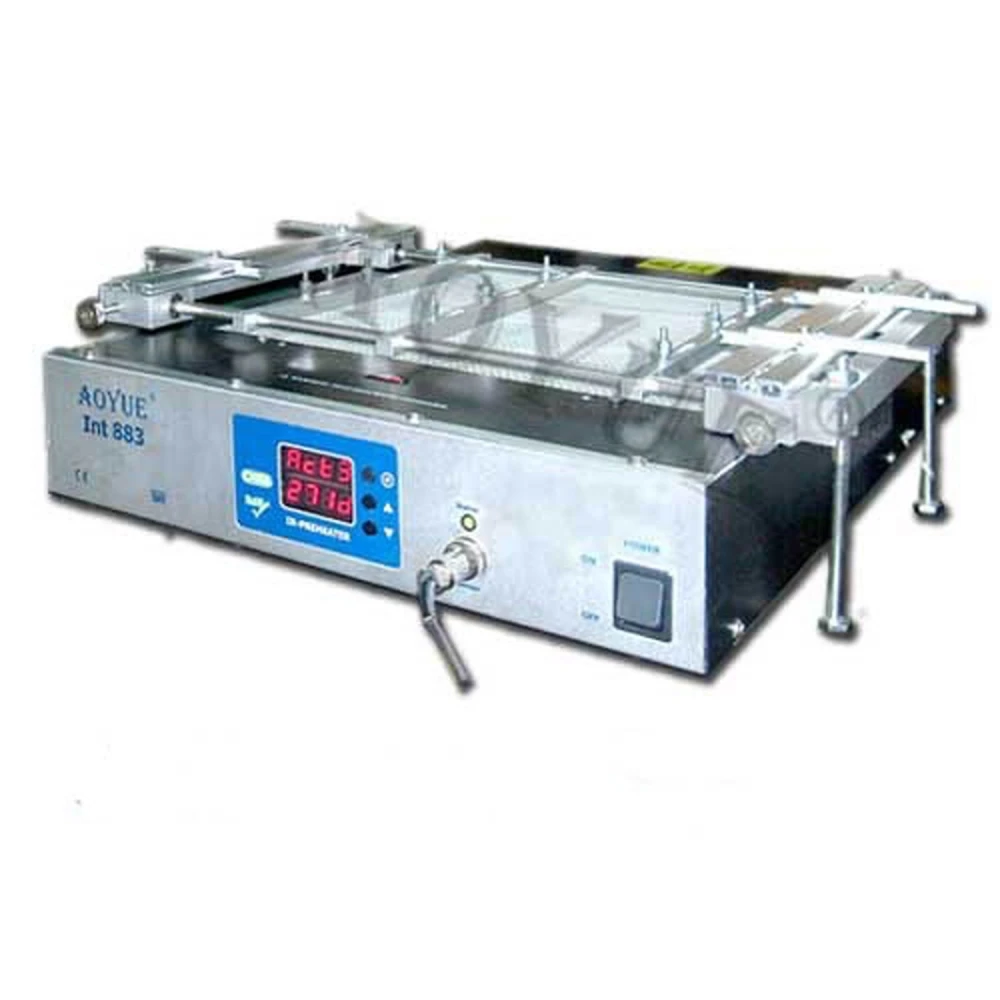

The Aoyue 883 infrared preheating station is an essential tool for electronics soldering professionals looking for precision and efficiency in their processes. Designed to offer exact temperature control, this station makes it easier to work with circuit boards, reducing the risk of damage and improving the quality of reballing and soldering.
Main features:
- Real-time display: Shows the target and current temperature for precise control during the process.
- Digital temperature adjustment: Allows temperature changes in 1ºC increments, adapting to different needs.
- Extendable board holder: Secures boards firmly in any position on the heating surface, ensuring stability.
- Large working surface: 310 mm x 310 mm preheating area that allows work with boards of various sizes.
- Board holder with 6 clamping points: Ensures an optimal grip and minimises the risk of warping during reballing.
- 1500W heating power: Significantly reduces the time needed to reach the desired temperature.
- Closed-loop control: Uses two external sensors for more accurate temperature control.
- Triple sensor system: Controls the temperature at the top and bottom of the boards and adjusts the internal heater.
- 6 programmable work profiles: Allows you to save time and temperature programmes for repetitive jobs with a high success rate.
- Compatibility: Compatible with hot air or infrared soldering irons, and suitable for lead-free soldering, complying with RoHS, CE and EDS standards.
Technical specifications:
- Model: Aoyue 883
- Power supply: 220V (50Hz)
- Maximum consumption: 1500W
- Temperature range: 50ºC - 400ºC
- Heating element: Infrared heating (IR Heating)
- Preheating area dimensions: 310 x 310 mm
Package contents:
- Aoyue 883 station
- 668 model holder
- 2 external sensors
- Power cable
Recommended uses:
Ideal for soldering work with solder paste on electronic circuits such as mobile phone motherboards, games consoles and other sensitive electronic devices. Its precise control and stable holder make it an essential tool in repair workshops and electronics production.
- Real-time display of target and current temperature
- Digital temperature adjustment in 1ºC increments
- Extendable holder to secure boards firmly
- 310mm x 310mm working surface
- Board holder with 6 clamping points
- 1500W heating power for fast warm-up
- Closed-loop control with two external sensors
- Triple sensor system for top and bottom control
- 6 programmable work profiles for repetitive tasks
- Compatible with hot air or infrared soldering irons
Customer Questions & Answers
Is it compatible with all voltages, and what are the electrical requirements for operation?
The Aoyue 883 is designed to operate only at 220 V and 50 Hz, with a maximum power consumption of 1500 W. It is not compatible with 110 V mains without a suitable transformer, which should be considered before buying it in regions with a different voltage.
What recommendations are there for maintenance to ensure the durability of the infrared heating element?
To extend the service life of the IR heating element, it is recommended to clean the work surface and sensors regularly, avoid exposing the station to excessive dust, and carry out periodic checks of the electrical connections. The heating element has a typical average life of several thousand hours, but it may need replacing after long periods of intensive use.
What temperature range can the Aoyue 883 reach?
The Aoyue 883 preheating station can be set between 50ºC and 400ºC.
Is it compatible with lead-free soldering?
Yes, it is compatible with lead-free soldering and complies with RoHS, CE and EDS standards.
What is included in the box when buying the Aoyue 883?
It includes the Aoyue 883 station, 668 model holder, two external sensors and the power cable.
What type of work is this station recommended for?
It is ideal for solder paste work on electronic circuits such as mobile phone motherboards, games consoles and other electronic devices.
How is the temperature controlled on this station?
It has a triple sensor system and closed-loop control that allows precise temperature control at the top and bottom of the boards.
