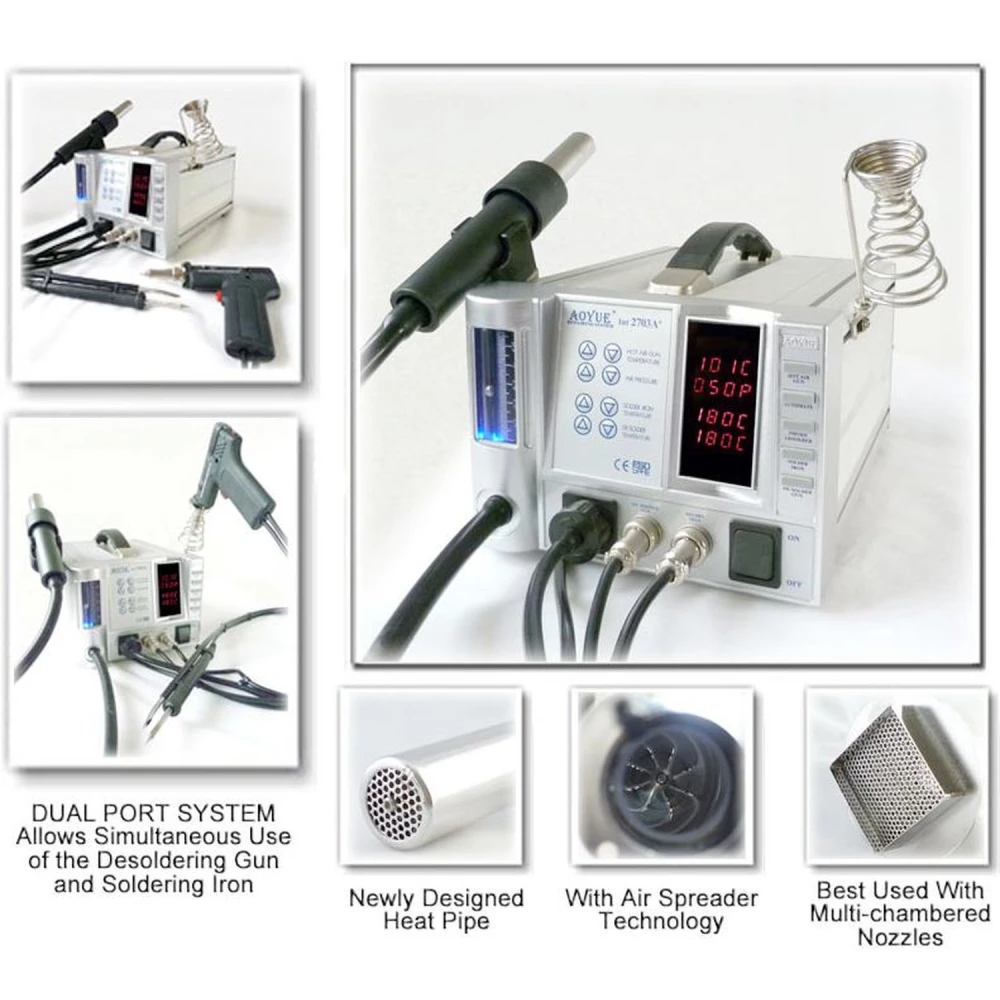

Aoyue INT2703A+ soldering station with advanced digital control
Brand: Aoyue
VAT included (Ex VAT: 284.05 €)
Product description
The Aoyue INT2703A+ soldering station is a microprocessor-controlled ESD unit that provides precise digital temperature control for different tools: soldering iron, hot air gun and desoldering gun. Designed for electronics professionals and hobbyists, this station ensures efficiency, safety and versatility in soldering and desoldering tasks.
Main features:
- Microprocessor-controlled ESD unit that ensures stability and electrostatic protection.
- Digital temperature control for soldering iron, hot air, desoldering gun and air pressure via touch panel.
- Desoldering tool with a design that prevents electrical crossovers and overvoltage, equipped with a pump-type air cylinder for efficient suction.
- 24V soldering iron with a compact design that integrates ceramic heater, sensor, control unit and nozzle, making tip replacement quick and easy.
- Auto-fan system that cools the unit after switch-off to extend the life of the heating elements and ensure safety.
- Compatible with multiple types of air nozzles and LF reference tips.
Technical specifications:
- Power input: 220 V
- Dimensions: 188 x 126 x 250 mm
Soldering iron:
- Consumption: 70 W
- Temperature range: 250-480 ºC
- Heating element: ceramic
- Output voltage: 24 V
Hot air gun:
- Consumption: 500 W
- Temperature range: 100-480 ºC
- Heating element: metal
- Diaphragm pump
- Maximum air capacity: 23 l/min
Desoldering gun:
- Temperature range: 380-480 ºC
- Output voltage: 36 V
- Heating element: ceramic
- Maximum suction flow: 15 l/min
- Pressure: 600 mm Hg
This station is ideal for electronic repair tasks, circuit maintenance, precision soldering work and desoldering in the electronics industry. Its compact design and advanced functions make it an essential tool for professionals who require control and safety.
For more information on accessories and spare parts, please refer to the manual available in the "DOWNLOAD" tab under the purchase option.
Important note: Heating elements and tips are excluded from warranty.
- Microprocessor-controlled ESD unit for electrostatic protection.
- Digital temperature control for soldering iron, hot air and desoldering gun.
- Desoldering tool with pump-type suction and no electrical crossovers.
- 24V soldering iron with ceramic heater and easy nozzle replacement.
- Auto-fan system for cooling and extended service life.
- Compatible with multiple nozzles and LF reference tips.
- Power input: 220V, compact dimensions 188x126x250 mm.
Customer Questions & Answers
What advantages does the digital temperature control system offer over analogue soldering stations?
The digital system allows the temperature to be adjusted and maintained more precisely (approx. ±2 °C), providing more stable and safer operation than the fluctuations often seen in analogue models. It also makes it possible to reproduce settings quickly and reduces the risk of damaging sensitive components through excessive heat.
What are the station dimensions and weight, and what accessories are included in the box?
The station measures 188 mm x 126 mm x 250 mm. The weight is around 4 kg (not specified in the description, estimated from similar equipment). It includes a soldering iron, hot air gun, desoldering gun, interchangeable nozzles and a tool stand. The exact contents may vary depending on the distributor.
Is it compatible with 110 V mains, or does it only work at 220 V?
This model is designed to operate exclusively at 220 V. Using it on 110 V mains would require a suitable transformer, which could affect the warranty and performance if a certified unit is not used.
What maintenance routines are recommended to ensure durability and proper operation?
It is recommended to clean the nozzles and filters regularly, check the connections, replace worn tips and make sure the fans are working correctly. Exceeding the maximum temperatures is not recommended. Internal cleaning should be carried out by qualified personnel to avoid residue build-up that could affect sensors and extraction systems.
What performance differences does the hot air gun offer compared with analogue or lower-power alternatives?
The integrated hot air gun offers a temperature range of 100 to 480 °C with 500 W of power and digital control, allowing precise adjustments and a constant airflow. Analogue alternatives usually have greater temperature variation and lower power (typically 300–400 W), limiting efficiency when working with SMD components or demanding rework jobs.
What type of temperature control does the Aoyue INT2703A+ soldering station have?
It has microprocessor-based digital control that allows precise adjustment of the temperature of the soldering iron, hot air gun and desoldering gun.
Is it compatible with different nozzles?
Yes, it is compatible with various types of air nozzles and tips that start with the LF reference, making it suitable for different applications.
What voltage does the station require?
The station operates with a 220 V power input and the soldering iron has an output voltage of 24 V.
Does the station have a safety system to prevent overheating?
Yes, it has an auto-fan system that activates when the unit is switched off to cool it down to a safe temperature, extending the life of the heating elements.
What does the desoldering gun include?
It includes a ceramic heating element, a temperature range of 380-480 ºC, a maximum suction flow of 15 l/min and 600 mm Hg pressure for efficient desoldering.
