Manual OCA laminating machine with built-in vacuum pump 220V V8L8
Brand: Mlink
VAT included (Ex VAT: 115.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 3+ | 132.96 € | -6% |
| 20+ | 127.31 € | -10% |

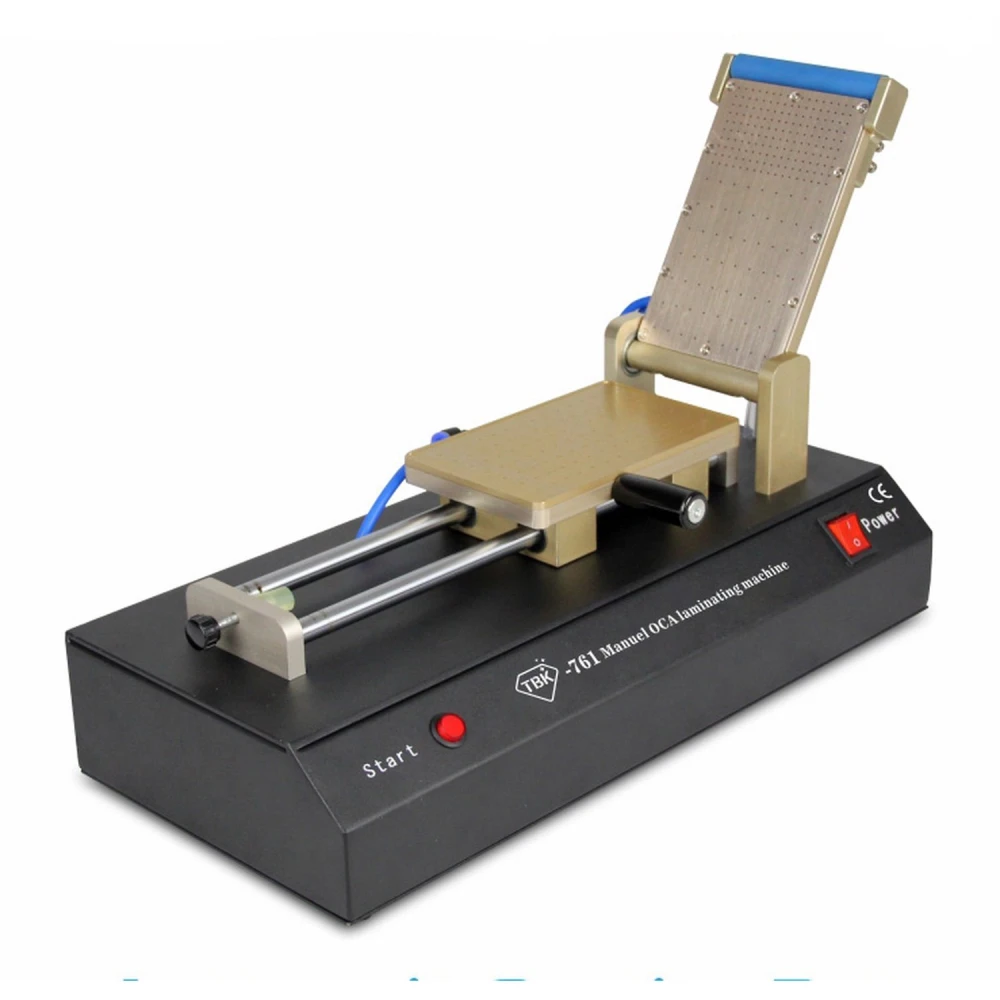

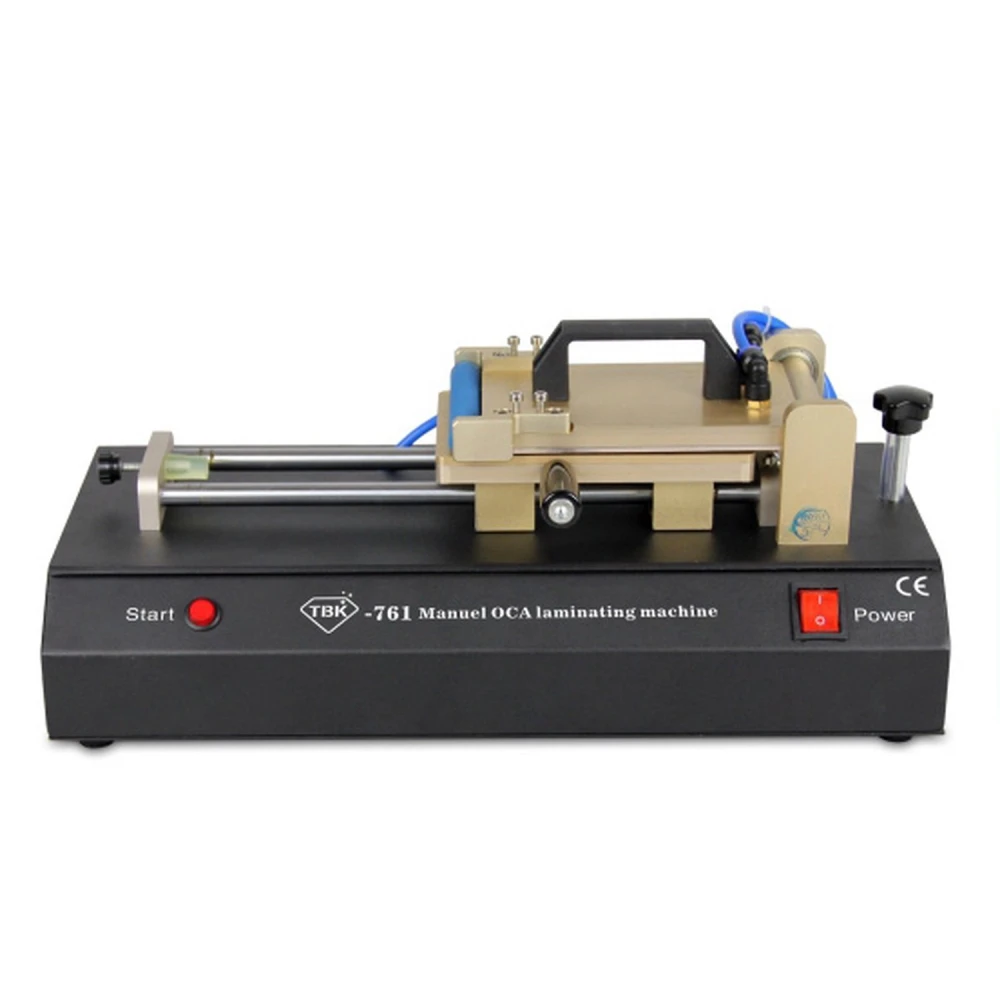

The manual OCA laminating machine with vacuum pump is an essential tool for professional LCD screen repair on smartphones. Designed to make the process of bonding OCA film (Optically Clear Adhesive) to the screen glass easier and faster, this machine ensures firm, even adhesion thanks to its built-in vacuum pump and air compressor.
Main features:
- Integrated vacuum pump that guarantees powerful and stable suction.
- Air compressor that secures the glass without the need for traditional clamping tools.
- Control valve to adjust suction between the upper and lower plates, optimising the laminating effect.
- Simple structure and easy to operate, ideal for smartphone repair technicians.
- Compatible with iPhone and Samsung phone screens.
- Automatic operation (type 1) for cleaner and more efficient lamination.
Technical specifications:
- Type: Type 1 (automatic)
- Material: coated iron plate and aluminium alloy
- Power supply: 240V
- Power: 100W
- Plug type: EU
- Item size: 44 x 20.3 x 18.5 cm
- Item weight: 7.5 kg
- Package size: 51.5 x 29.5 x 26 cm
- Package weight: 9 kg
Instructions for use:

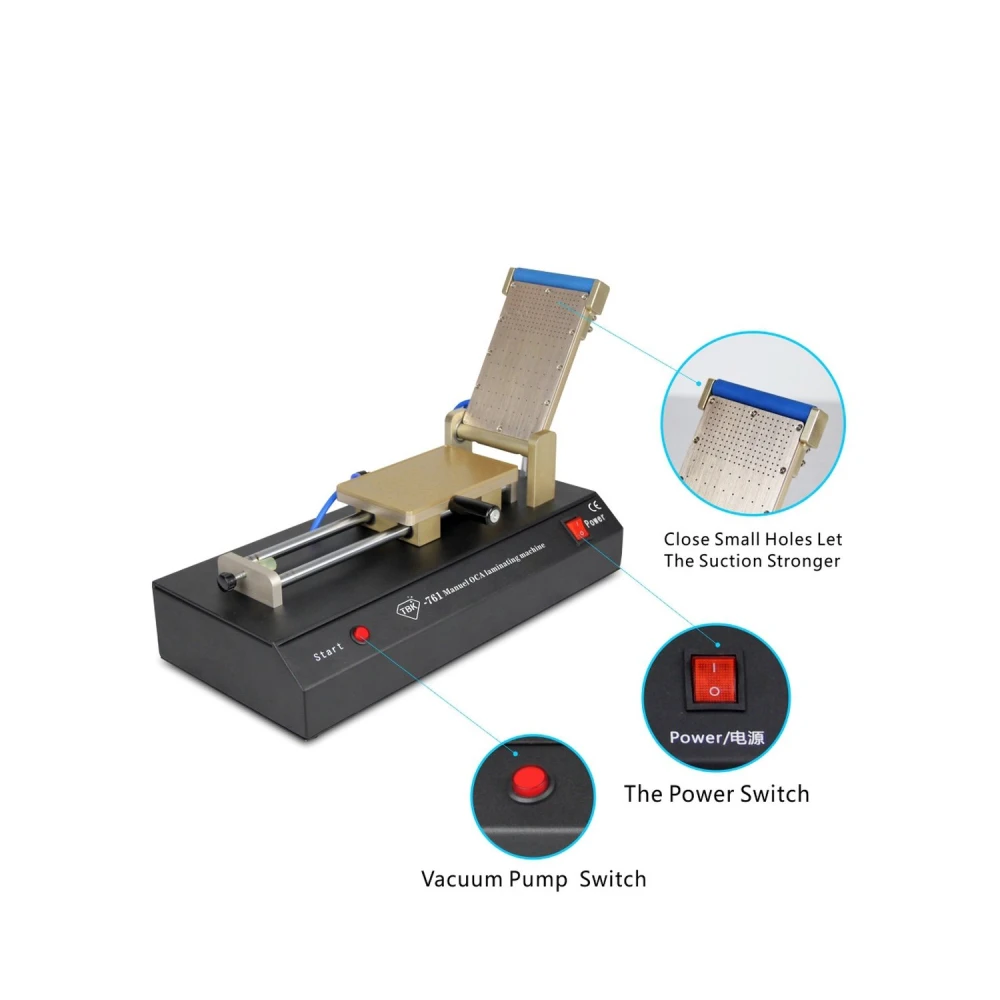

- Use tape to seal the upper and lower suction plates.
- Place the glass in the correct position and mark the location for future operations.
- Make a small hole in the lower plate covered by the glass to allow suction.
- Align the OCA film with the roller and make sure the roller presses the edge of the film.
- On the upper plate covered by OCA, make full holes for suction.
- Connect the power and switch on the vacuum switch.
- Place the glass on the mark and activate suction.
- Remove the protective film from the OCA and switch off the vacuum switch.
- Press the upper plate against the lower one and switch the suction on again.
- When the OCA has been fully vacuumed, lift the upper plate and gently remove the remaining protective film.
- Press the upper plate against the lower one and move the roller forward to complete the lamination.
- Switch off the switch and finish the process.
Typical use and compatibility:
This machine is ideal for technicians and workshops carrying out LCD screen repair and needing a fast, efficient method for bonding OCA film to mobile phone screens. Compatible with iPhone and Samsung models, it helps achieve bubble-free adhesion with no imperfections.
Package contents:
- 1 film laminating machine
- 1 power cable
Note: The product is currently out of stock. You can check future availability or alternatives in our store.
- Integrated vacuum pump for powerful, stable suction
- Air compressor for fixing without extra tools
- Valve to control suction between upper and lower plates
- Simple, easy-to-use structure, ideal for mobile phone repair
- Compatible with iPhone and Samsung screens
- Automatic Type 1 operation for clean, efficient lamination
- Durable material: coated iron plate and aluminium alloy
- 100W power with 240V supply and EU plug
Customer Questions & Answers
Which phone screen models are compatible with the OCA Glass Film V8l8 laminating machine?
The machine is designed to be compatible with most flat smartphone screens, especially iPhone and Samsung, that use removable front glass. However, extremely curved screens or those outside the standard size range may require adjustments or additional parts.
What are the dimensions, weight and main materials of the machine?
It generally measures around 320 mm x 180 mm x 160 mm and weighs approximately 6 kg. Its main materials are aluminium alloy and steel, with surfaces treated to resist corrosion and wear.
Does the machine require an additional air compressor to operate?
No, this model incorporates an internal vacuum pump and air compressor, eliminating the need for external equipment. You only need to connect it to an AC 220 V power supply.
What is the operational difference between this manual machine and an automatic OCA laminator?
The manual V8l8 machine requires direct intervention for alignment and vacuum activation, allowing greater control but lower speed. Automatic machines manage the entire process and are preferred for high-volume work, although they are usually more expensive and technically more complex.
What is the manual OCA laminating machine with vacuum pump used for?
It is used to bond OCA film to the glass of mobile phone screens, making LCD screen repair easier with firm, bubble-free adhesion.
Is it compatible with all mobile phone brands?
It is mainly compatible with iPhone and Samsung phone screens, the most common brands in screen repair.
What is included in the package when buying this machine?
It includes the film laminating machine and a power cable.
How does the built-in vacuum pump work?
The vacuum pump creates powerful suction that keeps the glass firmly attached during the laminating process, removing the need for traditional clamping tools.
Is it available for immediate purchase?
The product is currently out of stock and not available for immediate purchase.
