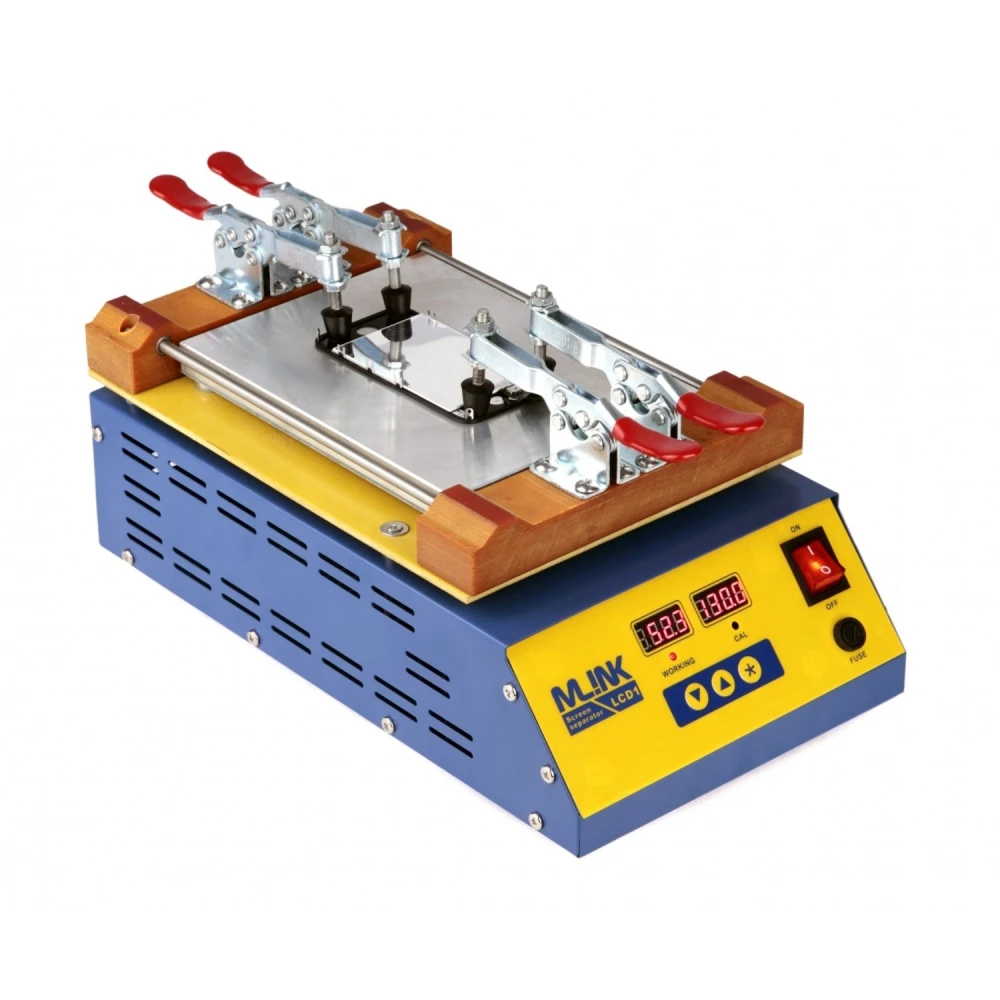

Mlink LCD1 LCD screen separator station for iPhone 4/4S/5/5S/5C and Galaxy S3/S4
Brand: Mlink
VAT included (Ex VAT: 80.00 €)
The Mlink LCD1 LCD screen separator station is a specialised tool designed to make LCD screen repair and separation easier on mobile devices such as iPhone 4/4S/5/5S/5C and Samsung Galaxy S3 and S4.
This unit offers precise temperature control thanks to its microprocessor-controlled system, allowing even and accurate heating to help prevent damage during the screen separation process.
- Real-time display of the set and current temperature for optimum control.
- Digital temperature adjustment in 1ºC increments to suit different screen types.
- Special holder to secure screens on the heating surface, ensuring stability during the process.
- Clamping system with 4 pressure-lock mechanisms to secure the screen.
- Heating surface made of aluminium, 20 x 15 cm, suitable for screens from 4" to 7".
Technical specifications:
- Model: MLINK LCD1
- Power supply: 220V (50Hz)
- Temperature adjustment: in 1ºC steps
- Weight: 5 kg
- Dimensions: 330 mm (width) x 190 mm (height) x 180 mm (depth)
Typical uses: This station is ideal for mobile device repair workshops that need to separate LCD screens without damaging them, especially for popular iPhone and Samsung Galaxy models.
Compatibility: Compatible with LCD screens from iPhone 4/4S/5/5S/5C and Samsung Galaxy S3 and S4, adjustable for screens from 4 to 7 inches.
This tool is essential for professionals looking for precision and efficiency in screen repair, helping to deliver safe, high-quality work.
- Real-time display of set and current temperature
- Digital temperature adjustment in 1ºC increments
- Special holder to secure screens on the heating surface
- Clamping system with 4 pressure-lock mechanisms
- Aluminium heating surface 20 x 15 cm, adjustable for 4" to 7" screens
- Microprocessor-controlled temperature for precise heating
- Compatible with iPhone 4/4S/5/5S/5C and Galaxy S3/S4
- 5 kg weight and compact dimensions for easy handling
Customer Questions & Answers
What are the main benefits of using the MLINK LCD1 separator station compared with manual methods for removing screens?
The MLINK LCD1 allows precise temperature control (digital adjustment in 1 °C increments), distributes heat evenly through an aluminium base and secures the screen with pressure-clamp systems. This reduces the risk of cracking or damaging the display compared with manual methods, which often apply uneven heat and force.
What power supply does it require and are there voltage or plug considerations for different countries?
The unit requires a 220 V AC, 50 Hz supply. If used in regions with a different voltage, an appropriate transformer must be used. Not including the correct adapter could damage the device, so it is advisable to check electrical compatibility before use.
Is there any integrated safety system that limits overheating or electrical risks during operation?
Microprocessor temperature control prevents overheating beyond the set temperature, but the unit does not have advanced redundant systems such as automatic cut-off in the event of sensor failure; therefore, it is recommended to monitor operation and respect the suggested temperatures for each screen model.
Which device models is the Mlink LCD1 separator station compatible with?
It is compatible with LCD screens from iPhone 4/4S/5/5S/5C and Samsung Galaxy S3 and S4, adjustable for screens from 4 to 7 inches.
How is the temperature controlled on the separator station?
The temperature is controlled digitally in 1ºC increments and shown in real time for precise heating.
What clamping system does the station use to secure the screens?
It uses 4 pressure-lock mechanisms to secure the screens during the separation process.
What is the power supply of the unit?
The station operates on 220V and 50Hz.
What size is the heating surface?
The aluminium heating surface measures 20 x 15 cm, suitable for screens from 4 to 7 inches.
