Satlink WS-6906 satellite finder for alignment and accurate measurement
Brand: Satlink
VAT included (Ex VAT: 35.00 €)

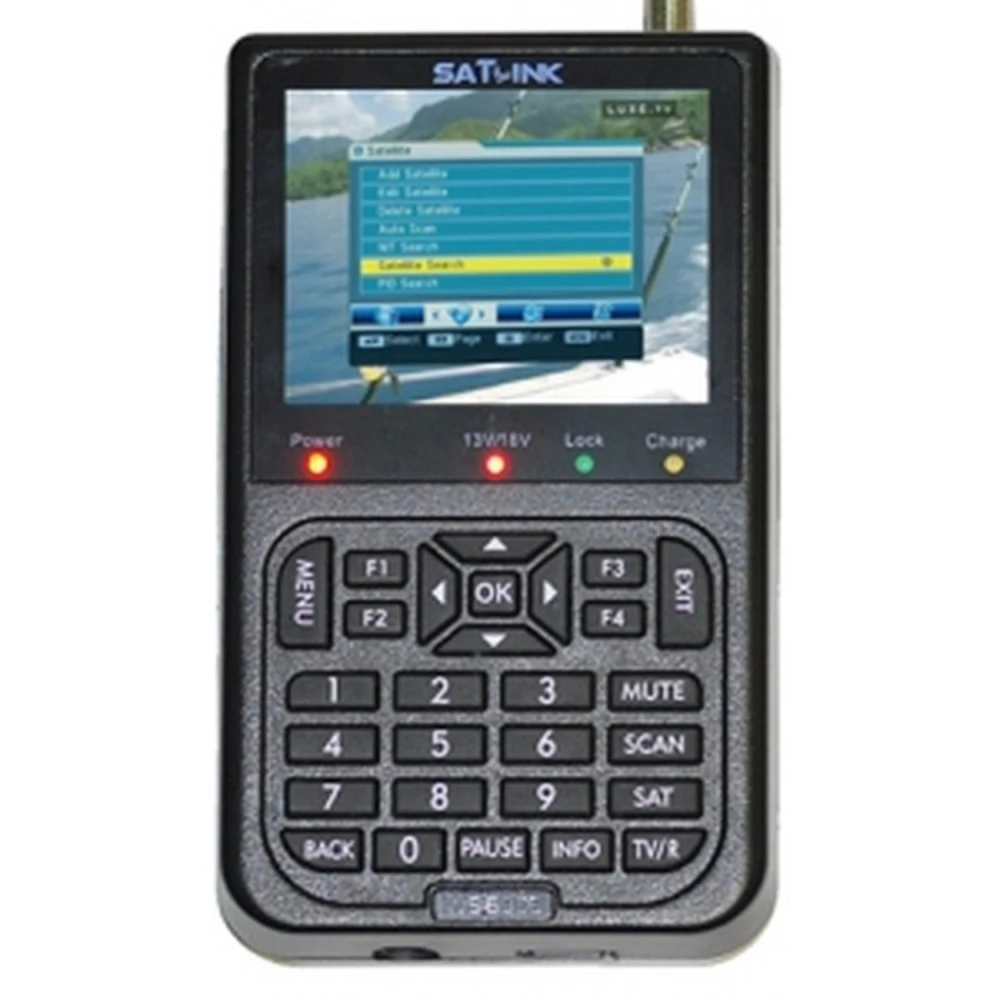

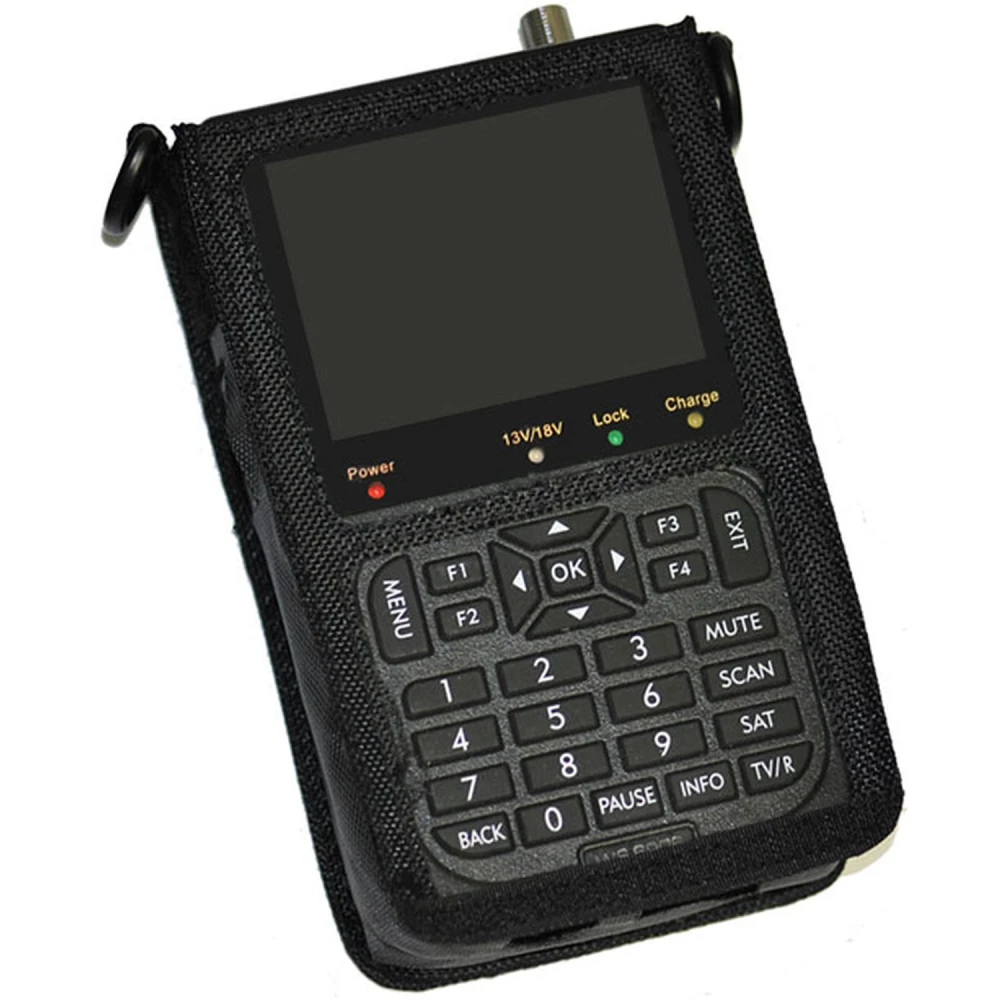

The Satlink WS-6906 satellite finder is a professional device designed to make the pointing and alignment of satellite dishes highly accurate and straightforward. Equipped with a 3.5-inch LCD DTT screen, it allows real-time playback of audio and video from FTA channels, making visual and audio verification easier during installation.
This meter features a green "LOCK" LED that indicates correct identification of the satellite being searched for, ensuring effective alignment. It also offers advanced functions such as blind channel search and digital channel measurement, allowing fast and reliable setup.
- 3.5" LCD DTT screen for clear viewing of the signal and channels.
- Live audio and video from FTA channels for immediate verification.
- Technical parameter readings: Bit Error Rate (BER), C/N ratio, S/N ratio and dBuV level.
- Input level: from -65 dBm to -25 dBm, with 75 Ohm input impedance.
- Fully programmable by the user to suit different satellites and needs.
- Light and sound indicators for clear signal detection.
- Software update via USB connection to PC.
- Fast-charging Li-Ion battery with 1950 mA capacity and up to 4 hours of runtime.
- Compact and portable: dimensions 9.5 x 15.5 x 4.5 cm and weight of 0.5 kg.

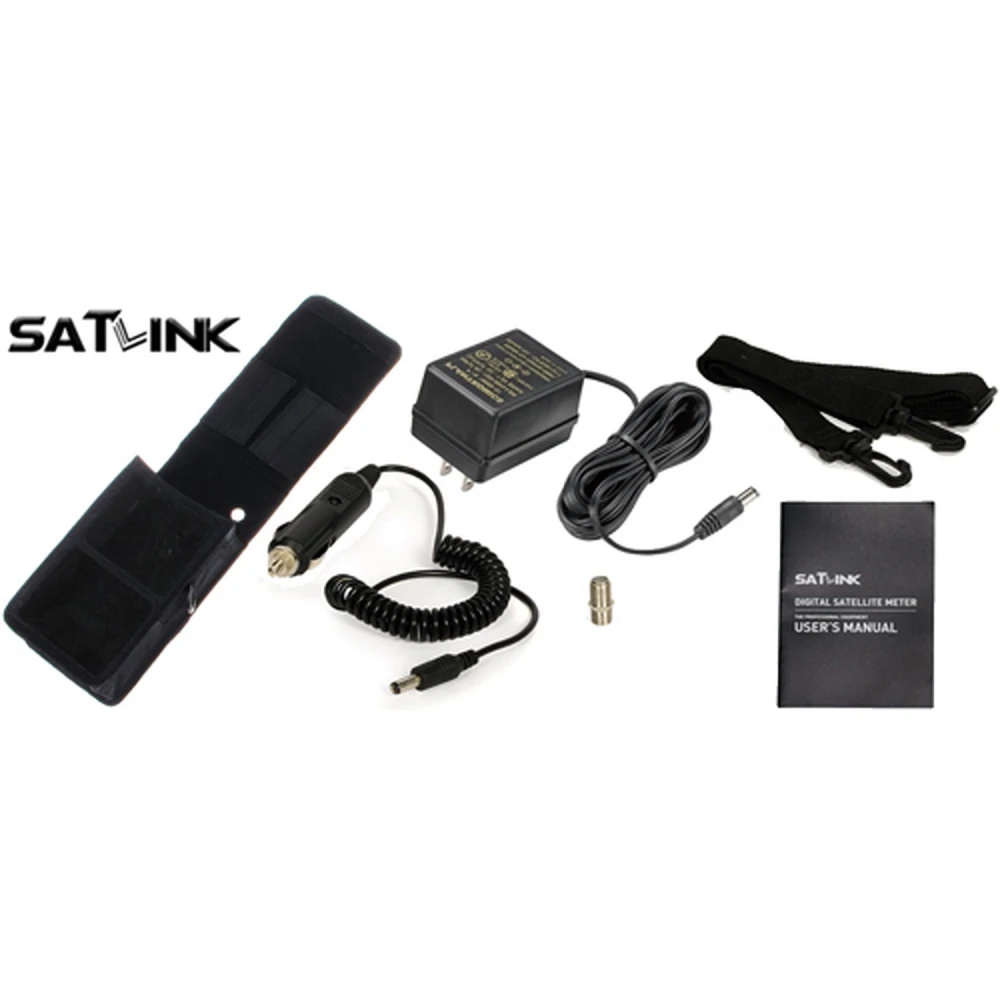

- Accessories included: strap, carry case, 12Vdc power supply, cigarette lighter power lead and A/V cable.
The Satlink WS-6906 is compatible with DVB standards and supports LNB input with a male F-type connector, frequency range from 950 MHz to 2150 MHz, and 22 KHz LNB switch control with DiSEqC version 1.0 support. Its QPSK demodulator allows symbol rates between 2 Mbps and 45 Mbps, with SCPC and MCPC capability and automatic spectral inversion conversion.
This meter is ideal for technicians and installers who need a reliable tool for measuring and adjusting satellite signals in satellite TV installations, Dreambox and other compatible systems.
Note: The product is currently out of stock. You can request a notification for future availability or check alternatives in our store.
- 3.5" LCD DTT screen for clear, accurate viewing.
- Technical parameter measurement: BER, C/N, S/N and dBuV level.
- Live audio and video from FTA channels for immediate verification.
- Rechargeable Li-Ion battery with up to 4 hours of runtime.
- Compact and lightweight: 9.5 x 15.5 x 4.5 cm and 0.5 kg.
- USB software update to keep the device up to date.
- Compatible with DVB standards and DiSEqC 1.0 control.
- Includes accessories: strap, case, power supplies and A/V cable.
Customer Questions & Answers
What advantages does the Satlink WS-6906 offer compared with other satellite meters in its price range?
The Satlink WS-6906 stands out for its 3.5" LCD display with real-time signal viewing, measurement of technical parameters such as BER, C/N and S/N, and blind channel search. Compared with basic alternatives, it allows more precise and faster alignment, makes it easier to view FTA channels, and provides light and sound signal-quality indicators. Its 4-hour battery life and portability improve the installation experience for frequent users. It does not include advanced spectrum analysis, which is available on higher-end models.
What exactly is included in the box with the Satlink WS-6906 meter and what are its dimensions?

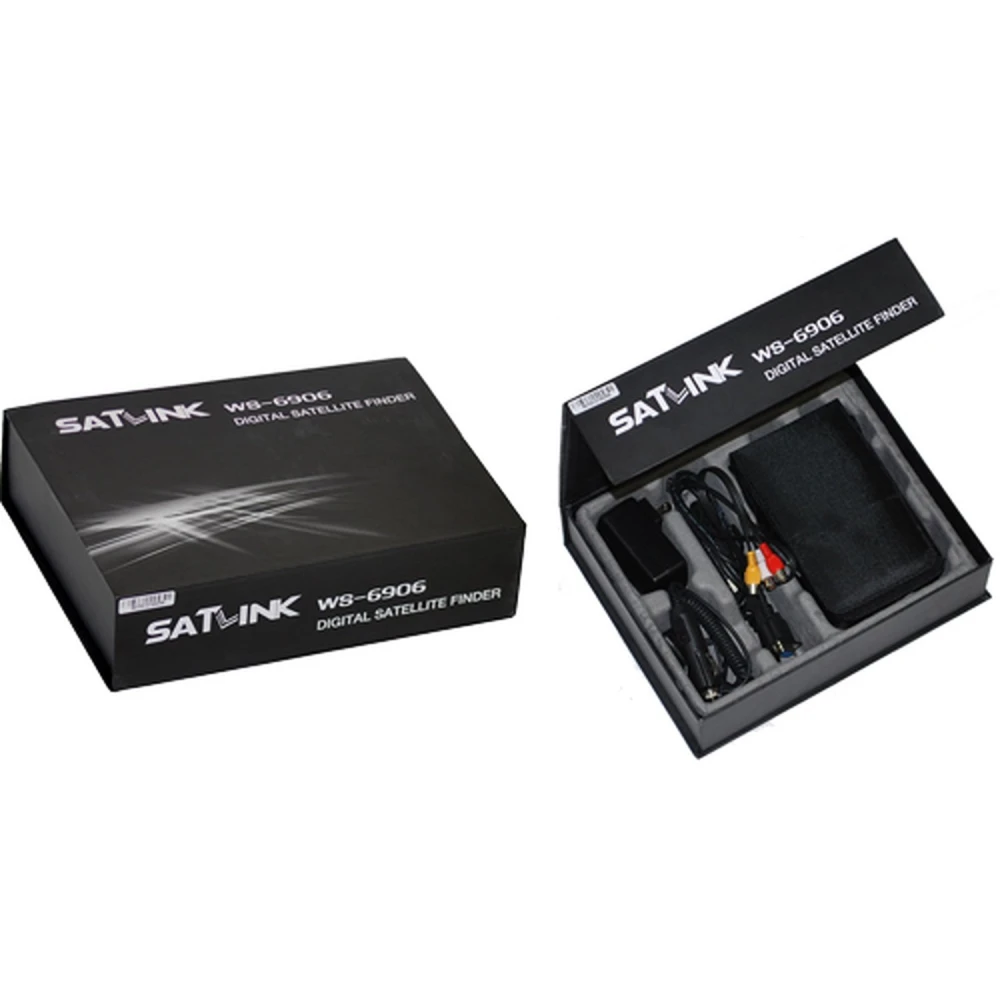

The box includes the Satlink WS-6906 meter, strap, carry case, 12 V DC power supply, car cigarette-lighter adapter and audio/video cable. Its dimensions are 95 mm x 155 mm x 45 mm, making it compact and easy to carry. Typical weight is around 400–500 g including battery and accessories.
Is the Satlink WS-6906 compatible with any satellite dish and LNB, and what requirements must the installation meet?
The Satlink WS-6906 is compatible with most satellite dishes and universal LNBs that work with DVB-S signals. The input is 75 Ω via a standard F connector and it accepts input levels from –65 dBm to –25 dBm. It requires LNB power of 13 V or 18 V, selectable, with 22 kHz tone switching. It is not natively suitable for DVB-S2 or T2 signals, or for installations requiring more than 18 V or special adapters.
How is the battery maintained and what is its expected durability under normal use conditions?
The Satlink WS-6906 has an internal 1950 mAh Li-Ion battery, rechargeable via the included adapters. It is recommended to fully recharge it before use and avoid complete discharge to extend its service life. Under typical use (weekly work cycles), the battery usually maintains good performance for 2–3 years before a noticeable drop in runtime.
What ambient temperature range can the Satlink WS-6906 operate reliably in?
The manufacturer usually specifies an approximate operating range of 0°C to 40°C for this type of portable equipment. Using it outside this range may affect the battery and measurement accuracy. For outdoor use, it is recommended to protect it from direct sunlight, moisture and rain, as it does not have formal IP certification.
What is the Satlink WS-6906 satellite finder used for?
It is used to point and align satellite dishes by measuring the satellite signal accurately and showing live audio and video from FTA channels.
What type of screen does the Satlink WS-6906 have?
It has a 3.5-inch LCD DTT screen that shows the signal and channels in real time.
Is the Satlink WS-6906 portable?
Yes, it is compact and lightweight, with dimensions of 9.5 x 15.5 x 4.5 cm and a weight of 0.5 kg, making it easy to carry.
How long does the Satlink WS-6906 battery last?
The Li-Ion battery has a capacity of 1950 mA and offers up to 4 hours of runtime with fast charging.
Is the Satlink WS-6906 available?
It is currently out of stock. You can request a notification for future availability.
