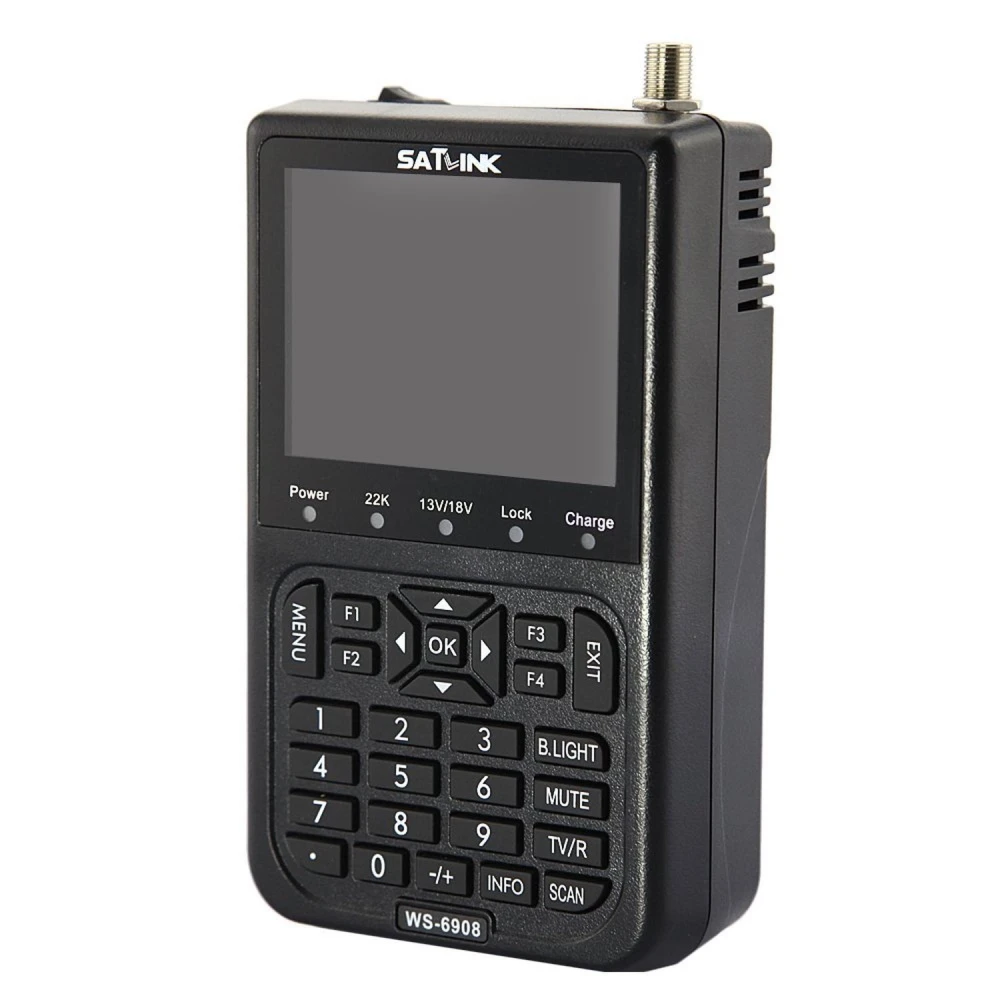

Satlink WS-6908 satellite meter for precise dish alignment
Brand: Satlink
VAT included (Ex VAT: 88.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 103.91 € | -4% |
| 10+ | 101.75 € | -6% |
| 20+ | 95.25 € | -12% |

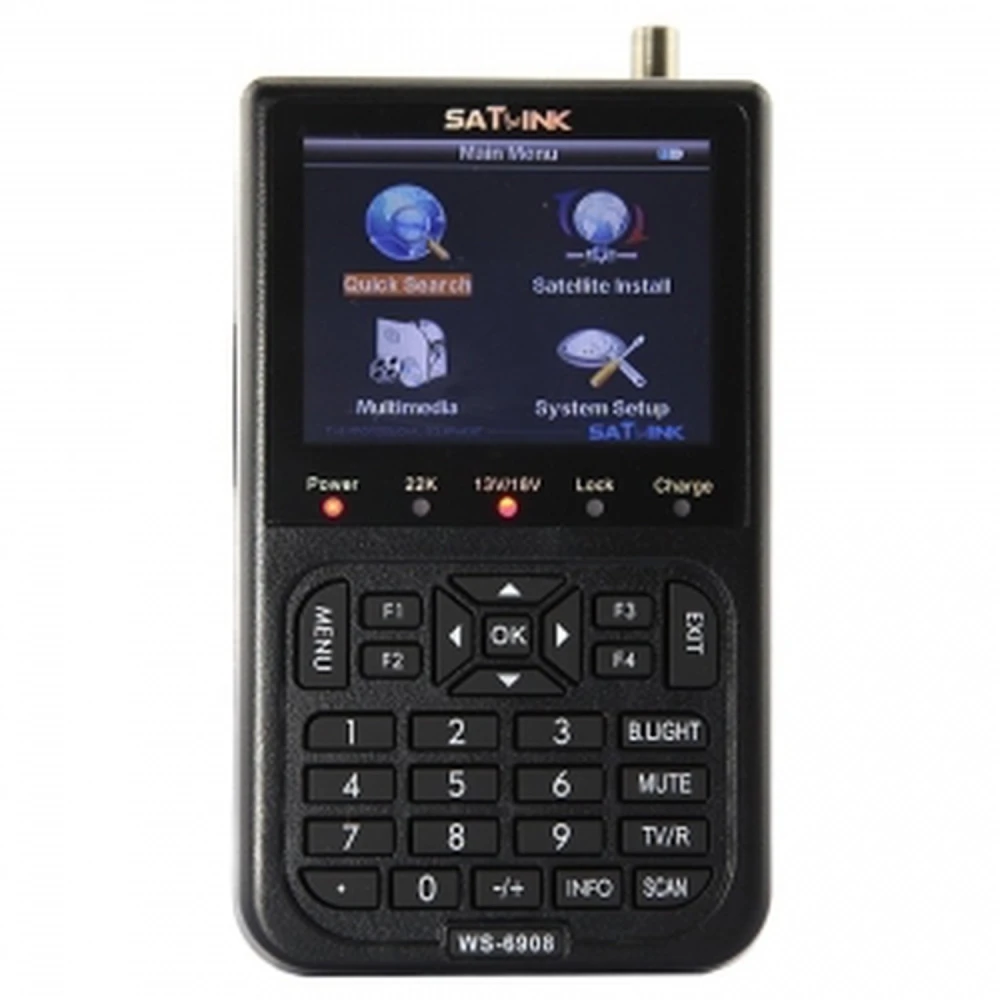

The Satlink WS-6908 satellite meter is a professional device designed to make the alignment and setup of satellite dishes highly accurate and straightforward. Its 3.5-inch TFT LCD screen clearly displays signal parameters, making the job easier for both installers and specialist technicians.

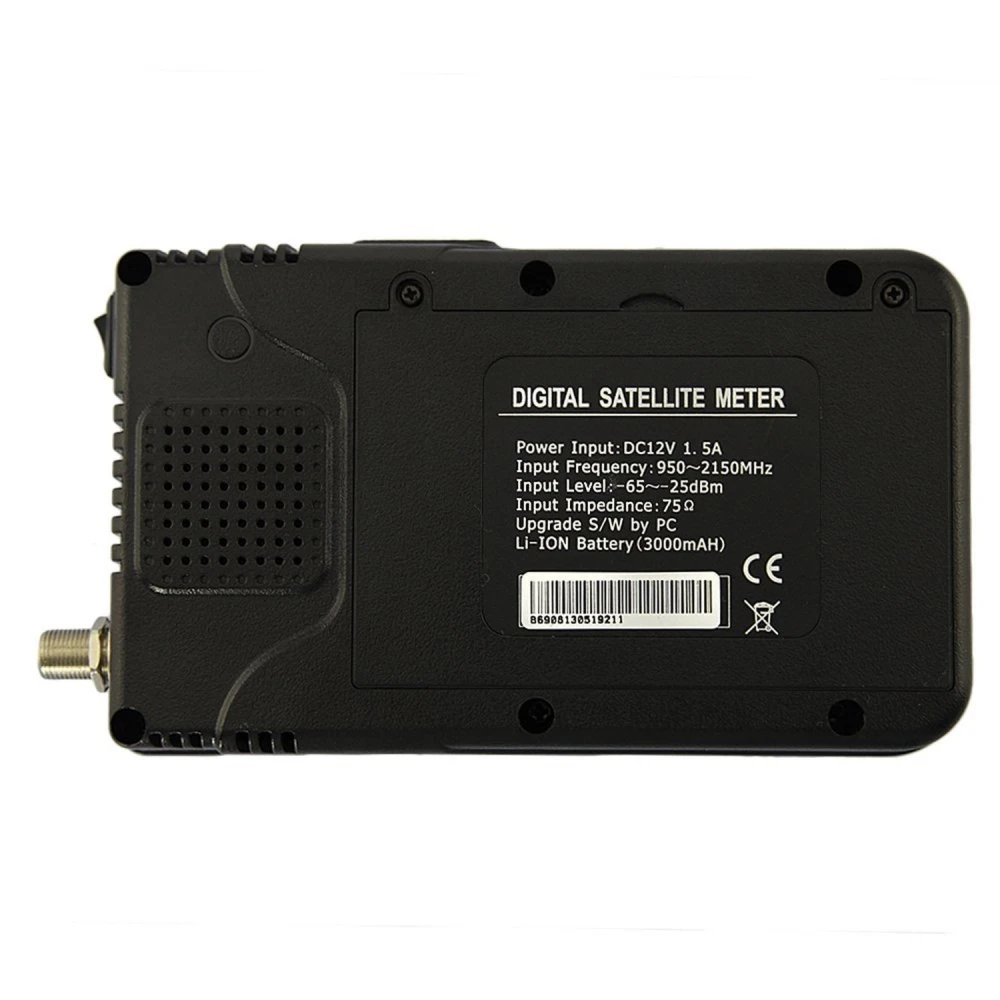

This meter supports an input frequency range of 950 to 2150 MHz and signal levels from -65 dBm to -25 dBm, with an input impedance of 75 Ω, ideal for most current satellite systems. It is also fully compatible with DVB, ensuring it is suitable for modern digital systems.
Main features:
- 3.5-inch TFT LCD screen for clear, detailed viewing.
- Measurement of signal strength and quality, including BER, S/N and power (PWR).
- Auto, Blind and Manual search modes to suit different installation scenarios.
- Audible and visual alarms to indicate correct signal lock.
- Automatic calculation of AZ (azimuth) and EL (elevation) angles for quick, accurate alignment.
- Support for DISEqC 1.0, 1.1, 1.2 protocols and 22 KHz tone, compatible with multiple LNB and switch configurations.
- LNB power supply of 13/18 V with maximum current of 400 mA.
- AV input and output for connecting cameras, LCDs or other auxiliary devices.
- Built-in speaker for audible signals and confirmations.
- 8.4V lithium-ion battery and 3000 mAh that allows up to 4 hours of continuous use.
- DC 12V/1.5A power adapter and USB port for software updates.
- Automatic protection against LNB short circuits for added equipment safety.
Technical specifications:
| Parameter | Detail |
|---|---|
| Compatibility | DVB |
| Input connector | F-type, male |
| Frequency range | 950 MHz - 2150 MHz |
| Signal level | -65 dBm to -25 dBm |
| LNB power supply | 13/18 V, maximum 400 mA |
| LNB switch control | 22 KHz |
| DiSEqC | Version 1.0 |
| Processor | 32 bits, 200 MHz |
| SDRAM memory | 16 Mbyte |
| Flash memory | 2 Mbyte |
| EEPROM | 8 Kbyte |
| Video decoder | MPEG-2 Main Profile @ Main Level |
| Data rate | Up to 15 Mbps |
| Video resolution | 720x576, 720x480 |
| Video formats | PAL / NTSC / SECAM |
| MPEG audio | MPEG 1 layers 1 and 2, Mono |
| Sampling rates | 32, 44.1 and 48 KHz |
| Data interface | USB port |
| Battery | Li-ion 8.4V / 3000 mAh |
| Maximum usage time | 4 hours |
| Size | 9.5 x 15.5 x 4.5 cm |
| Weight | 0.5 kg |
Typical uses:
- Alignment and setup of satellite dishes for satellite reception.
- Checking signal strength and quality in residential and professional installations.
- Configuring and adjusting systems with multiple LNBs and DiSEqC switches.
- Updating and maintaining satellite equipment thanks to its USB software port.
Compatibility: The Satlink WS-6908 is compatible with most DVB satellite systems and standard LNBs, including DiSEqC configurations and 22 KHz tone control, making it suitable for a wide range of satellite installations.
Note: This product is currently out of stock. We recommend checking alternatives or contacting our customer service team for more information.
- 3.5-inch TFT LCD screen for clear viewing
- 950 to 2150 MHz frequency range compatible with DVB
- Accurate measurement of signal strength and quality (BER, S/N, PWR)
- Auto, Blind and Manual search modes for greater versatility
- Support for DISEqC 1.0, 1.1, 1.2 and 22 KHz tone
- Rechargeable Li-ion battery for up to 4 hours of continuous use
- USB port for software updates and maintenance
- Automatic protection against LNB short circuits
Customer Questions & Answers
What types of satellites and antenna systems are compatible with the Satlink WS-6908 Meter?
The Satlink WS-6908 is compatible with satellites operating in the 950 to 2150 MHz frequency range, which covers most Ku-band and C-band TV satellites. It also supports DISEQC 1.0, 1.1 and 1.2 switching systems, as well as 22 kHz tone use, so it is suitable for both motorised and fixed antenna installations. It is recommended to check that the LNB is standard and operates within the specified range.
What protection and safety measures does it include against common errors, such as an LNB short circuit?
The unit includes automatic short-circuit protection on the LNB power output, automatically disconnecting the supply to prevent damage. In addition, its electrical construction follows typical patterns for portable equipment, although it lacks explicit IEC certifications, so it should always be handled in accordance with the manufacturer’s instructions.
What key difference does this model offer compared with other basic digital satellite meters?
The WS-6908 stands out from basic models by integrating a 3.5” TFT-LCD display for real-time viewing, automatic and manual search modes, advanced parameter analysis such as BER, S/N and PWR, and support for DISEQC switch control. This makes precise dish alignment easier and more efficient, even in more complex installations.
What is the Satlink WS-6908 satellite meter used for?
It is used to align and set up satellite dishes by measuring satellite signal strength and quality accurately.
Is it compatible with DVB systems?
Yes, the Satlink WS-6908 is fully compatible with DVB systems, ensuring it can be used in modern digital installations.
How long does the Satlink WS-6908 battery last?
The included lithium-ion battery has a capacity of 3000 mAh and allows a maximum operating time of up to 4 hours.
What type of connectors does it use?
It uses male F-type connectors for the LNB and digital tuner input.
Can the meter software be updated?
Yes, it has a USB port that allows software updates to keep the unit up to date.
