TIG 250 MMA Inverter Welder with advanced DC TIG technology
Brand: Mlink
VAT included (Ex VAT: 200.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 236.16 € | -4% |
| 10+ | 231.24 € | -6% |
| 20+ | 221.40 € | -10% |

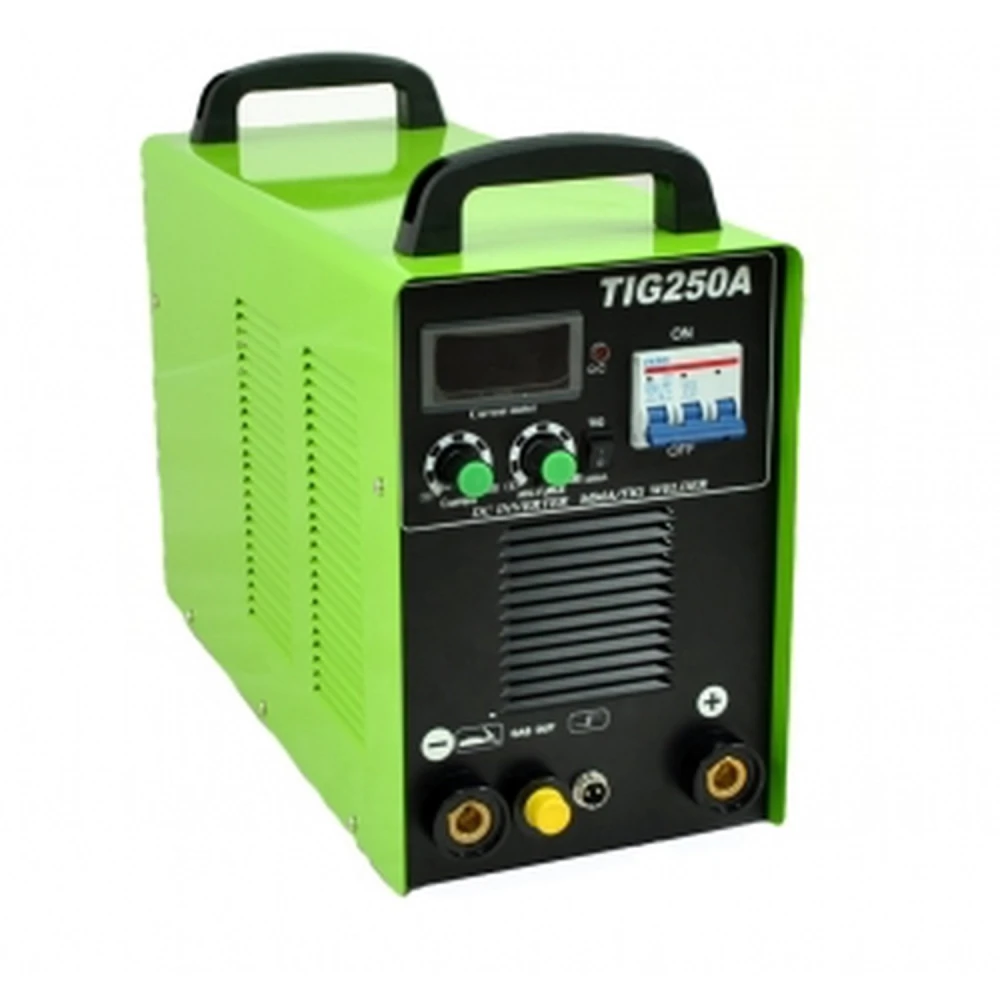

TIG 250 MMA Inverter Welder is an arc welder with inverter technology that converts alternating current into direct current to deliver precise and efficient welding. This unit uses a constant-current transistor to convert alternating current into a frequency above 50 kHz, allowing for a compact and lightweight transformer, making it easier to transport and use in different environments.
The high operating frequency significantly reduces the size and weight of the transformer compared with traditional welders. For example, the transformer in a 160A inverter welder weighs only 0,25 kg compared with 18 kg in a conventional welder, demonstrating the technological advantage of this unit.
Main features:
- Inverter arc welder fitted with a turbo fan for extended work without interruptions.
- Safety system that stops the machine in the event of overheating, ensuring durability and protection.
- Compatible with electrodes made from different materials, allowing fast and professional welding.
- Digital display for precise control of welding parameters.
- Compact design with dimensions of 420×220×380 mm and net weight of 12 kg.
- IP21 insulation class, ensuring resistance in demanding work environments.
- Compatible with generator sets, ideal for use in places without direct power supply.
Technical specifications:
- Input voltage: AC 380V ±10%
- Input power: 9.3 KVA
- Welding current range: 20-250 A
- Working voltage: 70 V
- Rated duty cycle: 60%
- Compatible electrodes: 1,6 to 5,5 mm
Common uses:
This machine is ideal for professionals and advanced hobbyists who need a versatile welder for work on stainless steel, aluminium and other metals. It is perfect for repairs, fabrication and industrial maintenance, as well as construction and automotive projects.
Compatibility: Works perfectly with MMA electrodes and DC TIG processes, offering flexibility for different welding techniques.
In summary, the TIG 250 MMA Inverter Welder is an essential tool for those looking for efficiency, portability and quality in professional welding.
- DC TIG inverter technology for precise and efficient welding
- Integrated turbo fan for extended work without interruptions
- Overheating protection system
- Compatible with 1,6 to 5,5 mm electrodes
- Digital display for accurate parameter control
- Compact dimensions: 420×220×380 mm and 12 kg weight
- IP21 insulation class for greater durability
- Compatible with generator sets for site use
Customer Questions & Answers
What electrical and connection requirements does the TIG-250 need to operate safely?
The TIG-250 requires an AC 380V ±10% supply and an input power of 9.3 kVA. For safety, it must be used with a suitable electrical installation for this voltage and a reliable earth connection, avoiding use on lower-voltage domestic circuits.
What materials can I weld and what electrode thicknesses is this machine compatible with?
The unit accepts electrodes from 1.6 to 5.5 mm and allows welding of carbon steel, stainless steel and some non-ferrous metals in TIG mode. It is advisable to choose the electrode diameter according to the material thickness and the amperage setting.
What protection measures and safety systems does the TIG-250 include during intensive operation?
It features a turbo fan for active cooling and an automated shut-off system in the event of overheating. It also has an IP21 protection rating, suitable for indoor use but not for direct exposure to water or dust.
What are the main maintenance points to ensure the TIG-250 lasts as long as possible?
To extend service life, it is recommended to clean the fan air intakes regularly, check electrical connections, verify insulation and prevent dust build-up inside the unit. Consumables should be inspected and replaced as they wear.
What type of current does the TIG 250 MMA Inverter Welder use?
It uses direct current (DC) thanks to its inverter technology, which converts alternating current into direct current for more stable welding.
Is it suitable for welding different types of electrodes?
Yes, this welder is compatible with 1,6 to 5,5 mm electrodes made from various materials, allowing fast and professional welding.
Does it have overheating protection?
Yes, it has a safety system that stops the machine in the event of excessive heat to protect the unit.
Can it be used with generator sets?
Yes, it is suitable for use with generator sets, making it ideal for work in places without direct power supply.
What advantages does inverter technology have over traditional welders?
Inverter technology reduces the size and weight of the transformer, improves energy efficiency and allows more precise control of welding current.
