TK103B car GPS tracking system with alarm and remote control

TK103B car GPS tracker is an advanced tracking system designed for vehicles that combines GSM/GPRS and GPS technology to provide complete, secure monitoring. This device lets you know your car’s exact location in real time by sending data through a SIM card installed in the unit.

This tracking system includes multiple key functions for vehicle security and control:

• Real-time positioning: Sends accurate coordinates so you know where your car is at all times.
• SOS and anti-theft alarm: Includes emergency alerts, power disconnection, unauthorised movement and overspeeding.
• Remote control: Ability to stop the engine remotely via SMS or internet to help prevent theft.
• Geo-fencing: Restricts the vehicle’s movement to defined areas, sending alerts if boundaries are crossed.
• Hidden monitoring: Allows surveillance without the driver noticing, ideal for fleets or rental vehicles.
• Configurable tracking: Adjust the frequency and timing of data transmission to suit your needs.

Technical specifications:

• Dimensions: 54 x 62 x 26 mm
• Weight: 120 g
• Network: GSM/GPRS (850/900/1800/1900 MHz bands)
• GSM/GPRS module: Simcom300d or Simcom340d
• GPS chip: SIRF3 with sensitivity of -159 dBm and accuracy of 5 meters
• Operating voltage: 12V - 24V
• 3.7V 800mAh Li-ion rechargeable backup battery
• Operating temperature: -20 to 65 °C
• Storage temperature: -40 to 85 °C
• Humidity: 5% - 95% non-condensing

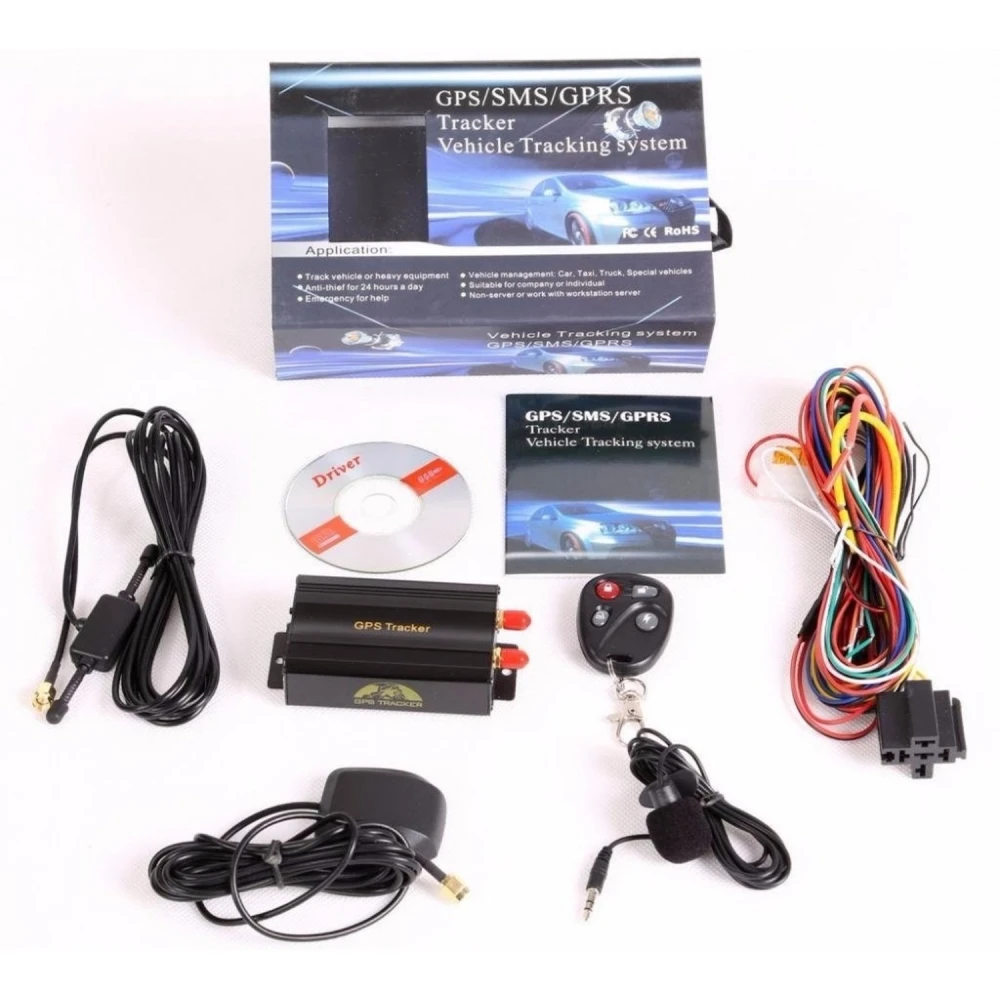

Package contents:

• 1 x GPS Tracker TK103B
• 1 x 3-meter GPS antenna
• 1 x 3-meter GSM antenna
• 1 x 10-pin harness
• 1 x 12V 40A electronic relay
• 1 x remote control with built-in battery
• 1 x 1.5-meter lapel microphone
• 1 x CD with GPS management software
• 1 x SIM card slot
• 1 x user manual

This tracker is ideal for users looking to protect their vehicle against theft, manage fleets or simply have peace of mind knowing where their car is at all times. Its compatibility with GSM and GPRS networks allows flexible use and efficient data transmission via both SMS and internet.

The system is easy to install and configure, with support for limiting authorised phone numbers that can receive information and send commands, ensuring user privacy and security.

With the TK103B car GPS tracker, you get a complete anti-theft system with advanced alarm, remote control and satellite tracking functions that give you security and full control over your vehicle.

• Real-time GPS positioning with 5-metre accuracy
• SOS alarm and anti-theft system with movement and speed alerts
• Remote control to stop the engine via SMS or internet
• Geo-fencing to restrict movement outside defined areas
• Compatible with GSM/GPRS networks on 850/900/1800/1900 MHz bands
• Built-in rechargeable battery for backup operation
• Includes 3-metre GPS and GSM antennas for better signal
• Hidden monitoring ideal for fleets and rental vehicles
• PC and internet management software included
• Compact size and lightweight design for easy installation
