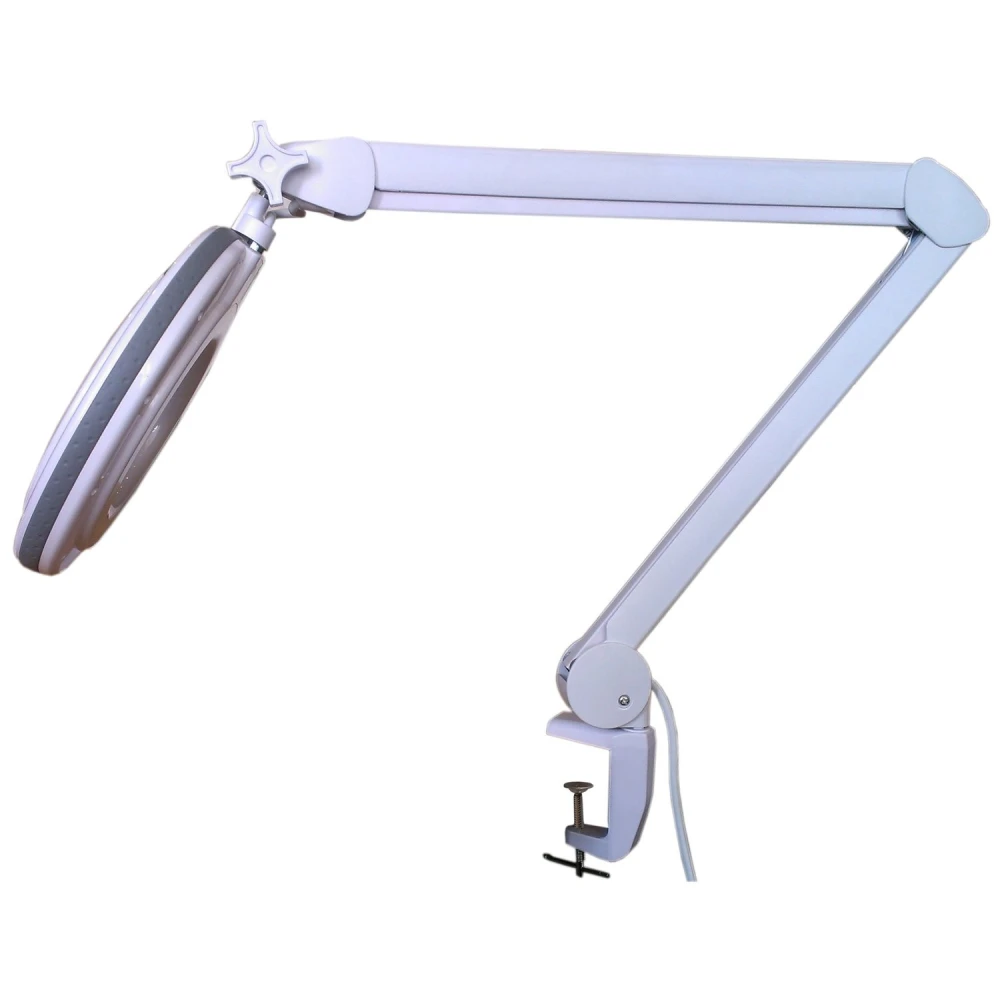

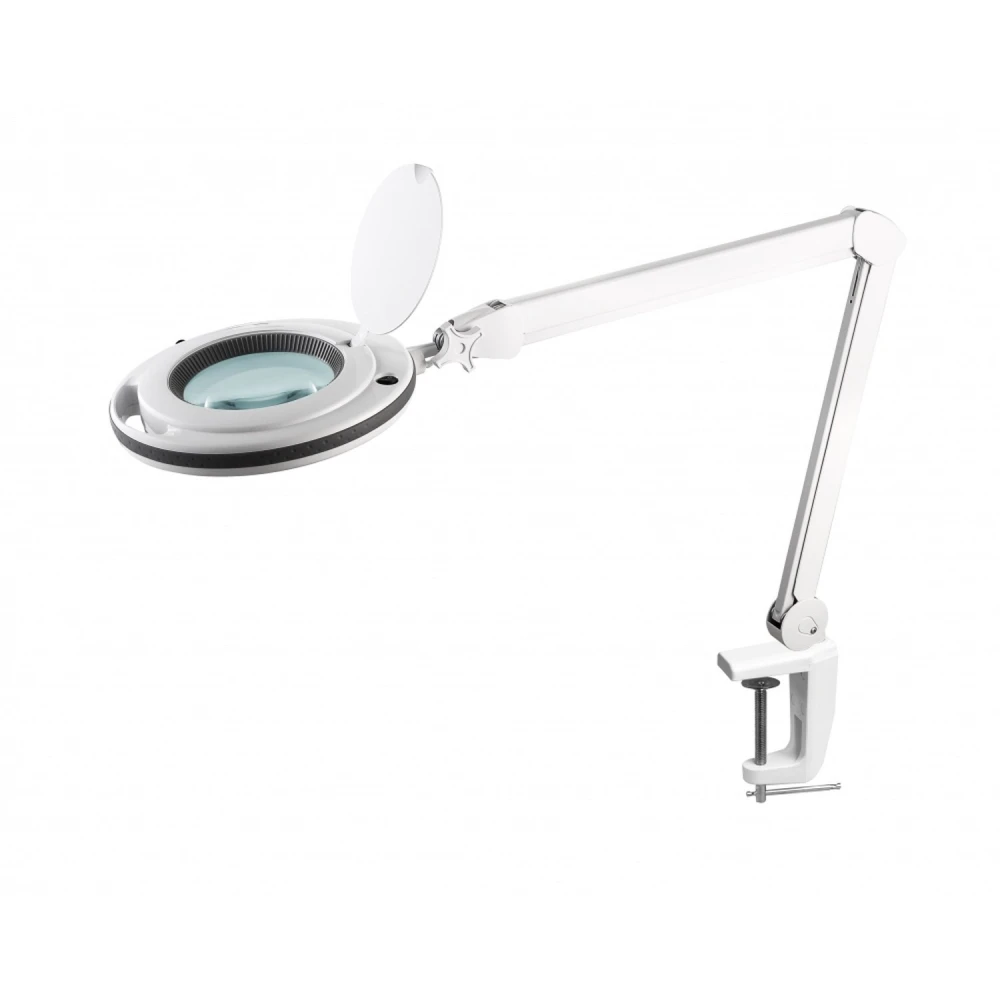

Mlink 5x Illuminated Magnifier for Electronics and Soldering
Brand: Mlink
VAT included (Ex VAT: 32.01 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 36.65 € | -7% |
The 5x illuminated magnifier from Mlink is an essential tool for professionals and hobbyists in electronics and soldering who need precision and comfort in their work. This desk magnifier is fitted with powerful LED lighting that ensures a clear, detailed view of small objects.
Main features:
- 5x optical magnification (5 dpt, equivalent to x2.25), ideal for viewing fine details.

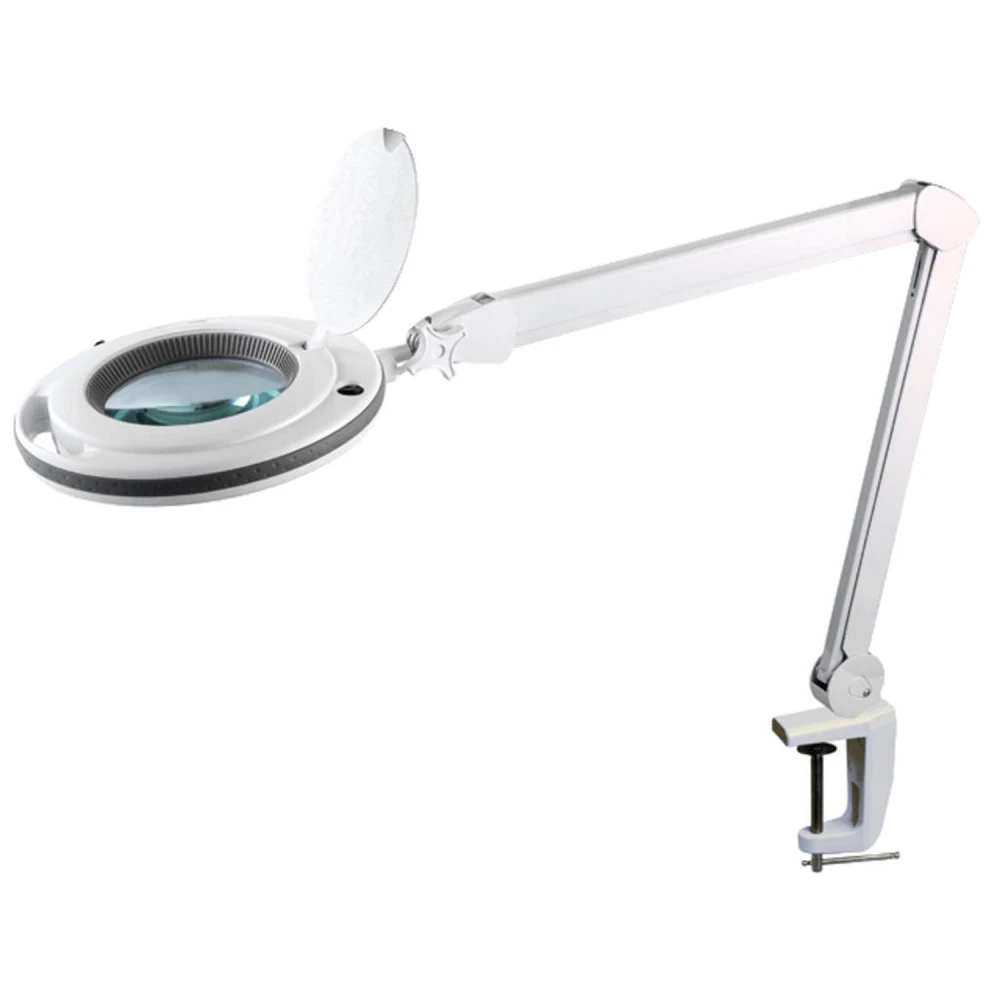

- Glass lens with a diameter of 127 mm (5 inches), offering a sharp, distortion-free image.
- 6W LED lighting with 60 SMD diodes providing even white light to make work easier in low-light environments.
- 900 mm articulated arm that allows the magnifier to be positioned freely for greater comfort and precision.
- Easy clamping to the edge of the table to ensure stability during use.
- Adjustable lamp head in vertical and horizontal planes to set the light angle as needed.
- Ergonomic grip that makes positioning and moving the magnifier easier.

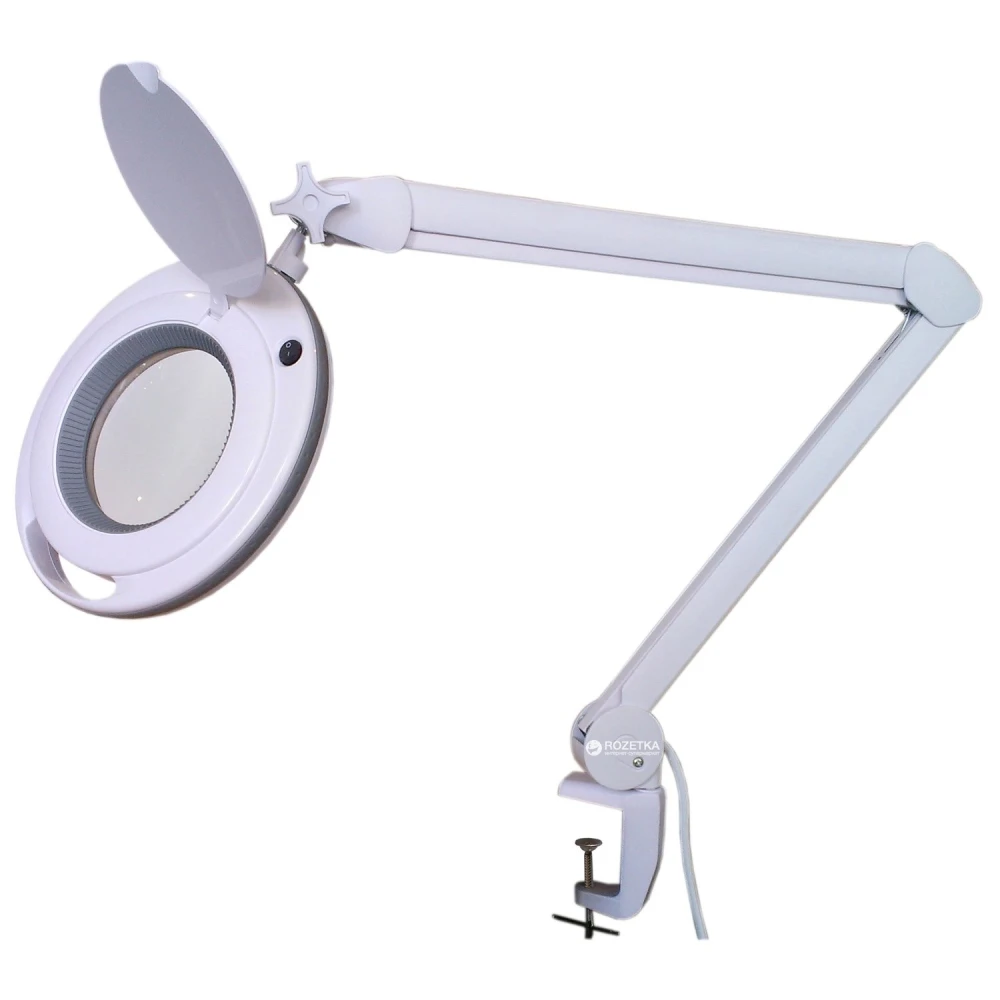

- Protective cover to cover the lens and protect it from dust when not in use.
- White colour that combines style and functionality.
Technical specifications:
- Lamp dimensions: 250 x 230 mm
- Power supply: 220V CA, 50 Hz
- Gross weight: 3.71 kg
- Warranty: 12 months
Typical uses:
This illuminated magnifier is perfect for assembly and repair of electronic components, soldering work, circuit inspection, reading small text and any activity that requires precise optical magnification and suitable lighting.
Compatibility:
Compatible with soldering stations and electronic tools, especially useful in professional environments and electronics workshops.
In short, the Mlink 5x illuminated magnifier is a robust, practical and high-quality tool that improves precision and comfort in delicate tasks, thanks to its glass lens, efficient LED lighting and articulated arm.
- 5x optical magnification for precise detail work
- 127 mm glass lens for a clear image
- 6W white LED lighting with 60 SMD diodes
- 900 mm articulated arm for flexible adjustment
- Easy clamping to the edge of the table
- Vertical and horizontal lamp adjustment
- Protective lens cover against dust
- Ergonomic grip for easy handling
- Ideal for electronics, soldering and precision work
- 12-month warranty
Customer Questions & Answers
Is the integrated LED lamp dimmable, or does it always run at full power?
The magnifier has 6W LED lighting with 60 SMD diodes, but according to the available specifications it does not have brightness adjustment, so it operates at a fixed full power setting from the factory.
What are the exact electrical requirements, and what happens if it is used in countries with a different voltage?
This model requires a 220 V AC, 50 Hz supply. Using it in regions with different voltages (for example, 110 V) would require a compatible voltage converter; otherwise, the electronics may be damaged or the unit’s service life may be reduced.
What exactly is included in the box, and what tools do I need for desk mounting?
The box includes the magnifier with articulated arm, the integrated LED lamp, a protective lens cover and the desk-edge clamp mounting system. No additional tools are required beyond manually tightening the clamp.
Are spare parts available for the lens or LEDs in case of wear, and what is the warranty policy?
The manufacturer offers a 12-month warranty. However, no direct spare parts are specified for the lens or LEDs; these components usually require specialist technical support and are not modular for easy user replacement.
What level of magnification does this magnifier have?
The magnifier offers 5x optical magnification (5 dioptres), ideal for detailed electronics and soldering work.
What type of lighting does the magnifier use?
It uses white LED lighting with a power of 6W and 60 SMD diodes for even, bright light.
How is the magnifier attached to the table?
The magnifier is easily clamped to the edge of the table using a fastening system that ensures stability during use.
Can the position of the magnifier be adjusted?
Yes, it has a 900 mm articulated arm that allows the magnifier to be positioned freely and an adjustable lamp head in vertical and horizontal planes.
Does the magnifier have lens protection?
Yes, it includes a protective cover to cover the lens and protect it from dust when not in use.
