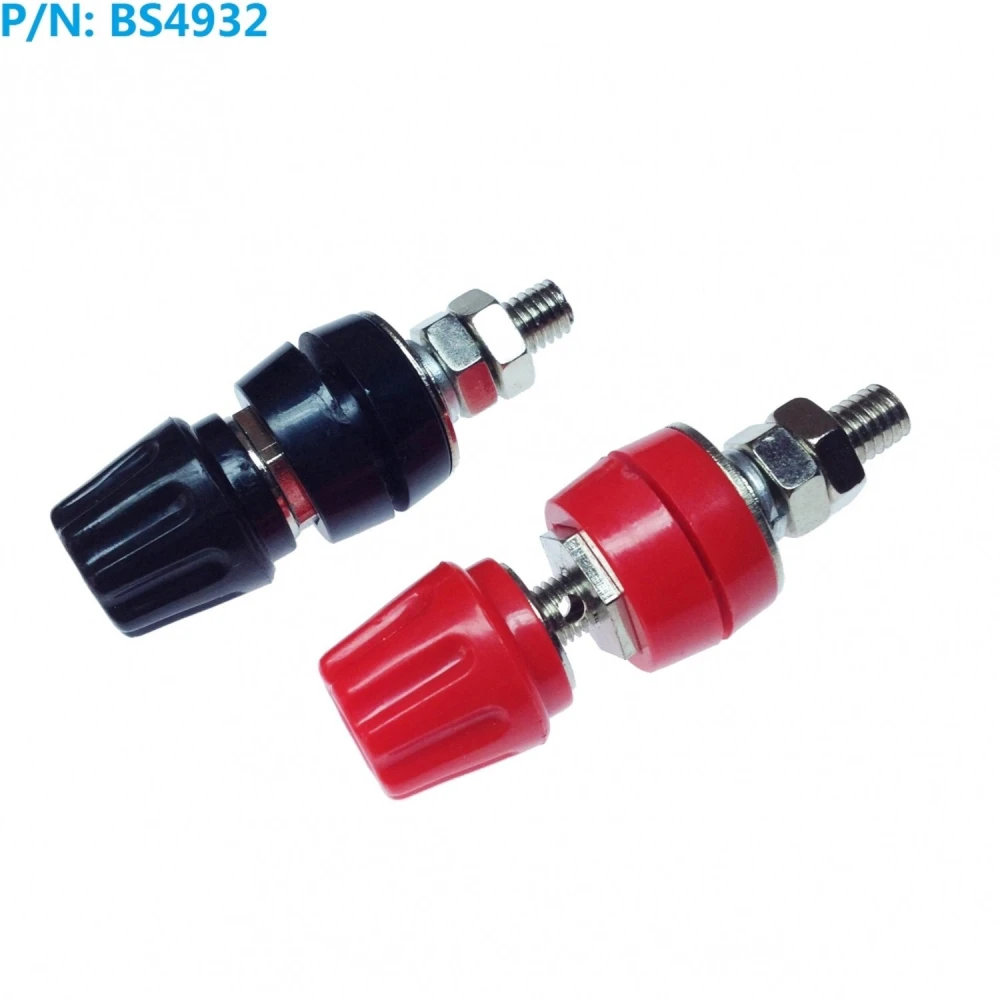

4mm Female Red Black Terminals 60V 50A Pack of 2 Amass for Panel

This pack of 4 mm female terminals is suitable for panel installations that need fast and reliable connections in measuring equipment, power supplies or electronics labs. Its main benefit is the ability to handle up to 60 V DC or 30 V AC and 50 A, allowing high currents in educational, industrial and prototyping applications.

The main difference is its current limit (50 A) and voltage rating (60 V DC/30 V AC), making it suitable for higher-power applications than standard 10-30 A models. The 4 mm female banana design is widely accepted. If reinforced insulation, IP protection or high-frequency capability is needed, there are specialist alternatives, but for DC panel connections this option offers a favourable balance of cost and performance.

These terminals are used to make secure electrical connections in panels and measuring equipment, making polarity identification easier with their red and black colours.

They support up to 50 amperes of maximum current and a voltage of 30 V in alternating current and 60 V in direct current.

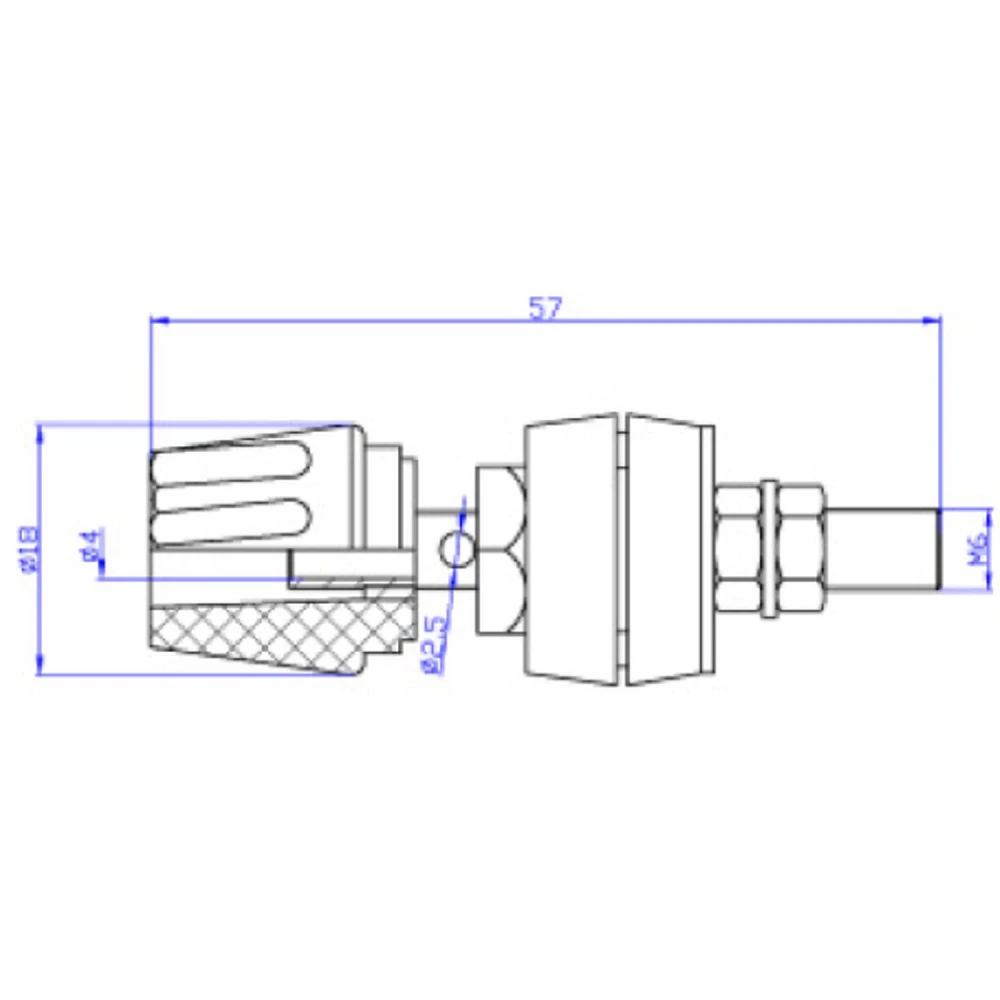

A hole with a diameter of 11.8 mm is required in the panel to mount the terminals, which are inserted and secured to ensure a stable connection.

Yes, they are compatible with multimeters and other measuring instruments that use 4 mm female connectors.

The difference is the type of current they support: 30VAC is for alternating current and 60VDC is for direct current, with the latter generally being safer for electronic applications.
