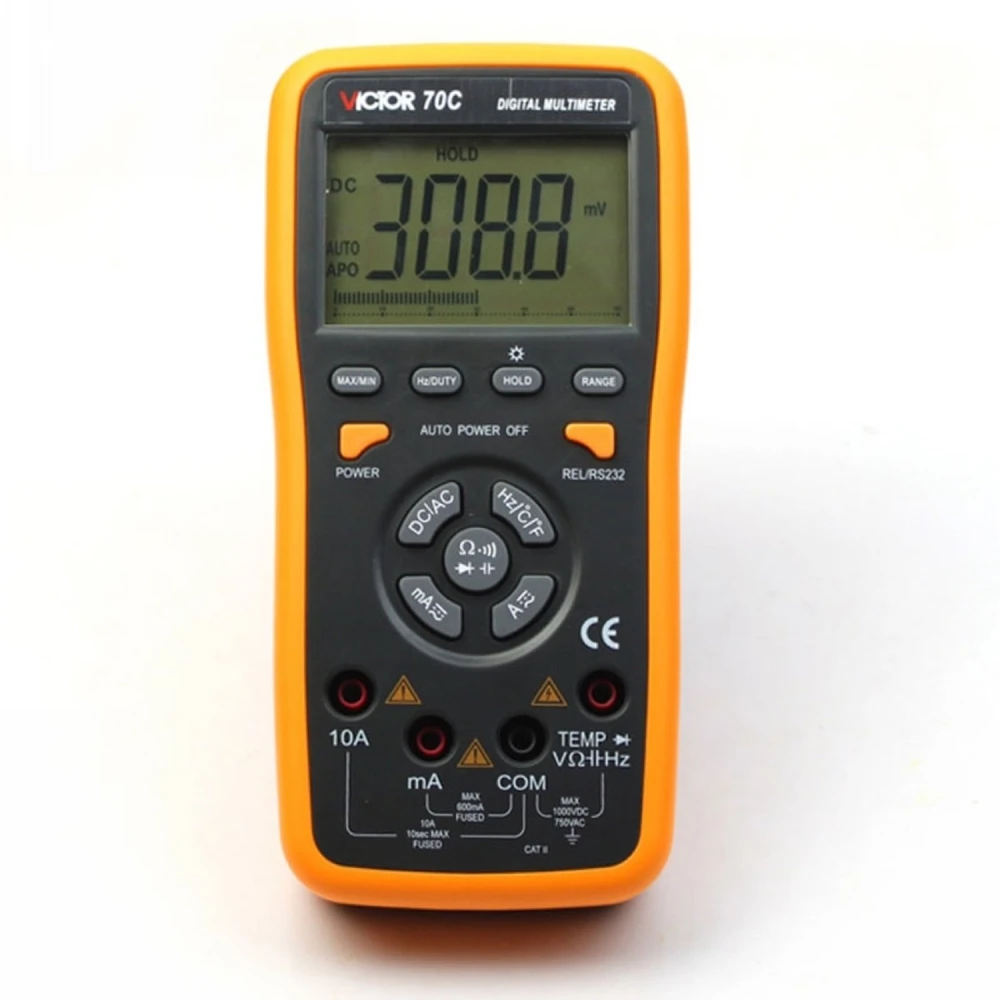

Victor 70C Auto-Ranging Digital Multimeter with USB PC Connection

The Victor 70C Auto-Ranging Digital Multimeter is an essential tool for electronics professionals and hobbyists who need accurate and reliable measurements. This device measures voltage and current in both alternating current (AC) and direct current (DC), as well as capacitance, resistance, frequency and temperature, covering a wide range of applications.

Thanks to its auto-ranging function, the Victor 70C makes measuring easier without the need to manually select the range, speeding up work and reducing errors. Its large LCD display (70 × 50 mm) provides clear and comfortable viewing even in low-light environments or in the field.

One of its most notable features is its ability to connect to a PC via USB, allowing data to be recorded, processed and analysed with the software included on the CD. This is especially useful for diagnostic and maintenance tasks where detailed tracking of measurements is required.

Key technical specifications:

• Dimensions: 200 x 90 x 45 mm
• Auto-ranging with shockproof protection
• Input impedance: 10M Ω
• DC voltage measurement: 400mV to 1000V ± (0.5% + 4)
• AC voltage measurement: 400mV to 750V ± (0.8% + 10)
• DC and AC current measurement: 30mA, 300mA, 10A ± (1.5% + 10)
• Resistance measurement: 400 Ω to 40M Ω ± (0.8% + 4)
• Capacitance: 4nF to 200μF ± (3.5% + 8)
• Frequency: 100Hz to 30MHz ± (0.5% + 10)
• Temperature measurement: -20ºC to +1000ºC
• Additional functions: continuity test with buzzer, diode test, data hold

Includes:

• User manual
• Test leads
• Temperature probe
• 2 AAA 1.5V batteries
• CD with software for data logging and analysis (version 3.0 recommended)
• USB cable for PC connection

Typical use and compatibility:

This multimeter is ideal for electronics technicians, engineers and hobbyists working on diagnosis, repair and maintenance of electrical and electronic circuits. Its USB connection and software make it easy to analyse measurements on a PC, helping with documentation and test tracking. It is compatible with Windows systems that support the supplied software.

Important notes:

• The software is required for reading and analysing data on a PC; it does not work as a standard plug-and-play USB device.
• The recommended software version is 3.0, included on the CD or available for download.
• The meter does not use a traditional RS232 interface, but a proprietary USB connection.

In summary, the Victor 70C Auto-Ranging Digital Multimeter is a versatile and accurate tool, perfect for anyone who needs to carry out complex measurements and detailed analysis with the convenience of PC connectivity.

• Auto-ranging for fast and accurate measurements
• Large 70 × 50 mm LCD display for easy reading
• Measures voltage, current, resistance, capacitance, frequency and temperature
• USB PC connection with included software for data analysis
• Continuity test, diode test and data hold functions
• Shockproof protection and high input impedance (10M Ω)
• Includes test leads, temperature probe, batteries, software CD and USB cable
